ATXPOW300PFC
Main Image

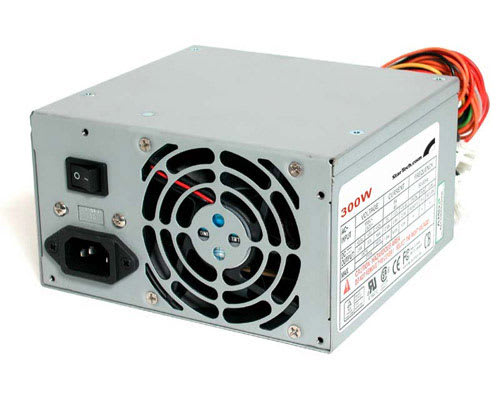

Product Name 300 Watt ATX P4 Power Supply with PFC Product Number ATXPOW300PFC UPC 065030794497 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Long) 300 Watt ATX12V P4 Power Supply with Active PFC and 20 to 24 ATX PSU Pin Adapter Bullet 1 Maximum output power of 300 watts Bullet 2 Power Factor Correction (PFC) efficiently distributes current and reduces stress on wiring, circuit breakers, and transformers Bullet 3 High quality connectors provide minimal resistance and enhanced electric conductivity Bullet 4 Additional power connectors are provided to connect several drives Bullet 5 High-Flow fan provides efficient cooling for the system and power supply Marketing Copy Designed for the European Market - a ultra reliable power supply with Power Factor Correction. Replace that older or non-functioning power supply with StarTech.com’s ATXPOW300PFC 300 watt power supply. The ATXPOW300PFC is guaranteed compatible with Intel Pentium and AMD processors and designed for an extra long-life in personal and industrial computers. It’s even AMD Recommended to guarantee processor compatibility. The ATXPOW300PFC power supply ensures stable system performance, using an automatic temperature control fan to move hot air away from sensitive components. A superior power filtration system is achieved through an EMI/RFI power filter. Low noise/ripple as well as short circuit protection are additional reasons why the ATXPOW300PFC is the ultimate power supply for system stability. Applications - Provides extra power capacity for PC servers with several hard drives
- Provides the extra current required by 1 GHz and faster CPUs
- Provides extra power required by leading edge 3D video accelerator cards
- Provides extra current and power capacity for overclocking CPUs
Accessory Products - ATXPOWEXT
- PYO2S
- PXT101UK
- PYO2L
- PYO2SL
- ATX2024FM
- SATAPOWADAP
- LP4PCIEXADAP
- PYO2LP4SATA
Related Products ATXPOW450PFC Input Voltage - 230 AC
- 115V AC
Material Steel Operating Temperature 40 @ 90% Load Product Weight (g) 1429 Storage Temperature -20 ~ 80 TAA Compliant No Air Flow Rate 32.3 CFM MTBF (hours) 40,000 Hours Noise Level 27.4 dBA Fan Bearing Type Sleeve Bearing Fans 1 - 80 mm Carton Depth (mm) 510 Carton Height (mm) 340 Carton Quantity 10 Carton Weight Gross (g) 20094 Included in Package - 1 - 300 Watt ATX P4 Power Supply with PFC
- 1 - Manual
- 1 - Should contain PXT101UK
Package Depth (mm) 92 Package Height (mm) 160 Package Width (mm) 237 Package Weight (g) 1960 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 6 Connector 2 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 2 Connector 3 ATX Power (20-Pin, 3.3V / 5V / 12V) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
