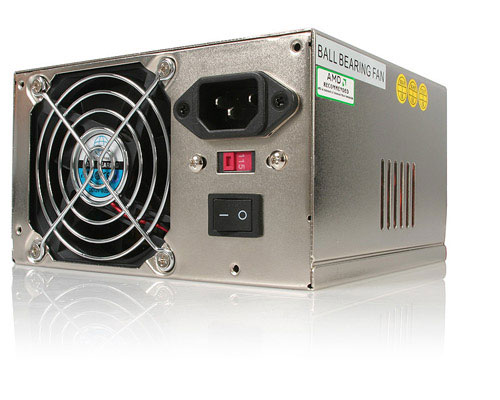

400 Watt Prof ATX Power Supply

Main Image

Product Name	400 Watt Prof ATX Power Supply
Product Number	ATXPOW400PRO
UPC	065030787611
Lifecycle status	Discontinued
Warranty	3 Years
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	XXXXXX097X

Manual https://images.salsify.com/image/upload/s--4olzQXkG--/1ad00f9e4856ee6819c0afa3c02c29d432976c74.pdf

Product Title (Long)	Professional 400 Watt ATX12V PC Power Supply with 20 to 24 ATX PSU Pin Adapter
Bullet 1	Provides a maximum output power of 400 watts
Bullet 2	High flow fan provides efficient cooling for the system and the power supply
Bullet 3	Ball Bearing temperature controlled smart fan provides increased reliability, air flow and longer life
Bullet 4	Additional power connectors are provided to connect several drives
Bullet 5	TX3 Fan sensor connector allows the fan speed and operation status to be monitored thru the system bios
Marketing Copy
Applications	Provides extra power capacity for PC servers with several hard drives Offers extra current required by 2 GHz and faster CPUs Provides additional current and power capacity for overburdened CPUs Provides extra power required by leading edge 3D video accelerator cards

Accessory Products
PYO2SL
PYO2S
PYO2L
PXT101
ATXPOWEXT
ATX2024FM
LP4PCIEXADAP
Related Products ATXPOWER400
Input Current 4 to 8
Input Voltage
115V AC
230 AC
Material Nickel-plated Steel
Operating Temperature 0 ~ 50
Product Length (mm) 150
Product Width (mm) 149
Product Height (mm) 85
Product Weight (g) 2080
Storage Temperature -20 ~ 80
TAA Compliant No
Air Flow Rate 39.8 CFM
General Specifications Hold-Up Time: < 16 ms @ full load
MTBF (hours) 100,000 Hours
Noise Level 32.6 dBA
Fan Bearing Type Ball Bearing
Fans 1 - 80 mm

Carton Depth (mm)	520
Carton Height (mm)	372
Carton Quantity	8
Carton Weight Gross (g)	18880
Included in Package	1 - 400 Watt Professional ATX Power Supply
Package Depth (mm)	96
Package Height (mm)	164
Package Width (mm)	236
Package Weight (g)	2210
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Accessory Products	PYO2SL PYO2S PYO2L PXT101 ATXPOWEXT ATX2024FM LP4PCIEXADAP
Related Products	ATXPOWER400

Input Current	4 to 8
Input Voltage	115V AC 230 AC
