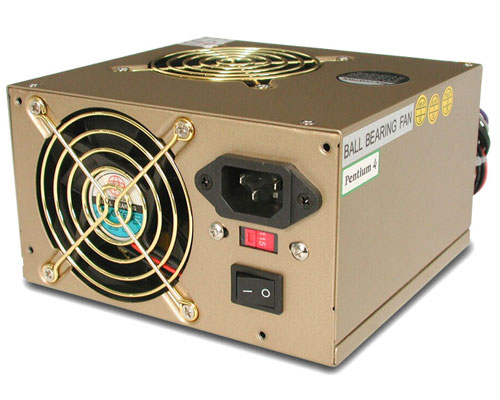

500 Watt ATX12V P4 Power Supply - 2 Fans

Main Image

Product Name	500 Watt ATX12V P4 Power Supply - 2 Fans
Product Number	ATXPOW500DF
UPC	065030802383
Lifecycle status	Discontinued
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	XXXXXX097X

Manual https://images.salsify.com/image/upload/s--al7KodDp--/cb2f2415cc7889def9f971cb9f37e7585c6bee17.pdf

Product Title (Long)	500 Watt ATX12V P4 Power Supply - 2 Fans and 20 to 24 ATX PSU Pin Adapter
Bullet 1	Provides a maximum output power of 500 watts
Bullet 2	2 ball bearing fans deliver efficient cooling for the entire system
Bullet 3	Temperature controlled smart fans provide increased reliability and air flow
Bullet 4	Includes power connectors for Serial ATA Devices
Bullet 5	TX3 Fan sensor connector allows monitoring of fan status via system BIOS
Marketing Copy
Applications	Provides sufficient power for PCs and servers with multiple hard drives Provides the additional current demands of 3 GHz and faster CPUs Provides the extra power required by leading edge 3D video accelerator cards

Accessory Products
PSUSEAL
ATX2024FM
LP4PCIEXADAP
SATAPOWADAP
PYO2LP4SATA
Input Voltage 115/230
Product Length (mm) 150
Product Width (mm) 149
Product Height (mm) 85
Product Weight (g) 2540
TAA Compliant No
General Specifications Enclosure Color: Gold
MTBF (hours) 100,000 Hours
Fan Bearing Type Ball Bearing
Fans 2 - 80 mm

General Specifications	Enclosure Color: Gold
MTBF (hours)	100,000 Hours

Fan Bearing Type	Ball Bearing
Fans	2 - 80 mm
