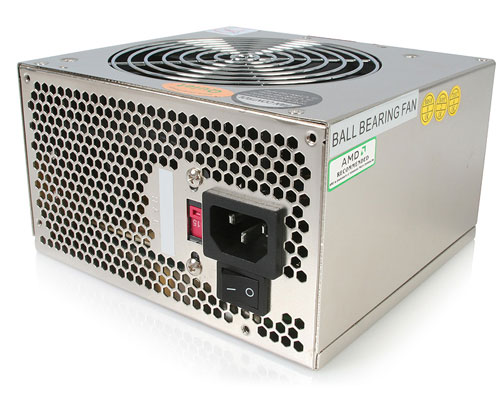

ATXPOW500PRO
Main Image
Product Name 500W ATX12V P4 Compatible Power Supply Product Number ATXPOW500PRO UPC 065030795944 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Long) 500W ATX12V P4 Compatible Power Supply with 20 to 24 ATX PSU Pin Adapter Bullet 1 Provides maximum output power of 500 watts Bullet 2 Dual ball bearing fan delivers efficient cooling for the entire system Bullet 3 Temperature controlled smart fan provides increased reliability and air flow Bullet 4 Includes power connectors for Serial ATA Devices Bullet 5 TX3 Fan sensor connector allows monitoring of fan status via system BIOS Marketing Copy Applications - Provides sufficient power for PCs and servers with multiple hard drives
- Provides the additional current demands of 3 GHz and faster CPUs
- Provides the extra power required by leading edge 3D video accelerator cards
Accessory Products - ATXPOWEXT
- PXT101
- PYO2L
- PYO2S
- PYO2SL
- ATX2024FM
- LP4PCIEXADAP
- SATAPOWADAP
- PYO2LP4SATA
Related Products ATXPOW400PRO Input Current 10~5 Input Voltage 115/230 Product Length (mm) 150 Product Width (mm) 140 Product Height (mm) 85 Product Weight (g) 2540 TAA Compliant No General Specifications Enclosure: Silver (Nickel Plated) MTBF (hours) 100,000 Hours Fan Bearing Type Ball Bearing Fans 1 - 80 mm Carton Depth (mm) 265 Carton Height (mm) 304 Carton Quantity 10 Carton Weight Gross (g) 24000 Package Depth (mm) 95 Package Height (mm) 162 Package Width (mm) 237 Package Weight (g) 2280 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 7 Connector 2 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 2 Connector 3 ATX Power (20-Pin, 3.3V / 5V / 12V) Connector 3 (Quantity) 1 Connector 4 ATX Power (4-Pin, 12V, 192W) Connector 4 (Quantity) 1 Connector 5 ATX AUX Power (6-Pin, 3.3V / 5V) Connector 5 (Quantity) 1 Connector 6 SATA (7-Pin) Connector 6 (Quantity) 2 Connector 7 Fan TX3 (3-Pin, 12V) Connector 7 (Quantity) 1 Connector 8 Fan TX3 (3-Pin, 12V) Connector 8 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
