ATXPOWER250B
Main Image

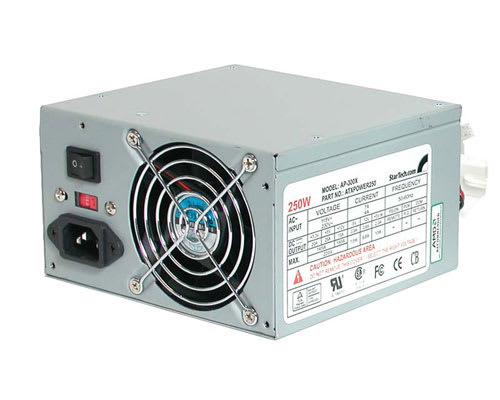

Product Name 10 pc. Bulk Pack ATXPOWER250 PSUs Product Number ATXPOWER250B UPC 065030799812 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Long) 10 pc. Bulk Pack ATXPOWER250 PSUs Bullet 1 Maximum output power of 250 watts Bullet 2 High quality connectors provide minimal resistance and enhanced electric conductivity Bullet 3 High-Flow fan provides efficient cooling for the system and power supply Bullet 4 Superior EMI/RFI power filtration system provide low noise/ripple for super clean and stable power to all system components Bullet 5 Quad Protection Plus: Short Circuit Protection, Over Voltage Protection, Over Load Protection, Over Current Protection, and No Load Operation. Marketing Copy Applications - Replacement for standard 250W ATX12V Power Supplies
Website Search Keyword - Gateway eMachines
- Bestec ATX-250-12E ATX-300-12E
Accessory Products - ATXPOWEXT
- PXT101
- PYO2L
- PYO2S
- PYO2SL
- PSUSEAL
- ATX2024MF
- SATAPOWADAP
- LP4PCIEXADAP
- PYO2LP4SATA
Related Products - ATXPOW250PRO
- ATXPOW300PRO
- ATXPOW300RD
- ATXPOW450PRO
- ATXPOWER300
- MICATXPOW145
TAA Compliant No General Specifications - Output Power: 250W
- Weight: Carton 38.5 lbs
- Dimensions: Carton 470 x 170 x 450 mm
- MTBF: 40,000 Hours
- Connectors: 4 x 4-pin-LP4-female
- : 1 x small-internal-power
- : 1 x 20-pin-ATX-motherboard-adapter
- AC INPUT: 115V(7A) 230V(4A)
- Frequency: 50~60Hz
- DC OUTPUT: +3.3V(15A)
- : +5V(23.5A)
- : +12V(9.5A)
- : -5V(0.5A)
- : -12V(0.5A)
- : +5VSB(1.5A)
- Safety Approvals: TUV, UL, CSA, FCC & CB
Fans 1 - 80 mm Carton Depth (mm) 475 Carton Height (mm) 176 Carton Quantity 1 Carton Weight Gross (g) 18950 Included in Package - 10 - 10 Pcs. ATXPOWER250 Power Supply
- 10 - 10 Power Cords
Package Depth (mm) 475 Package Height (mm) 176 Package Width (mm) 446 Package Weight (g) 17750 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (20-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 4 Connector 3 ATX AUX Power (6-Pin, 3.3V / 5V) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
