Main Image
ATXPOWER300

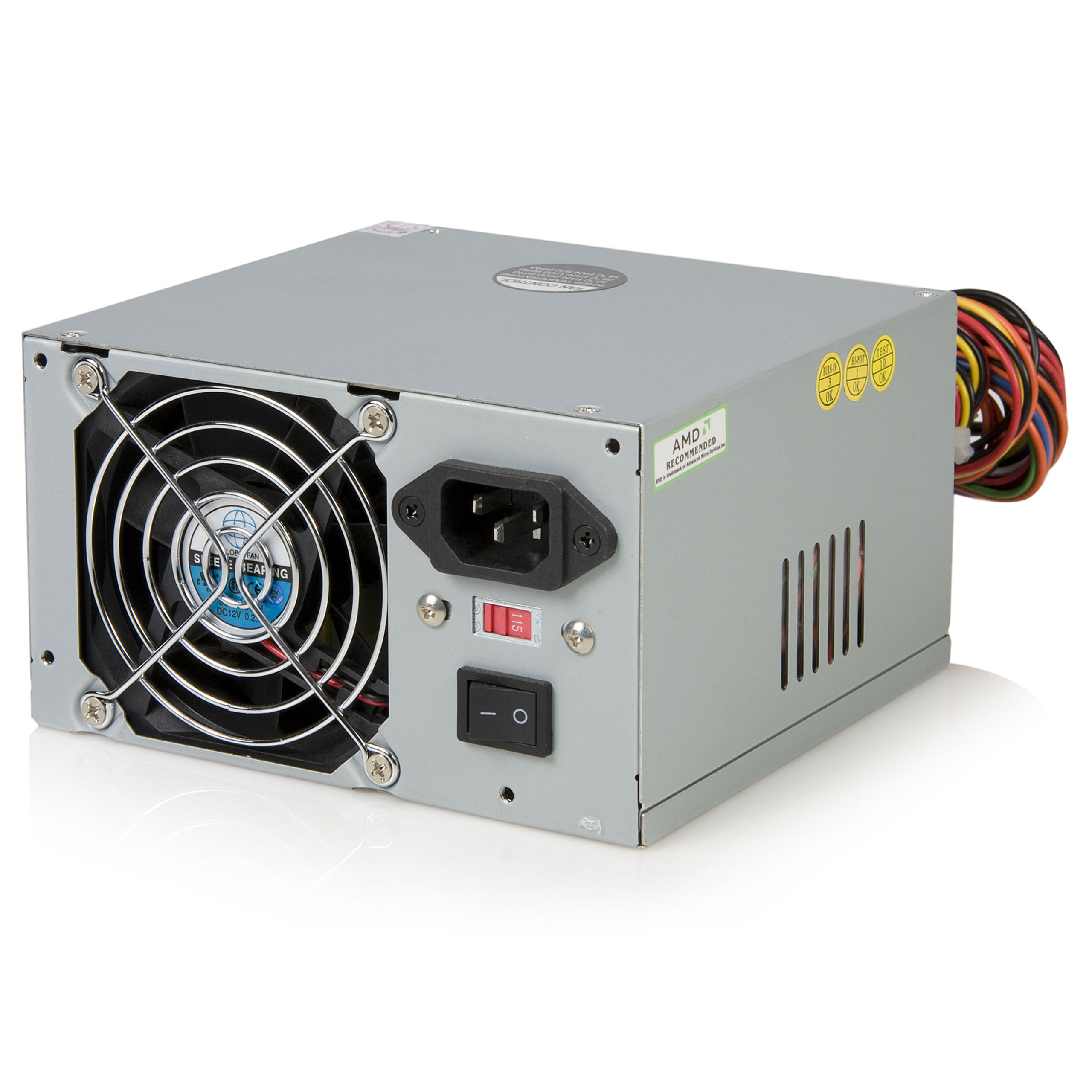

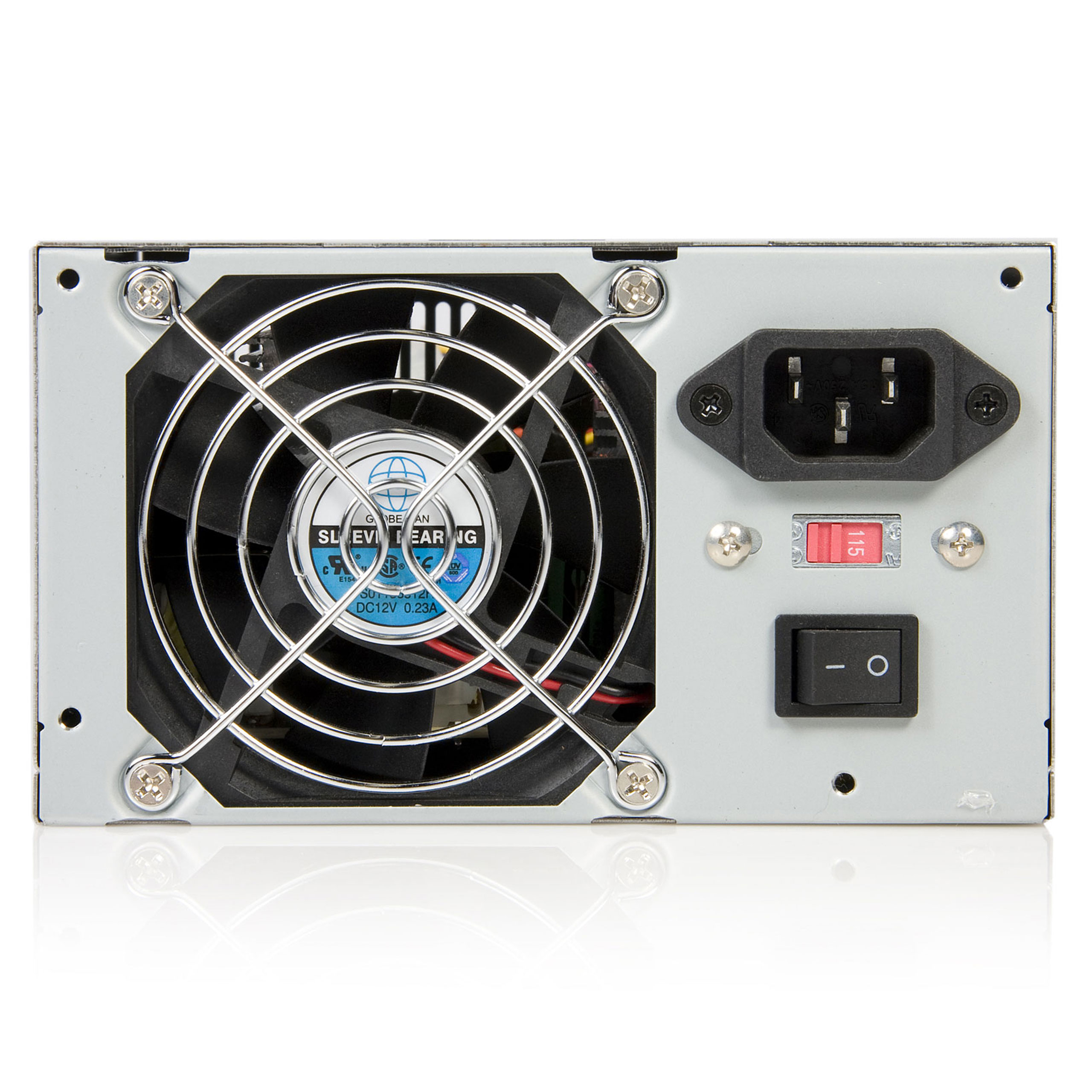

300 Watt Replacement ATX Power Supply
Replace or upgrade to a 300W power supply for a standard ATX computer
Main Image
Product Images
Product Images
BOM Image
Product Name 300 Watt Replacement ATX Power Supply Product Number ATXPOWER300 UPC 065030786201 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Power Supplies Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) 300W ATX Computer Power Supply Product Title (Standard) StarTech.com Computer Power supply ( internal ) - ATX - AC 115/230 V - 300 Watt - 9 output connector(s) Product Title (Long) 300 Watt ATX Replacement Computer PC Power Supply Product Title (AMZ) Computer Power supply ( internal ) - ATX - AC 115/230 V - 300 Watt - 9 output connector(s) (ATXPOWER300) Title Ingram (Part 1) 300 Watt ATX Replacement Compute Title Ingram (Part 2) r PC Power Supply Website Product Headline Replace or upgrade to a 300W power supply for a standard ATX computer Bullet 1 Provides a maximum output power of 300 watts Bullet 2 High-Flow fan provides efficient cooling for the system and power supply Bullet 3 High quality connectors provide minimal resistance and enhanced electric conductivity Bullet 4 Premium EMI/RFI power filtration system provides low noise/ripple for super clean and stable power to all system components Bullet 5 ATX version 2.03 and ATX12V compliant Bullets (Consolidated) Replace or upgrade to a 300W Power Supply for a standard ATX computer - 300w ATX Power Supply - 300 Watt ATX Power Supply - 300w ATX PSU - 300w Power Supply - 300 Watt ATX12v Power Supply - 20-pin ATX power connector and 6-pin AUX power connector Marketing Copy Applications - Replacement for standard 250W & 300W ATX12V Power Supplies
Website Search Keyword - Gateway eMachines
- Bestec ATX-250-12E ATX-300-12E
- eMachine T2085
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
Accessory Products - ATXPOWEXT
- IPLEXT
- PYO2L
- PYO2S
- PYO2SL
- PXT101
- PSUSEAL
- LP4PCIEXADAP
- SATAPOWADAP
- PYO2LP4SATA
- ATX2024MF
Related Products - ATXPOW250PRO
- ATXPOW450PRO
- ATXPOWER250
- ATXPOW300PRO
- ATXPOW300RD
- MICATXPOW145

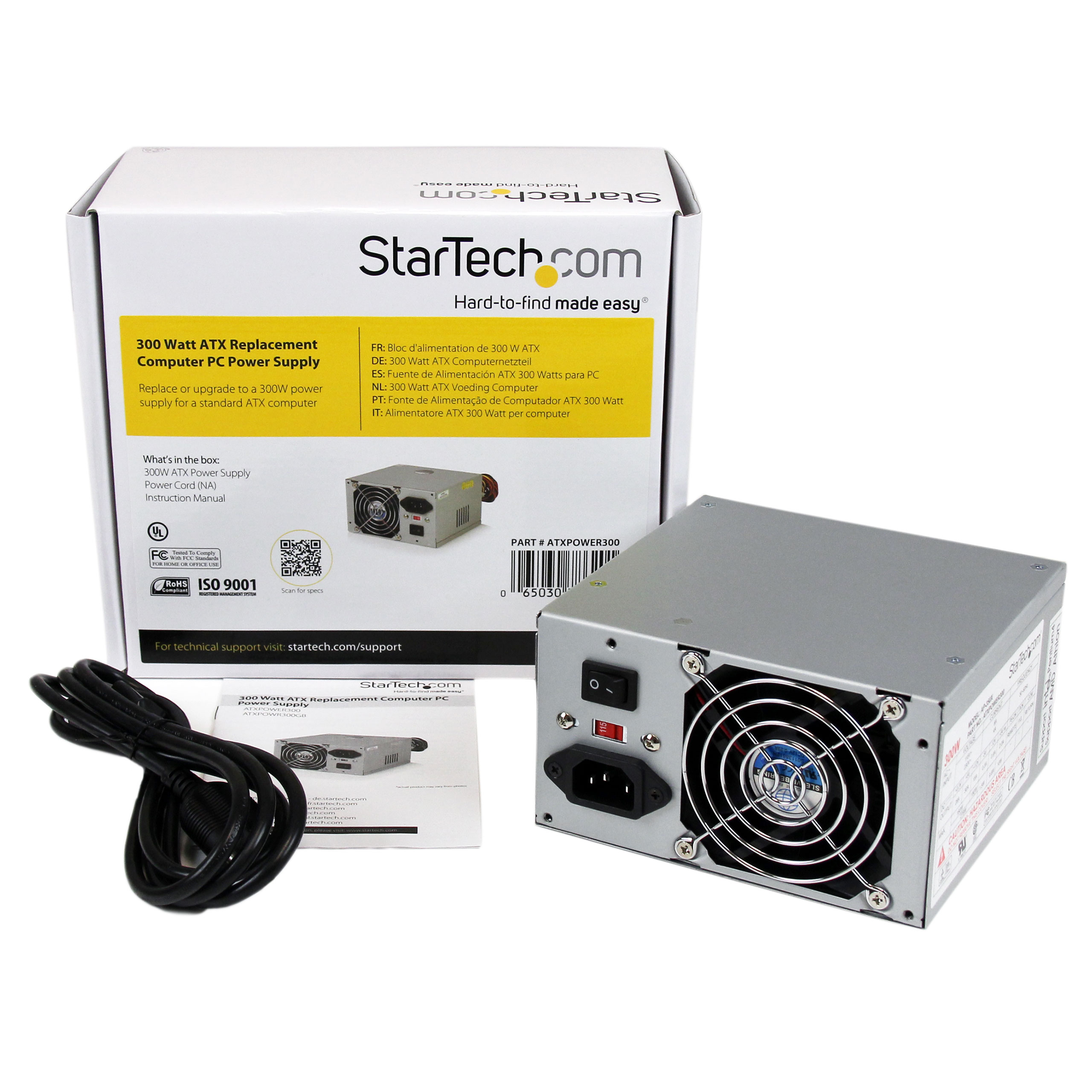

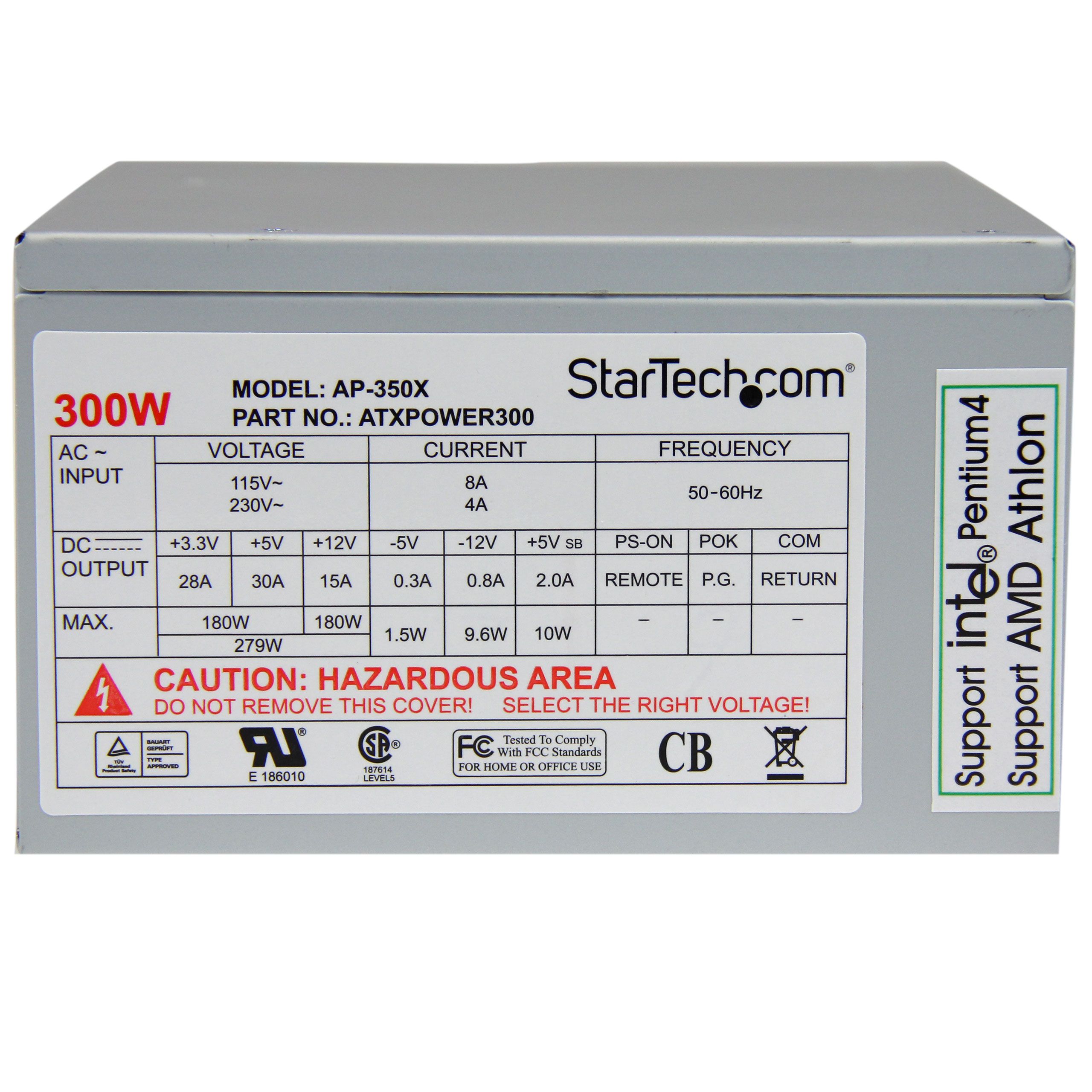

Input Current 8A ~ 4A Input Voltage 115~230 Operating Temperature 0 ~ 50 Product Length (mm) 150.000 Product Width (mm) 149.000 Product Height (mm) 85.000 Product Weight (g) 1449.000 Storage Temperature -20 ~ 80 TAA Compliant No Air Flow Rate 32.3 CFM MTBF (hours) 40,000 Hrs Noise Level 27.4 dBa RPM 3000 RPM +/-10% Fan Bearing Type Sleeve Bearing Fans 1 - 80 mm Carton Depth (mm) 255 Carton Height (mm) 428 Carton Quantity 10 Carton Weight Gross (g) 18945 Included in Package - 1 - 300W ATX Power Supply
- 1 - Power Cord (NA)
- 1 - Instruction Manual
Package Depth (mm) 237 Package Height (mm) 100 Package Width (mm) 204 Package Quantity 1 Package Weight (g) 1827 Packaging Description 300 Watt ATX Computer Power SUpply Packaging Description India 300 Watt ATX Computer Power SUpply Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 6 Connector 2 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 2 Connector 3 ATX Power (20-Pin, 3.3V / 5V / 12V) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 1 Connector 5 ATX Power (4-Pin, 12V, 192W) Connector 5 (Quantity) 1 Connector 6 ATX AUX Power (6-Pin, 3.3V / 5V) Connector 6 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
