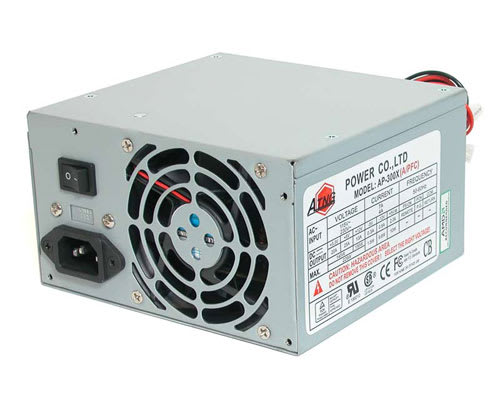

250 Watt ATX P4 Power Supply with PFC for UK

Main Image

Product Name	250 Watt ATX P4 Power Supply with PFC for UK
Product Number	ATXPOWR250GB
UPC	065030797290
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	China
Country of Origin North America	China

Manual https://images.salsify.com/image/upload/s--kUqjp_Gw--/6c3b353d7f70f38f3db29531fac4a078888e8fa9.pdf

Product Title (Long)	250 Watt ATX P4 Power Supply with PFC for UK
Bullet 1	Maximum output power of 250 watts
Bullet 2	Power Factor Correction (PFC) efficiently distributes current and greatly reduces stress on wiring, circuit breakers, and transformers
Bullet 3	High quality connectors provide minimal resistance and enhanced electric conductivity
Bullet 4	High-flow fan provides efficient cooling for the system and power supply
Bullet 5	Superior EMI/RFI power filtration system provide low noise/ripple for super clean and stable power to all system components
Marketing Copy	Designed for the European Market - a ultra-reliable power supply with Power Factor Correction. Replace that older or non-functioning power supply with StarTech.com’s ATXPOW250PFC 250 watt power supply. The ATXPOW250PFC is guaranteed compatible with Intel Pentium and AMD processors and designed for an extra long-life in personal and industrial computers. It’s even AMD Recommended to guarantee processor compatibility. The ATXPOW250PFC power supply ensures stable system performance, using an automatic temperature control fan to move hot air away from sensitive components. A superior power filtration system is achieved through an EMI/RFI power filter. Low noise/ripple as well as short circuit protection are additional reasons why the ATXPOW250PFC is the ultimate power supply for system stability.
Applications	Replacement of 250W ATX Power Supplies

Air Flow Rate	32.3 CFM
General Specifications	Output Power: 250W Weight: 3.95 lbs Dimensions: 5.9 x 3.35 x 5.87 Inches (150 x 85 x 149mm) MTBF: 40,000 Hours Connectors: 4 x 4-pin-LP4-female : 1 x small-internal-power : 1 x 20-pin-ATX-motherboard-adapter AC INPUT: 115V(7A) 230V(4A) Frequency: 50~60Hz DC OUTPUT: +3.3V(20A) : +5V(25A) : +12V(13A) : -5V(0.3A) : -12V(0.8A) : +5VSB(2.0A) Safety Approvals: TUV, UL, CSA, CE, FCC & CB
Noise Level	27.4 dBA

Accessory Products	ATXPOWEXT PXT101UK PYO2L PYO2S PYO2SL
Related Products	ATXPOWR300GB ATXPOWR450GB

Fan Bearing Type	Sleeve Bearing
Fans	1 - 80 mm
