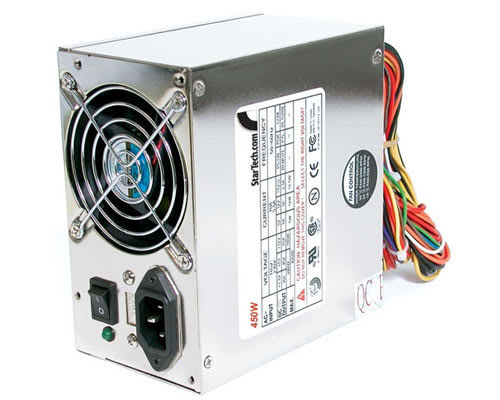

ATXPOWR450GB
Main Image
Product Name 450W ATX P4 Power Supply with PFC Product Number ATXPOWR450GB UPC 065030800723 Warranty 3 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 450W ATX P4 Power Supply with PFC Bullet 1 Maximum output power of 450 watts Bullet 2 Dual ball bearing temperature controlled smart fan provides increased reliability, air flow and longer life Bullet 3 High quality connectors provide minimal resistance and enhanced electric conductivity Bullet 4 Additional power connectors are provided to connect several drives Bullet 5 Superior EMI/RFI power filtration system provide low noise/ripple for super clean and stable power to all system components Marketing Copy Applications - Provides extra power capacity for PC servers with several hard drives
- Provides the extra current required by 1 GHz and faster CPUs
- Provides extra power required by leading edge 3D video accelerator cards
- Provides extra current and power capacity for overclocking CPUs
Accessory Products - ATXPOWEXT
- PXT101UK
- PYO2S
- PYO2L
- PYO2SL
Related Products - ATXPOWR250GB
- ATXPOWR300GB
TAA Compliant No General Specifications - Output Power: 450W
- Weight: 5.59 lbs
- Dimensions: 5.9 x 3.35 x 5.87 Inches (150 x 85 x 149mm)
- MTBF: 60,000 Hours
- Connectors: 8 x 4-pin-LP4-female
- : 3 x small-internal-power
- : 1 x 20-pin-ATX-motherboard-adapter
- : 1 x 4-pin extended ATX 12V power plug for Pentium 4
- : 1 Aux plug
- AC INPUT: (Voltage 115V~ Current 10A) (Voltage 230V~ Current 5A)
- Frequency: 50~60Hz
- DC OUTPUT: +3.3V(30A)
- : +5V(45A)
- : +12V(15A)
- : -5V(1A)
- : -12V(1A)
- : +5V(2.5A)
- Safety Approvals: TUV, UL, CSA, CE, FCC & CB
Fans 1 - 80 mm en-US Content Approved Yes
