Main Image
ATXPW300DELL
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images

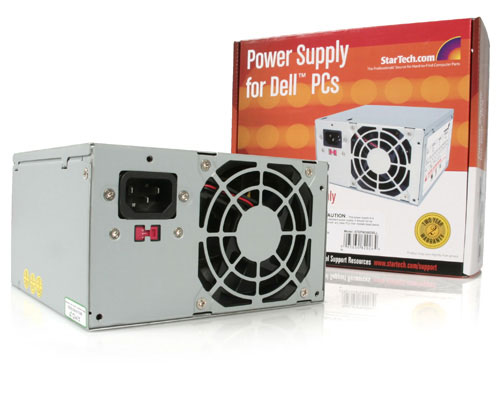

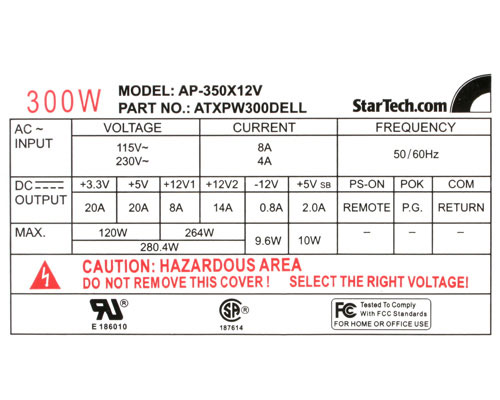

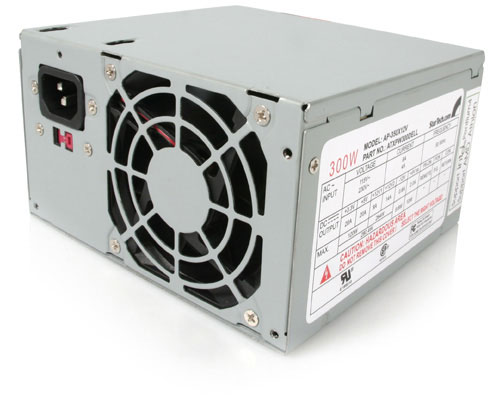

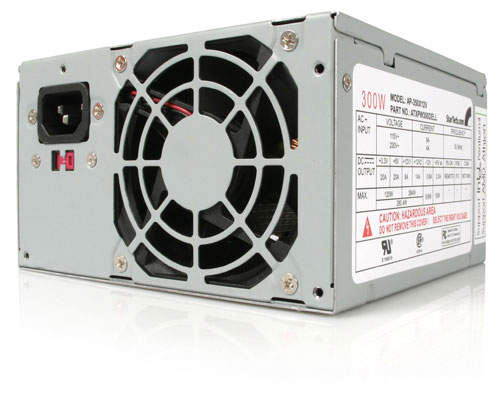

Product Name 300W ATX 12V 2.01 Dell Replacement Power Supply Product Number ATXPW300DELL UPC 065030820264 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) 300W ATX Dell Computer Power Supply Product Title (Standard) StarTech.com 300 Watt ATX12V 2.01 Dell Replacement Computer Power Supply - Power supply ( internal ) - ATX12V 2.01 - AC 115/230 V - 300 Watt - 11 output connector(s) Product Title (Long) 300 Watt ATX12V 2.01 Dell Replacement PC Computer Power Supply Title Ingram (Part 1) 300 Watt ATX12V 2.01 Dell Replac Title Ingram (Part 2) ement Computer Power Supply Bullet 1 ATX12V version 2.01 compliant Bullet 2 EMI/RFI power filtration system provides low noise/ripple for super clean and stable power to all system components Bullet 3 80mm fan provides efficient cooling for the system and the power supply Bullet 4 High quality connectors provide minimal resistance and enhanced electric conductivity Bullet 5 20/24 split motherboard connector Marketing Copy Applications Designed as ideal replacement or upgraded power supply for compatible proprietary Dell systems (see list in Overview) Website Search Keyword - replacement 300 watt power supply
- proprietary
- Dell Dimension 2100 4100 B1000R L Series V350 V400 XPS B Dxxx Mxxx P133c MT Pro 180n Rxxx Txxx
- Optiplex G1 GX1 GX110 GX115 GX300 Gxa Gxi
- Power Edge 2100 2200
- Precision Workstation 210 400
- power supplies
- poweredge
Accessory Products - PXT101
- PYO2L
- PYO2S
- PYO2SL
Related Products - ATX2POWER400
- ATX2POWER450

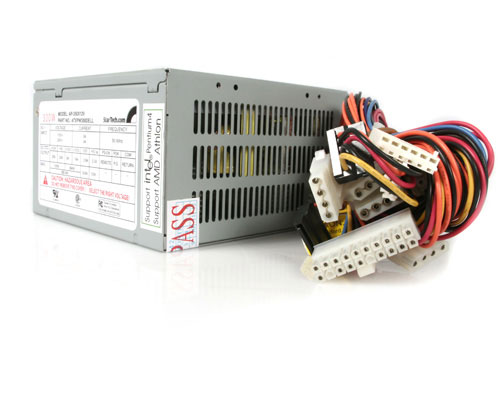

Input Current 8 ~ 4 Input Voltage 115 ~ 230 Operating Temperature 0° ~ 50° Product Length (mm) 140 Product Width (mm) 150 Product Height (mm) 86 Product Weight (g) 1860 Storage Temperature -20° ~ 80° TAA Compliant No Air Flow Rate 32.3 CFM General Specifications Zinc-plated casing MTBF (hours) 100,000 Hours Fan Bearing Type Sleeve Bearing Fans 1 - 80 mm Carton Depth (mm) 522 Carton Height (mm) 232 Carton Quantity 6 Carton Weight Gross (g) 13140 Package Depth (mm) 98 Package Height (mm) 216 Package Width (mm) 234 Package Weight (g) 1990 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 4 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 2 Connector 4 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 Connector 5 ATX AUX Power (6-Pin, 3.3V / 5V) Connector 5 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
