ATXPW350DELL
350 Watt ATX 2.01 Power Supply for Dell PC
Replace or upgrade to a 350W power supply for certain Dell computer systems
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 350 Watt ATX 2.01 Power Supply for Dell PC Product Number ATXPW350DELL UPC 065030826501 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Power Supplies Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) 350W ATX Dell Computer Power Supply Product Title (Standard) StarTech.com Power supply ( internal ) - ATX12V 2.01 - AC 115/230 V - Dell replacement - 350 Watt - 9 output connector(s) Product Title (Long) 350 Watt ATX12V 2.01 Dell Replacement Computer PC Power Supply Product Title (AMZ) 350 Watt ATX12V 2.01 Dell Replacement Computer PC Power Supply (ATXPW350DELL) Title Ingram (Part 1) 350 Watt ATX12V 2.01 Dell Replac Title Ingram (Part 2) ement Computer Power Supply Website Product Headline Replace or upgrade to a 350W power supply for certain Dell computer systems Bullet 1 ATX12V version 2.01 compliant Bullet 2 EMI/RFI power filtration system provides low noise/ripple for super clean and stable power to all system components Bullet 3 80mm fan provides efficient cooling for the system and the power supply Bullet 4 High quality connectors provide minimal resistance and enhanced electric conductivity Bullet 5 Our power supplies are compatible with many of latest Intel P4 and AMD processors Bullets (Consolidated) Replace or upgrade to a 350W Power Supply for certain Dell computer systems - Dell Desktop Power Supply - Dell ATX Power Supply - Dell Computer Power Supply - 300 Watt Dual 12V rail DC output - 20 and 24-pin ATX motherboard power connectors Marketing Copy Applications - Replacement 350W power supply, compatible with certain Dell PC’s(see model list on Overview page)
- Upgrade current Dell power supply for more power and support of upgraded 24-pin motherboards and SATA hard drives.
Website Search Keyword - Dell Dimension 3000 / 3100 / 4600 / 4700 / 9100 / E310 / E510
- Optiplex Series Models: GX280
- Power Edge Series Models: SC420
- Precision Workstation Series Model: Model 370.
- replacement 350 Watt power supply
- GX520
Accessory Products - PXT101
- PYO2L
- PYO2S
- PYO2SL
Related Products - ATXPW300DELL
- ATXPW400DELL
- ATX2POWER350
- ATX2POWR350E

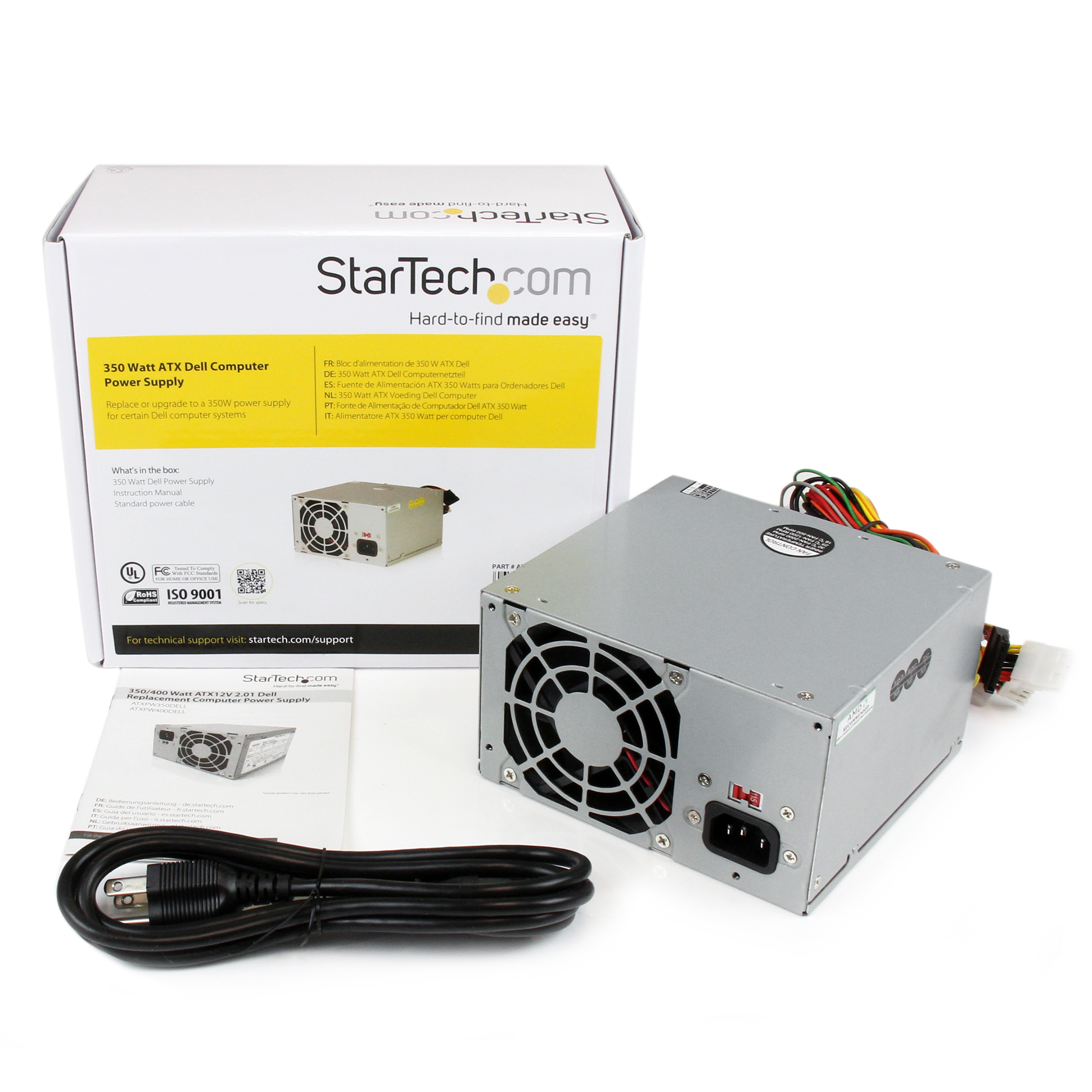

Input Current 8 ~ 4 A Input Voltage 115V-230V AC Material Zinc-Plated Casing Operating Temperature 0° ~ 50° Product Length (mm) 150 Product Width (mm) 140 Product Height (mm) 86 Product Weight (g) 1900 Storage Temperature -20° ~ 80° TAA Compliant No MTBF (hours) 100,000 Hours Fan Bearing Type Sleeve Bearing Fans 1 - 80 mm Carton Depth (mm) 522 Carton Height (mm) 232 Carton Quantity 6 Carton Weight Gross (g) 22400 Included in Package - 1 - 350 Watt Dell Power Supply
- 1 - Instruction Manual
- 1 - Standard power cable

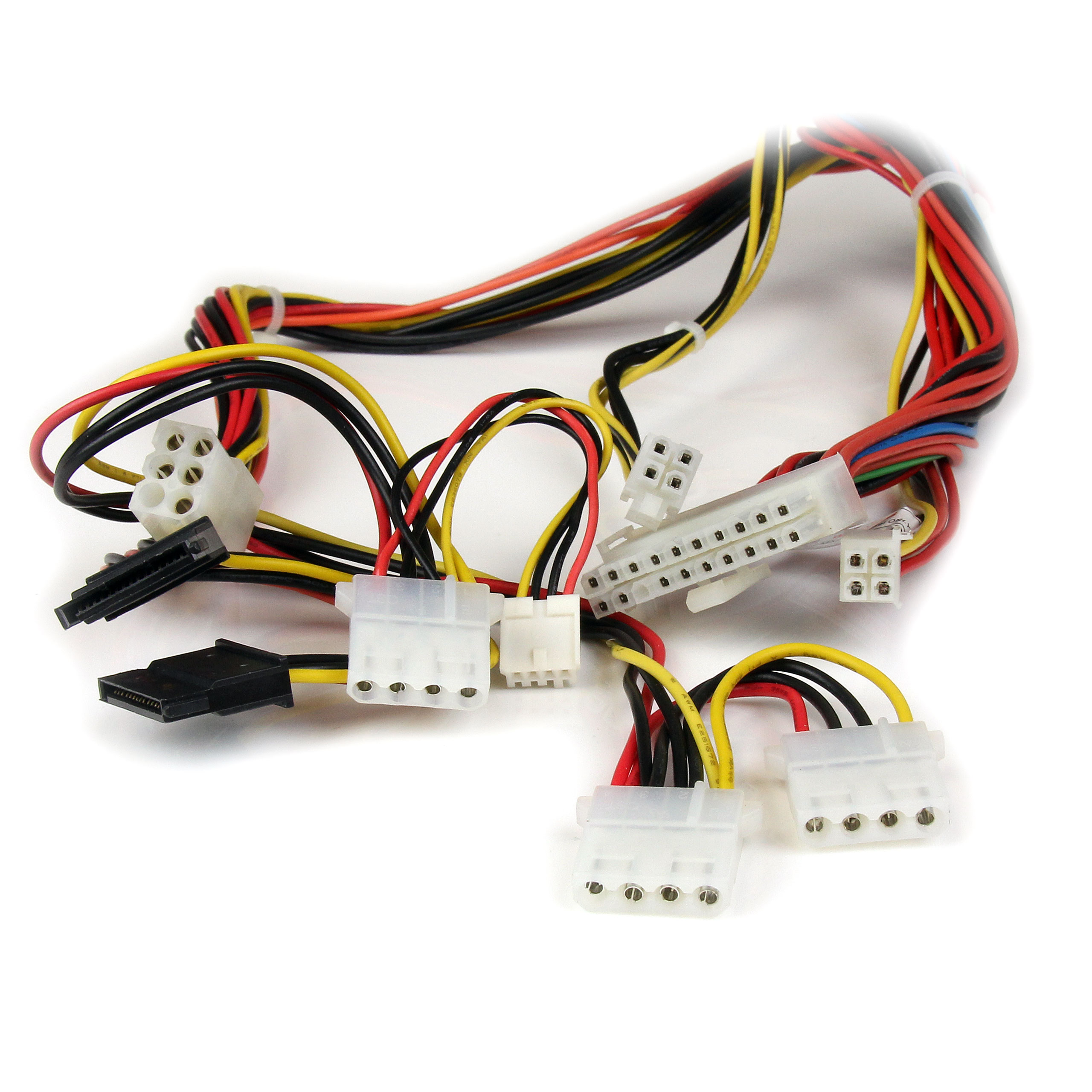

Package Depth (mm) 204 Package Height (mm) 100 Package Width (mm) 234 Package Quantity 1 Package Weight (g) 2120 Packaging Description 350 Watt ATX Dell Computer Power Supply Packaging Description India 350 Watt ATX Dell Computer Power Supply Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 3 Connector 3 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 2 Connector 5 ATX Power (4-Pin, 12V, 192W) Connector 5 (Quantity) 1 Connector 6 ATX AUX Power (6-Pin, 3.3V / 5V) Connector 6 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
