ATXPW400DELL

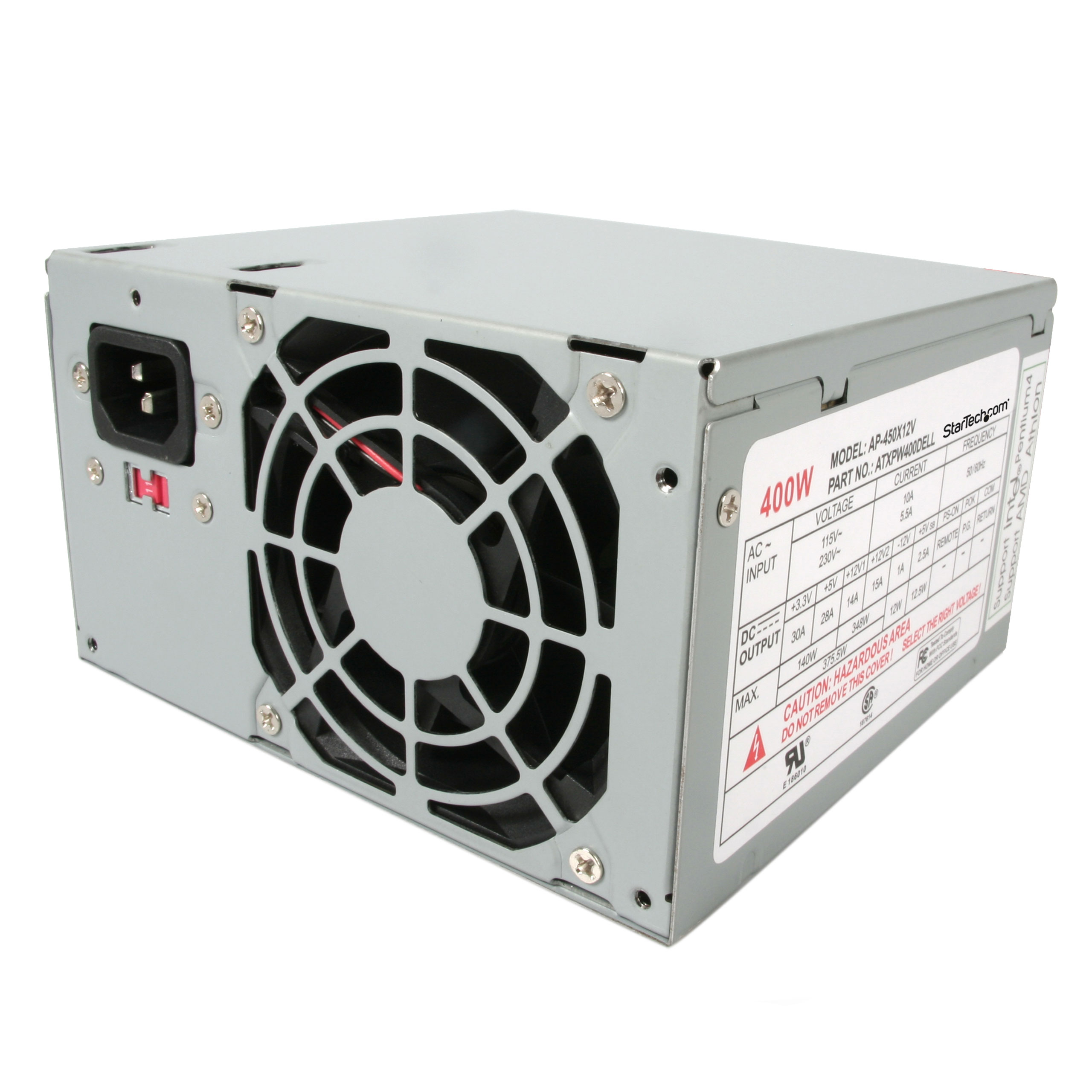

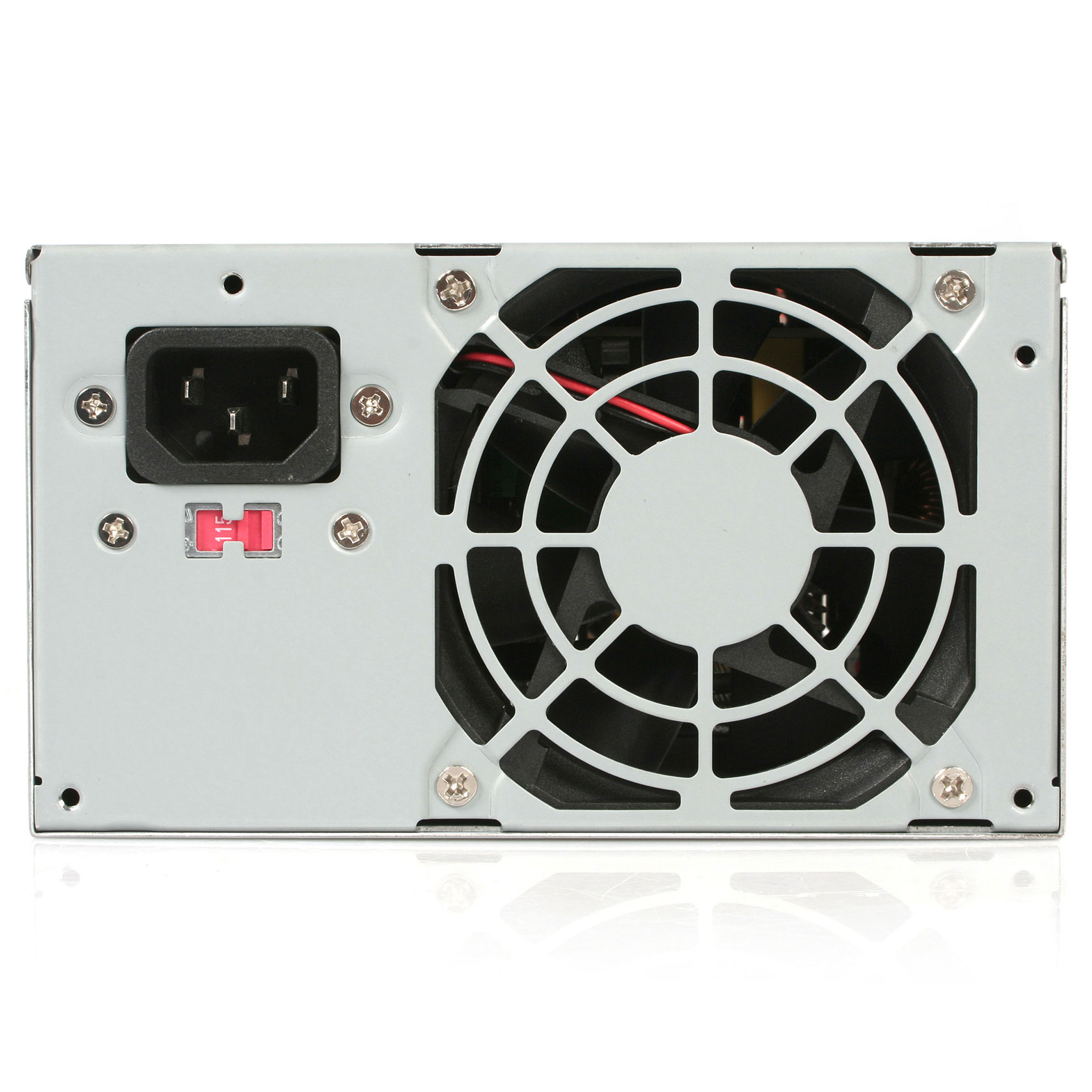

400W ATX 12V 2.01 Dell Replacement Power Supply
Replace or upgrade to a 400W power supply for certain Dell computer systems
Main Image
Product Images
Product Images
BOM Image
Product Name 400W ATX 12V 2.01 Dell Replacement Power Supply Product Number ATXPW400DELL UPC 065030820271 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Power Supplies Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) 400W ATX Dell Computer Power Supply Product Title (Standard) StarTech.com Computer Power supply ( internal ) - ATX12V 2.01 - AC 115/230 V - Dell Replacement - 400 Watt - 13 output connector(s) Product Title (Long) 400 Watt ATX12V 2.01 Dell Replacement Computer PC Power Supply Product Title (AMZ) 400 Watt ATX12V 2.01 Dell Replacement Computer PC Power Supply (ATXPW400DELL) Title Ingram (Part 1) 400 Watt ATX12V 2.01 Dell Replac Title Ingram (Part 2) ement Computer Power Supply Website Product Headline Replace or upgrade to a 400W power supply for certain Dell computer systems Bullet 1 ATX12V version 2.01 compliant Bullet 2 EMI/RFI power filtration system provides low noise/ripple for super clean and stable power to all system components Bullet 3 80mm fan provides efficient cooling for the system and the power supply Bullet 4 High quality connectors provide minimal resistance and enhanced electric conductivity Bullet 5 Our power supplies are compatible with many of latest Intel P4 and AMD processors Bullets (Consolidated) Replace or upgrade to a 400W power supply for certain Dell computer systems - Dell Desktop Power Supply - Dell ATX Power Supply - Dell Computer Power Supply - 400 Watt ATX12V 2.01 Dell Replacement Computer PC Power Supply Marketing Copy Applications - Replacement 400W power supply, compatible with many standard Dell ATX PC's (see model list on Overview page)
- Upgrade current Dell power supply for more power and support of upgraded 24-pin motherboards, SATA hard drives and PCI-E graphic card
Website Search Keyword - Dell Dimension 1100 2200 2300 2350 2400 4300 4400 4500 4550 8200 8250 8300 B100
- Dell Optiplex 170L GX60 GX150 GX240 GX260 GX270
- Dell Power Edge 400SC 600SC
- Precision Workstation Model 340
- Smart Step 100D 150D
- replacement 400 Watt power supply
- power supplies
- poweredge
- smartstep
Accessory Products - PXT101
- PYO2L
- PYO2S
- PYO2SL
Related Products - ATXPOW400PRO
- ATXPOWER400
- ATXPW300DELL
- ATXPW350DELL

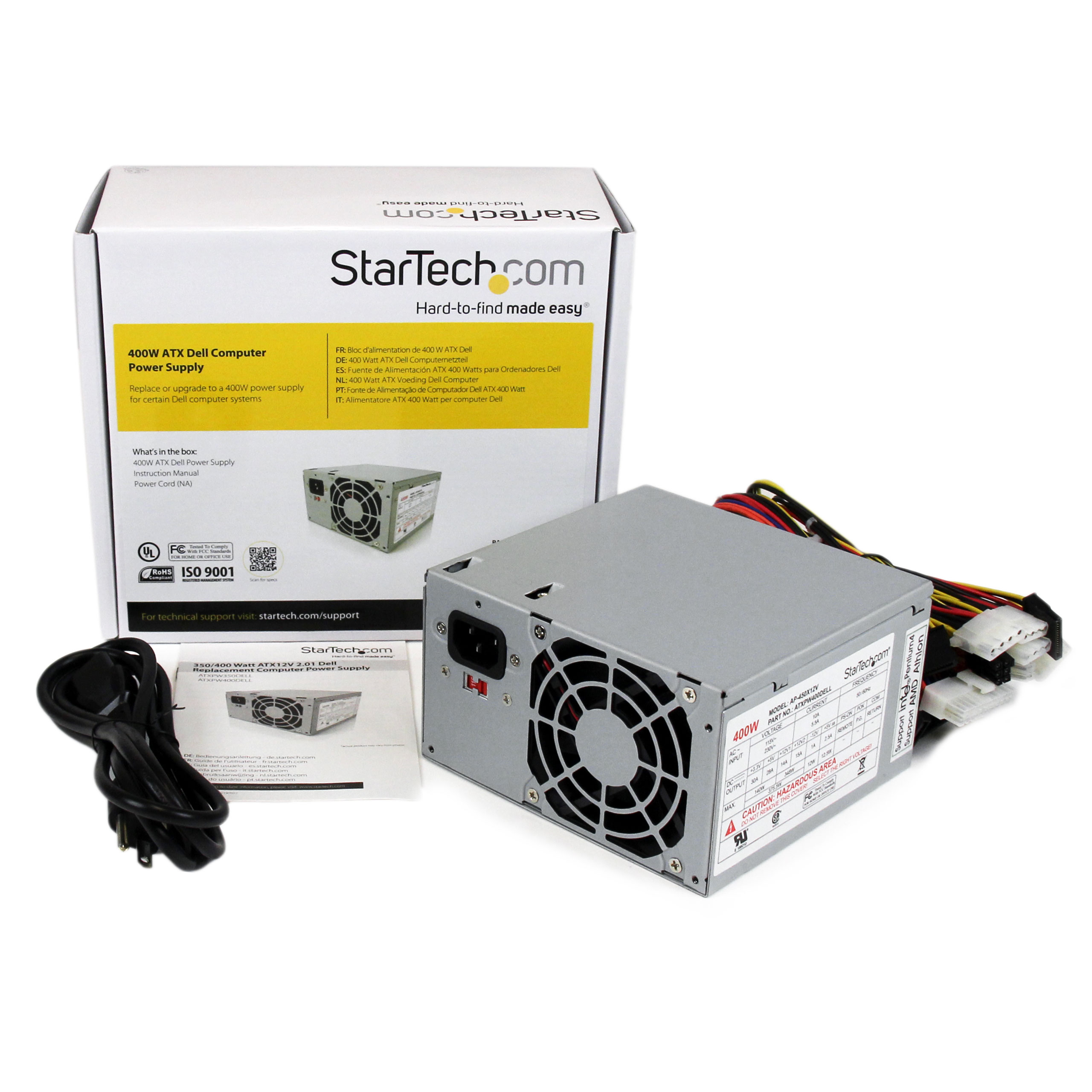

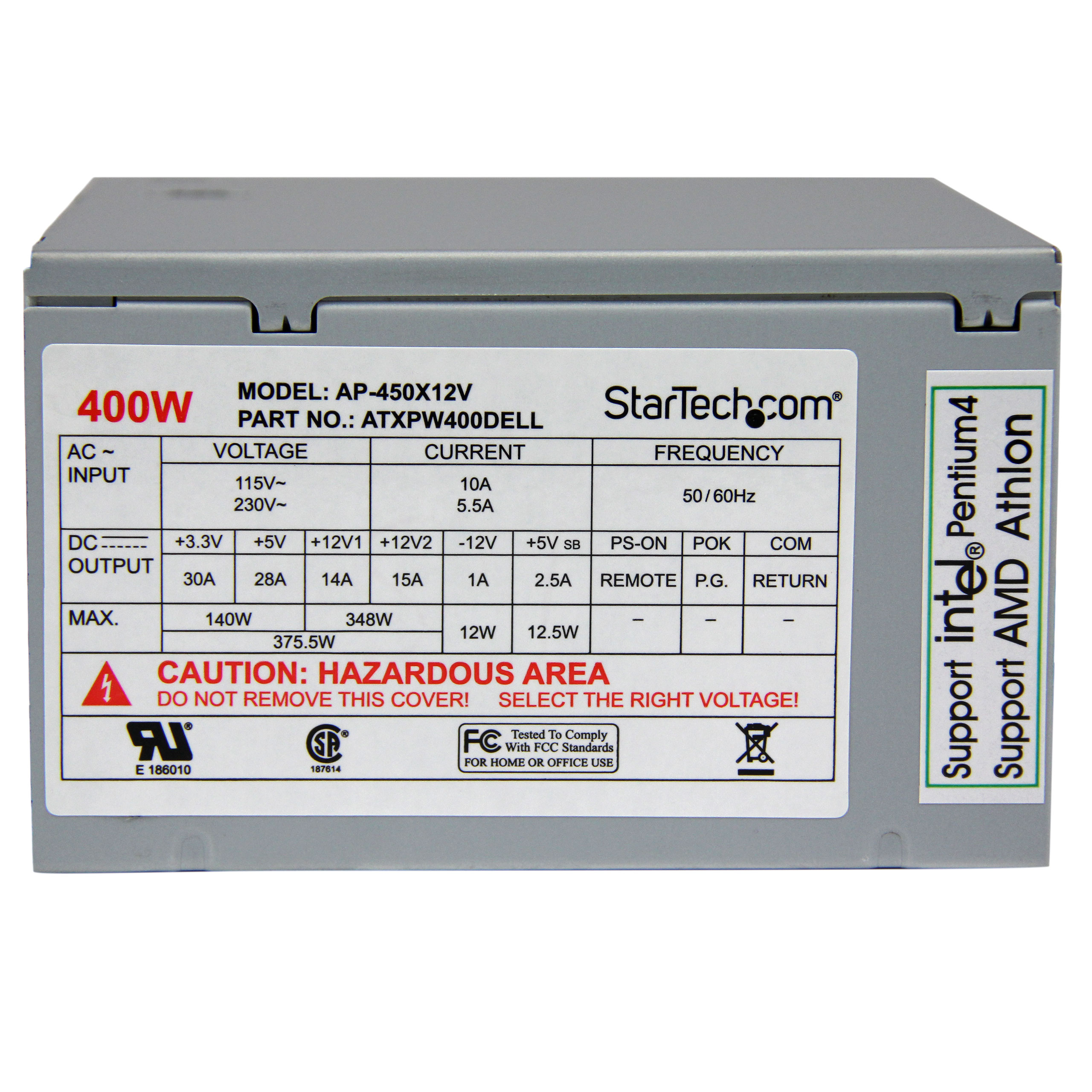

Input Current 8 ~ 4 Input Voltage 115 ~ 230 Material Zinc-Plated Casing Operating Temperature 0° ~ 50° Product Length (mm) 140 Product Width (mm) 150 Product Height (mm) 86 Product Weight (g) 2150 Storage Temperature -20° ~ 80° TAA Compliant No Air Flow Rate 32.3 CFM MTBF (hours) 100,000 Hours Fan Bearing Type Sleeve Bearing Fans 1 - 80 mm Carton Depth (mm) 522 Carton Height (mm) 232 Carton Quantity 6 Carton Weight Gross (g) 14400 Included in Package - 1 - 400W ATX Dell Power Supply
- 1 - Power Cord (NA)
- 1 - Instruction Manual
Package Depth (mm) 98 Package Height (mm) 216 Package Width (mm) 234 Package Quantity 1 Package Weight (g) 2200 Packaging Description 400 Watt ATX Dell Computer Power Supply Packaging Description India 400 Watt ATX Dell Computer Power Supply Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 4 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 4 Connector 4 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 2 Connector 5 ATX Power (4-Pin, 12V, 192W) Connector 5 (Quantity) 1 Connector 6 PCIe Power (6-Pin, 12V, 75W) Connector 6 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
