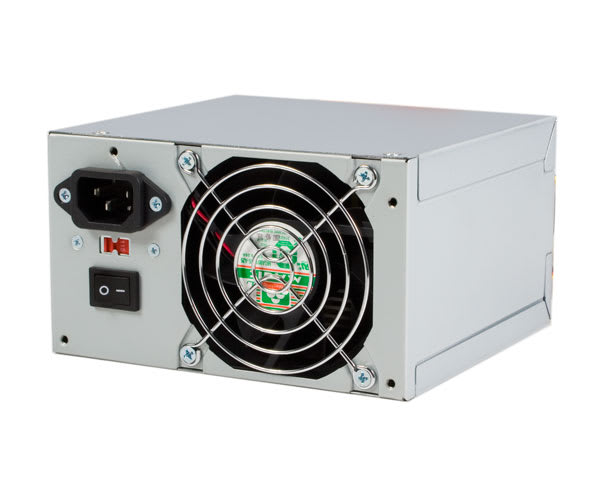

Product Name 400W ATX12V 2.01 Power Supply for HP and Compaq PC Product Number ATXPW400HPCQ UPC 065030826525 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 400W ATX12V 2.2 Power Supply for HP and Compaq PC Bullet 1 Split 20+4 pin motherboard connector compatible with original motherboards used in compatible HP and Compaq systems Bullet 2 Over Current Protection (OCP), Over Voltage Protection, Over Temperature Protection, Short Circuit Protection, Protection Reset and No Load operation Bullet 3 Dual 12V output rails, 12V1 & 12V2, providing dedicated output for today’s more advanced & demanding processors Bullet 4 Intelligent thermal fan speed control technology Marketing Copy Applications Website Search Keyword - HP Hewlett Packard Compaq power supply
- pavilion media center presario
- replacement
Accessory Products - PXT101
- PYO2L
- PYO2S
- PYO2SL
Related Products ATXPW350HPCQ Input Current Material Steel Operating Temperature 0 ~ 50 Degrees C Product Length (mm) 150 Product Width (mm) 140 Product Height (mm) 86 Product Weight (g) 1518 Storage Temperature -40 ~ 70 Degrees C TAA Compliant No General Specifications - Chrome Fanguard
- ON / OFF Switch

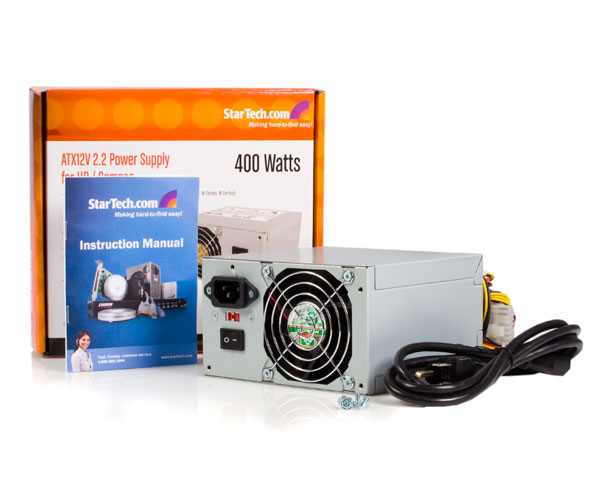

MTBF (hours) 100,000 Hours @ 25°C Fan Bearing Type Sleeve Bearing Fans 1 - 80 mm Carton Depth (mm) 522 Carton Height (mm) 232 Carton Quantity 6 Carton Weight Gross (g) 12600 Included in Package - 1 - Power supply
- 1 - NA power cord
- 1 - Manual
Package Depth (mm) 99 Package Height (mm) 210 Package Width (mm) 234 Package Weight (g) 1900 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 ATX Power (4-Pin, 12V, 192W) Connector 2 (Quantity) 1 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 2 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 5 Connector 5 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 5 (Quantity) 1 Connector 6 PCIe Power (6-Pin, 12V, 75W) Connector 6 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
