Main Image
ATXPW500PRO2
500W ATX EPS12V Desktop PC Power Supply
Add a high performance 500W power supply to an ATX/ EPS12V computer
Main Image
Product Images
Product Images
BOM Image
Product Name 500W ATX EPS12V Desktop PC Power Supply Product Number ATXPW500PRO2 UPC 065030840460 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) Pro 500W ATX EPS12V 2.92 PC Power Supply Product Title (Standard) 500W ATX EPS12V 2.92 PC Power Supply w/ Two PCIe Product Title (Long) Professional 500W ATX EPS12V 2.92 Computer Power Supply w/ Two PCIe Title Ingram (Part 1) Pro 500W ATX EPS12V 2.92 Compute Title Ingram (Part 2) r Power Supply w/ Two PCIe Website Product Headline Add a high performance 500W power supply to an ATX/ EPS12V computer Bullet 1 80mm dual ball-bearing fan Bullet 2 Full support for Intel and AMD based ATX systems Bullet 3 Quad +1 Protection: Short Circuit Protection (SCP), Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP), No Load Bullet 4 Complies with EPS12V rev. 2.8/2.92 and ATX12V rev. 2.01 specifications Bullet 5 Supports a range of 100~120V AC and 200~240V AC for electrical input Marketing Copy Applications - Ideal for upgrading or replacing failing computer power supplies
- Add enhanced PCI Express and SATA support to older computer systems
- Upgrade systems to support EPS12V based CPU and motherboards
Website Search Keyword - 500 Watt
- ATX 2.01
- Replacement Power Supply
- PSU
- Field replaceable unit
- EPS12V 2.92 2.8
- ATX2PW500PRO
Accessory Products - ATXP4EXT
- ATXPOWEXT
- CPUFANADAPT
- EPS8EXT
- PCIEX68ADAP
- PYO2LP4SATA
- PYO2S
- PYO2SL
- PYO3SATA
- SATAPOWADAP
Related Products - ATX2PW430PRO
- ATX2PW530PRO
- ATX2PW400PRO
- ATX2PW450PRO
- ATX2PW500PRO
- ATX2PW550PRO
- ATXPOW300PRO
- ATXPOW350PRO
- ATX2PW630PRO
- ATXPW550PRO2

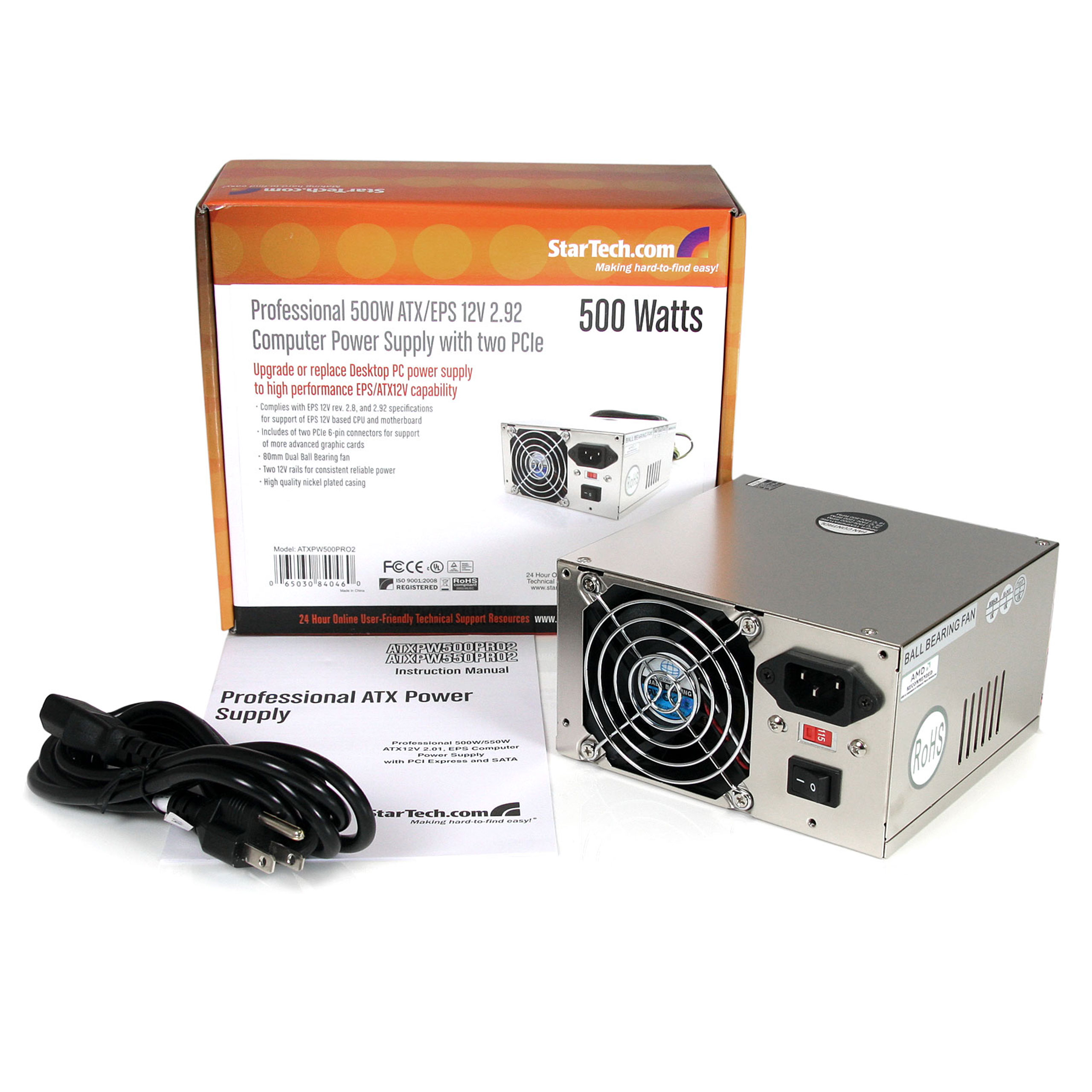

Color Silver Humidity 10~90% RH Material Nickel-plated Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 140 Product Width (mm) 150 Product Height (mm) 86 Product Weight (g) 1800 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Air Flow Rate 41.13 CFM MTBF (hours) 100,000 Hrs Noise Level 33.31 dBa RPM 3500 RPM +/-10% Fan Bearing Type Dual Ball Bearing Fans 1 - 80 mm Carton Depth (mm) 500 Carton Height (mm) 425 Carton Quantity 10 Carton Weight Gross (g) 23200 Included in Package - 1 - 500W Professional ATX Power Supply
- 1 - 6ft North American PC Power Cord
- 1 - Instruction Manual
Package Depth (mm) 100 Package Height (mm) 200 Package Width (mm) 238 Package Quantity 1 Package Weight (g) 2200 Packaging Description 500W ATX EPS12V Pro Series Power Supply Packaging Description India 500W ATX EPS12V Pro Series Power Supply Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 ATX 12V EPS Power (4+4 pin) Connector 2 (Quantity) 1 Connector 3 PCIe Power (6-Pin, 12V, 75W) Connector 3 (Quantity) 2 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 5 Connector 5 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 5 (Quantity) 5 Connector 6 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 6 (Quantity) 2 Connector 7 Fan TX3 (3-Pin, 12V) Connector 7 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
