ATXPW550PRO2
550W ATX EPS12V Desktop PC Power Supply
Add a high performance 550W power supply to a standard ATX computer
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 550W ATX EPS12V Desktop PC Power Supply Product Number ATXPW550PRO2 UPC 065030840477 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) Pro 550W ATX EPS12V 2.92 PC Power Supply Product Title (Standard) 550W ATX EPS12V 2.92 PC Power Supply w/ Two PCIe Product Title (Long) Professional 550W ATX EPS12V 2.92 Computer Power Supply w/ Two PCIe Title Ingram (Part 1) Pro 550W ATX EPS12V 2.92 Compute Title Ingram (Part 2) r Power Supply w/ Two PCIe Website Product Headline Add a high performance 550W power supply to a standard ATX computer Bullet 1 120mm dual ball-bearing fan Bullet 2 Complies with EPS12V rev. 2.8/2.92 and ATX12V rev. 2.01 specifications Bullet 3 Full support for Intel® and AMD® based ATX systems Bullet 4 Premium EMI/RFI power filtration Bullet 5 Quad +1 Protection: Short Circuit Protection (SCP), Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP) Marketing Copy Applications - Add enhanced PCI Express and SATA support to older computer systems
- Ideal for upgrading or replacing failing computer power supplies
- Upgrade systems to support EPS12V based CPU and motherboards
Website Search Keyword - 550 Watt
- ATX 2.01
- Field replaceable unit
- PSU
- Replacement Power Supply
- EPS12V 2.92 2.8
- ATX2PW550PRO
Accessory Products - ATXP4EXT
- ATXPOWEXT
- CPUFANADAPT
- EPS8EXT
- PCIEX68ADAP
- PYO2LP4SATA
- PYO2S
- PYO2SL
- PYO3SATA
- SATAPOWADAP
Related Products - ATX2PW400PRO
- ATX2PW430PRO
- ATX2PW450PRO
- ATX2PW500PRO
- ATX2PW530PRO
- ATX2PW550PRO
- ATX2PW630PRO
- ATXPOW300PRO
- ATXPOW350PRO
- ATXPW500PRO2

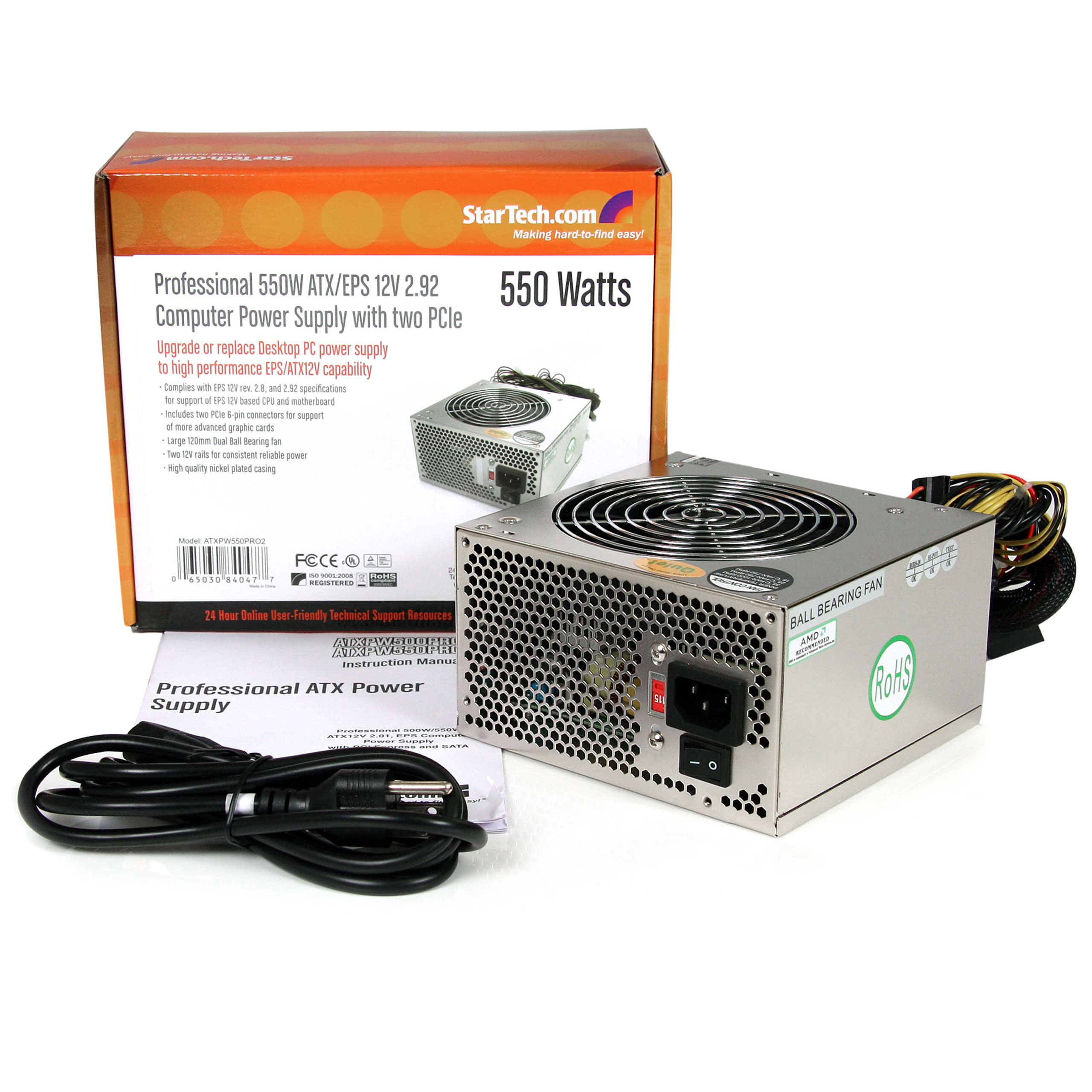

Color Silver Humidity 10~90% RH Material Nickel-plated Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 140 Product Width (mm) 150 Product Height (mm) 86 Product Weight (g) 1830 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Air Flow Rate 60.55 CFM MTBF (hours) 100,000 Hrs Noise Level 31.80 dBa RPM 1800 RPM +/-10% Fan Bearing Type Dual Ball Bearing Fans 1 - 120 mm Carton Depth (mm) 425 Carton Height (mm) 247 Carton Quantity 10 Carton Weight Gross (g) 12600 Included in Package - 1 - 550W Professional ATX Power Supply
- 1 - Power Cord (NA)
- 1 - Instruction Manual
Package Depth (mm) 200 Package Height (mm) 98 Package Width (mm) 232 Package Quantity 1 Package Weight (g) 2040 Packaging Description 550 Watt Professional ATX Power Supply Packaging Description India 550 Watt Professional ATX Power Supply Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 ATX 12V EPS Power (4+4 pin) Connector 2 (Quantity) 1 Connector 3 PCIe Power (6-Pin, 12V, 75W) Connector 3 (Quantity) 2 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 7 Connector 5 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 5 (Quantity) 5 Connector 6 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 6 (Quantity) 2 Connector 7 Fan TX3 (3-Pin, 12V) Connector 7 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
