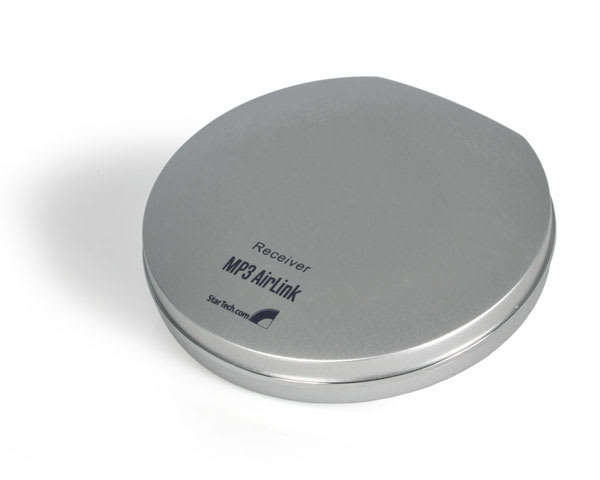

Product Name Receiver for MP3Airlink products Product Number AUDIOEXTRX UPC 065030820745 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX063X Product Title (Long) Additional Receiver for MP3AirLink Bullet 1 Small footprint for easy installation Bullet 2 Software independent Bullet 3 Works with virtually and device/speaker combination Marketing Copy The Startech.com AUDIOEXTRX is a receiver for the MP3AirLink (MP3AUDIOEXT). This product allows you to connect any device with a 3.5mm headphone jack to a stereo or external speakers without any wires! For added clarity and versatility, this product supports 8 selectable audio channels and multiple receivers so that a single audio source can be used in multiple locations. Applications - Connects your multi-speaker system to the MP3AUDIOEXT
- Perfect for safely connecting your electronic audio sources to outdoor speakers or portable stereos
Website Search Keyword - Receiver
- MP3Airlink
- Audio
- MP3AUDIOEXT
Accessory Products - MUMFRCA
- MU6MM
Related Products MP3AUDIOEXT Product Length (mm) 95 Product Width (mm) 92 Product Height (mm) 27 Product Weight (g) 320 TAA Compliant No General Specifications - Power Adapter: DC 9V, 200 mA (center positive)
- Power Consumption: 130 mA (receiver)
- Adjacent Channel Rejection: >45dB @ +/- 5 MHz offset channel Frequency
- Channel Frequency: 2410~2473 MHz
- Channels Supported: 8
- Dynamic Range: 45 dB (min.)
- Frequency Stability: +/- 100 KHz
- Operating Frequency: 2.4 GHz
- Output Impedance: < 1 KOhm (receiver)
- Operation Temprature: 14~140 deg. F. (-10~60 deg. C.)
- Range: 100 ft. (30m) open air, 30 ft. (10m) between walls
- Response: 20 KHz, -2dB (max.)
- Separation: 45 dB (min.)
- THD: 0.6% (min.)

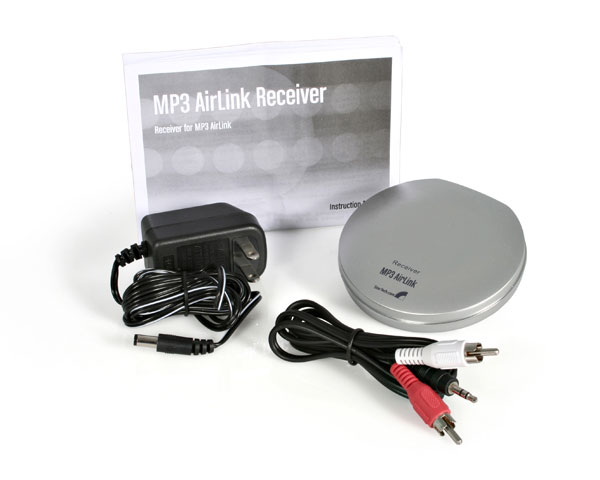

Max Distance 30m [98.4ft] Cabling Wireless Ethernet Carton Depth (mm) 380 Carton Height (mm) 238 Carton Quantity 20 Carton Weight Gross (g) 7200 Included in Package - 1 - MP3AUDIOEXT Receiver
- 1 - 6 in. Stereo Headphone Jack 3.5mm Male to 2x RCA Female
- 1 - 6 ft. Stereo Patch Cable 3.5mm Male to 3.5mm Male
- 1 - User Manual
Package Depth (mm) 68 Package Height (mm) 92 Package Width (mm) 160 Package Weight (g) 300 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 3.5mm (3 Conductors, TRS) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
