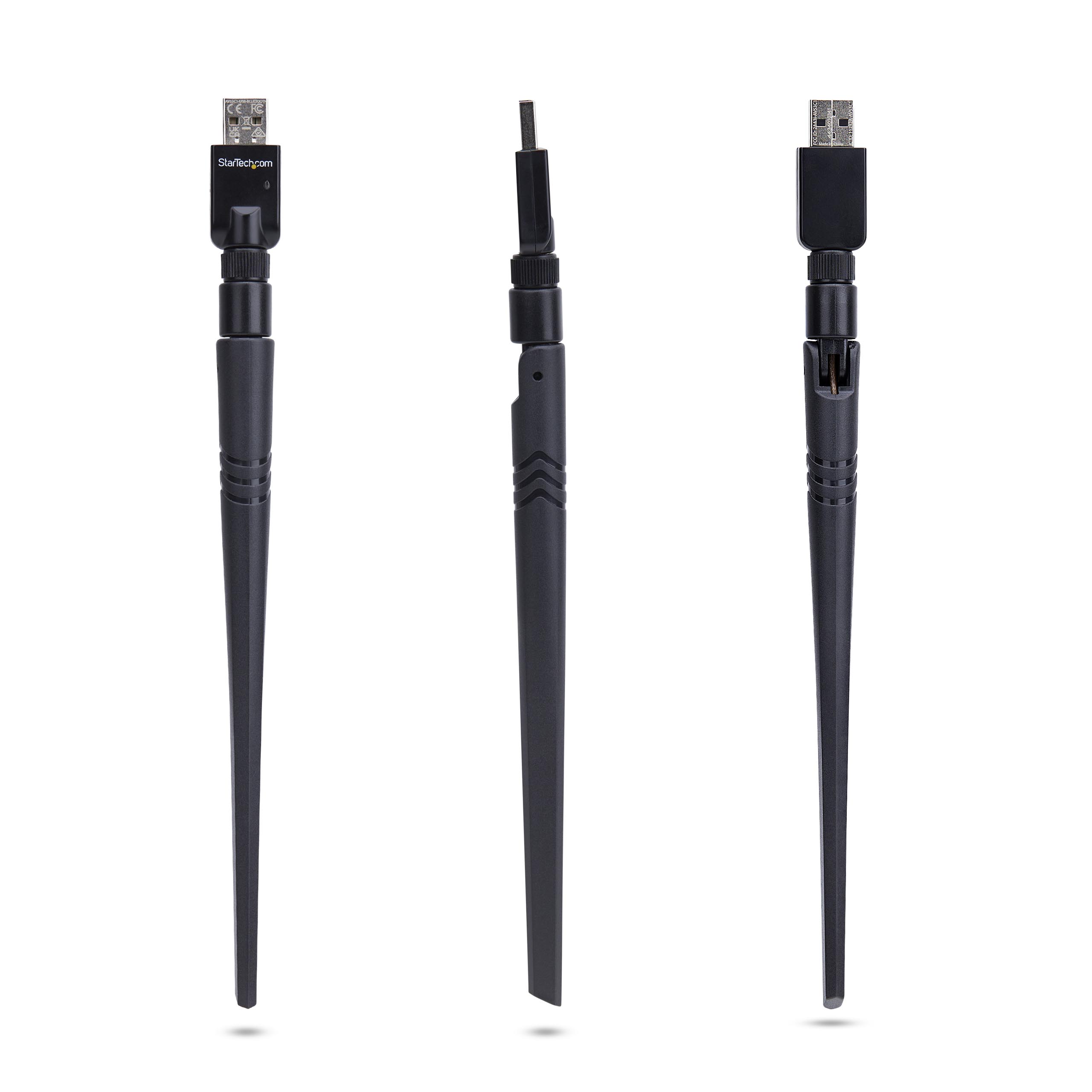

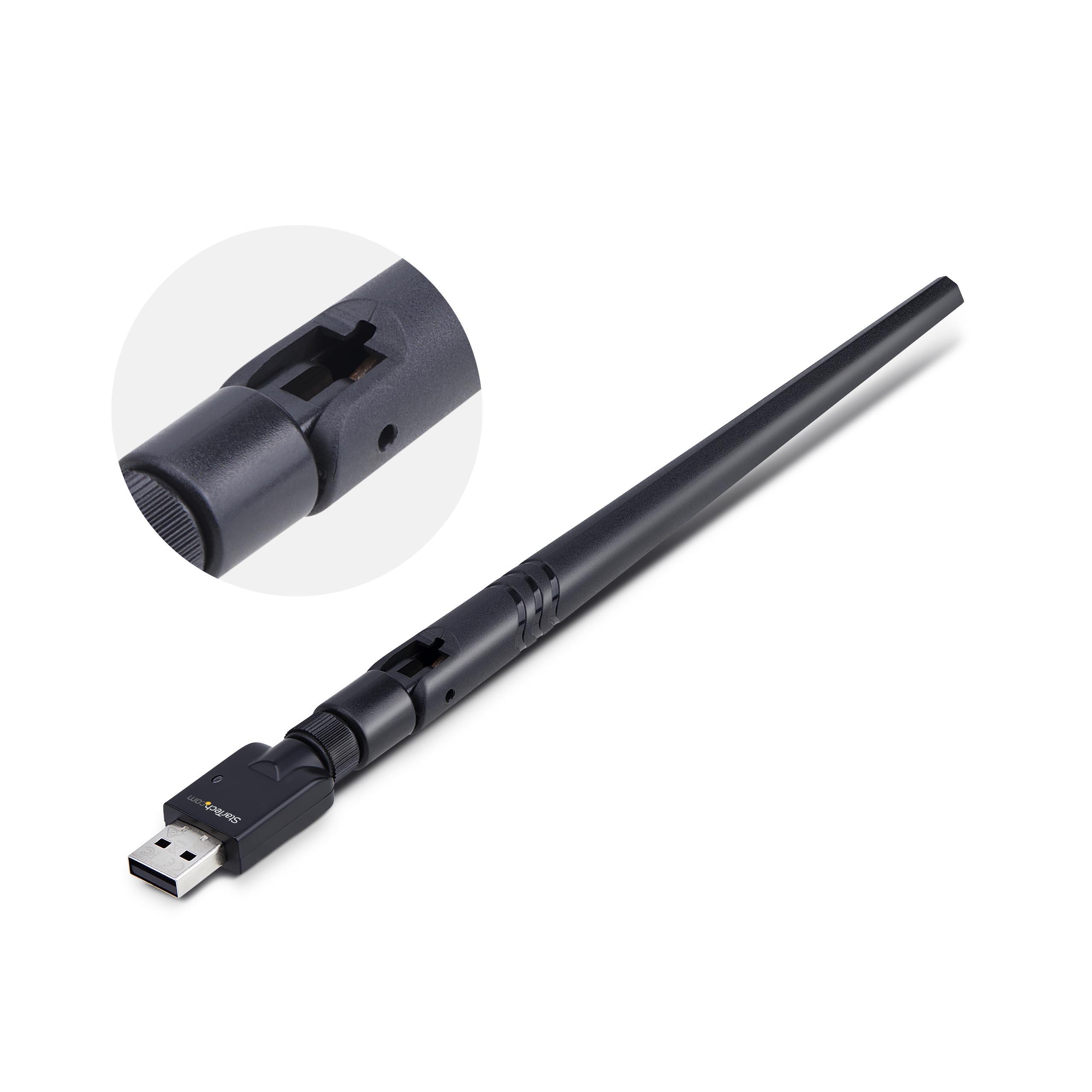

AV53C1-USB-BLUETOOTH
USB Bluetooth 5 3 Class 1 Adapter
Add Bluetooth 5.3 capabilities to a laptop or desktop computer for an extended range of up to 100m
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name USB Bluetooth 5 3 Class 1 Adapter Product Number AV53C1-USB-BLUETOOTH UPC 065030906197 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 Bluetooth Adapters Family Enhanced connect Bluetooth Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX034X Product Title (Ultra-Short) USB Bluetooth Dongle Product Title (Short) USB Bluetooth 5.3 Adapter, Class 1 Product Title (Medium) USB Bluetooth 5.3 Adapter, Class 1, USB Bluetooth Dongle for PC, Windows/Linux Product Title (Standard) USB Bluetooth 5.3 Adapter, Class 1, USB Bluetooth Dongle for PC, Keyboard/Mouse/Audio Streaming, Windows/Linux Product Title (Long) USB Bluetooth 5.3 Class 1 Adapter Dongle for PC/Laptop, Long-Range Connectivity for Keyboard, Mouse, Audio Streaming and PAN Networking, Windows/Linux Product Title (AMZ) USB Bluetooth 5.3 Adapter, Class 1, USB Bluetooth Dongle for PC/Laptop, Use with Keyboard/Mouse, Windows/Linux Title Ingram (Part 1) USB Bluetooth 5.3 Adapter - Title Ingram (Part 2) Bluetooth Dongle for PC Website Product Headline Add Bluetooth 5.3 capabilities to a laptop or desktop computer for an extended range of up to 100m Bullet 1 UPGRADE TO BLUETOOTH 5.3: Upgrade your desktop or laptop with Bluetooth 5.3 Class 1 and connect to multiple devices, including keyboards, mice, headphones, smartphones, and more, with 2Mbps transfer speeds and low power consumption Bullet 2 EXTENDED WIRELESS RANGE: Experience a stable Bluetooth connection up to 328ft (100m) in open environments; The omni-directional antenna enhances signal strength and reduces noise/interference for smoother data transfer and streaming Bullet 3 ADVANCED BLUETOOTH PROFILES: Supports A2DP (Advanced Audio Distribution Profile) for high-quality audio streaming to headphones and speakers, plus Bluetooth PAN (Personal Area Network) for wireless file sharing and internet tethering Bullet 4 OPTIMIZED PERFORMANCE: Supports Bluetooth BDR/EDR for faster data rates up to 2Mbps and Bluetooth Low Energy (BLE) for power-efficient connections without draining battery life Bullet 5 PLUG AND PLAY: Built with the RTL8761BUE chipset, this Bluetooth dongle offers native support for Windows 7/8/10/11 and Linux Kernel 5.19.0+; Backwards compatible with Bluetooth 4.0, 3.0, 2.0, and 1.0 Bullets (Compact) USB Bluetooth 5.3 Adapter Class 1 with 2Mbps transmission frequency connects to multiple devices/up to 328ft (100m) - Native support with Windows 7/8/10/11/Kernel 5.19.0/up - Antenna enhances range with higher power/receiving signals with less noise Bullets (Consolidated) - USB Bluetooth 5.3 Adapter Class 1 with 2Mbps transmission frequency connects to multiple devices/up to 328ft (100m) - Supports A2DP (Advanced Audio Distribution Profile) for high-quality audio streaming and Bluetooth PAN (Personal Area Network) for wireless file sharing/internet tethering - Supports Bluetooth BDR/EDR for faster data rates up to 2Mbps/Bluetooth Low Energy (BLE) for power-efficient connections - RTL8761BUE chipset - Native support for Windows 7/8/10/11 and Linux Kernel 5.19.0+ Marketing Copy Marketing Copy (No HTML) Applications Add Bluetooth 5.3 capabilities to a laptop or desktop computer with this USB Bluetooth adapter Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- FCC - IR - Wireless - United States - FCC Part 15, Subpart C
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
- UKCA - IR - Wireless - United Kingdom - UK Radio Equipment Regulations 2017
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements Available USB type-A port Accessory Products - USBA-BLUETOOTH-V5-C2
- USBBT1EDR4
- USBBT1EDR2
- BT2A
- BT52A
Power Source USB-Powered Color Black Humidity 5% ~ 95% RH Material Plastic Network Adapter Form Factor Dongle Operating Temperature -10°C ~ 50°C (14°F to 122°F) Primary Material Plastic Product Length (mm) 45 Product Width (mm) 18.3 Product Height (mm) 10 Product Weight (g) 22 Storage Temperature -40°C ~ 70°C (-40°F to 158°F) TAA Compliant No Frequency 2402 - 2480MHz Max Distance 100m [328ft] Maximum Data Transfer Rate 2 Mbps OS Compatibility - Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
Antenna Configuration 1x 5dBi Omnidirectional Antenna Chipset ID Realtek - RTL8761BUE Industry Standards - USB 2.0
- Bluetooth 5.3
- Class 1
- BDR Basic data rate
- EDR Enhanced data rate
- BLE Bluetooth low energy
LED Indicators Carton Depth (mm) 240 Carton Height (mm) 410 Carton Quantity 60 Carton Weight Gross (g) 5000 Included in Package - 1 - USB to Bluetooth V5.3 Adapter
- 1 - Quick-Start Guide
Package Depth (mm) 203 Package Height (mm) 130 Package Width (mm) 22 Package Weight (g) 70 Packaging Description USB to Bluetooth 5.3 Adapter - External Antenna up to 100m - Class 1 Packaging Description India USB to Bluetooth 5.3 Adapter - External Antenna up to 100m - Class 1 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 Bluetooth Class 1.0 (100m) Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-09-15 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment USB Bluetooth 5.0 Adapter Class 2 Comparable SKU 2 Comment Bluetooth 4.0 USB adapter class 1 Digital Content Due Date 2025-03-07 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Laser etched label - requires dieline showing location Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-05-31 Target Production Release 2024-10-31 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Video Not Required
