AX54005A-USB-WIFI-6E
Wi Fi 6E Tri Band USB 3 0 Adapter 5374 Mbps
Add 802.11ax Wi-Fi connectivity to a computer via USB with tri-band support for 2.4/5/6GHz frequencies
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name Wi Fi 6E Tri Band USB 3 0 Adapter 5374 Mbps Product Number AX54005A-USB-WIFI-6E UPC 065030906166 Lifecycle status Active Warranty 2 Years Weighted Opportunity 103962 Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 Wireless Network Adapters Family Enhanced connect Wireless Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX034X Product Title (Ultra-Short) WiFi 6E USB Adapter Product Title (Short) WiFi 6E USB Adapter, Wireless PC Dongle Product Title (Medium) Wi-Fi 6E USB Adapter/Dongle, For Desktop/Laptop PC, Wireless NIC/WiFi 2.4/5/6GHz Product Title (Standard) Wi-Fi 6E USB Adapter/Dongle, For Desktop/Laptop PC, Wireless NIC Up To 2402Mbps, WiFi 2.4/5/6GHz Network, 802.11ax Product Title (Long) Wi-Fi 6E USB Adapter/Dongle, For Desktop/Laptop PC, Wireless NIC w/Foldable Antenna, WiFi Adapter Supports 802.11 b/g/n/ac/ax, 2.4/5/6 GHz Network Compatible Product Title (AMZ) Wi-Fi 6E USB Adapter/Dongle, For Desktop/Laptop PC, Wireless NIC w/Foldable Antenna, WiFi 2.4/5/6GHz Network Title Ingram (Part 1) Wi-Fi 6E USB Adapter/Dongle - Title Ingram (Part 2) Wireless NIC For Desktop, WiFi 6GHz Website Product Headline Add 802.11ax Wi-Fi connectivity to a computer via USB with tri-band support for 2.4/5/6GHz frequencies Bullet 1 WIFI 6E USB ADAPTER: Add Wi-Fi 6/6E capability to a desktop or laptop PC, enabling high-speed & low-latency wireless communications using the 6GHz band (802.11ax); Triple band compatible w/2.4, 5, & 6GHz frequencies at 574, 2402, 2402Mbps respectively Bullet 2 COMPATIBILITY: Requires Windows 11 & a Wi-Fi 6E Router for 6GHz (802.11ax) functionality; Type-A USB 5Gbps host connection; WiFi 6E tri-band wireless dongle is compatible w/802.11 b/g/n/ac/ax on 2.4/5GHz bands; NOTE: Windows 10 does not support 6GHz band Bullet 3 USB CRADLE: Included freestanding USB magnetic base with a 3.8ft (1.1m) cable allows flexible placement of the WiFi6 network adapter for optimal signal reception and reduced interference; Features a rubber base for grip when used on non-metallic surfaces Bullet 4 COMPACT DESIGN: Small 3.7x1.5x0.6in (94x37x16mm) ax WiFi computer adapter features a foldable antenna that adds convenience to mobile setups; The repositionable antenna helps with signal quality and range Bullet 5 PERFORMANCE & SECURITY: OFDMA & MU-MIMO optimize network performance, reduce latency, & increase data transfer efficiency; Vents along the device aid in heat dissipation; Supports WPA3 for enhanced personal password protection, backward compatible w/WPA2 Bullets (Compact) Add WiFi 6E to desktop/laptop PC with this USB adapter/dongle; USB 5Gbps - Compatible with 802.11 b/g/n/ac/ax and 2.4/5/6GHz Wi-Fi bands - Wireless NIC includes a magnetic base w/ 3.8ft (1.1m) cable for optimal placement - Wireless NIC up to 2402Mbps Bullets (Consolidated) - Add Wi-Fi 6E to a desktop/laptop PC w/this USB network adapter enabling high-speed wireless connectivity; Dongle requires Windows 11 and WiFi 6E Router for 6GHz (802.11ax) support - Compatible w/802.11 b/g/n/ac/ax in the 2.4/5/6GHz bands at 574/2402/2402Mbps respectively - Supports WPA3 for enhanced password protection - Includes magnetic cradle w/3.8ft cable for optimal placement - Foldable antenna aids to focus signal improving quality and range - NOTE: Windows 10 does not support 6GHz Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- FCC - IR - Wireless - United States - FCC Part 15, Subpart C
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- UKCA - IR - Wireless - United Kingdom - UK Radio Equipment Regulations 2017 - Short-Form DoC
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
Special Notes - Note: Windows 10 does not support the 6GHz band </br>
- Full 6Ghz performance requires Windows 11 and a Wi-Fi 6E compatible Router
Accessory Products - USB3SEXT6BK
- HB30C4AB
- 5G4AB-USB-A-HUB
Related Products - USB300WN2X2C
- USB150WN1X1
- USB433ACD1X1
- USB433WACDB
- USB867WAC22
- PAX2235-WIFI-6E-CARD
- PEX867WAC22
Power Source Bus Powered Cable Length (mm) 1155 Color Black Humidity 5% ~ 95% RH (non-condensing) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 94 Product Width (mm) 37.000 Product Height (mm) 16.000 Product Weight (g) 34 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Frequency 2.4~6Ghz Full Duplex Support Yes Maximum Data Transfer Rate OS Compatibility - Windows 11
- Windows 10
Promiscuous Mode Yes Security Features - WPA3 personal and enterprise including WPA2 transition mode
- AES
- WPA and WPA2-PSK Data Encryption
- WEP Data Encryption
- WPS Data Encryption
Bus Type USB-A Chipset ID Realtek - RTL8832CU Industry Standards Interface/Bridge Wireless Ethernet LED Indicators 1 - Solid Green: Power </br> Flashing Green: Activity Carton Depth (mm) 360 Carton Height (mm) 223 Carton Quantity 30 Carton Weight Gross (g) 7420 Included in Package - 1 - USB Wi-Fi Adapter

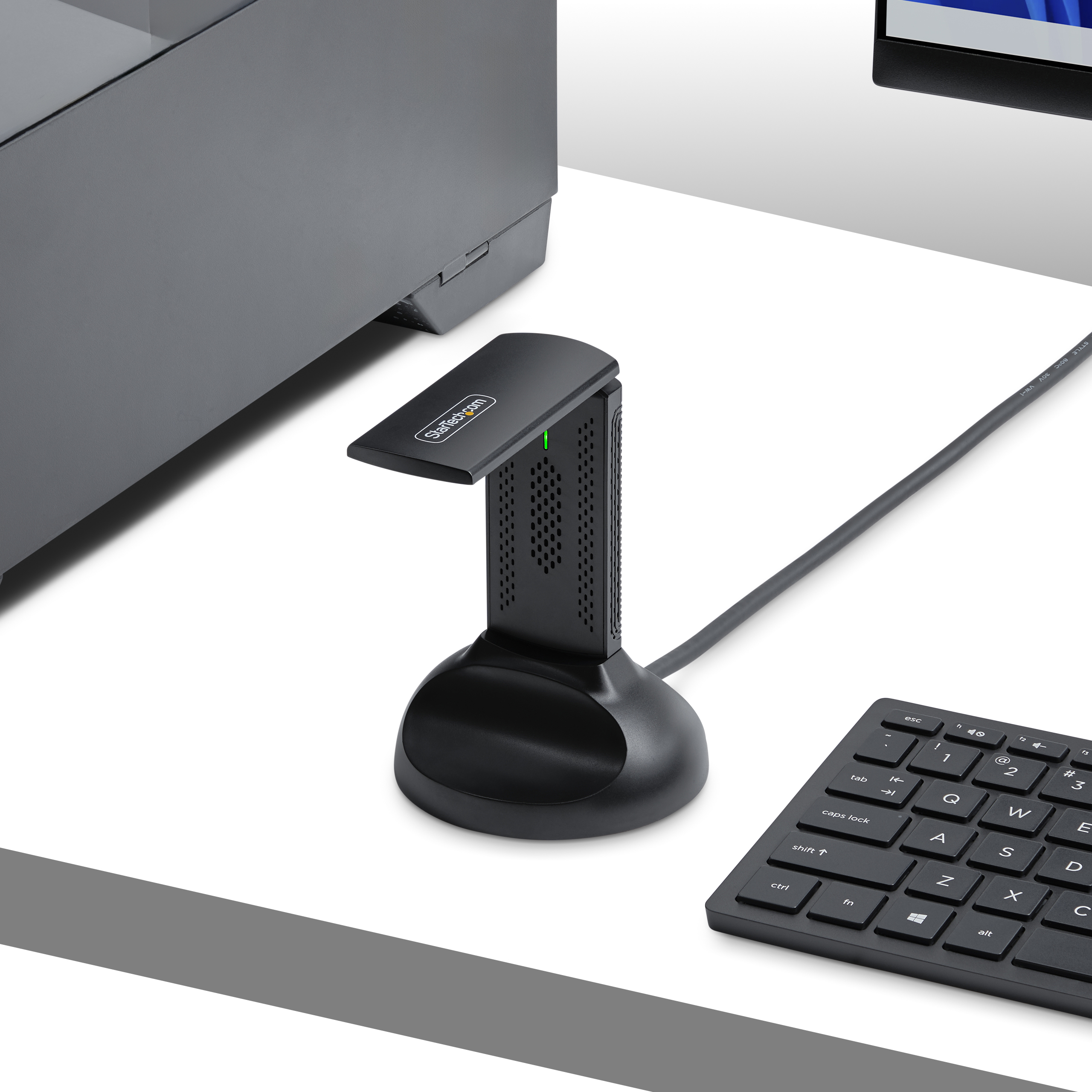

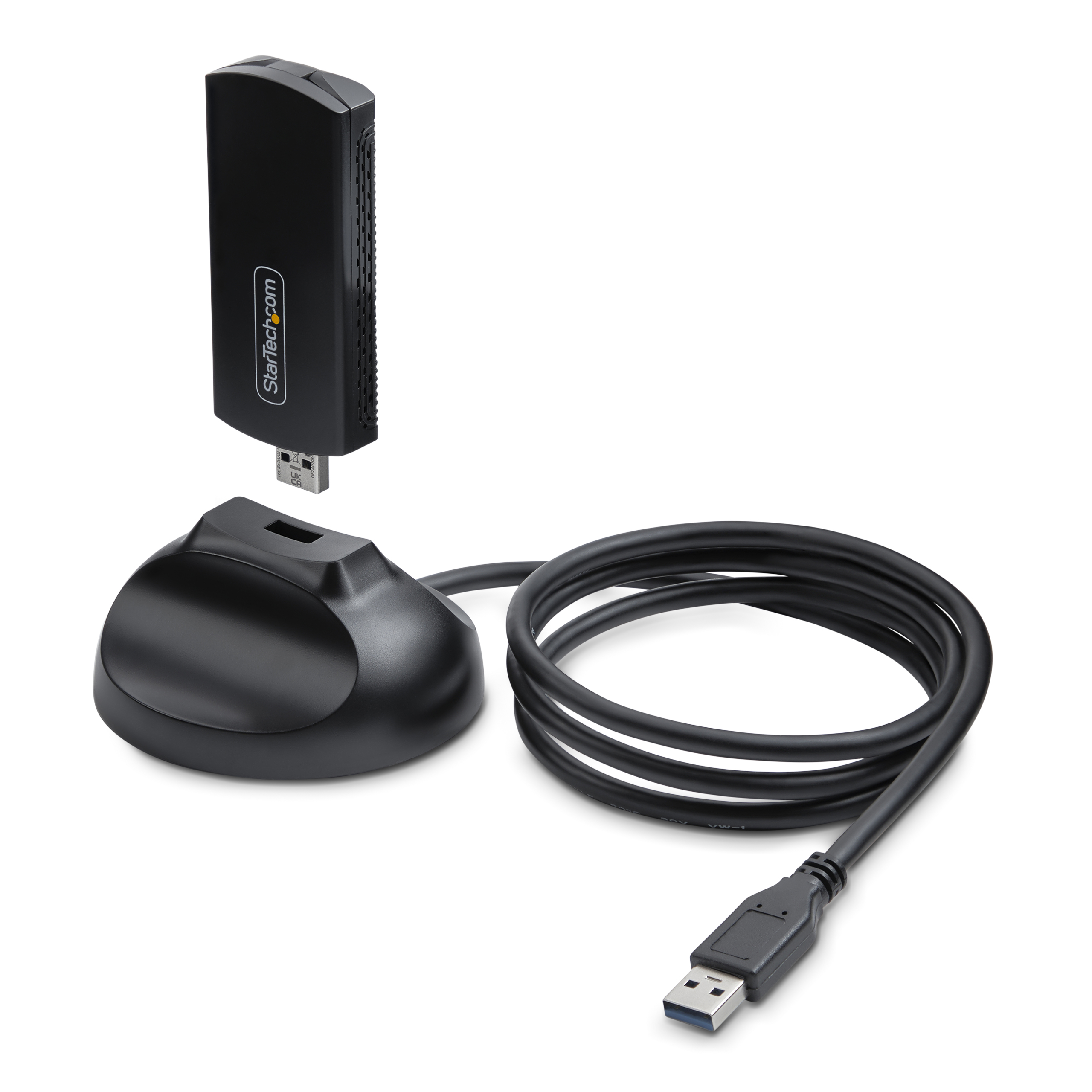

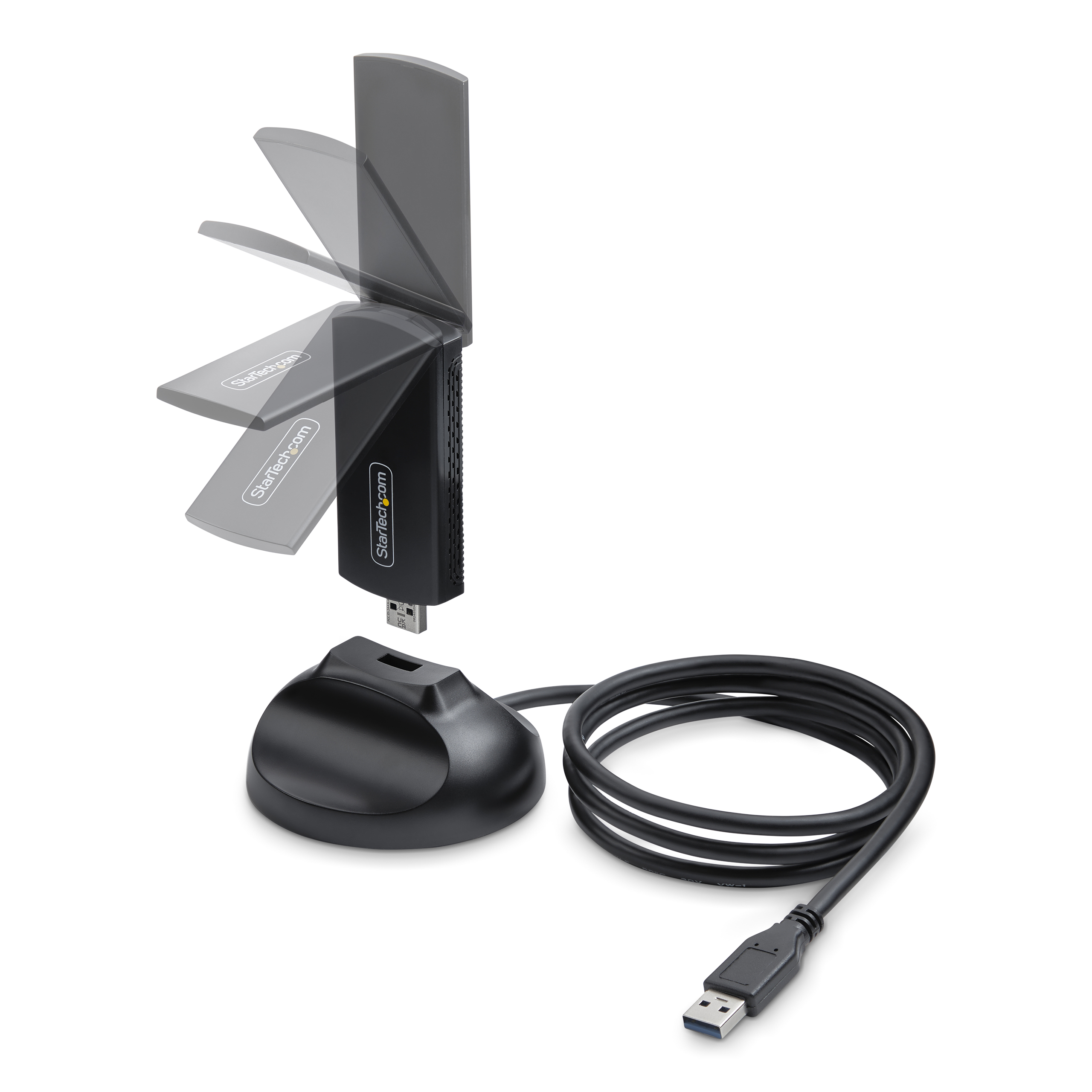

- 1 - Magnetic Stand with Attached USB Extension Cable
- 1 - Quick-Start Guide
Package Depth (mm) 143 Package Height (mm) 45 Package Width (mm) 175 Package Weight (g) 302 Packaging Description USB Wi-Fi 6/6E Network Adapter - 802.11ax Packaging Description India USB Wi-Fi 6/6E Network Adapter - 802.11ax Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 USB-A (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (5Gbps, 4.5W) Host Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Required Artwork Due Date 2023-12-15 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment USB WiFi 5 AC Adapter Comparable SKU 2 Comment USB WiFi 5 AC Adapter Digital Content Due Date 2024-05-09 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology Wireless Ax / WiFi 6 Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Shane Arnett Target Development Completion Date 2023-11-30 Target Production Release 2023-12-15 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Latest Video Not Required
