BOX4HDECP
Table Top AV Connectivity Box

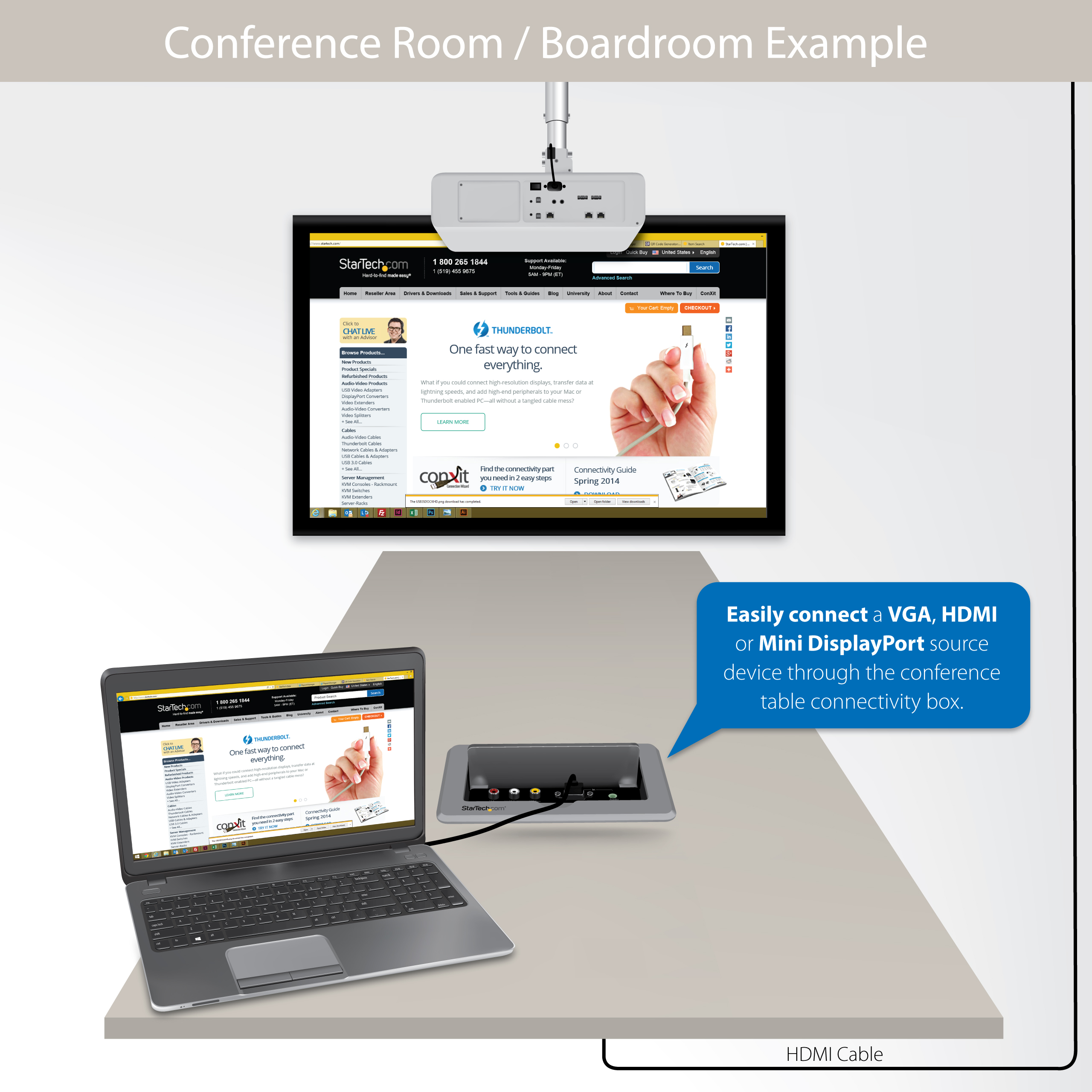

Install this AV connectivity panel into any boardroom table, and connect the screen from any laptop with HDMI, VGA or mDP to an HDMI display
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Table Top AV Connectivity Box Product Number BOX4HDECP UPC 065030858359 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Other > Table Panel Boxes Category Level 1 Video Display Connectivity Category Level 2 Table Panel Boxes Category Level 3 Conversion Boxes Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX038X Product Title (Ultra-Short) Conference Table Box Product Title (Short) Conference Table Connectivity Box Product Title (Medium) Conference Table Connectivity Box – HDMI / VGA / Mini DisplayPor to HDMI Output Product Title (Standard) Conference Table Connectivity Box – HDMI / VGA / Mini DisplayPort to HDMI Output with Fast Charge USB Port Product Title (Long) Conference Table Box for AV Connectivity - TAA Product Title (AMZ) Conference Table Connectivity Pop up Box with AV and Data Ports - HDMI, VGA, Component, MDP to HDMI Output (BOX4HDECP) Title Ingram (Part 1) Conference Table Connectivity Title Ingram (Part 2) Box – HDMI / VGA / mDP to HDMI Website Product Headline Install this AV connectivity panel into any boardroom table, and connect the screen from any laptop with HDMI, VGA or mDP to an HDMI display Bullet 1 In-table installation Bullet 2 Automatic audio / video switching Bullet 3 Hideaway panel Bullet 4 Supports VGA, HDMI, mDP and composite audio / video sources Bullet 5 Built-in USB charging port Bullets (Consolidated) Install an HDMI VGA mDP and Composite Audio/Video access panel into the surface of a table and output to an HDMI display or projector with a discreet hideaway design - Compatible with VGA mDP and HDMI enabled UltraBooks and laptops and HDMI enabled Televisions Monitors and Projectors - Supports Resolutions up to 1080p - Conference Table Connection/Interconnect box/Tabletop Box/Conference Table - Share a Boardroom display between computers with auto switching detecting the most recent device Marketing Copy Marketing Copy (No HTML) Applications - Build directly into a boardroom table for video presentations and video conferencing
- Build into a podium, for live presentation control

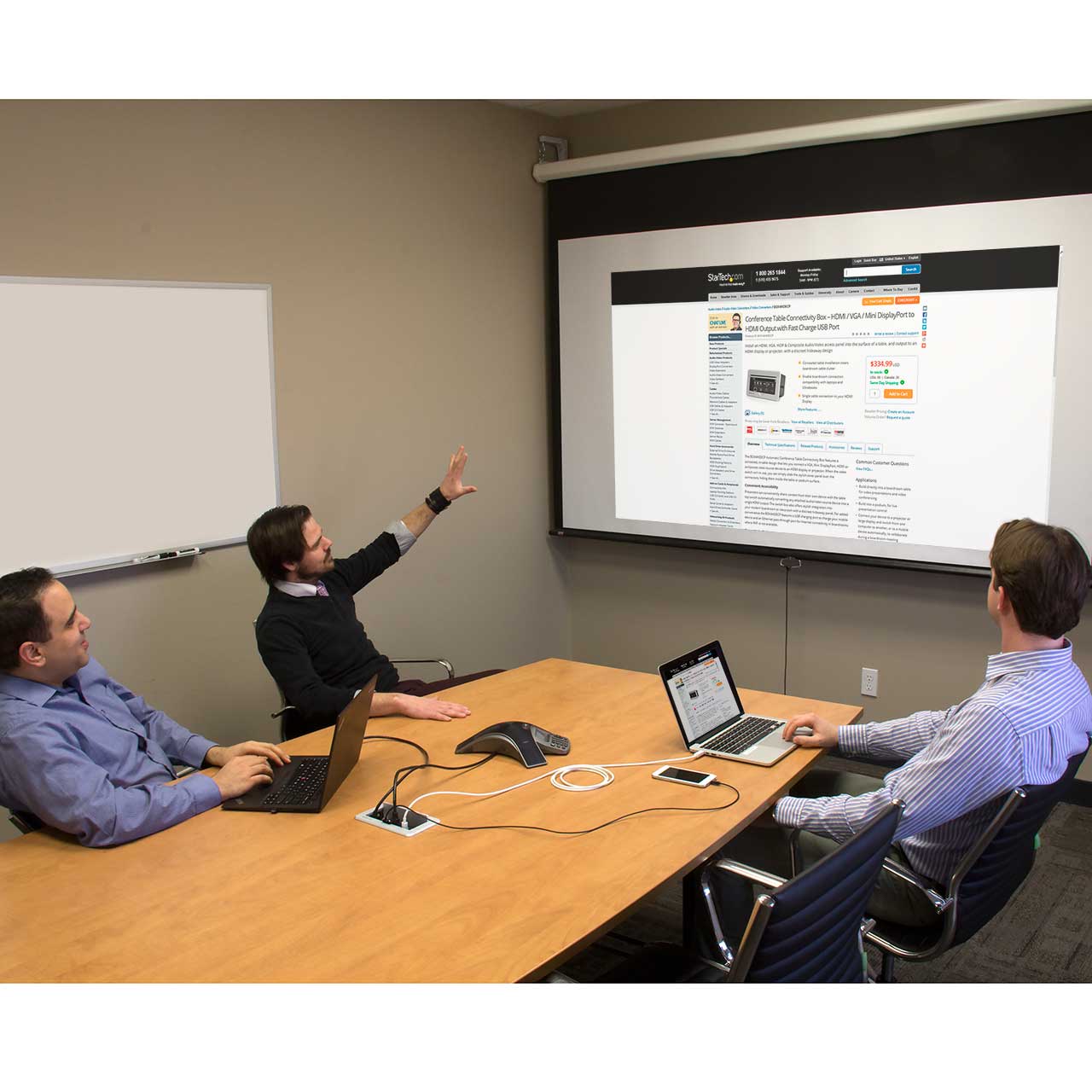

- Connect your device to a projector or large display and switch from one computer to another, or to a mobile device automatically, to collaborate during a boardroom meeting
- Use in a boardroom or classroom where a projector or display may not have the required connectivity ports

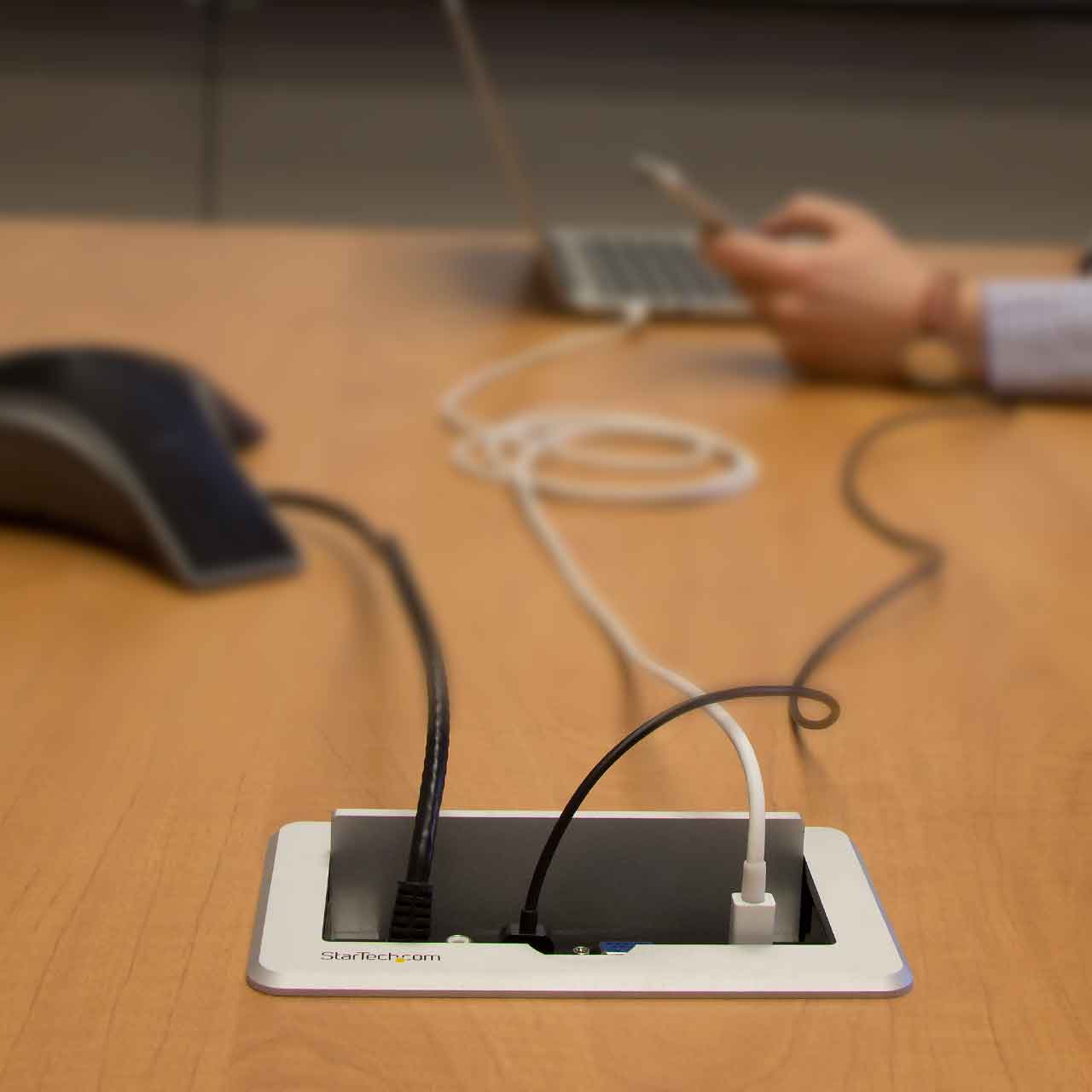

- Hide your unsightly cables and switch box by building directly into your table or podium
Website Search Keyword - connect Box
- AV connection panel
- conference table connection box
- tabletop interconnect box
- table top box
- conference table hdmi
- av table box
- surface mount outlets
- table top av box
- Multi input converter
- hideaway panel
- hide away
- automatic HDMI switch
- automatic VGA to HDMI switch
- HDMI auto switch
- in-table av switch
- access panel
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- HDMM6
- HDMM10
- HDMM15
- MDISPLPORT3
- MDISPLPORT6
- MDP2DPMM6
- MDP2DPMM10
- MU6MMS
- MU10MMS
- MU15MMS
- UUSBHAUB3
- UUSBHAUB6
- UUSBHAUB10
- USB2HABM3
- USB2HABM6
- USB2HABM10
- USBLT1MW
- USBLT2MW
- USBLT3MW
- RJ45PATCH10
- RJ45PATCH25
Related Products - HDVGADP2HD
- VS721MULTI
- VS221VGA2HD
- VS221HD2VGA
Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type N Color Black & Silver Humidity 10% to 85% (Non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 170.000 Product Width (mm) 100.000 Product Height (mm) 100.000 Product Weight (g) 1128.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Maximum Analog Resolutions 1920x1080 Maximum Cable Length (mm) 15240 Maximum Digital Resolutions 1920x1080 Supported Resolutions 1920x1080 (1080p) Wide Screen Supported Yes Active or Passive Adapter - Active
- Passive

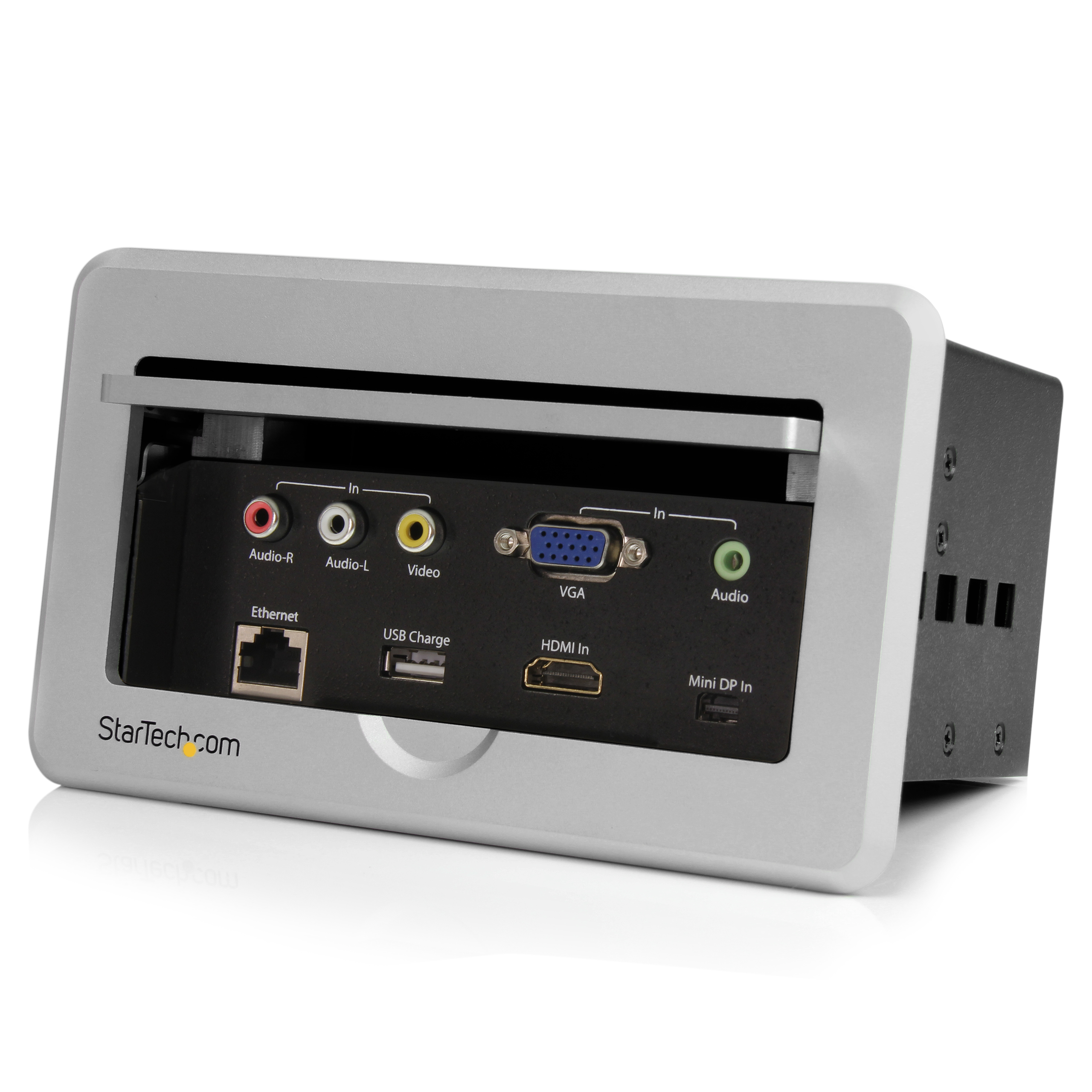

Audio Yes AV Input - VGA
- HDMI
- Mini-DisplayPort
- Composite
- 3.5 mm Audio

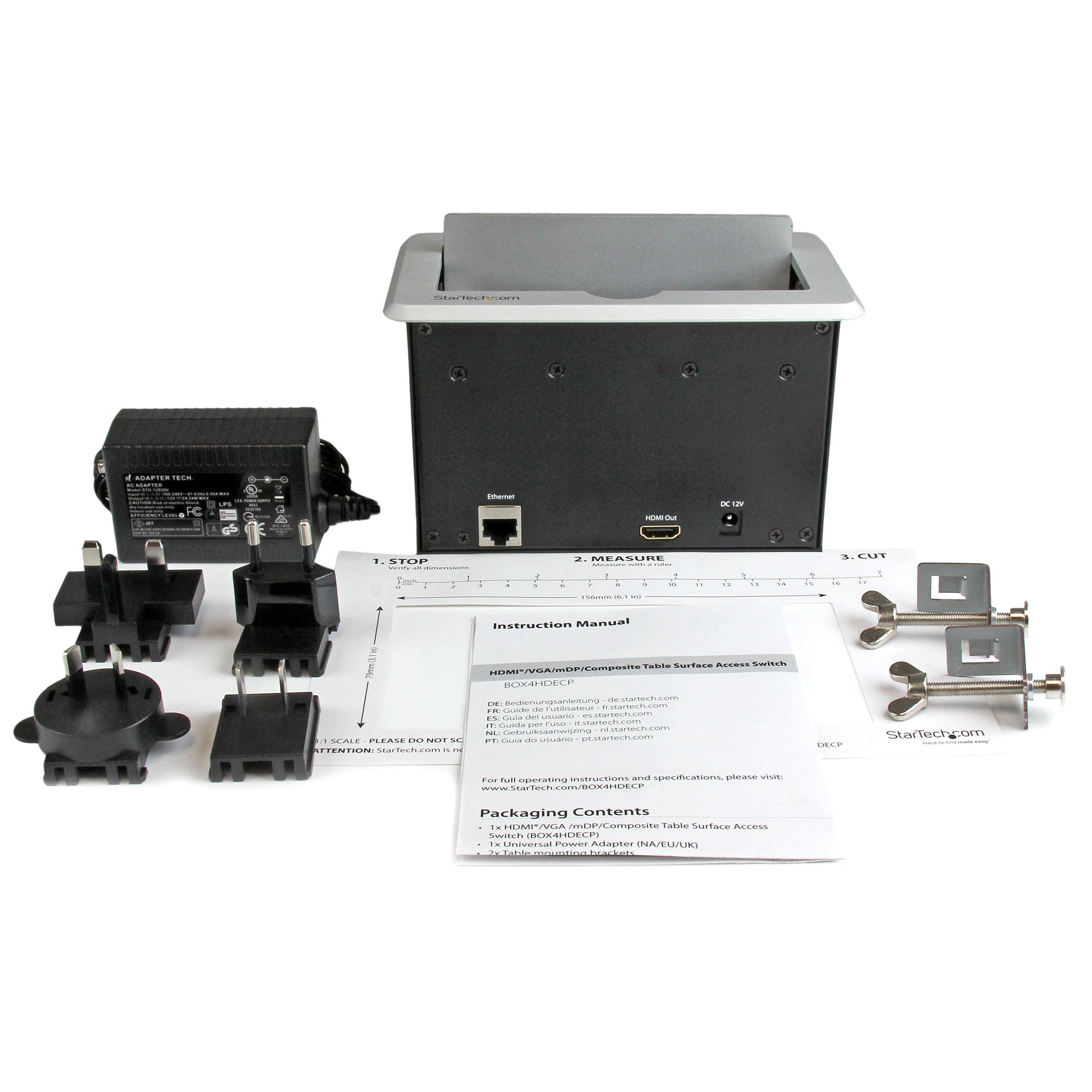

AV Output HDMI Converter Type Presentation Adapters Matrix Video Switch (Filter) No USB Pass-Through No Carton Depth (mm) 350 Carton Height (mm) 230 Carton Quantity 4 Carton Weight Gross (g) 7782 Included in Package - 1 - HDMI/VGA/mDP/Composite Table Surface Access Switch
- 1 - Universal Power Adapter (NA/EU/UK/AU)
- 1 - DieCut Outline
- 1 - Instruction Manual
Package Depth (mm) 188 Package Height (mm) 160 Package Width (mm) 234 Package Quantity 1 Package Weight (g) 1724 Packaging Description HDMI®/VGA /mDP/Composite Table Surface Access Switch Packaging Description India HDMI®/VGA /mDP/Composite Table Surface Access Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 RCA (Composite Video) Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Connector 5 RJ-45 Connector 5 (Quantity) 1 Connector 6 USB-A (480Mbps, 2.5W) Connector 6 (Quantity) 1 Connector 7 Mini DisplayPort Connector 7 (Quantity) 1 Connector 8 RCA (Stereo Audio) Connector 8 (Quantity) 1 Connector 9 HDMI Connector 9 (Quantity) 1 Connector 10 RJ-45 Connector 10 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-06 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,EU,JP,MX,NZ,UK,US Primary Technology None Product Development Specialist Sead Ferhatovic Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
