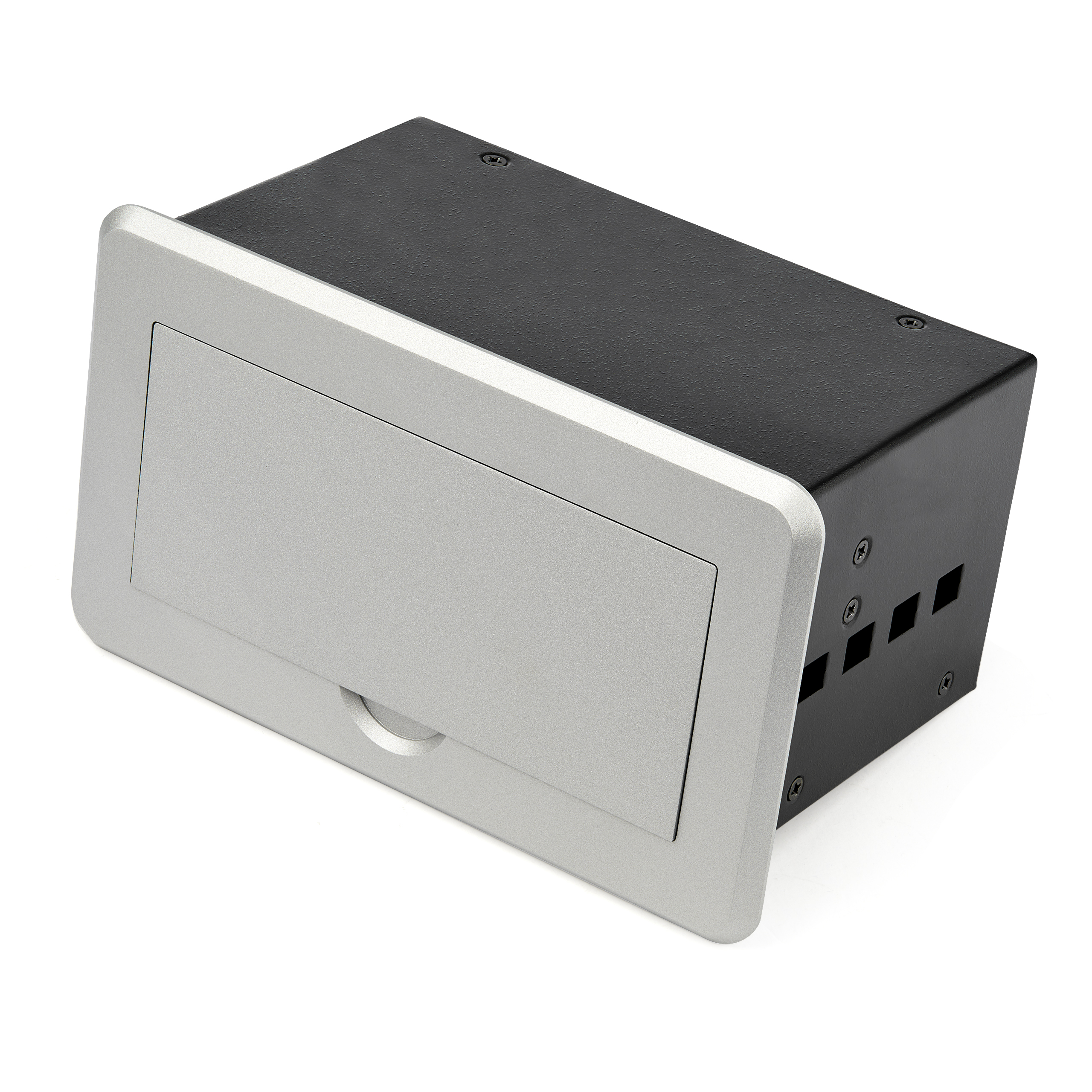

BOX4HDECP2

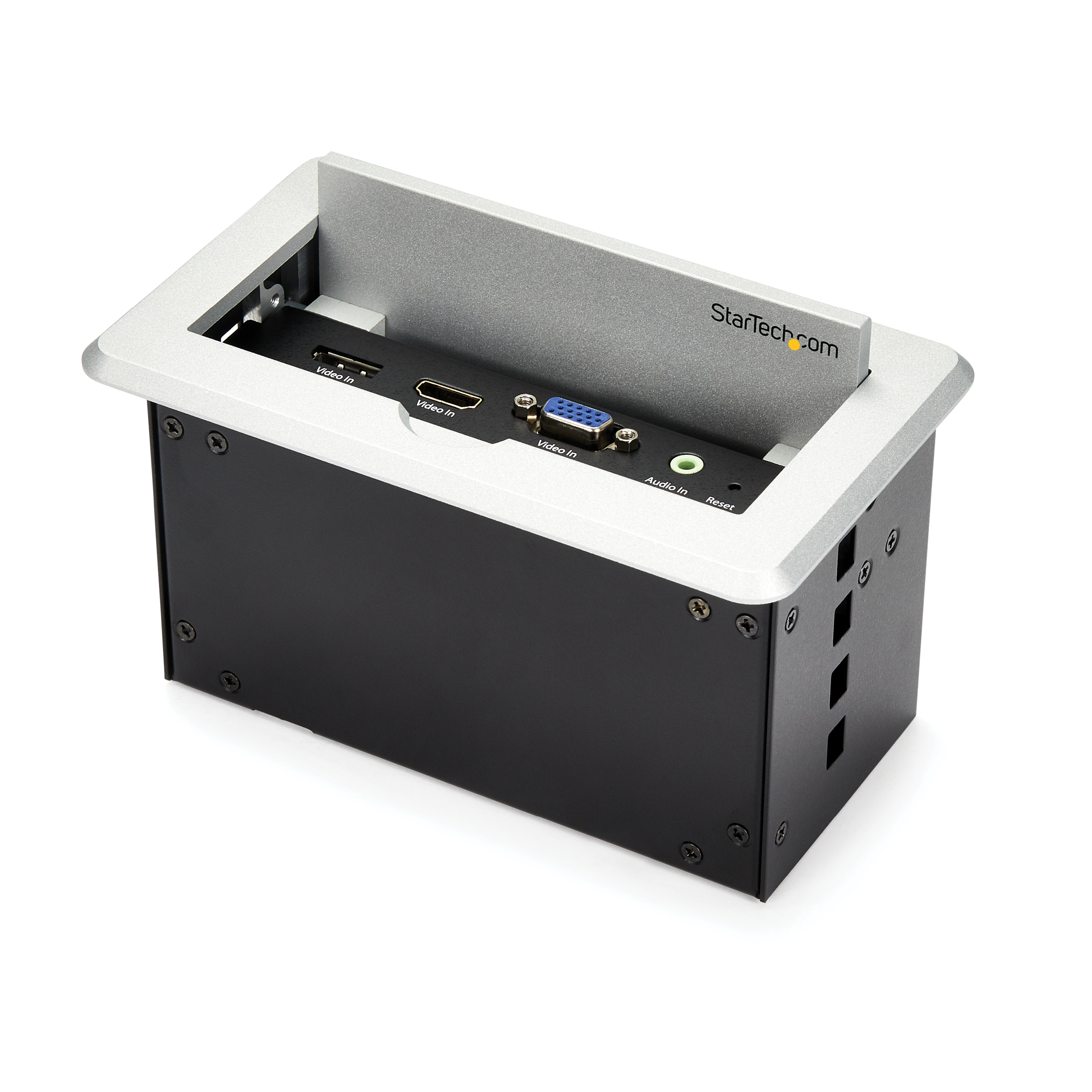

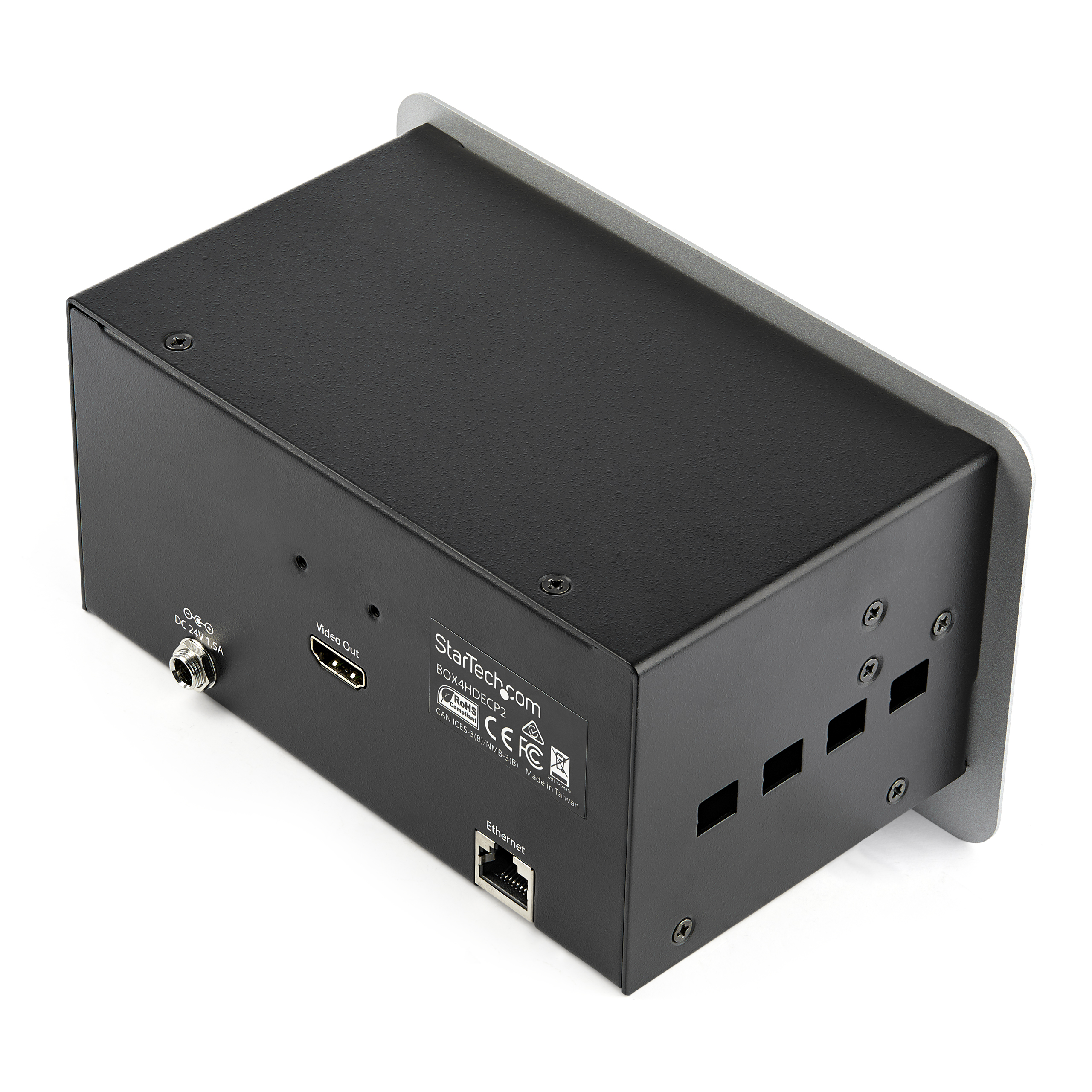

Table box for AV connectivity
Interconnect Box | HDMI®, VGA and DisplayPort Inputs | HDMI Output
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name Table box for AV connectivity Product Number BOX4HDECP2 UPC 065030867498 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Other > Table Panel Boxes Category Level 1 Video Display Connectivity Category Level 2 Table Panel Boxes Category Level 3 Conversion Boxes Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX038X Product Title (Ultra-Short) Conference Table Box Product Title (Short) Conference Table Connectivity Box for AV Product Title (Medium) Conference Table Connectivity Box for A/V - HDMI / VGA / DP Product Title (Standard) Conference Table Connectivity Box for A/V - USB Charging - LAN - HDMI / VGA / DisplayPort Inputs - HDMI Output - 4K Product Title (Long) Conference Table Connectivity Box for A/V - 4K - TAA Product Title (AMZ) Conference Table Connectivity Pop up Box with AV and Data Ports - HDMI, VGA, DisplayPort to 4K HDMI Output (BOX4HDECP2) Title Ingram (Part 1) Conference Table Box - A/V Title Ingram (Part 2) Connectivity - LAN - USB Charging Website Product Headline Interconnect Box | HDMI®, VGA and DisplayPort Inputs | HDMI Output Bullet 1 Easily collaborate by connecting your HDMI, VGA or DisplayPort laptop to your conference room’s HDMI display, from a single access point Bullet 2 Charge your phone or tablet, with three accessible USB charge ports Bullet 3 Add style and technological sophistication to your conference room or auditorium by building an A/V connectivity box into your table with a pop-up panel that hides ports when they’re not in use Bullet 4 Provide secure, wired network connectivity in your boardroom table with Ethernet pass-through Bullet 5 Quickly switch between which laptop screen is shared with automatic A/V switching Bullets (Compact) Conference Table Connectivity Box installs in table - Conference table pop up box shares HDMI VGA or DP laptop to your HDMI display - Conference table pop up box with USB charging - Conference room cable organizer - LAN direct connect architecture Bullets (Consolidated) Conference room connectivity box installs in your table - conference table cable management - Shares HDMI VGA or DP laptop to HDMI boardroom display - Conference table connectivity charges USB devices - Conference table pop up box adds style and technological sophistication and cable management to your boardroom or auditorium - Direct connect architecture for LAN connectivity - Connectivity architecture built into the conference table pop up box automatically switches video Marketing Copy Marketing Copy (No HTML) Applications - Install in tables or podiums

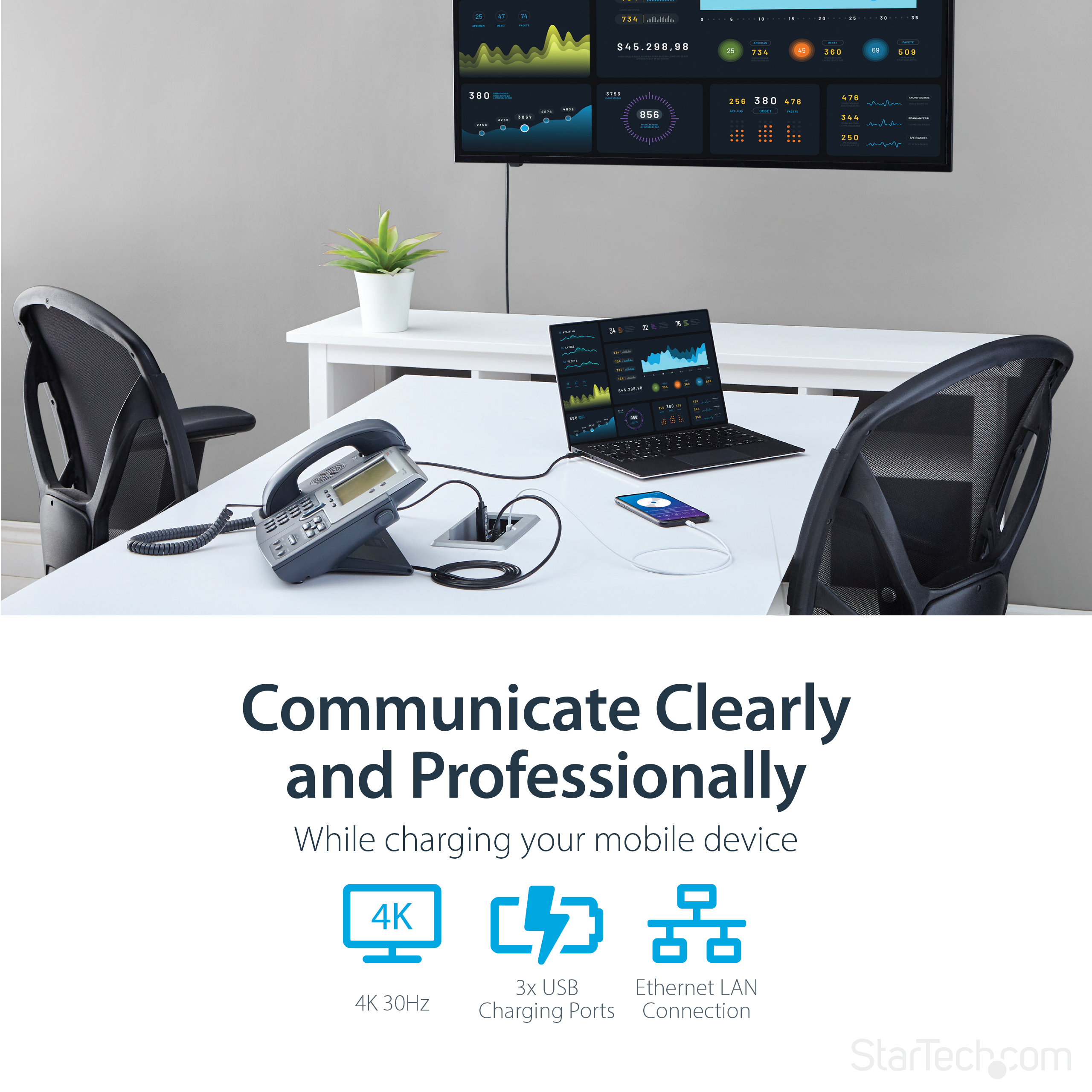

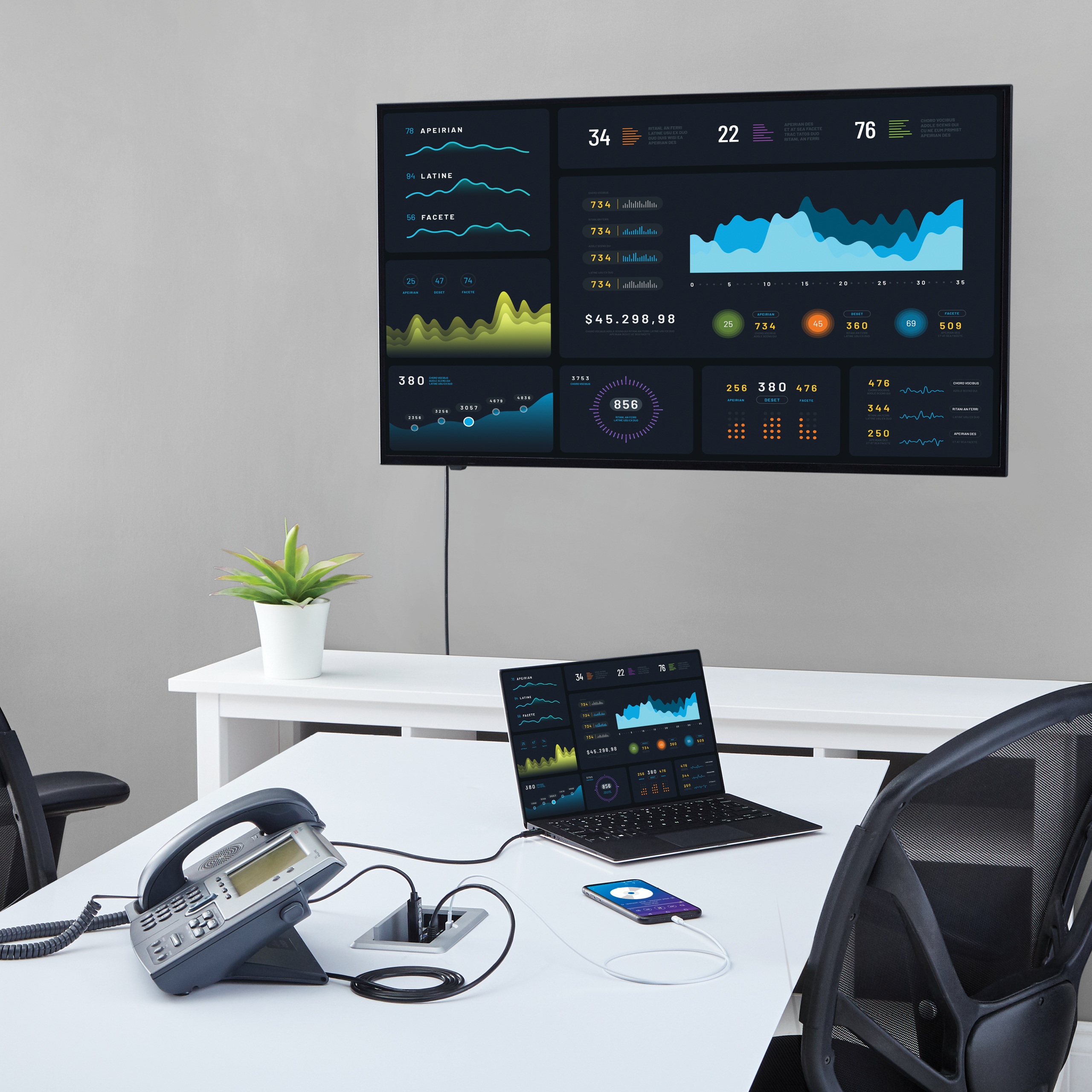

- Use for presenting and video conferencing
- Share video to collaborate in office environments
- Share video conference software to your entire room
Website Search Keyword - AMX Table box
- av box
- Boardroom cable management
- Cable Cubby
- Cable Cuddy Docking Station
- Cable Cuddy Modular Docking
- Cable Cuddy Power Delivery
- cable management box
- cable organizer
- cable well
- conference room cable management
- conference room cable organizer
- Conference Room Table Box
- conference table box
- conference table cable management box
- Conference Table Connectivity
- Conference Table Connectivity Box
- conference table grommet
- conference table pop up box
- connectivity architecture
- connectivity box
- Crestron Table box
- desk cable management
- direct connect architecture
- extron cable cubby
- interconnect box
- Kramer table box
- media gateway
- Table Box
- PS222DATAM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- HDMM6
- HDMM10
- HDMM15
- MU6MMS
- MU10MMS
- MU15MMS
- UUSBHAUB3
- UUSBHAUB6
- UUSBHAUB10
- USB2HABM3
- USB2HABM6
- USB2HABM10
- USBLT1MW
- USBLT2MW
- USBLT3MW
- RJ45PATCH10
- RJ45PATCH25
- DISPLPORT6L
- DISPLPORT3L
- DISPLPORT10L
- DISPLPORT15L
Related Products - BNDBXAVHDPEU
- BNDBXAVHDPNA
- BNDBXAVHDPUK
- BNDBXDOCKPEU
- BNDBXDOCKPNA
- BNDBXDOCKPUK
- BOX4HDECP
Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 12V DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type N Color Silver Humidity 10% to 85% (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 170.000 Product Width (mm) 100.000 Product Height (mm) 98.000 Product Weight (g) 1700.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Maximum Analog Resolutions 1920 x 1200 60Hz Maximum Cable Length (mm) 15240 Maximum Digital Resolutions 3840x2160 (4K) 30Hz Supported Resolutions Wide Screen Supported Yes Active or Passive Adapter - Active
- Passive

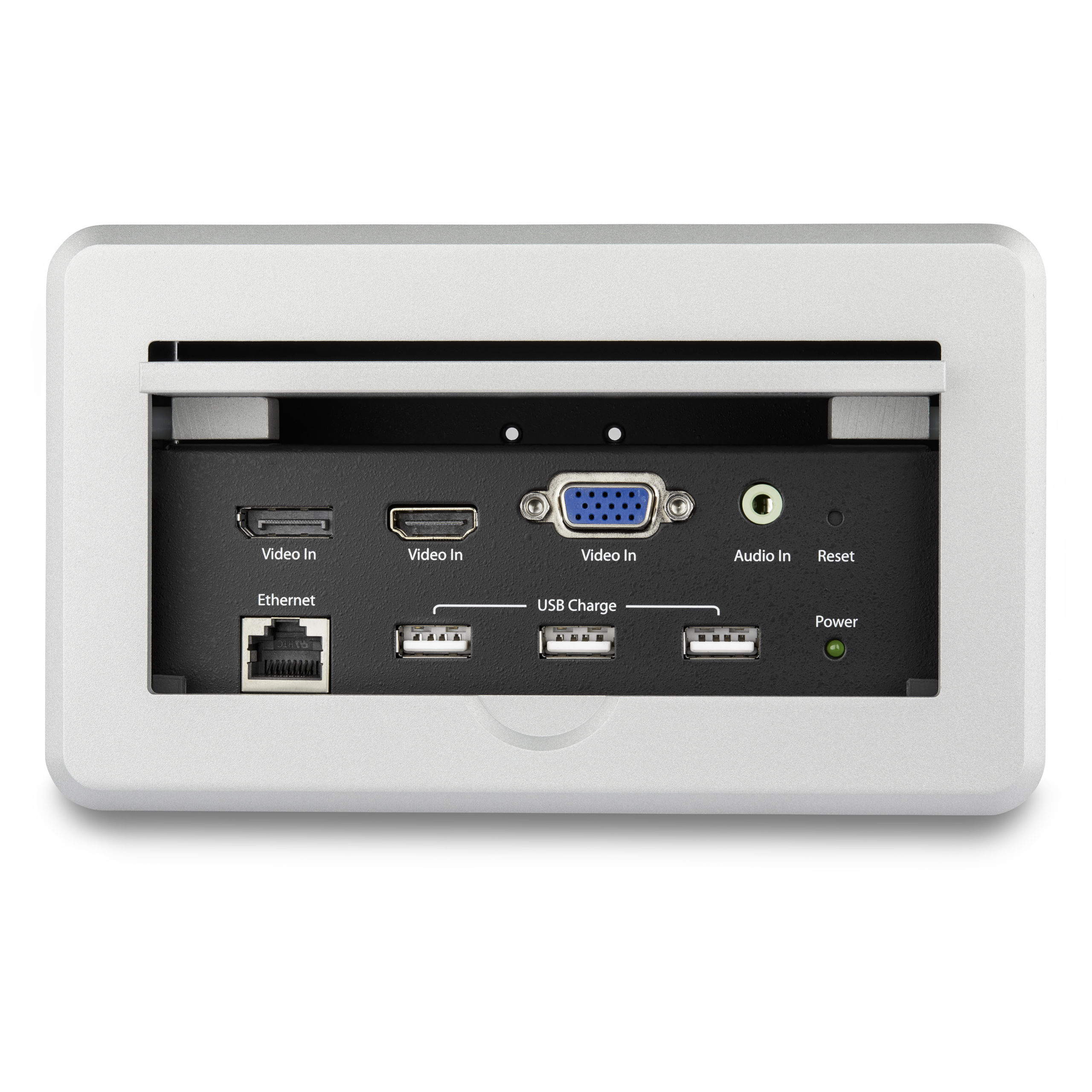

Aspect Ratio 16:9 Audio Yes AV Input - VGA
- 3.5 mm Audio
- HDMI
- DisplayPort

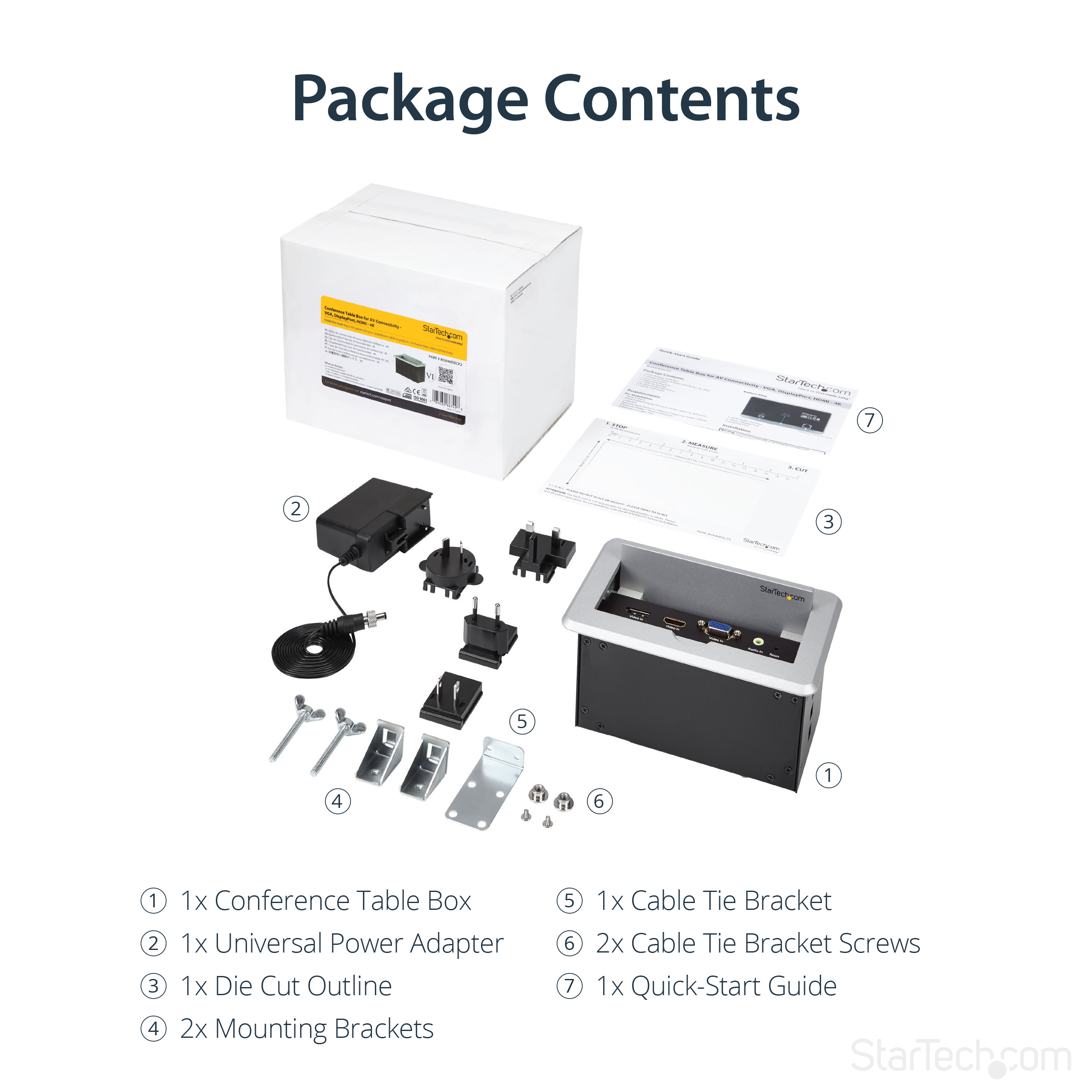

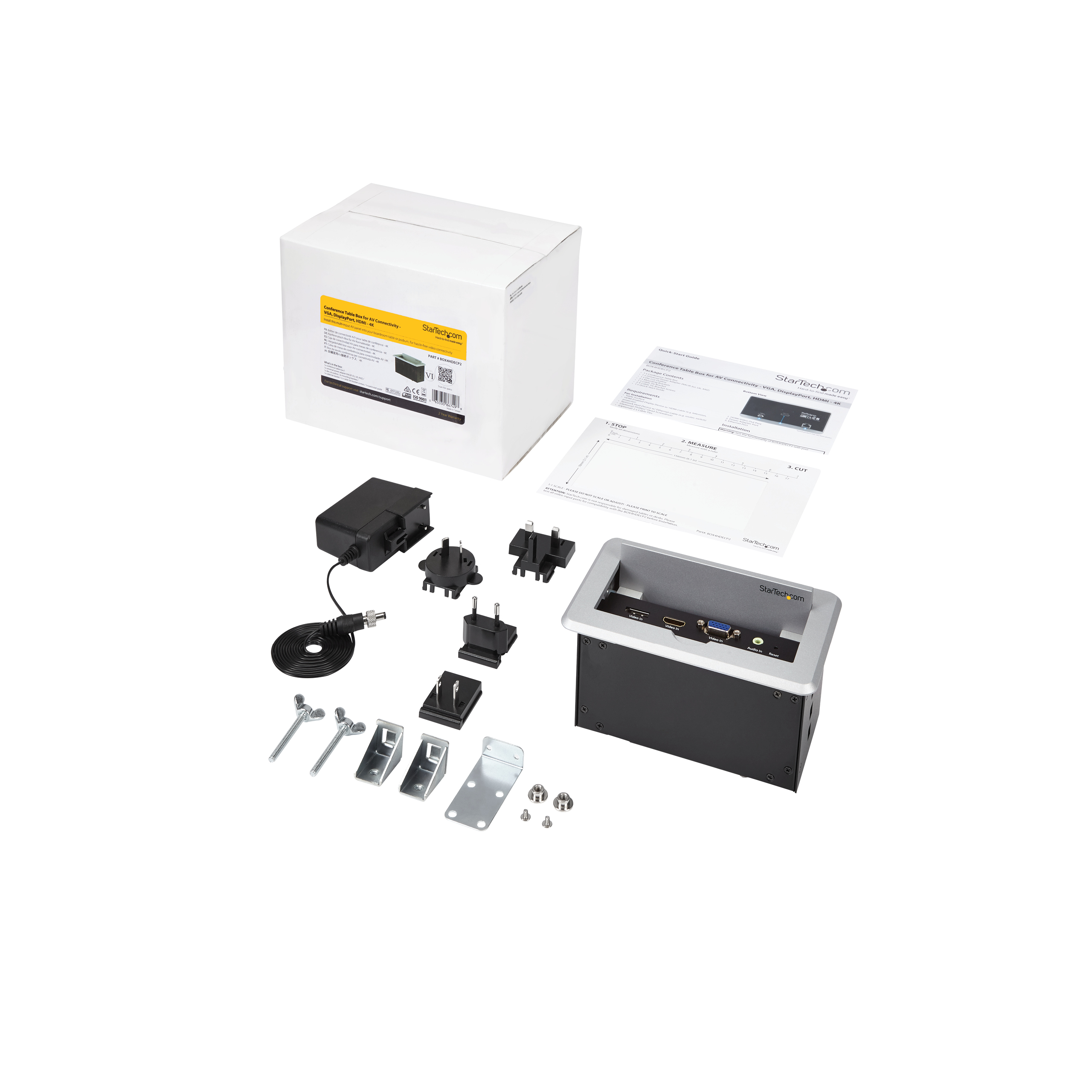

AV Output HDMI Converter Type Presentation Adapters Matrix Video Switch (Filter) No USB Pass-Through No Carton Depth (mm) 348 Carton Height (mm) 232 Carton Quantity 4 Carton Weight Gross (g) 7770 Included in Package - 1 - conference table box
- 1 - universal power adapter (NA/JP, EU, UK, ANZ)
- 1 - die cut outline
- 1 - quick-start guide
- 2 - mounting brackets
- 1 - cable tie bracket
- 2 - cable tie bracket screws

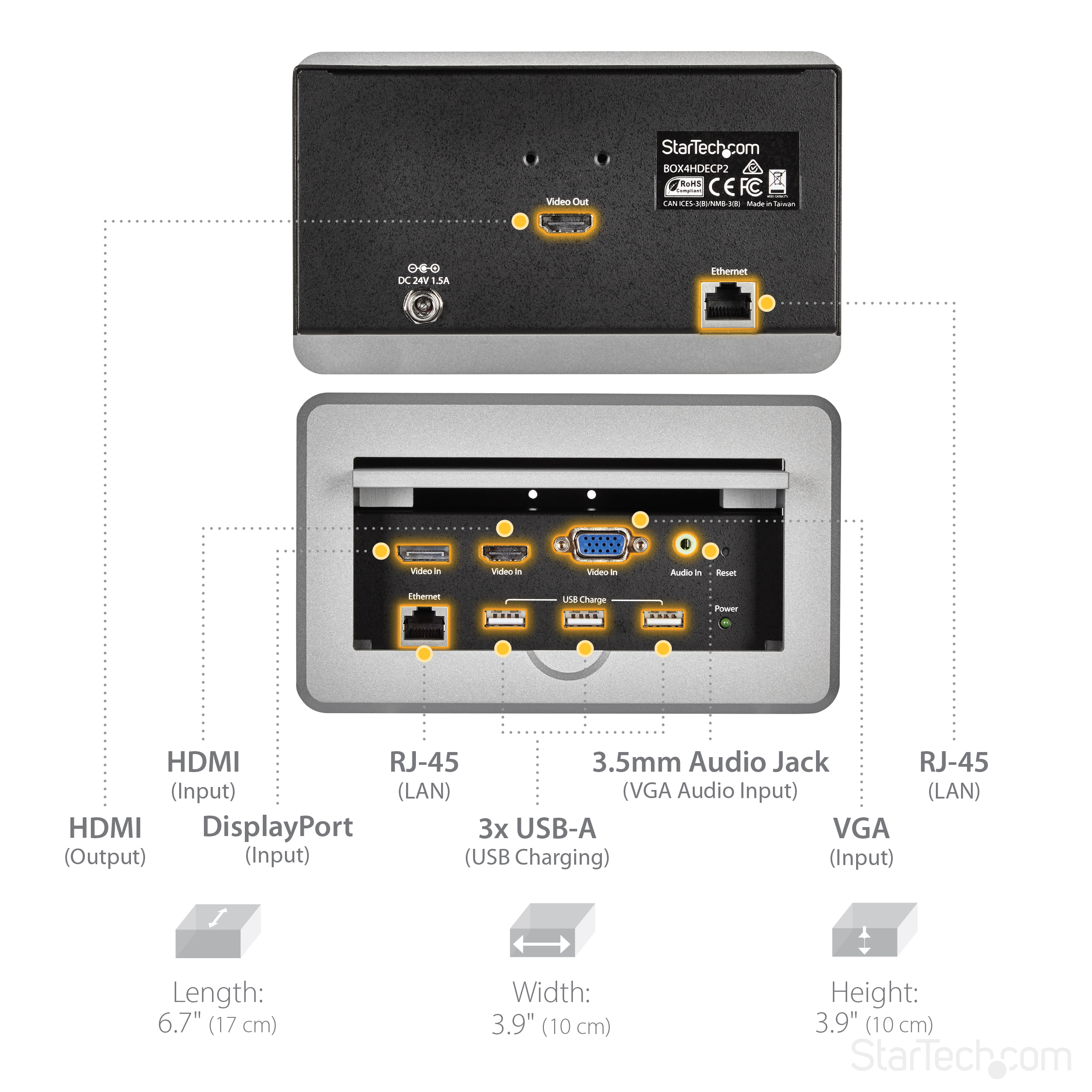

Package Depth (mm) 189 Package Height (mm) 159 Package Width (mm) 235 Package Quantity 1 Package Weight (g) 1730 Packaging Description Conference Table Box for AV Connectivity - 4K Packaging Description India Conference Table Box for AV Connectivity - 4K Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Connector 4 RJ-45 Connector 4 (Quantity) 1 Connector 5 USB-A (480Mbps, 2.5W) Connector 5 (Quantity) 3 Connector 6 DisplayPort Connector 6 (Quantity) 1 Connector 7 HDMI Connector 7 (Quantity) 1 Connector 8 RJ-45 Connector 8 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-03-21 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2018-08-24 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-03-09 Target Production Release 2018-05-11 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle None
