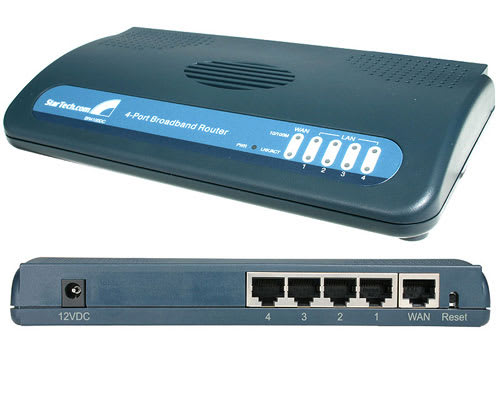

4 Port 10/100 Cable/DSL Broadband Router

Main Image

Product Name	4 Port 10/100 Cable/DSL Broadband Router
Product Number	BR4100DC
UPC	065030795623
Lifecycle status	Discontinued
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	XXXXXX022X

Manual https://images.salsify.com/image/upload/s--JDckn2o0--/3dea6218efc2f2a3e3f64d7d067da57feeb3d242.pdf

Product Title (Long)	4 Port 10/100 Cable/DSL Broadband Router
Bullet 1	NAT firewall blocks unauthorized users from accessing your private IP addresses
Bullet 2	Remote management function allows network configuration and management from anywhere, over the Internet
Bullet 3	Intuitive Quick Install Wizard for easy setup and configuration
Bullet 4	LED indicators continuously show operating status
Bullet 5	Virtual server capability enables incoming access to specified FTP, e-mail and other servers
Marketing Copy
Applications	Allows multiple users to share existing Internet resources via a single cable or xDSL modem connection Perfect for home or office use Ideal for multiple workgroup environments with shared internet access

Full Duplex Support	Yes
General Specifications	Compatibility: PC or MAC with RJ-45 Ethernet Connection Total LAN Switch Ports: 4 Total Users Supported: 253 LAN Port: 4 x 10/100 Mbits/sec RJ45 Base-T Port Firewall Throughput: 20 Mbits/sec WAN: 10 Mbits/sec Router Dimensions: Inches: 1.1 x 7.3 x 3.9 Millimeters: 30 x 187 x 100 LED Indicators: Power: Shows router's power supply status WAN LNK/ACT: Internet network connection status and activity status WAN 10/100M: Internet network connection status @ 100 Mbits/sec LAN LNK/ACT: Connection status and activity status LAN 10/100M: Connection status @ 100 Mbits/sec Power: AC Adapter 12V Enclosure Color: Blue Enclosure Construction: Plastic Standards: IEEE802.3 & IEEE802.3u EMI Certifications: FCC class B, CE Mark & C-Tick
Maximum Data Transfer Rate	100000000 Mbits/Sec
OS Compatibility	Windows Vista
Remote Management Ability	Yes
Security Features	Virtual DMZ MAC Address Filtering NAT Firewall
Supported Protocols	TCP/IP UDP ICMP PPPoE PPTP NAT/PAT DHCP RIP1/2 PAP/CHAP MS-CHAP

Accessory Products	M45PATCH6BL M45PATCH8BL M45PATCH10BL M45PATCH15BL M45PATCH25BL M45PATCH100B
Related Products	PCIBT ST100S ST100SLP ST100SW UE1205CB

Industry Standards	IEEE802.3 IEEE802.3u
LED Indicators	1 - Power 1 - WAN Link and Activity 1 - WAN 10 / 100 Mbit connection status 1 - LAN Link and Activity 1 - LAN 10 10 / 100 Mbit connection status

Input Voltage	12V DC
Power Source	AC Adapter Included

Connector 1	RJ-45
Connector 1 (Quantity)	5
