BR4100DCGB
Main Image

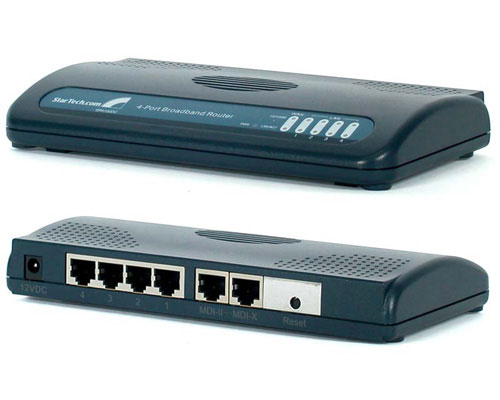

Product Name 4 Port 10/100 Cable/DSL Router for UK Product Number BR4100DCGB UPC 065030797221 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX022X Product Title (Long) 4 Port 10/100 Cable/DSL Broadband Router for UK Bullet 1 NAT firewall blocks unauthorized users from accessing your private IP addresses Bullet 2 Remote management function allows network configuration and management from anywhere, over the Internet Bullet 3 Intuitive Quick Install Wizard for easy setup and configuration Bullet 4 LED indicators continuously show operating status Bullet 5 Virtual server capability enables incoming access to specified FTP, e-mail and other servers Marketing Copy Set up a high-speed network with only one Internet connection! Save the cost of extra connections, modems and switches! The BR4100DC DSL/Cable Router connects to your broadband modem or Ethernet backbone, allowing you to connect up to 253 users via four 10/100 Mbits/sec ports. A web based user interface and Quick Setup Wizard walks you through installation and configuration and makes ongoing remote management simple and straightforward. Plus, to protect your network, the router comes with a built-in, configurable firewall that blocks hacker intrusion. And for extra security, the router uses NAT (Network Address Translation) to keep your private IP addresses hidden from unauthorized users. Advanced features like Virtual Server, Remote Access, DMZ, Access Control, and Address Mapping let you configure the router to meet the exact needs of your network solution. Backed by StarTech.com’s 2-year warranty and FREE lifetime tech support. Applications - Allows multiple users to share existing Internet resources via a single cable or xDSL modem connection
- Perfect for home or office use
- Ideal for multiple workgroup environments with shared internet access
Power Source AC Adapter Included Color Blue TAA Compliant No General Specifications - Compatibility: PC or MAC with RJ-45 Ethernet Connection
- Total LAN Switch Ports: 4
- Total Users Supported: 253
- LAN Port: 4 x 10/100 Mbits/sec RJ45 Base-T Port
- Firewall Throughput: 20 Mbits/sec
- WAN: 10 Mbits/sec
- Router Dimensions:
- Inches: 1.1 x 7.3 x 3.9
- Millimeters: 30 x 187 x 100
- LED Indicators:
- Power: Shows router's power supply status
- WAN LNK/ACT: Internet network connection status and activity status
- WAN 10/100M: Internet network connection status @ 100 Mbits/sec
- LAN LNK/ACT: Connection status and activity status
- LAN 10/100M: Connection status @ 100 Mbits/sec
- Power: AC Adapter 12V
- Enclosure Color: Blue
- Enclosure Construction: Plastic
- Standards: IEEE802.3 & IEEE802.3u
- EMI Certifications: FCC class B, CE Mark & C-Tick
Carton Depth (mm) 422 Carton Height (mm) 246 Carton Quantity 15 Carton Weight Gross (g) 13500 Package Depth (mm) 102 Package Height (mm) 145 Package Width (mm) 210 Package Weight (g) 820 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
