Main Image
BR411BWDC
Main Image

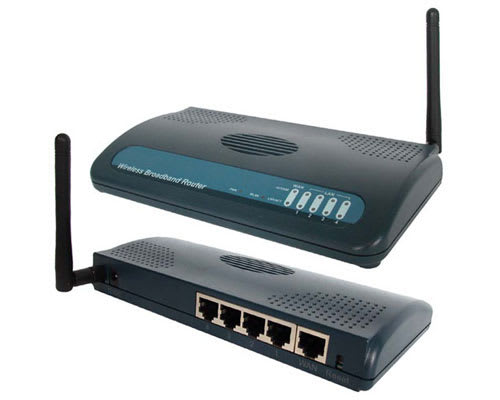

Product Name 802.11b Wireless router w. 4 port switch Product Number BR411BWDC UPC 065030799201 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 802.11b Wireless router w. 4 port switch Bullet 1 Connects to a broadband modem or to an Ethernet backbone Bullet 2 Allows multiple users to share existing Internet resources Bullet 3 Wireless access point function lets your 802.11b client devices access the Internet through the router Bullet 4 NAT firewall protects your network from security breaches and blocks unauthorized users Bullet 5 Enhanced 64/128 bit WEP Data Encryption for high level of security Marketing Copy Applications - For use in home, small offices and branch offices
- Multiple work group environments with shared Internet access
Accessory Products - PCI511WB
- CB511WB
- USB511WB
- M45PATCH7BL
- M45PATCH8BL
- M45PATCH10BL
- M45PATCH25BL
- WLANREF
- 45PATCH10GR
- 45PATCH15GR
- 45PATCH6GR
Related Products BR4100DC Input Current 1A Input Voltage 12 DV Power Source AC Adapter Included Color Blue Material Plastic Operating Temperature 10 ~ 40 Product Length (mm) 187 Product Width (mm) 100 Product Height (mm) 30 TAA Compliant No Full Duplex Support Yes General Specifications - Compatibility: PC or MAC with RJ-45 Ethernet Connection
- Ports:
- : WAN Port: 1 x 10/100Base-T Fast Ethernet port
- : LAN Port: 4 x 10/100Base-T Fast Ethernet port
- Firewall Throughput: 50 Mbytes/sec
- Antenna: RP-SMA Detachable Antenna
- Router Dimension: 187 x 100 x 30 mm
- Router Speed:
- : LAN: 10/100 Mbits/sec (Half Duplex & Full Duplex)
- : WAN: 10/100 Mbits/sec
- : Wireless Access: 11 Mbits/sec
- LED Indicators:
- : Power: Shows router’s power supply status
- : WLAN: Shows Wireless LAN status
- : WAN LNK/ACT: Internet network connection status and activity status
- : WAN 10/100M: Internet network connection status @ 100 Mbits/sec
- : LAN 10/100M: Connection status @ 100 Mbits/sec
- : LAN LNK/ACT: Connection status and activity status
- Protocols Supported: TCP/IP, UDP, ICMP, PPPoE, PPTP, NAT/PAT, DHCP (Client/Server), PAP/CHAP & MS-CHAP
- Enclosure Color: Blue
- Enclosure Construction: Plastic
- Standards: IEEE802.11b, IEEE802.3 & IEEE802.3u
- Certifications: FCC class B, CE Mark & C-Tick
- System and Cable Requirements:
- : One External DSL (ADSL) or Cable modem with an Ethernet port (RJ-45)
- : Wireless Interface Card for each Personal Computer
- : Computers with a Web-Browser (Internet Explorer 4.0 or higher, or Netscape Navigator 4.7 or higher)
- Package Content:
- : One 4-port Wireless Broadband router unit
- : One Detachable RP-SMA Antenna
- : One User Manual
- : One Power Adapter - DC Output 12V (1A)
Maximum Data Transfer Rate 100000000 Mbits/Sec Remote Management Ability Yes Security Features - WEP Data Encryption
- NAT Firewall
- Virtual DMZ
- Port Forwarding
Supported Protocols - TCP/IP
- UDP
- PPTP
- PPPoE
- DHCP
- NAT
- ICMP
- PAP/CHAP
- MS-CHAP
Industry Standards - IEEE802.11b
- IEEE802.3
- IEEE802.3u
Included in Package - 1 - One 4-port Wireless Broadband router unit
- 1 - One Detachable RP-SMA Antenna
- 1 - One User Manual
- 1 - One Power Adapter - DC Output 12V (1A)
Connector 1 RJ-45 Connector 1 (Quantity) 5 en-US Content Approved Yes
