BR411BWDCGB
Main Image

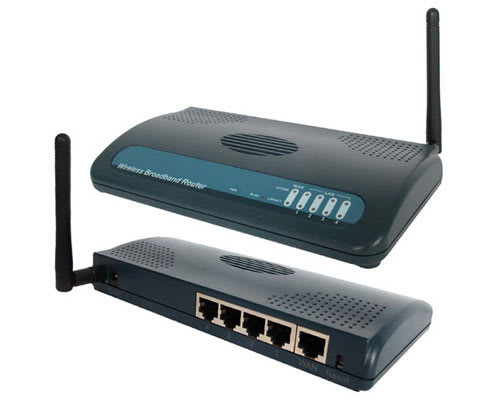

Product Name 802.11b Wireless router w. 4 port switch Product Number BR411BWDCGB UPC 065030805308 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) 802.11b Wireless router w. 4 port switch Bullet 1 Connects to a broadband modem or to an Ethernet backbone Bullet 2 Allows multiple users to share existing Internet resources Bullet 3 Wireless access point function lets your 802.11b client devices access the Internet through the router Bullet 4 NAT firewall protects your network from security breaches and blocks unauthorized users Bullet 5 Enhanced 64/128 bit WEP Data Encryption for high level of security Marketing Copy Applications - For use in home, small offices and branch offices
- Multiple work group environments with shared Internet access
Power Source AC Adapter Included TAA Compliant No General Specifications - Compatibility: PC or MAC with RJ-45 Ethernet Connection
- Ports:
- : WAN Port: 1 x 10/100Base-T Fast Ethernet port
- : LAN Port: 4 x 10/100Base-T Fast Ethernet port
- Firewall Throughput: 50 Mbytes/sec
- Antenna: RP-SMA Detachable Antenna
- Router Dimension: 187 x 100 x 30 mm
- Router Speed:
- : LAN: 10/100 Mbits/sec (Half Duplex & Full Duplex)
- : WAN: 10/100 Mbits/sec
- : Wireless Access: 11 Mbits/sec
- LED Indicators:
- : Power: Shows router’s power supply status
- : WLAN: Shows Wireless LAN status
- : WAN LNK/ACT: Internet network connection status and activity status
- : WAN 10/100M: Internet network connection status @ 100 Mbits/sec
- : LAN 10/100M: Connection status @ 100 Mbits/sec
- : LAN LNK/ACT: Connection status and activity status
- Protocols Supported: TCP/IP, UDP, ICMP, PPPoE, PPTP, NAT/PAT, DHCP (Client/Server), PAP/CHAP & MS-CHAP
- Power: AC Adapter 12V (1A)
- Enclosure Color: Blue
- Enclosure Construction: Plastic
- Standards: IEEE802.11b, IEEE802.3 & IEEE802.3u
- Certifications: FCC class B, CE Mark & C-Tick
- System and Cable Requirements:
- : One External DSL (ADSL) or Cable modem with an Ethernet port (RJ-45)
- : Wireless Interface Card for each Personal Computer
- : Computers with a Web-Browser (Internet Explorer 4.0 or higher, or Netscape Navigator 4.7 or higher)
- Package Content:
- : One 4-port Wireless Broadband router unit
- : One Detachable RP-SMA Antenna
- : One User Manual
- : One Power Adapter - DC Output 12V (1A)
en-US Content Approved Yes
