BRACKET425F
4-Drive 2.5
Install four 2.5” solid-state drives or hard drives into two 5.25” front bays, to add storage to a desktop computer or server
Main Image
Product Images
Product Images
BOM Image
Product Name 4-Drive 2.5 Product Number BRACKET425F UPC 065030862301 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 2.5" Drive Mounting Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Ultra-Short) 4x 2.5” SSD Bracket Product Title (Short) 4x 2.5in SSD/HDD Mounting Bracket w/ Fan Product Title (Medium) 4x 2.5” SSD/HDD Mounting Bracket w/ Cooling Fan - for Desktop Computer or Server Product Title (Standard) 4x 2.5in SSD/HDD Mounting Bracket with Cooling Fan - Four-Drive Mounting Bracket for Desktop Computer or Server Product Title (Long) 4x 2.5” SSD/HDD Mounting Bracket with Cooling Fan Product Title (AMZ) 4x 2.5in SSD/HDD Mounting Bracket with Cooling Fan - Four-Drive Mounting Bracket for Desktop Computer or Server (BRACKET425F) Title Ingram (Part 1) 4-Drive 2.5" SSD & HDD Mounting Title Ingram (Part 2) Bracket w/ Fan - Desktop or Server Website Product Headline Install four 2.5” solid-state drives or hard drives into two 5.25” front bays, to add storage to a desktop computer or server Bullet 1 Mount four SSDs/HDDs into two front bays (5.25”) of your desktop computer or server Bullet 2 Supports 2.5” SSD/HDDs from 5 - 15 mm Bullet 3 Durable mounting bracket with steel framing Bullet 4 Cooling fan with filter helps to ensure optimum operating temperature Bullets (Compact) Install four 2.5” solid-state drives or hard drives into two 5.25” front bays, to add storage to a desktop computer or server - Durable drive mounting bracket w/ steel framing - Cooling fan w/ filter - Mounting bracket for 2.5” SSD/HDDs from 5-15 mm Bullets (Consolidated) Install four 2.5" solid-state drives or hard drives into two 5.25" front bays to add storage to a desktop computer or server - Durable drive mounting bracket with steel framing - SDD/HDD mounting bracket with cooling fan and filter helps to ensure optimum operating temperature - 4-drive mounting bracket supports 2.5in SSD/HDDs from 5-15 mm - Backed by StarTech.com 2-year warranty and free lifetime technical support Marketing Copy Applications - Add the performance and storage capacity of four 2.5” SSD/HDDs, installed into two unused 5.25” bays in your desktop computer or server
- Cooling fan with dust filter makes the mounting bracket ideal for industrial and corporate environments
- Repurpose unused laptop hard drives to work with your desktop computer
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
Accessory Products - LSATA6
- LSATA12
- LSATA18
- LSATA24
- LSATARND6
- LSATARND12
- LSATARND18
- LSATARND24
- SAT2M2NGFF25
- SAT32M225
- SAT32MSAT257
- SAT2MSAT25
- 25SAT22MSAT
- PYO2LP4SATA
- PYO4SATA
- PYO2SATA
- SATAPOWADAP
- IDE2SAT25
- FDROUNDBL
- IDE100RND18
- IDE4044
- CFAST2SAT25
Related Products - 25SAT35HDD
- BRACKET25X2
- BRACKET25SAT
- BRACKETFDBK
- BRACKET25
- BRACKET
- BRACKET225PT
- 25SATSAS35
- IDE35252X
- SAT32M225
- SAT32MSAT257
- SAT2M2NGFF25
- CFAST2SAT25
- SAT2MSAT25
- 25SAT22MSAT
Color Black Material Steel and Plastic Max Drive Height (mm) 15 Product Length (mm) 162.000 Product Width (mm) 150.000 Product Height (mm) 85.000 Product Weight (g) 520.000 TAA Compliant No MTBF (hours) 50000 hours Compatible Drive Types SATA & IDE Fan Bearing Type Dual Ball Bearing Fans 1 - 80 mm Fans Included? Yes/No Yes Number of Drives 4 Supported Drive Height(s) - 5mm
- 7mm
- 9.5mm
- 12.5mm
- 15mm

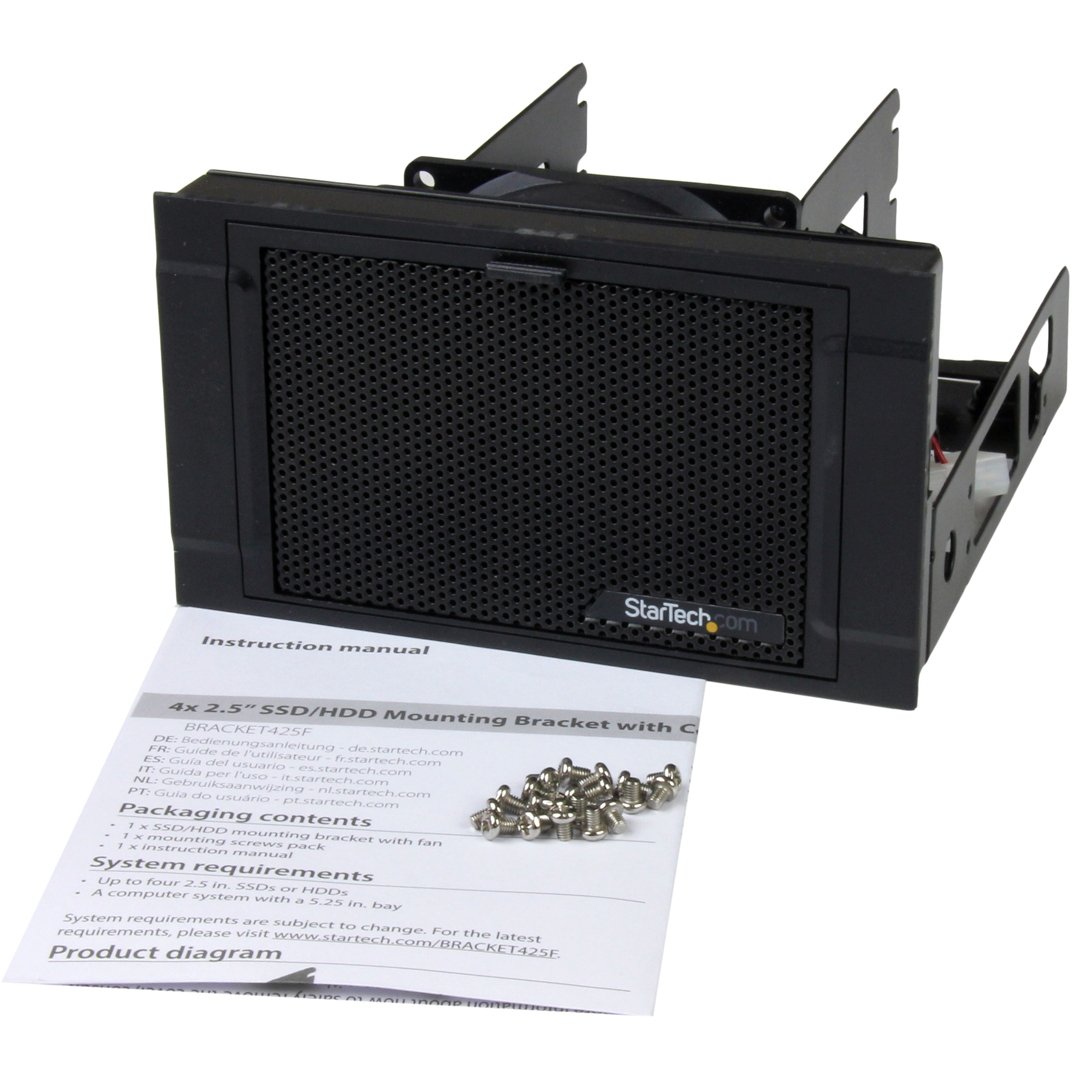

Carton Depth (mm) 385 Carton Height (mm) 300 Carton Quantity 18 Carton Weight Gross (g) 12390 Included in Package - 1 - SSD/HDD mounting bracket with fan
- 1 - mounting screws pack
- 1 - quick start guide
Package Depth (mm) 161 Package Height (mm) 87 Package Width (mm) 179 Package Quantity 1 Package Weight (g) 628 Packaging Description 4x 2.5” SSD/HDD mounting bracket with fan Packaging Description India 4x 2.5” SSD/HDD mounting bracket with fan Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-07-21 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-07-24 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
