C10043-USB-EXTENDER
4-Port USB Over CAT6a/7 Extender - A to 4A 5Gbps - 100m
Extend four USB 3.0 peripherals up to 330ft (100m) over Cat6a/Cat7/Cat8
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 4-Port USB Over CAT6a/7 Extender - A to 4A 5Gbps - 100m Product Number C10043-USB-EXTENDER UPC 065030924245 Taxonomy Product > Extenders > USB Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX185X Product Title (Ultra-Short) USB 3.0 Extender Product Title (Short) 4-Port USB 3.0 Extender over Ethernet Product Title (Medium) 4-Port USB 3.0 Extender over Ethernet, 330ft via Cat6a/7/8, RJ45/USB Extension Product Title (Standard) 4-Port USB 3.0 Extender over Ethernet up to 330ft via Cat6a/Cat7/Cat8 RJ45, Extension Adapter for Remote USB Devices, TAA Product Title (Long) 4-Port USB 3.0 Extender over Ethernet up to 330ft (100m) via Cat6a / Cat7 / Cat8 RJ45 Cable, Extension for Remote USB Devices, 4x USB-A 5Gbps Hub, TAA Product Title (AMZ) 4-Port USB 3.0 Extender over Ethernet up to 330ft (100m) via Cat6a / Cat7 / Cat8 RJ45 Cable, Extension for Remote USB Devices, 4x USB-A 5Gbps Hub, TAA Title Ingram (Part 1) USB 3.0 Extender over Ethernet Title Ingram (Part 2) - 330ft via Cat6a/Cat7 RJ45 Cable Website Product Headline Extend four USB 3.0 peripherals up to 330ft (100m) over Cat6a/Cat7/Cat8 Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Connect four remote devices to a local computer up to 330ft away over a single point-to-point Cat6a/Cat7/Cat8 Ethernet RJ45 cable - Power the USB extender via transmitter or receiver for a clean and simple install - 5Gbps USB speeds w/ serial support Bullets (Consolidated) Connect four remote USB 3.0 peripherals to a local computer over a single direct-run Cat6a, Cat7, or Cat8 Ethernet cable up to 330ft (100m) - Power both transmitter and receiver units using the included power adapter for clean installs - RJ45 Extension for out of reach USB webcams data tools storage and peripherals in classrooms kiosks and industrial setups - 4x 5Gbps ports and RS-232 serial passthrough and FSYNC - Built with rugged metal housings for enhanced protection and durability Marketing Copy Marketing Copy (No HTML) Applications - Connect four remote USB 3.0 peripherals to a local computer up to 330ft (100m) away
- Connect webcams, data acquisition tools, storage devices, and input peripherals in locations such as classrooms, kiosks, industrial workstations, or control rooms
Accessory Products - USB3CAB2M
- USB3SAB3
- USB3SAB10BK
Related Products - F35023-USB-EXTENDER
- USB3004EXT2

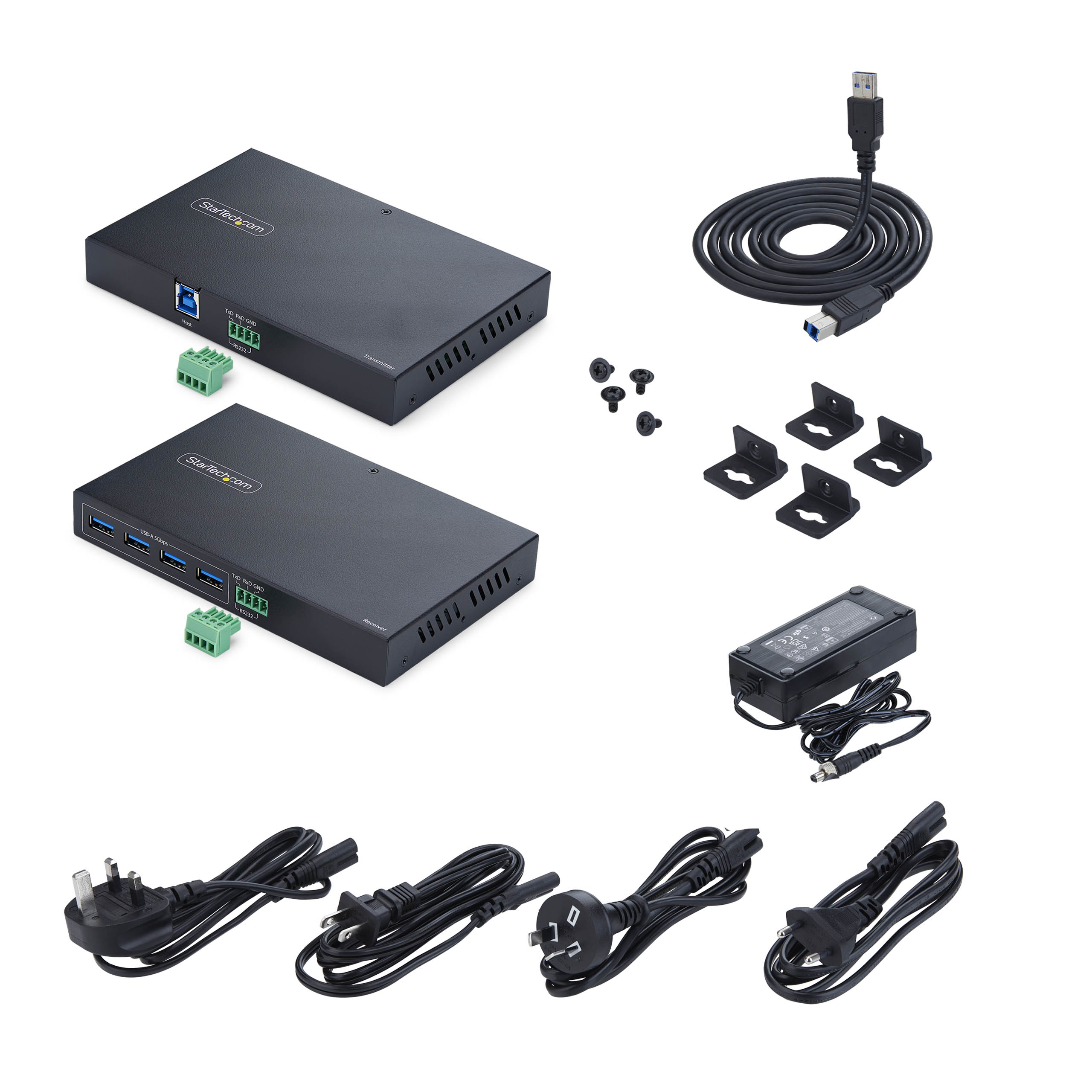

Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 20V DC Power Consumption (In Watts) 60 W Power Source AC Adapter Included Plug Type M Cable Length (mm) 1800 Color Black Humidity 10% to 90%, non-condensing Material Steel Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 150 Product Width (mm) 100 Product Height (mm) 20.5 Product Weight (g) 344 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes Max Distance 100m [328ft] Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) OS Compatibility OS Independent Cabling Cat 6a or better Chipset ID Valens - VS6320 LED Indicators 1 - Transmitter (Host Side) </br> Link LED = Solid Green Link is Active</br> Off or Flashing Green= No Link </br> </br> Power LED = Solid is Receiving Power </br> Off = No Power </br> </br> Host LED = Solid Green is Connected to Host</br> Off = Not connected to Host</br> </br> </br> Receiver (Remote Unit) </br> Link LED = Solid Green Link is Active</br> Off or Flashing Green= No Link </br> </br> Power LED = Solid is Receiving Power </br> Off = No Power Included in Package - 1 - Transmitter (Local Unit)
- 1 - Receiver (Remote Unit)

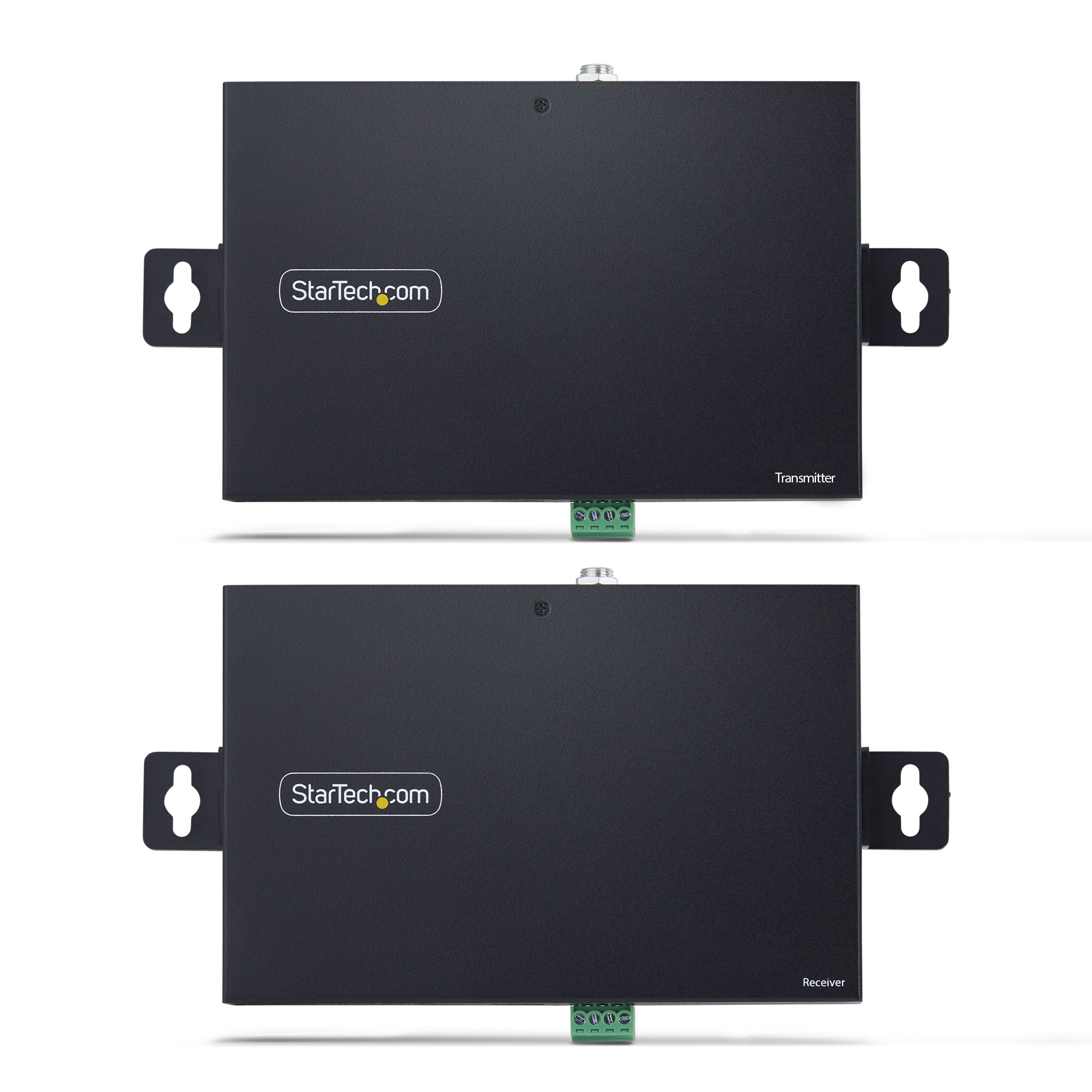

- 1 - Mounting Kit (includes M2.5x5mm screws)
- 1 - Universal Power Adapter (NA/JP, AU/NZ, UK, EU)
- 1 - Product Documentation
- 1 - USB A to B Cable 6ft (1.8m)
- 2 - Terminal Block

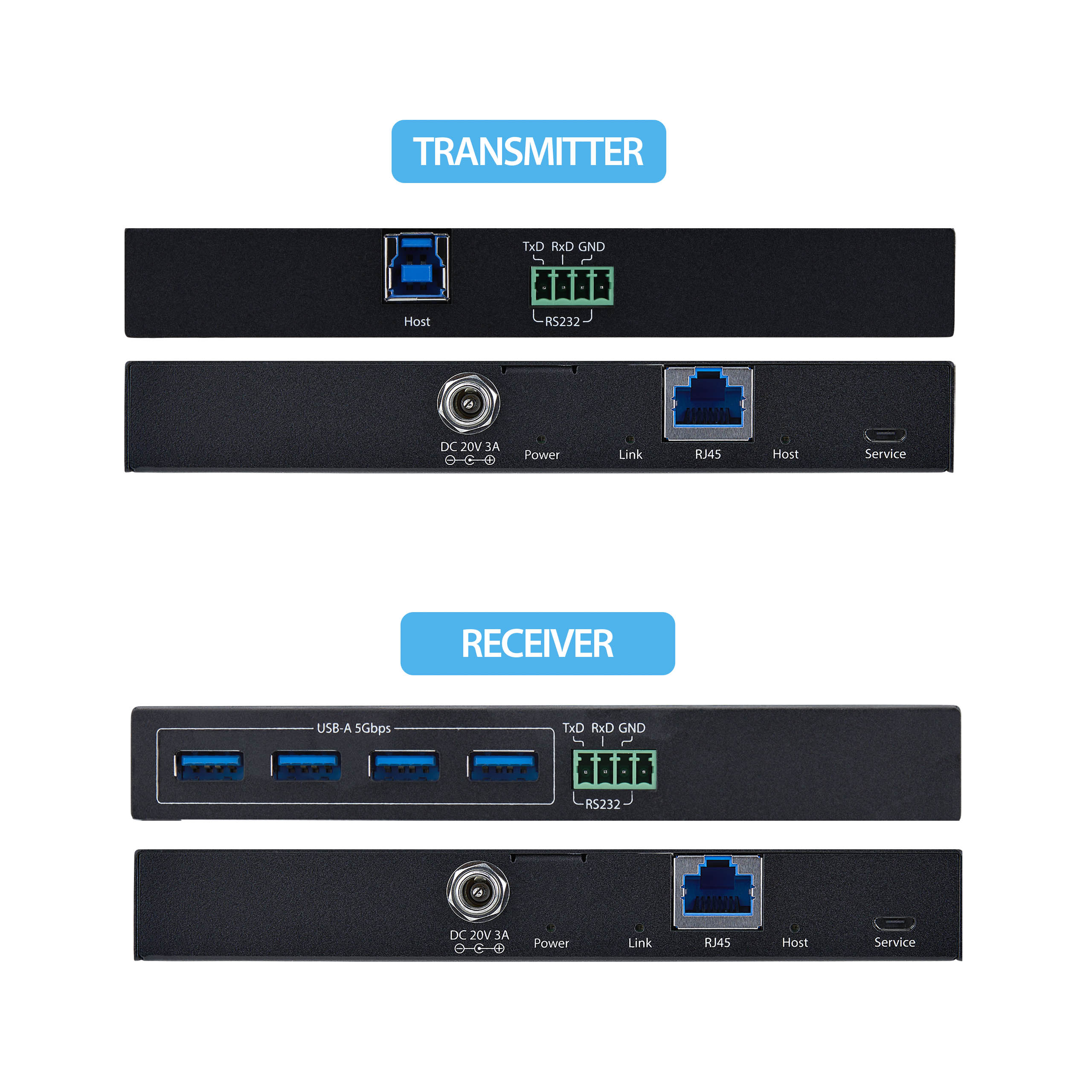

Packaging Description 4-Port USB 3.0 Over Cat6a Extender - USB-A 5Gbps - 100m (328ft) Packaging Description India 4-Port USB 3.0 Over Cat6a Extender - USB-A 5Gbps - 100m (328ft) Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 4 Connector 2 USB-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 2 Connector 4 Terminal Block (4 Wire) Connector 4 (Quantity) 1 Connector 5 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 5 (Quantity) 1 Connector 6 USB Micro-B (480Mbps, 2.5W) Connector 6 (Quantity) 1 Connector 7 USB-A (5Gbps, 4.5W) Connector 7 (Quantity) 4 Connector 8 Terminal Block (4 Wire) Connector 8 (Quantity) 1 Connector 9 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 9 (Quantity) 1 Connector 10 RJ-45 Connector 10 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 Terminal Block (4 Wire) Host Connector 2 (Quantity) 1 Host Connector 3 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Host Connector 3 (Quantity) 1 Host Connector 4 RJ-45 Host Connector 4 (Quantity) 1 Host Connector 5 USB Micro-B (480Mbps, 2.5W) Host Connector 5 (Quantity) 1 en-US Content Approved Yes Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,HK,IE,IT,JP,NL,NZ,PL,SE,SG,UK,US Primary Technology USB 3.2 Gen 1 / 5Gbps
