C15012-USB-EXTENDER
1 Port USB 2 0 Extender Over CAT5e 150M
Connect a remote USB 2.0 device to your computer over long distances
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Product Name 1 Port USB 2 0 Extender Over CAT5e 150M Product Number C15012-USB-EXTENDER UPC 065030893176 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > USB Extenders Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB Extenders - USB 2.0 Family USB Extenders - USB 2.0 - over Cat Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX111X Product Title (Ultra-Short) USB 2.0 Extender Product Title (Short) USB 2.0 Extender Over Cat5e/Cat6, 150m Product Title (Medium) USB 2.0 Extender over Cat5e/Cat6 (RJ45), 492ft USB Over Ethernet Cable Extender Product Title (Standard) 150m (492ft) USB 2.0 Extender over Cat5e/Cat6 Ethernet Cable, Externally Powered USB Extender via RJ45/Network Cable, TAA Product Title (Long) 150m (492ft) USB 2.0 Extender over Cat5e/Cat6 Ethernet Cable, Externally Powered USB Extender via RJ45/Network Cable, USB Over Ethernet Cable Extender/Adapter - TAA Product Title (AMZ) 150m (492ft) USB 2.0 Extender over Cat5e/Cat6 Ethernet Cable, Externally Powered USB Extender via RJ45/Network Cable, USB Over Ethernet Cable Extender/Adapter , TAA (C15012-USB-EXTENDER) Title Ingram (Part 1) USB 2.0 Extender Kit - 492ft - Title Ingram (Part 2) 480 Mbps, Metal Housing, USB Incl. Website Product Headline Connect a remote USB 2.0 device to your computer over long distances Bullet 1 ULTRA LONG RANGE USB EXTENDER: Extend a USB 2.0 connection up to 492 ft (150 m) over an Ethernet cable (CAT5e, CAT6, or higher) with data transfer rates up to 480Mbps; Power, Link & Activity status LEDs; For Webcams and USB peripherals Bullet 2 POWERED USB EXTENDER KIT: The USB extender over Cat5/Cat6 cable (RJ45) includes a power adapter for the Receiver while the Transmitter is bus-powered. The Receiver's USB port provides 5V 500mA Bullet 3 DURABLE & COMPACT: Durable metal construction for high wear and tear environments; Transmitter & Receiver each feature the same small form factor 1.3 x 1x 2.65 in (32 x 25 x 67.3 mm); Rubber feet help prevent sliding; 2 ft (61 cm) USB host cable included Bullet 4 PLUG-AND-PLAY: The extender features driverless installation and is compatible w/ major operating systems incl. Windows, macOS, Linux; Compatible with USB 2.0/1.1/1.0; Point-to-Point, Does not work through network/LAN equipment (router, switch, etc.) Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA USB 2.0 extender kit is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) USB 2.0 adapter extender - 1x USB device 492ft over CAT5e/CAT6 Ethernet cable (RJ45) 480Mbps - Metal shell - 2ft USB host cable - Powered 5VDC, 500mA port w/incl PWR adapter - Win/macOS/Linux - USB 2.0/1.1/1.0 - Not for use w/Network/LAN equipment Bullets (Consolidated) 1-Port USB 2.0 Extender over CAT5e/CAT6 Ethernet cable up to 492ft with data transfer rates up to 480Mbps - Transmitter - bus-powered, Receiver - power adapter 5V/500mA (included) - Durable metal enclosure - 2ft USB host cable included | 1080p compatible | Small form factor Transmitter and Receiver (1.3x1x2.65in) | Driverless installation | Win/macOS/Linux | Compatible with USB 2.0/1.1/1.0 | Not for use with Network/LAN equipment Marketing Copy Marketing Copy (No HTML) Website Search Keyword - usb 2.0 extender
- convert usb to ethernet
- powered usb extender
- RJ45 USB extender
- usb 2.0 extender over cat5e
- USB Cat5e Extender
- USB Cat6 Extender
- usb over ethernet adapter
- usb over ethernet extender
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
System and Cable Requirements - A host computer with an available USB-A port (USB Type-A)
- Terminated RJ45 Cat5e (or better) Ethernet cable
- The Ethernet cable must comply with the EIA/TIA-568-A or B Standard.
- Receiver and Transmitter must be connected in a point-to-point setup. The product does not work when connected via networking equipment.
Accessory Products - N6PATCH100BL
- N6PATCH50BK
- N6PATCH25OR
- RJ45PATCH100
- 45PATCH50BK
- 45PATCH25OR
- WIRC5ECMR
- WIR5ECMPHBL
- USB2HAB6
- USB2HAB1
- USBAB1ML
Related Products - USB110EXT2
- USB2004EXTV
- USB2G4LEXT2
- USB2001EXT2NA

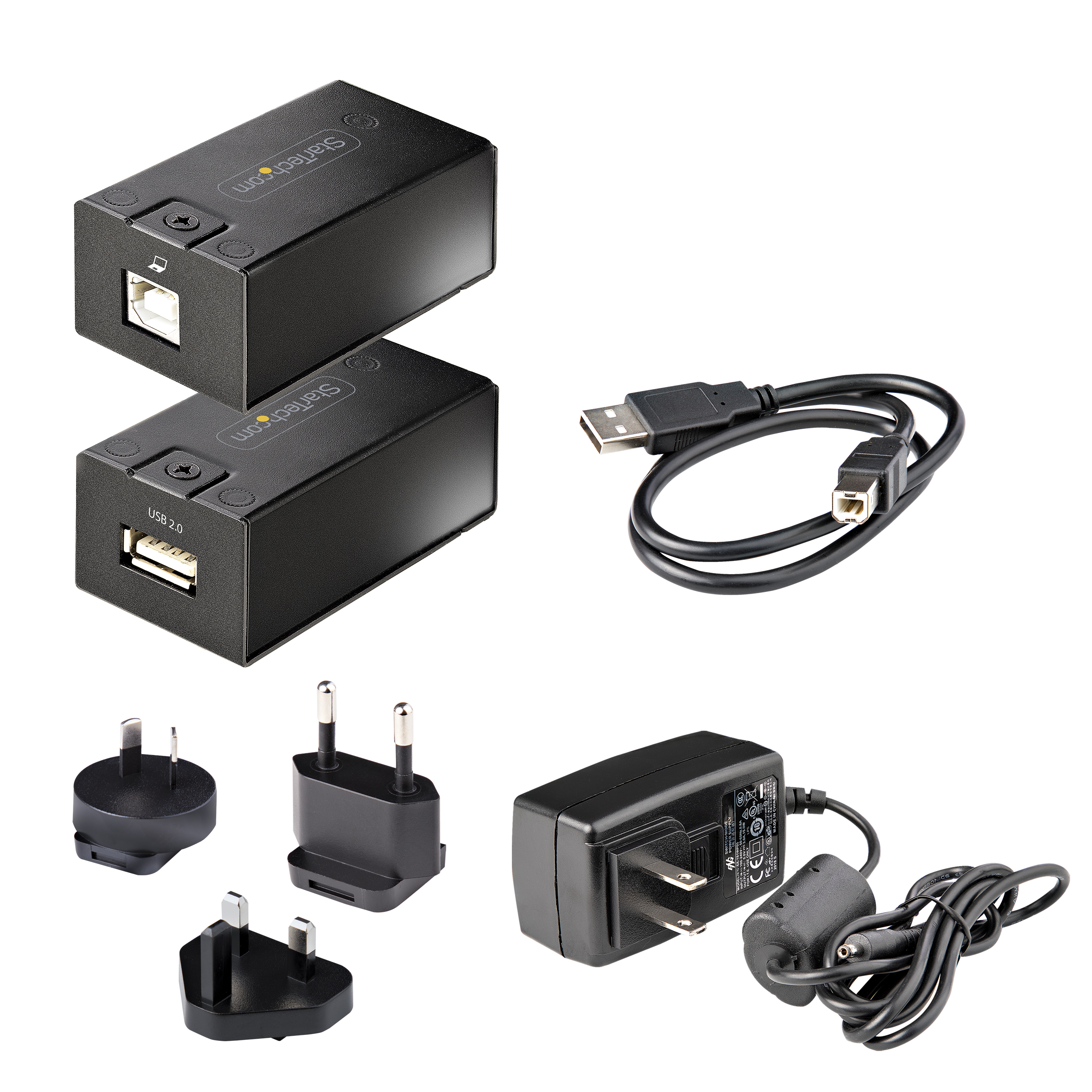

Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 5 DC Power Consumption (In Watts) 15 W Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Color Black Humidity 10% ~ 90% Material Metal Operating Temperature 32°F ~ 122°F (0°C to 50°C) Primary Material Steel Product Length (mm) 32.200 Product Width (mm) 67.300 Product Height (mm) 25.400 Product Weight (g) 173.000 Storage Temperature -4°F ~ 158°F (-20°C to 70°C) TAA Compliant Yes Max Distance 150m [492ft] Maximum Data Transfer Rate 480 Mbps OS Compatibility OS Independent Cabling Cat 5e UTP or better LED Indicators 1 - Solid Green = Power </br> Off = No Power Carton Depth (mm) 400 Carton Height (mm) 278 Carton Quantity 12 Carton Weight Gross (g) 7750 Included in Package - 1 - USB Over Cat5/Cat6 Transmitter
- 1 - USB Over Cat5/Cat6 Receiver
- 1 - Universal Power Adapter (North America)
- 1 - 2 ft [61 cm] USB-A to USB-B Host Cable
Package Depth (mm) 194 Package Height (mm) 62 Package Width (mm) 222 Package Quantity 1 Package Weight (g) 544 Packaging Description 1-Port USB 2.0 Over Cat5/Cat6 Extender Packaging Description India 1-Port USB 2.0 Over Cat5/Cat6 Extender Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 USB-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Actual Inbox Documents Created None Amazon Merchandising Manager Veronica Ye Artwork Due Date 2021-11-19 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2022-05-04 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2021-10-22 Target Production Release 2022-04-01 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None
