C2-D46-UC2-CBL-KVM
2 Port DisplayPort 4K 60Hz Cable KVM Switch w two USB C Por
Share a mouse, keyboard, and 4K 60Hz DisplayPort display between two USB-C enabled laptops, using this KVM Switch with built-in cables
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Product Name 2 Port DisplayPort 4K 60Hz Cable KVM Switch w two USB C Por Product Number C2-D46-UC2-CBL-KVM UPC 065030899352 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cables > KVM Cables Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - Displayport KVMs Family Pro Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX178X Product Title (Ultra-Short) USB-C Cable KVM Product Title (Short) 2-Port USB-C Cable KVM Switch, 4K 60Hz Product Title (Medium) 2-Port USB-C Cable KVM Switch, 4K 60Hz DP Output, Bus Powered Compact KVM Product Title (Standard) 2-Port USB-C Cable KVM Switch, 4K 60Hz DisplayPort Output, Compact KVM with 4ft/1.2m Integrated Host Cables, Bus Powered Product Title (Long) 2-Port USB-C Cable KVM Switch, 4K 60Hz DisplayPort Output, Compact KVM with 4ft/1.2m USB Type-C/Audio Integrated Cables, Bus Powered - Remote Push-Button/Hotkey Switching Product Title (AMZ) 2-Port USB-C Cable KVM Switch, 4K 60Hz DisplayPort Output, Compact KVM with 4ft/1.2m USB Type-C/Audio Integrated Host Cables, Bus Powered, Remote/Hotkey Switching (C2-D46-UC2-CBL-KVM) Title Ingram (Part 1) 2-Port Cable KVM Switch, 4K - Title Ingram (Part 2) USB-C Compact KVM, Bus Powered Website Product Headline Share a mouse, keyboard, and 4K 60Hz DisplayPort display between two USB-C enabled laptops, using this KVM Switch with built-in cables Bullet 1 4K 60HZ USB-C KVM SWITCH: Enables switching between two USB Type-C DP Alt Mode-enabled laptops to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz DisplayPort monitor Bullet 2 READY-TO-USE: Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered USB-C KVM switch features integrated 4ft/1.2m host cables to allow for extended reach, reducing port and connector strain Bullet 3 SWITCHING OPTIONS: Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other Bullet 4 COMPATIBILITY: 2-Port KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel, AMD, and Apple M1/M2 devices (MacBook/Mac Mini); Works with USB-C, USB4, Thunderbolt 3/4 Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts Bullets (Compact) 2-Port USB-C Cable KVM Switch enables switching of a mouse, keyboard, and a 4K 60Hz DisplayPort display between 2x USB Type-C enabled laptops; 4ft/1.2m integrated host cables; Bus powered; OS Independent; Remote Push-Button or Hotkey Commands Bullets (Consolidated) 2-Port USB-C KVM Switch enables switching between two USB Type-C DP Alt Mode-enabled laptops to share a keyboard/mouse/audio/4K 60Hz DisplayPort display - Small Form Factor with built-in 4ft/1.2m USB-C/Audio host cables; Bus Powered - Cable KVM Switch works on all hardware platforms including Intel/AMD/Apple M1/M2; OS Independent - Remote Push-Button (5ft/1.5m attached cable) or Hotkey Commands with available software; Independent audio switching for uninterrupted audio Marketing Copy Marketing Copy (No HTML) Applications - Ideal for sharing peripherals between home and office equipment
- Great for CAD/CAM, video editing, and content creation applications

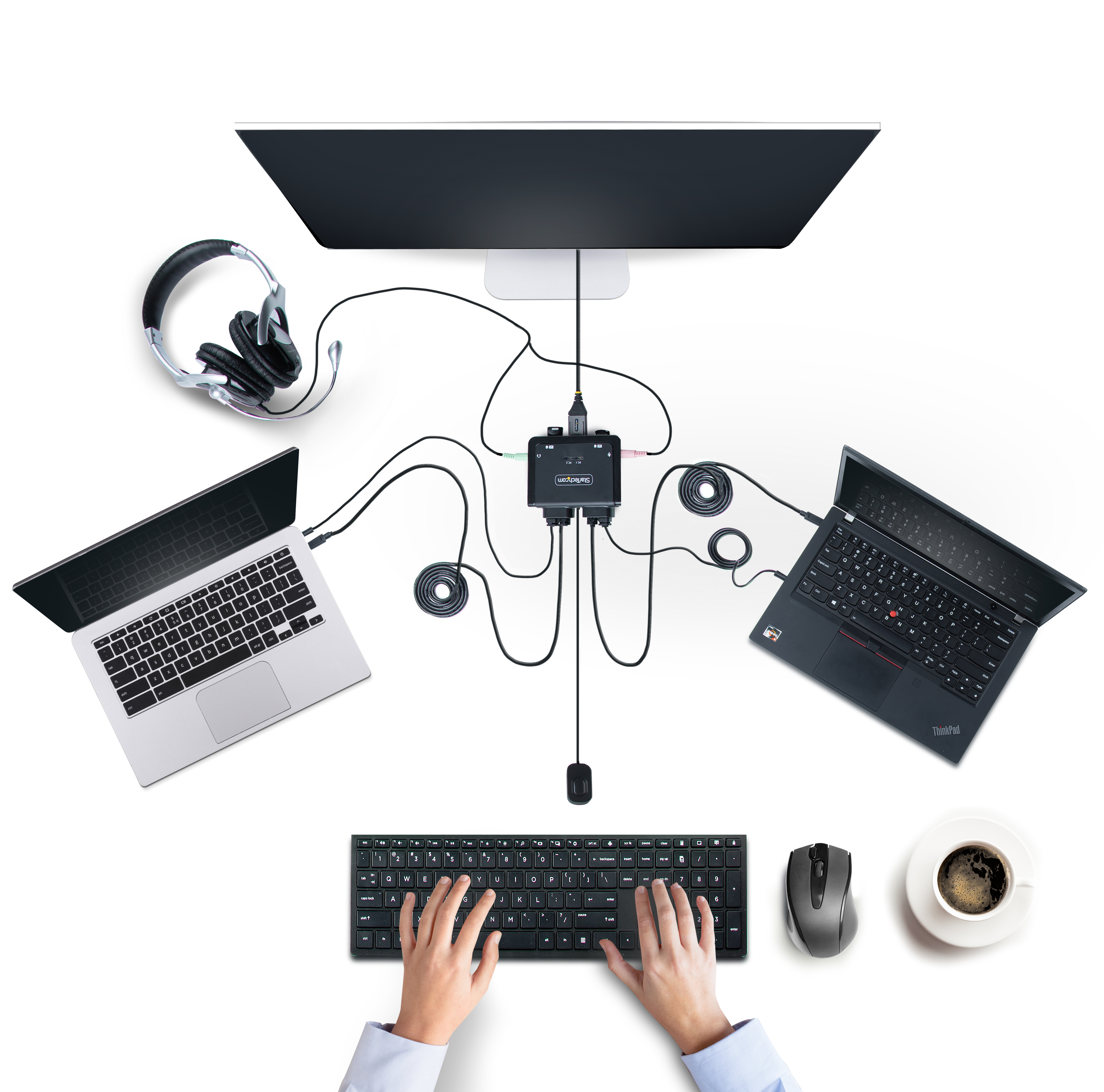

- Switch a display, mouse, keyboard, and audio peripherals between two laptops
Required Regulatory Compliance Marks - Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
Special Notes OS Compatibility refers to the available KVM software only. The KVM can be used without software on any platform Accessory Products - DP14VMM1M
- DP14VMM2M
- DP14VMM3M
Related Products - C2-D46-UAC-CBL-KVM
- C2-DD46-UA2-CBL-KVM
- C2-H46-UAC-CBL-KVM
- C2-DH46-UA2-CBL-KVM
Power Source Bus Powered Cable Length (mm) 1200 Color Black Humidity 0% ~ 90% RH (non-condensing) Material ABS Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 83.000 Product Width (mm) 97.000 Product Height (mm) 25.000 Product Weight (g) 350.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Audio Specifications - DisplayPort - 2 Channel Audio
- Analog Stereo - 2 Channel Audio
Auto Scan 10, 20, 30, 40, 50, and 60 seconds Hot-Key Selection Yes KVM IP Control No MTBF (hours) 230,568 Hours On-Screen Display No OS Compatibility - Windows 11
- Windows 10
- Windows 8
- Windows 7
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- Chrome OS
- Windows 11 ARM
Port Selection Support Push Button, Hotkeys, and Software Supported Resolutions Audio Yes Cables Included Yes CAC Support No Cascadable No LED Indicators Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type USB-C (DP Alt-Mode) Rack-Mountable No Supported Platforms USB-C Carton Depth (mm) 436 Carton Height (mm) 345 Carton Quantity 20 Carton Weight Gross (g) 7350 Included in Package - 1 - KVM Switch
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Quick-Start Guide
- 1 - Kvm Switch
Package Depth (mm) 162 Package Height (mm) 61 Package Width (mm) 238 Package Quantity 1 Package Weight (g) 336 Packaging Description 2-Port USB-C Cable KVM Switch - DisplayPort - 4K 60Hz Packaging Description India 2-Port USB-C Cable KVM Switch - DisplayPort - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 USB-C DP++ (DP Alt-Mode) Host Connector 1 (Quantity) 2 Host Connector 2 3.5mm (4 Conductors, TRRS) Host Connector 2 (Quantity) 2 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2023-01-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment HDMI version, no cables attached Comparable SKU 2 Comment USB-A version Digital Content Due Date 2023-07-24 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology DisplayPort 1.2 / 4K 60Hz Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-10-24 Target Production Release 2023-03-15 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Latest Video Not Required
