C2-DD46-UA2-CBL-KVM
2 Port USB Dual DisplayPort 4K 60Hz Cable KVM Switch w Audi

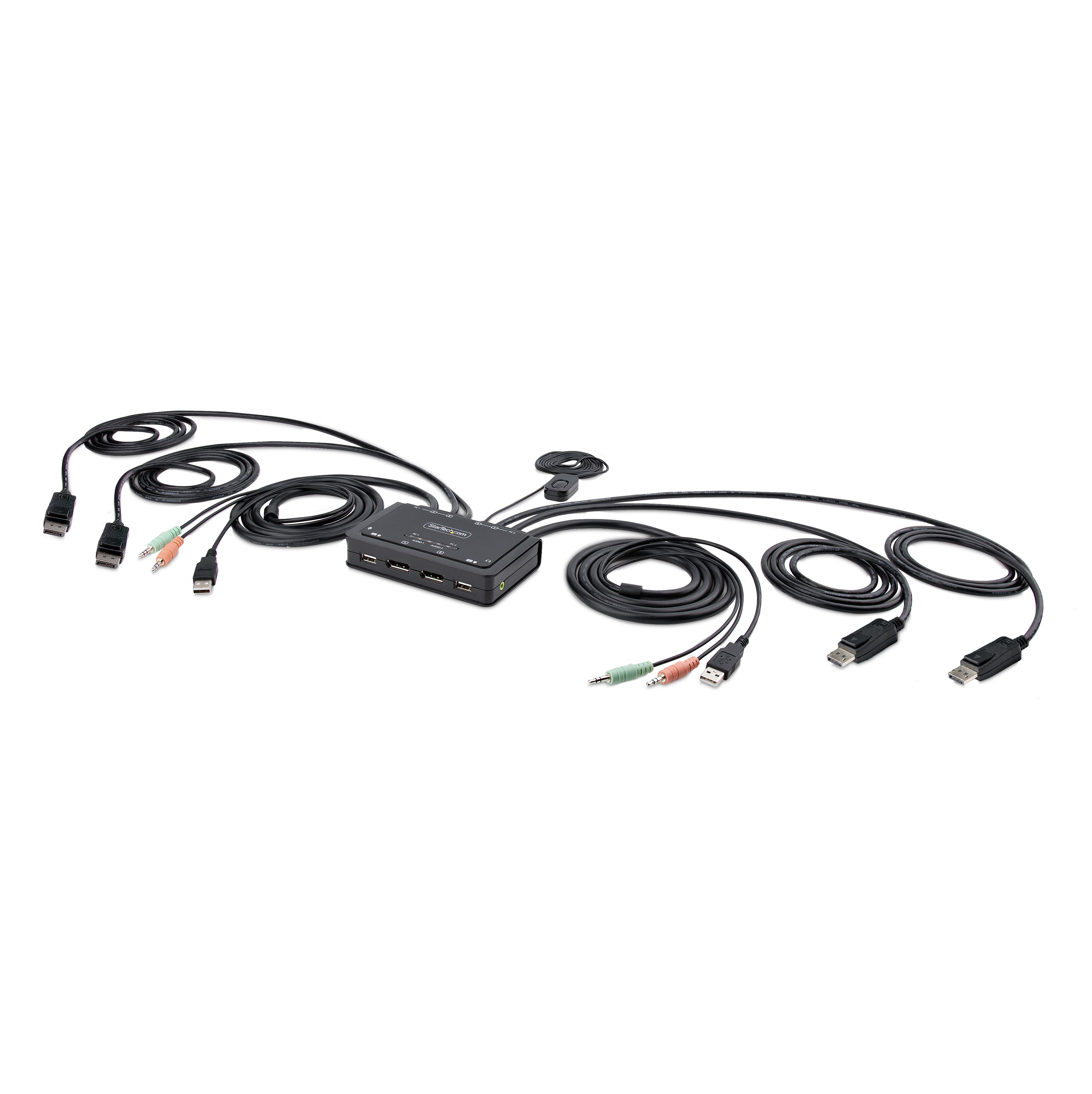

Share a mouse, keyboard, and dual 4K 60Hz DisplayPort displays between two DisplayPort enabled computers, using this KVM Switch with built-in cables
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Product Name 2 Port USB Dual DisplayPort 4K 60Hz Cable KVM Switch w Audi Product Number C2-DD46-UA2-CBL-KVM UPC 065030899215 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cables > KVM Cables Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DisplayPort KVMs Family Pro Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX178X Product Title (Ultra-Short) 2-Port KVM Switch Product Title (Short) 2-Port Dual-Monitor Cable KVM Switch Product Title (Medium) 2-Port Dual-Monitor DisplayPort Cable KVM Switch, 4K 60Hz, Integrated Cables Product Title (Standard) 2-Port Dual-Monitor DisplayPort Cable KVM Switch, 4K 60Hz, Compact KVM with 5ft/1.5m Integrated Host Cables, Bus Powered Product Title (Long) 2-Port Dual-Monitor DisplayPort Cable KVM Switch, 4K 60Hz, Compact KVM with 5ft/1.5m USB-A/DisplayPort/Audio Integrated Cables, Bus Powered - Remote Push Button/Hotkey Switching Product Title (AMZ) 2-Port Dual-Monitor DisplayPort Cable KVM Switch, 4K 60Hz, Compact KVM with 5ft/1.5m USB-A/DisplayPort/Audio Integrated Cables, Bus Powered, Remote/Hotkey Switching (C2-DD46-UA2-CBL-KVM) Title Ingram (Part 1) 2-Port Compact 4K KVM Switch - Title Ingram (Part 2) Dual-Monitor Cable KVM Switch Website Product Headline Share a mouse, keyboard, and dual 4K 60Hz DisplayPort displays between two DisplayPort enabled computers, using this KVM Switch with built-in cables Bullet 1 DUAL 4K 60HZ MONITOR KVM SWITCH: Enables switching between two USB-A and DisplayPort-enabled desktops to share a mouse, keyboard, audio, and dual-4K 60Hz DisplayPort displays Bullet 2 READY-TO-USE: Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered KVM switch features integrated 5ft/1.5m host cables to allow for extended reach, reducing port and connector strain Bullet 3 SWITCHING OPTIONS: Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other Bullet 4 COMPATIBILITY: 2-Port Dual-Monitor KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel and AMD Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts Bullets (Compact) 2-Port Dual-Monitor Cable KVM Switch enables switching of a mouse, keyboard, and dual-4K 60Hz displays between 2x USB-A/DisplayPort enabled desktops; 5ft/1.5m integrated host cables; Bus powered; OS Independent; Remote Push Button or Hotkey Commands Bullets (Consolidated) Dual 4K 60Hz KVM Switch enables switching between two USB-A and DisplayPort enabled desktops to share a mouse/keyboard/audio/dual 4K 60Hz DisplayPort displays - Small form factor with 5ft/1.5m integrated cables; Bus powered - 2-Port Dual-Monitor KVM Switch works with any operating system and all hardware platforms including Intel and AMD - Remote Push Button (1.5m attached cable) or Hotkey Commands; Downloadable software allows listening to audio from one computer, while controlling the other Marketing Copy Marketing Copy (No HTML) Applications - Ideal for sharing peripherals between home and office equipment in a home office
- Great for applications like CAD/CAM, video editing, and content creation

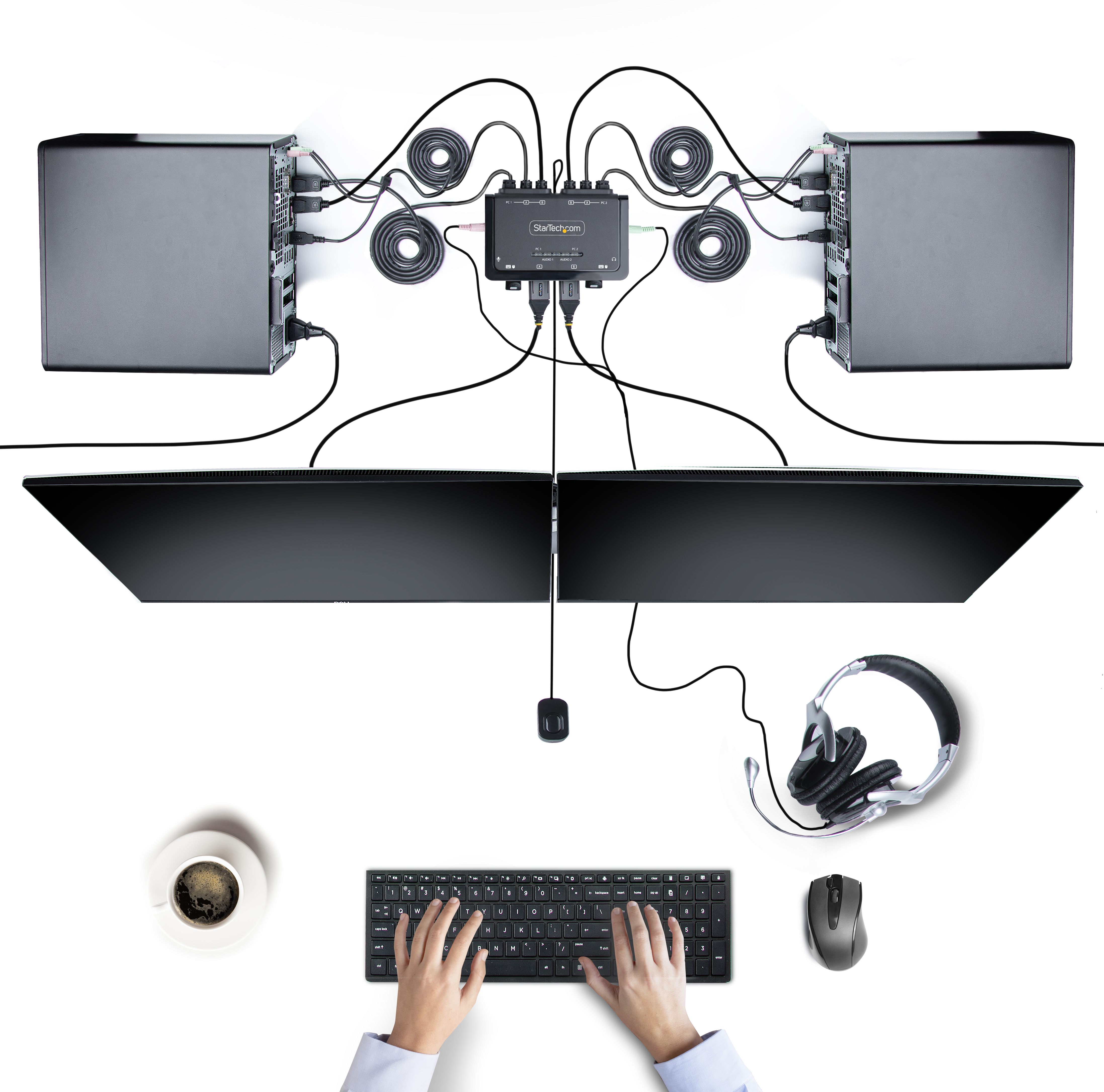

- Switch dual displays, mouse, keyboard, and audio peripherals between two desktop computers
Website Search Keyword - 2 port dual monitor kvm switch
- 4k dual monitor kvm
- DisplayPort KVM
- DisplayPort KVM switch
- Dual Monitor
- dual monitor displayport kvm switch
- dual monitor kvm switch
- KVM
- KVM switch
- kvm switch dual monitor displayport
- usb kvm
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes OS Compatibility refers to the available KVM software only. The KVM can be used without software on any platform. Accessory Products - DP14VMM1M
- DP14VMM2M
- DP14VMM3M
Related Products - C2-H46-UAC-CBL-KVM
- C2-D46-UC2-CBL-KVM
- C2-DH46-UA2-CBL-KVM
- C2-H46-UC2-PD-KVM
- C2-D46-UAC-CBL-KVM
Power Source Bus Powered Cable Length (mm) 1500 Color Black Humidity 0% ~ 90% RH (non-condensing) Material ABS Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 125.000 Product Width (mm) 90.000 Product Height (mm) 25.000 Product Weight (g) 600.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Audio Specifications - DisplayPort - 2 Channel Audio
- Analog Stereo - 2 Channel Audio
Auto Scan 10, 20, 30, 40, 50, and 60 seconds Hot-Key Selection Yes KVM IP Control No Maximum Data Transfer Rate 480Mbps (USB 2.0) MTBF (hours) 419,293 Hours On-Screen Display No OS Compatibility - Windows 11
- Windows 10
- Windows 8
- Windows 7
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- Chrome OS
Port Selection Support Push Button and Hotkeys/Software Supported Resolutions Wide Screen Supported Yes Audio Yes Cables Included Yes CAC Support No Cascadable No Chipset ID SN8P2202SG LED Indicators Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB Carton Depth (mm) 440 Carton Height (mm) 345 Carton Quantity 12 Carton Weight Gross (g) 11310 Included in Package - 1 - KVM Switch
- 1 - Quick-Start Guide
Included In Package for Label - 1 - KVM Switch
- 1 - Quick-Start Guide
Package Depth (mm) 660 Package Height (mm) 96 Package Width (mm) 265 Package Quantity 1 Package Weight (g) 952 Packaging Description 2-Port Dual Monitor Cable KVM Switch - DisplayPort - 4K 60Hz Packaging Description India 2-Port Dual Monitor Cable KVM Switch - DisplayPort - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 3.5mm (3 Conductors, TRS) Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 2 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 4 Host Connector 2 USB-A (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2023-01-30 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment Single monitor DisplayPort KVM with cables attached Comparable SKU 2 Comment Single monitor full-featured 4K60 USB 3.0 DisplayPort KVM Digital Content Due Date 2023-07-24 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology DisplayPort 1.2 / 4K 60Hz Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-10-24 Target Production Release 2023-03-15 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Latest Vending Machine Not Compatible with Vending Machine Video Not Required
