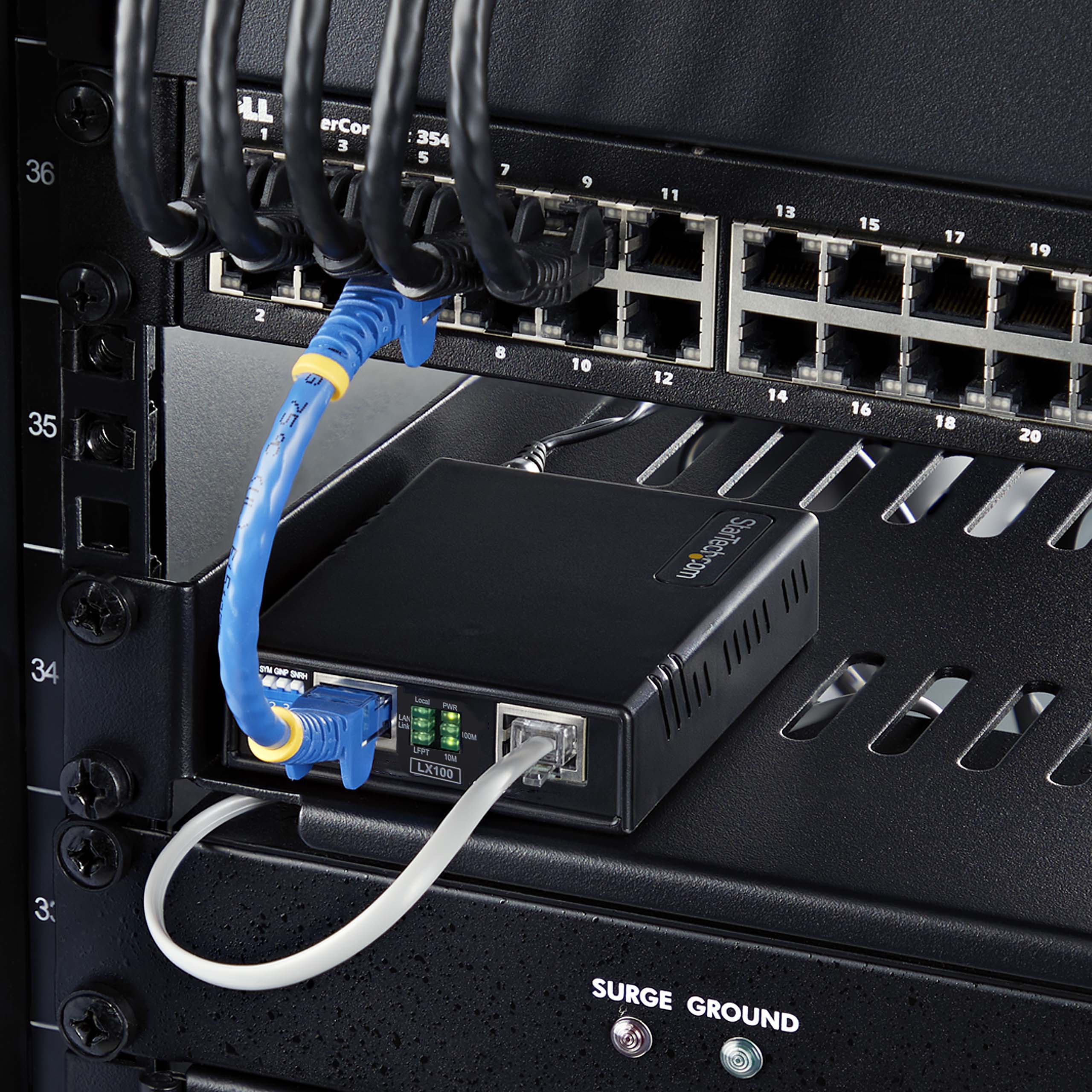

Main Image
C2-ETHERNET-EXTENDER
10 100 Base TX LAN Extender
Extend a 10/100Mbps network up to 0.5mi (800m) using RJ45 or RJ11 cabling
Main Image

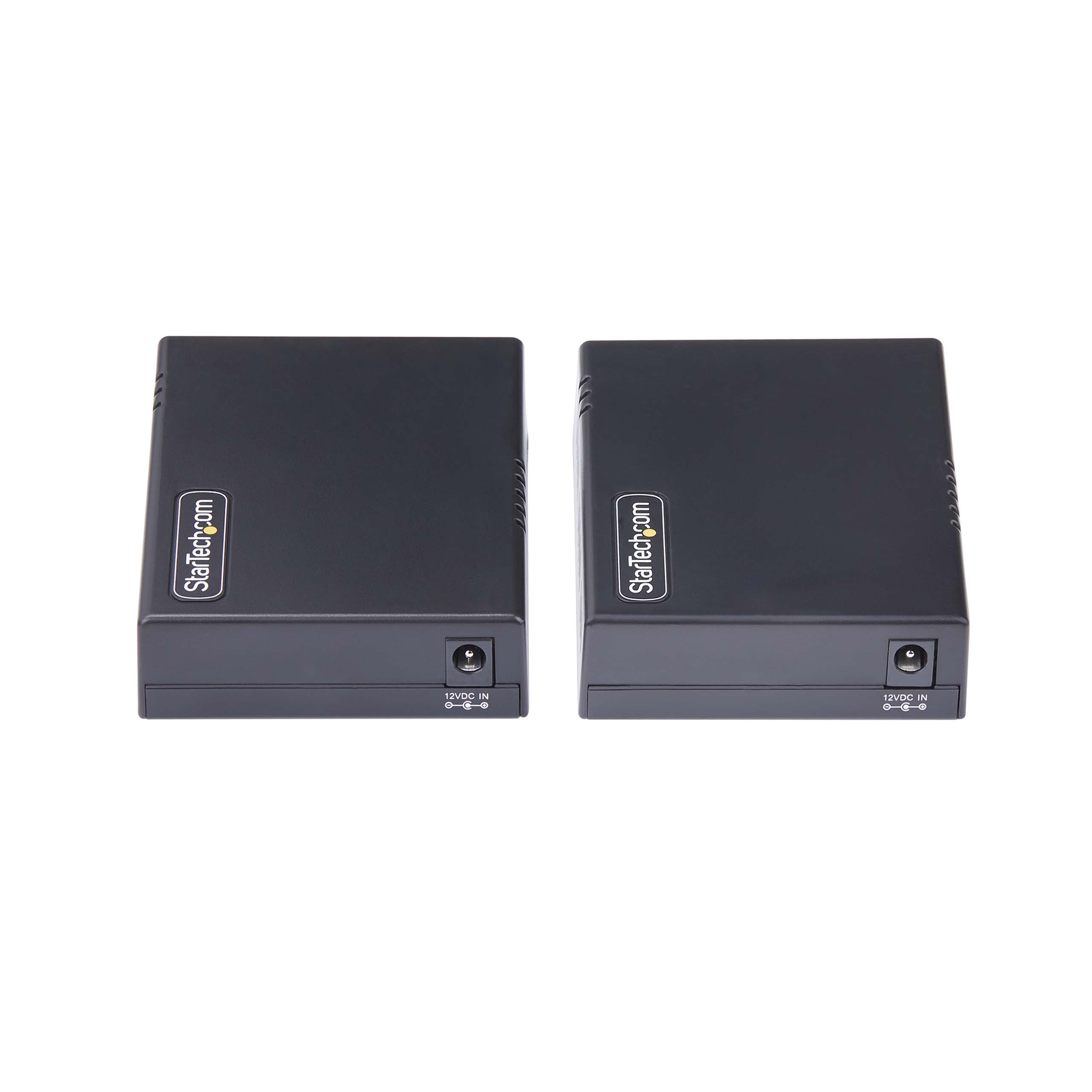

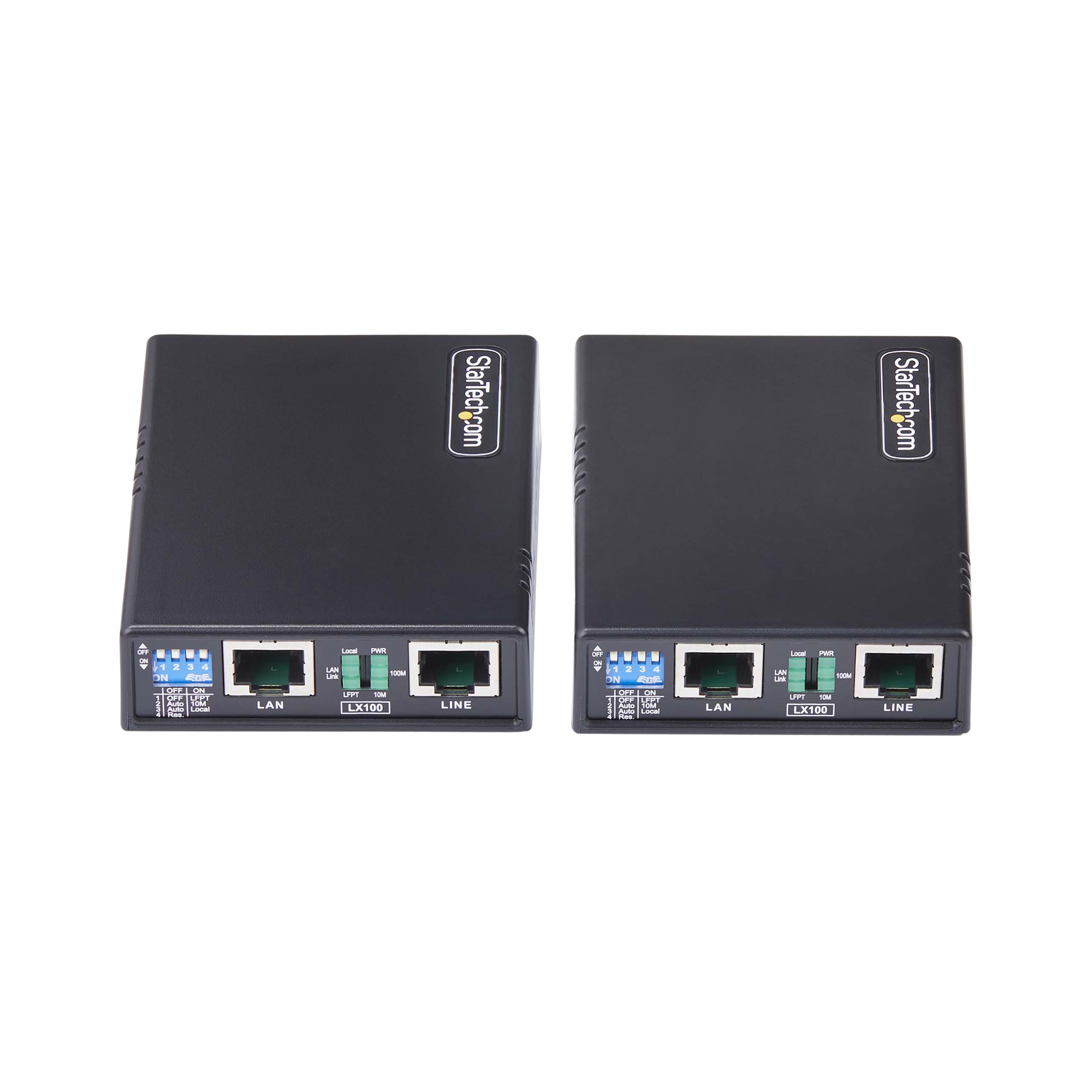

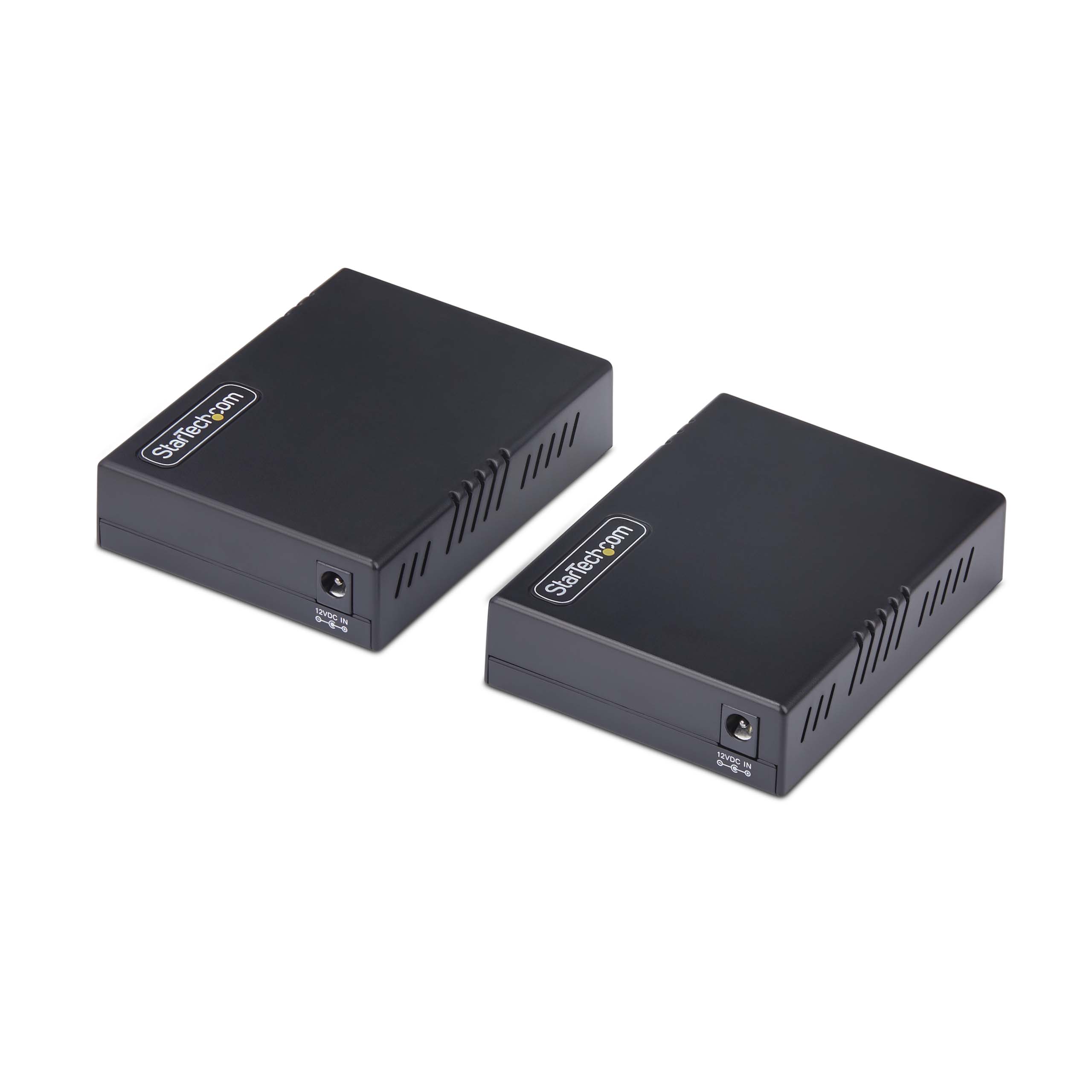

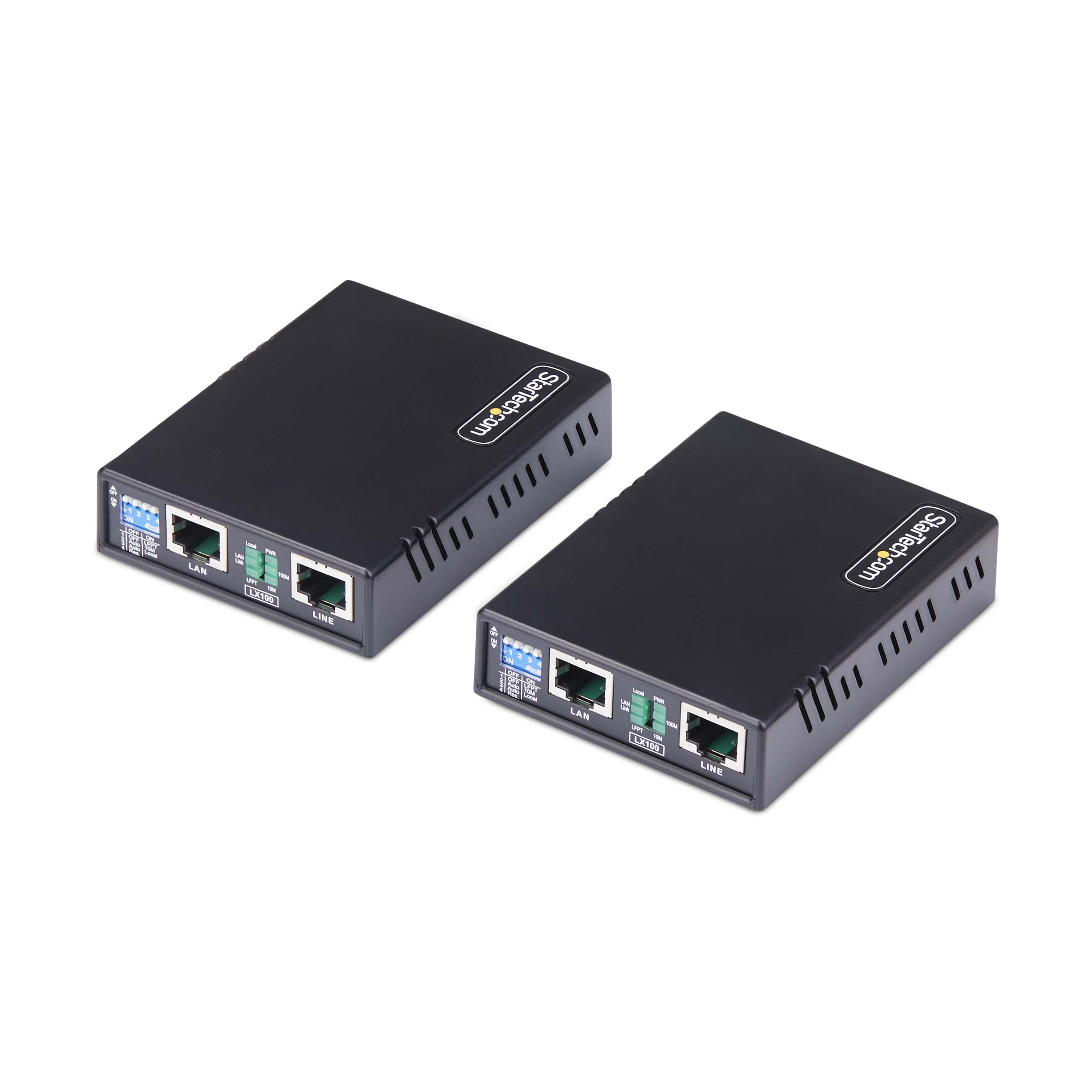

Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 10 100 Base TX LAN Extender Product Number C2-ETHERNET-EXTENDER UPC 065030907439 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Extenders > Ethernet Extenders Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) Ethernet Extender Product Title (Short) Ethernet Extender Kit Up to 0.5mi (800m) Product Title (Medium) 10/100 Ethernet Extender Kit, Up to 0.5mi, LAN Over Single Pair Wire/RJ45 UTP Product Title (Standard) 10/100 Ethernet Extender Kit Up to 0.5mi (800m), Long-Range LAN Over Single Pair Wire/RJ45 UTP For IP Camera/WiFi AP, TAA Product Title (Long) 10/100 Ethernet Extender Kit, Up to 0.5Mi (800M), Long-Range LAN over Single Pair Wire/Phone Line/RJ45 UTP, Ethernet Booster For IP Video/Remote Sensors/WiFi APs - TAA Product Title (AMZ) 10/100 Ethernet Extender Kit Up to 0.5mi (800m), Long-Range LAN Booster via Single Pair Wire/Phone Line/RJ45 UTP, TAA Title Ingram (Part 1) Ethernet Extender Kit, 0.5mi - Title Ingram (Part 2) Long-Range Ethernet Booster Website Product Headline Extend a 10/100Mbps network up to 0.5mi (800m) using RJ45 or RJ11 cabling Bullet 1 ETHERNET LAN EXTENDER: Unmanaged single-port dual-speed (10/100Mbps) RJ45 network extender kit; Reach distances of up to 0.5mi (800m) to overcome the typical limit of 328ft (100m) for Cat5/Cat5e/Cat6 copper Unshielded Twisted Pair (UTP) Ethernet cable Bullet 2 EXTENDED RANGE: Use one or two pairs of cable for variable bandwidth and distance; Reach up to 984ft (300m) at 100Mbps using a single-pair Ethernet cabling & up to 2,624ft (800m) at 10Mbps using two-pair ethernet cabling Bullet 3 FEATURES: Network extension kit acts as a transparent network device seamlessly passing Ethernet protocols; IEEE 802.1q VLAN tag pass-through, WoL, 16K jumbo, PXE, and more; Supports RJ11/phone line cabling; Includes power adapters for remote/local units Bullet 4 READY TO USE: Long-range Ethernet booster ships ready for deployment; DIP switches for configuration; LED indicators for power, remote/master mode, network status, LAN speed, and LFPT, allowing IT administrators to monitor and assess network connectivity Bullet 5 APPLICATIONS: Use the Ethernet range extender for remote Internet or network access, IP video surveillance, remote equipment diagnosis, management and control, WiFi APs, automation, VoIP, remote sensors, and more Bullets (Compact) Unmanaged dual-speed (10/100M) RJ45 LAN extender/Ethernet booster; Up to 0.5mi Over Single Pair Wire UTP Cable - Supports Cat5/5e/6/IEEE 802.1q VLAN/WoL/16K jumbo/PXE/RJ11 or RJ45 - Use for remote Internet or network/IP camera/remote sensors/WiFi APs Bullets (Consolidated) - Unmanaged single-port dual-speed (10/100Mbps) RJ45 network extender kit up to 0.5mi (800m); Single pair wire UTP enables to go over the 328ft (100m) limit of Cat5/Cat5e/Cat6 cable - Variable bandwidth and distance - Supports IEEE 802.1q VLAN tag/WoL/16K jumbo/PXE/RJ11 or RJ45 - Includes power adapters - Long-range Ethernet booster w/ LED indicators allows IT admins to monitor and assess status - Use for remote Internet or network access/IP camera/remote equipment control/WiFi AP/remote sensor Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - WIR6CMRBK
- CBMSDCC2
- RJ4511TOOL
- REMOTETEST
Related Products - VDSL-LAN-EXTENDER-1G
- EOC1110K
- 110VDSLEXT
- AS445C-POE-INJECTOR
Input Current 0.5 Input Voltage 100 - 240 AC Output Current 1A Output Voltage (V) 12V DC Power Consumption (In Watts) 3.8W Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5% ~ 90% RH (non-condensing) Material Plastic and Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 23.000 Product Width (mm) 96.500 Product Height (mm) 73.400 Product Weight (g) 73.500 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX No Bandwidth 100 Mbps Jumbo Frame Support 16K max. Max Distance 800m [2624ft] Maximum Data Transfer Rate 100 Mbps OS Compatibility OS Independent Cabling Cat 5 UTP or better Ethernet Port Yes Industry Standards LED Indicators - 1 - Power

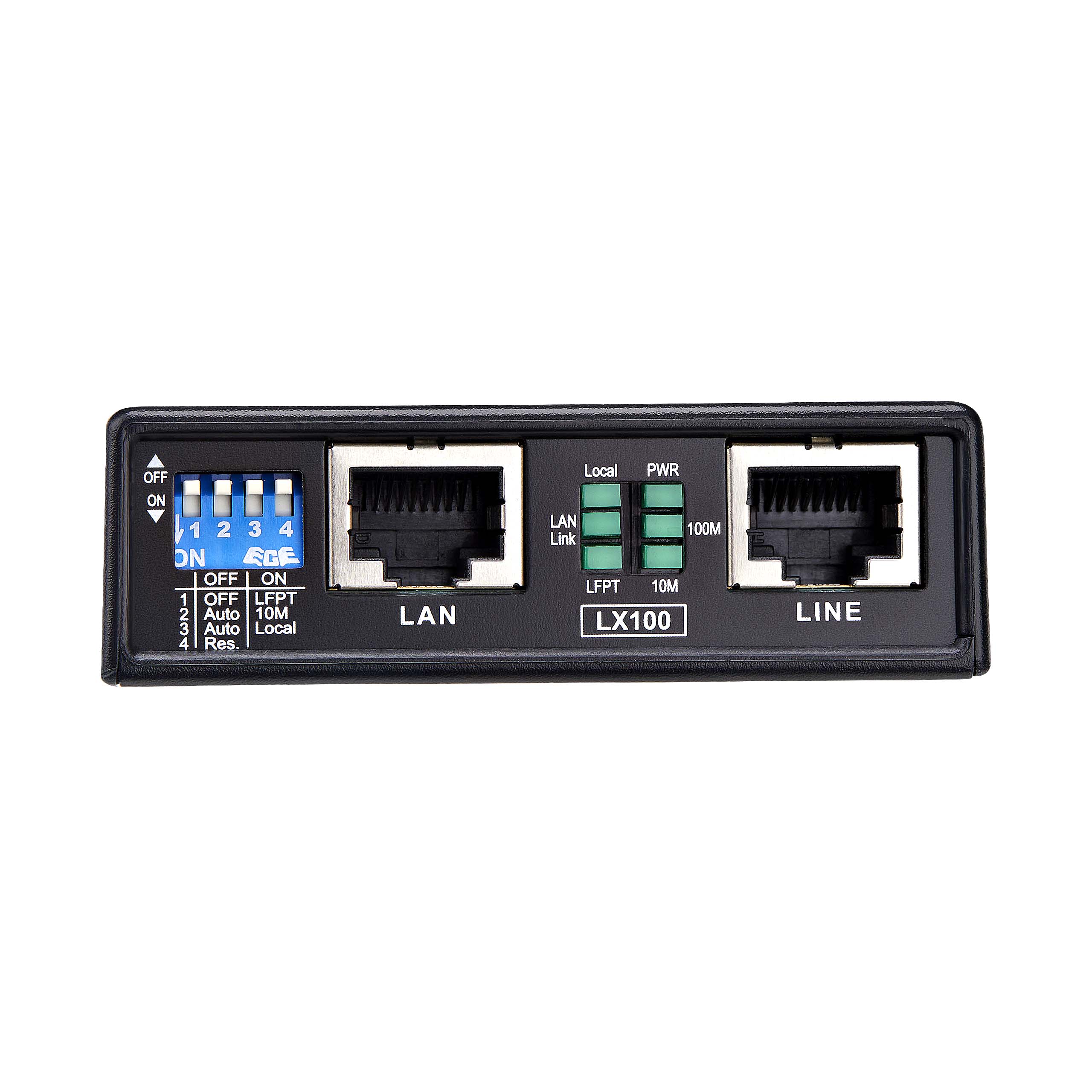

- 1 - LAN: 10Mbps
- 1 - Local/Remote Mode
- 1 - LAN Link
- 1 - LAN: 100Mbps
- 1 - LFPT (Link Fault Passthrough)
Rack-Mountable No Carton Depth (mm) 310 Carton Height (mm) 425 Carton Quantity 15 Carton Weight Gross (g) 10150 Included in Package - 2 - Ethernet Extender
- 2 - Power Adapter

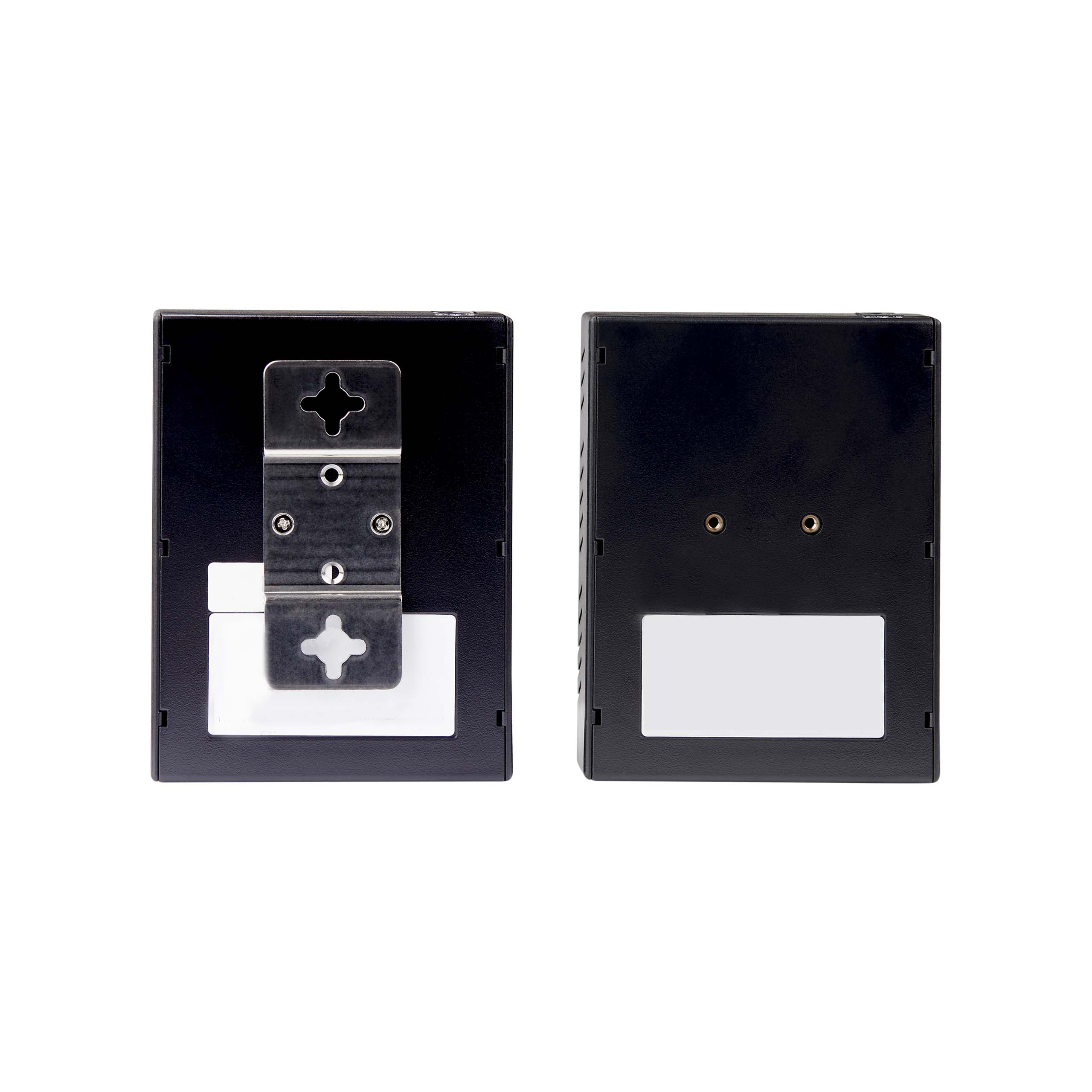

- 2 - Mounting Bracket
- 1 - Quick-Start Guide
- 4 - Mounting Screws
Package Depth (mm) 154 Package Height (mm) 135 Package Width (mm) 183 Package Weight (g) 606 Packaging Description 10/100 Base-TX Ethernet Extender Kit - Extend up to 2,624ft (800m) Packaging Description India 10/100 Base-TX Ethernet Extender Kit - Extend up to 2,624ft (800m) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 2 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2023-12-27 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire – 1km Comparable SKU 2 Comment N/A Digital Content Due Date 2024-04-09 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) CA,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-11-20 Target Production Release 2023-12-15 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle Mainstream Video Required
