C2-H46-UAC-CBL-KVM
2 Port HDMI 4K 60Hz Cable KVM Switch w one USB C Port
Share a mouse, keyboard, and a 4K 60Hz HDMI display between a USB-A computer and a USB-C DP Alt Mode computer using this KVM Switch with built-in cables
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Product Name 2 Port HDMI 4K 60Hz Cable KVM Switch w one USB C Port Product Number C2-H46-UAC-CBL-KVM UPC 065030899345 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB-C - HDMI KVMs Family Pro Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX178X Product Title (Ultra-Short) 2-Port KVM Switch Product Title (Short) 2-Port Hybrid Cable KVM Switch, 4K HDMI Product Title (Medium) 2-Port Hybrid USB-C HDMI Cable KVM Switch, 4K 60Hz, Integrated Cables Product Title (Standard) 2-Port Hybrid USB-C HDMI Cable KVM Switch, 4K 60Hz, Compact KVM with 6ft/1.8m USB-A & 4ft/1.2m USB-C Integrated Cables Product Title (Long) 2-Port Hybrid USB-C HDMI Cable KVM Switch, 4K 60Hz, Compact KVM with 6ft/1.8m USB-A/HDMI/Audio & 4ft/1.2m USB-C Integrated Host Cables, Bus Powered - Remote Push Button/Hotkey Switching Product Title (AMZ) 2-Port Hybrid USB-C HDMI Cable KVM Switch, 4K 60Hz, Compact KVM with 6ft/1.8m USB-A/HDMI/Audio & 4ft/1.2m USB-C Integrated Cables, Bus Powered, Hotkey Switching (C2-H46-UAC-CBL-KVM) Title Ingram (Part 1) 2-Port Compact 4K KVM Switch - Title Ingram (Part 2) USB-A/USB-C Cable KVM Switch Website Product Headline Share a mouse, keyboard, and a 4K 60Hz HDMI display between a USB-A computer and a USB-C DP Alt Mode computer using this KVM Switch with built-in cables Bullet 1 4K 60HZ HYBRID KVM SWITCH: Enables switching between a USB-A/HDMI desktop and a USB Type-C DP-Alt Mode enabled laptop to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz HDMI monitor Bullet 2 READY-TO-USE: Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered KVM switch features built-in 6ft/1.8m USB-A, HDMI, and Audio host cables for PC1, & 4ft/1.2m USB-C and Audio host cables for PC2 Bullet 3 COMPATIBILITY: 2-Port KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel, AMD, and Apple M1/M2 devices (MacBook/Mac Mini); Works with USB-C, USB4, Thunderbolt 3/4 Bullet 4 SWITCHING OPTIONS: Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts Bullets (Compact) 2-Port Hybrid Cable KVM Switch enables switching of a mouse, keyboard, and a 4K 60Hz HDMI display between a USB-A/HDMI desktop and a USB-C laptop; Integrated host cables; Bus powered; OS Independent; Remote Push Button or Hotkey Commands Bullets (Consolidated) 2-Port Hybrid KVM Switch enables switching between a USB-A/HDMI desktop and a USB-C DP-Alt Mode laptop to share a mouse/keyboard/4K 60Hz HDMI display - Built-in 6ft USB-A/HDMI/Audio host cables for PC1; 4ft USB-C/Audio host cables for PC2 - Cable KVM Switch works on all hardware platforms including Intel/AMD/Apple M1/M2; OS Independent - Remote Push Button (5ft attached cable) or Hotkey Commands; Downloadable software allows listening to audio from one computer while controlling the other Marketing Copy Marketing Copy (No HTML) Applications - Ideal for sharing peripherals between home and office
- Great for CAD/CAM, video editing, and content creation applications

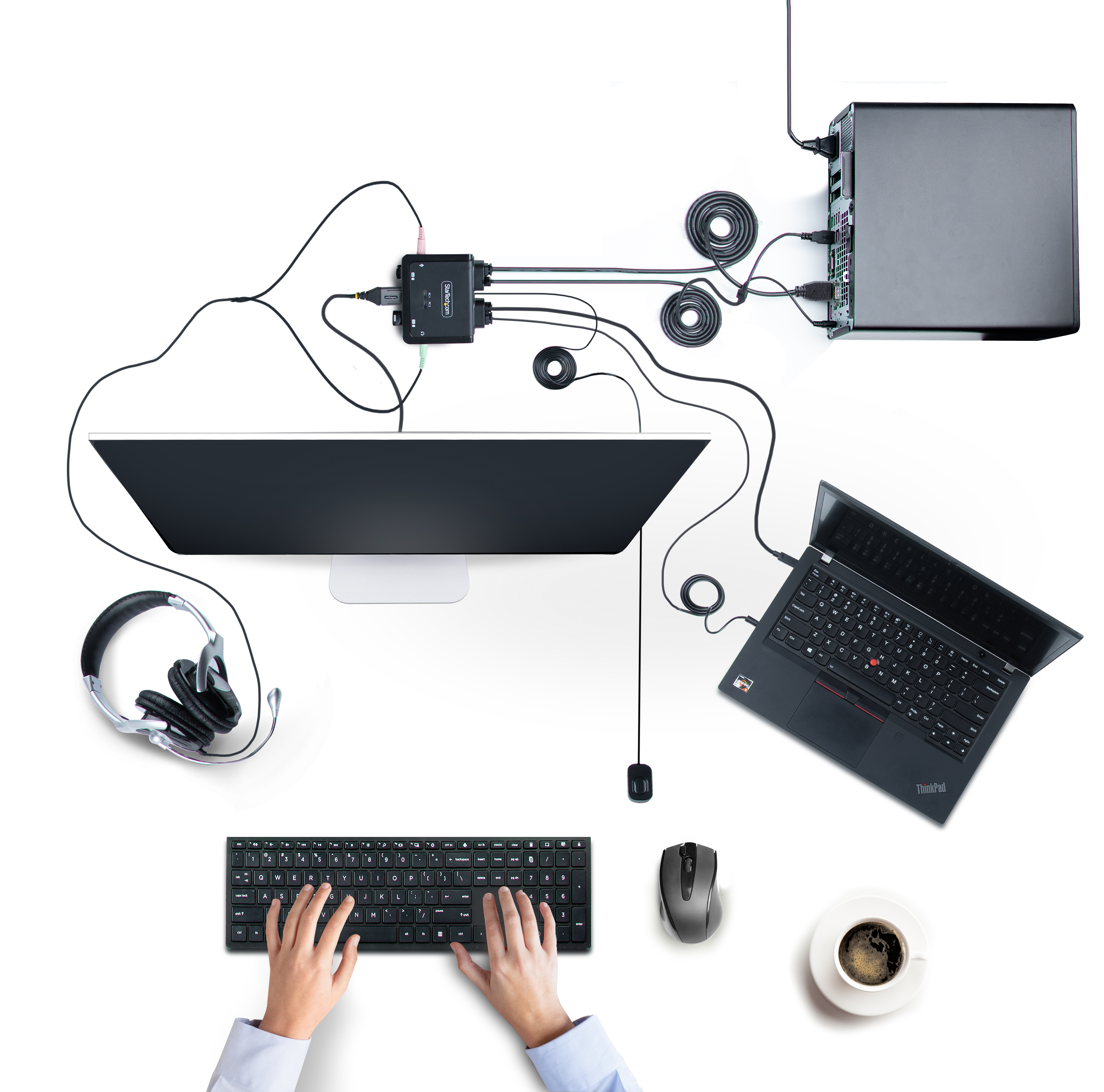

- Switch a display, mouse, keyboard, and audio peripherals between two computers
Website Search Keyword - 2 port kvm switch
- hdmi kvm switch
- hybrid kvm
- KVM switch
- kvm switch 2 port
- kvm switch usb c
- kvm switch usb c hdmi
- kvm with hdmi
- usb c kvm switch
- usb-c kvm
- usb-c kvm switch
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes OS Compatibility refers to the available KVM software only. The KVM can be used without software on any platform Accessory Products - HDMM21V1M
- HDMM21V2M
- HDMM21V3M
Related Products - C2-H46-UC2-PD-KVM
- C2-DD46-UA2-CBL-KVM
- C2-D46-UC2-CBL-KVM
- C2-DH46-UA2-CBL-KVM
- C2-D46-UAC-CBL-KVM
Power Source Bus Powered Color Black Humidity 0% ~ 90% RH (non-condensing) Material ABS Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 97.000 Product Width (mm) 92.000 Product Height (mm) 24.000 Product Weight (g) 265.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Audio Specifications Analog Stereo - 2 Channel Audio Auto Scan 10, 20, 30, 40, 50, and 60 seconds DVI Support Yes - Single Link General Specifications - PC1 Cable Length (USB-C): 1.2m/4ft
- PC2 Cable Length (USB-A): 1.8m/6ft
Hot-Key Selection Yes KVM IP Control No Maximum Data Transfer Rate 480Mbps (USB 2.0) MTBF (hours) 345,059 Hours On-Screen Display No OS Compatibility - Windows 11
- Windows 10
- Windows 8
- Windows 7
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- Chrome OS
- Windows 11 ARM
Port Selection Support Push Button, Hotkeys, and Software Supported Resolutions Wide Screen Supported Yes Audio Yes Cables Included Yes CAC Support No Cascadable No LED Indicators Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type USB-C (DP Alt-Mode) + HDMI Supported Platforms USB & USB-C Carton Depth (mm) 453 Carton Height (mm) 361 Carton Quantity 20 Carton Weight Gross (g) 9582 Included in Package - 1 - KVM Switch
- 1 - Quick-Start Guide
- 1 - 3.5mm 4 Position to 2x 3.5mm 3 Position Headset Adapter
Included In Package for Label - 1 - Quick-Start Guide
- 1 - Kvm Switch
- 1 - 3.5Mm 4 Position To 2X 3.5Mm 3 Position Headset Converter
Package Depth (mm) 163 Package Height (mm) 61 Package Width (mm) 247 Package Quantity 1 Package Weight (g) 440 Packaging Description 2-Port USB-C and HDMI/USB-A Cable KVM Switch - HDMI - 4K 60Hz Packaging Description India 2-Port USB-C and HDMI/USB-A Cable KVM Switch - HDMI - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 2 Connector 3 HDMI Connector 3 (Quantity) 1 Host Connector 1 USB-C DP++ (DP Alt-Mode) Host Connector 1 (Quantity) 1 Host Connector 2 3.5mm (4 Conductors, TRRS) Host Connector 2 (Quantity) 2 Host Connector 3 USB-A (480Mbps, 2.5W) Host Connector 3 (Quantity) 1 Host Connector 4 HDMI Host Connector 4 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2023-01-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment Same port configuration, no cables attached Comparable SKU 2 Comment Two USB-C ports, 4K HDMI output Digital Content Due Date 2023-07-24 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology DisplayPort 1.2 / 4K 60Hz Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-10-24 Target Production Release 2023-03-15 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Latest Video Not Required
