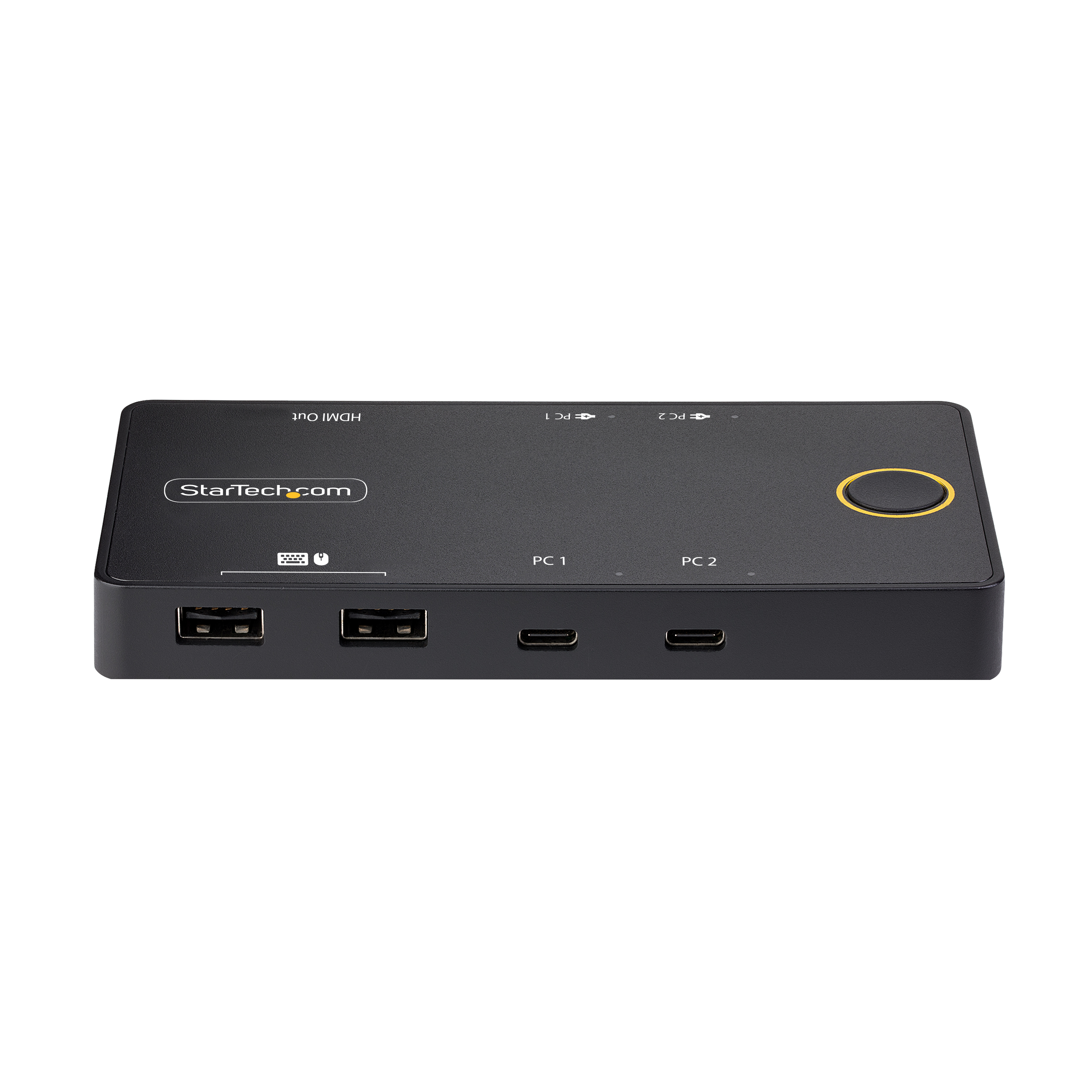

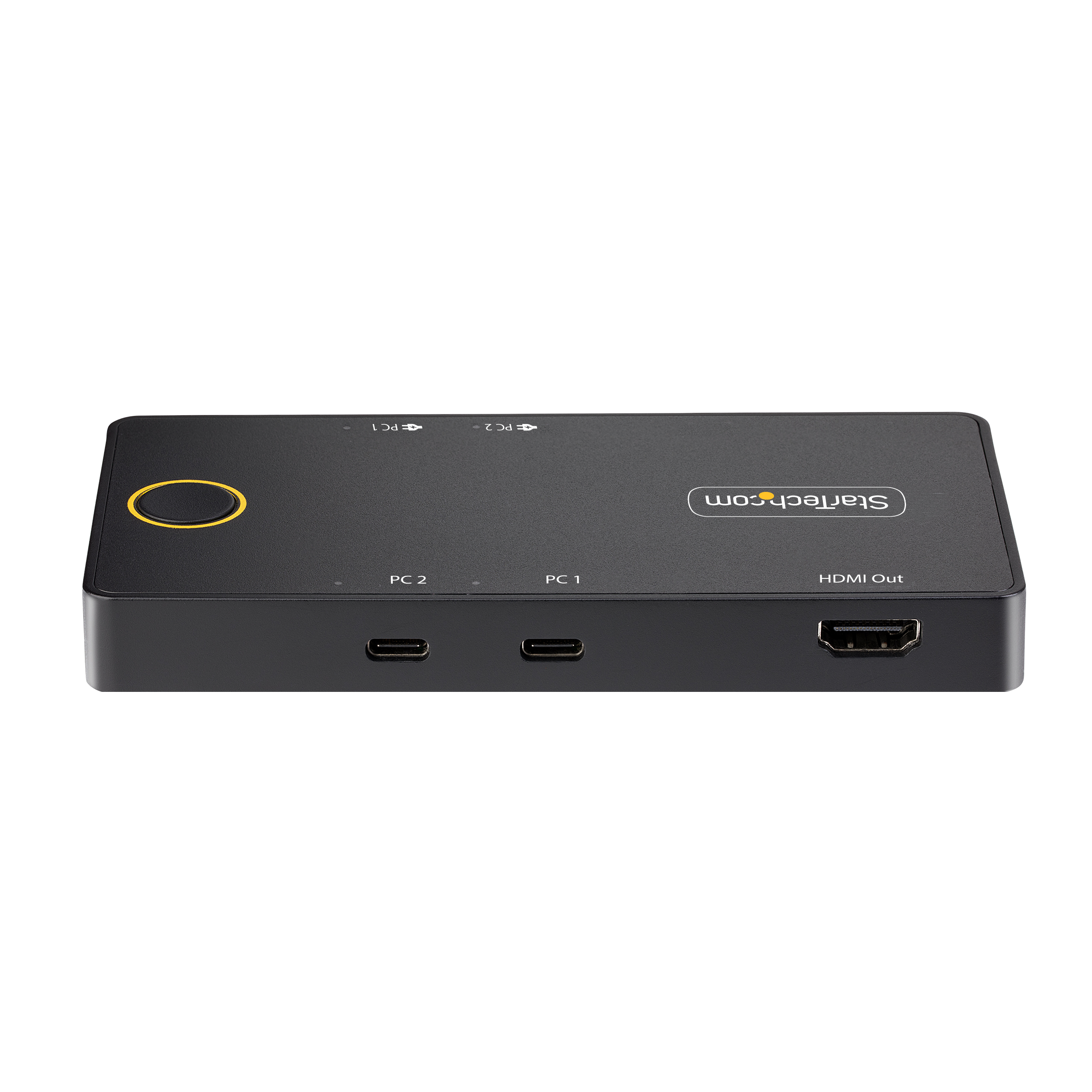

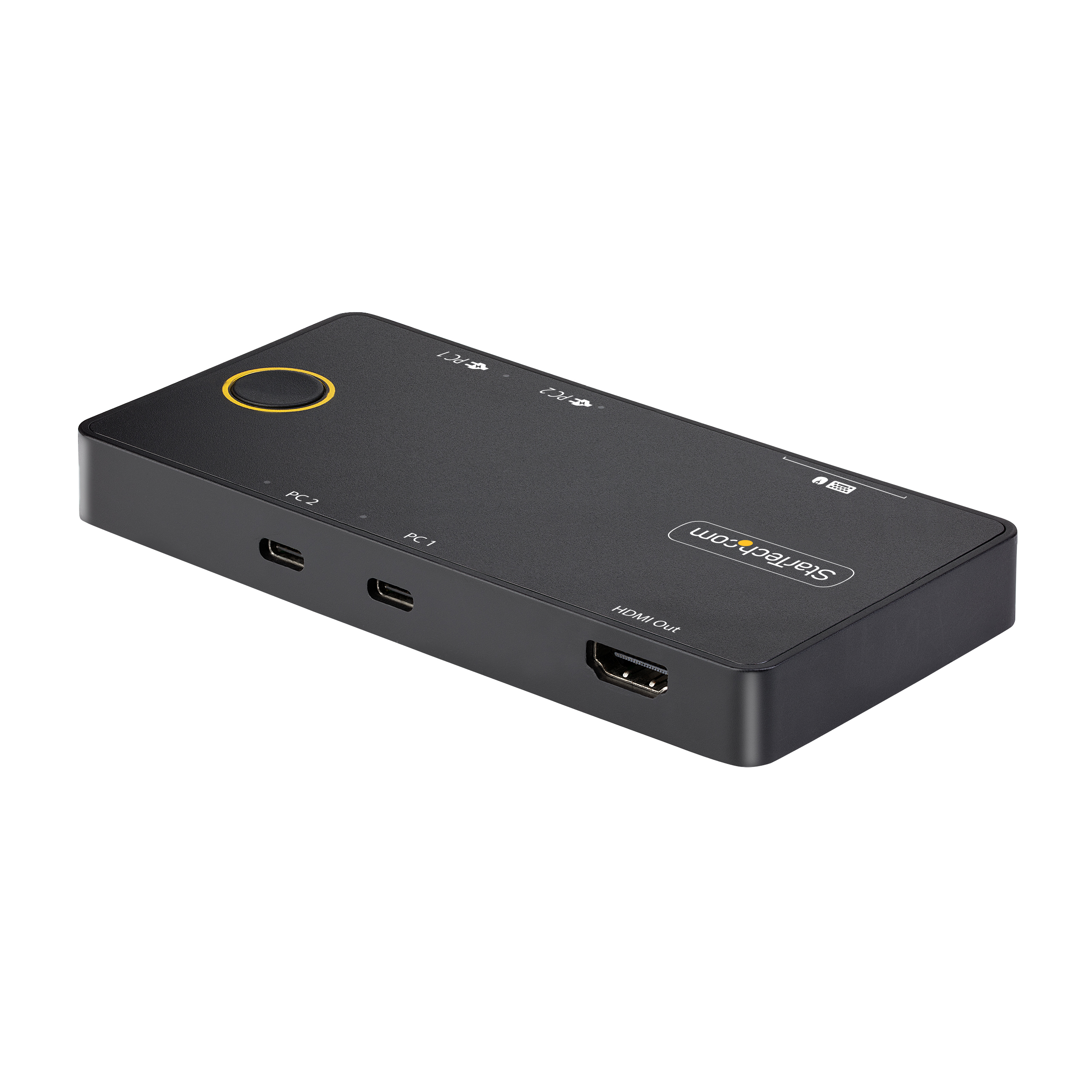

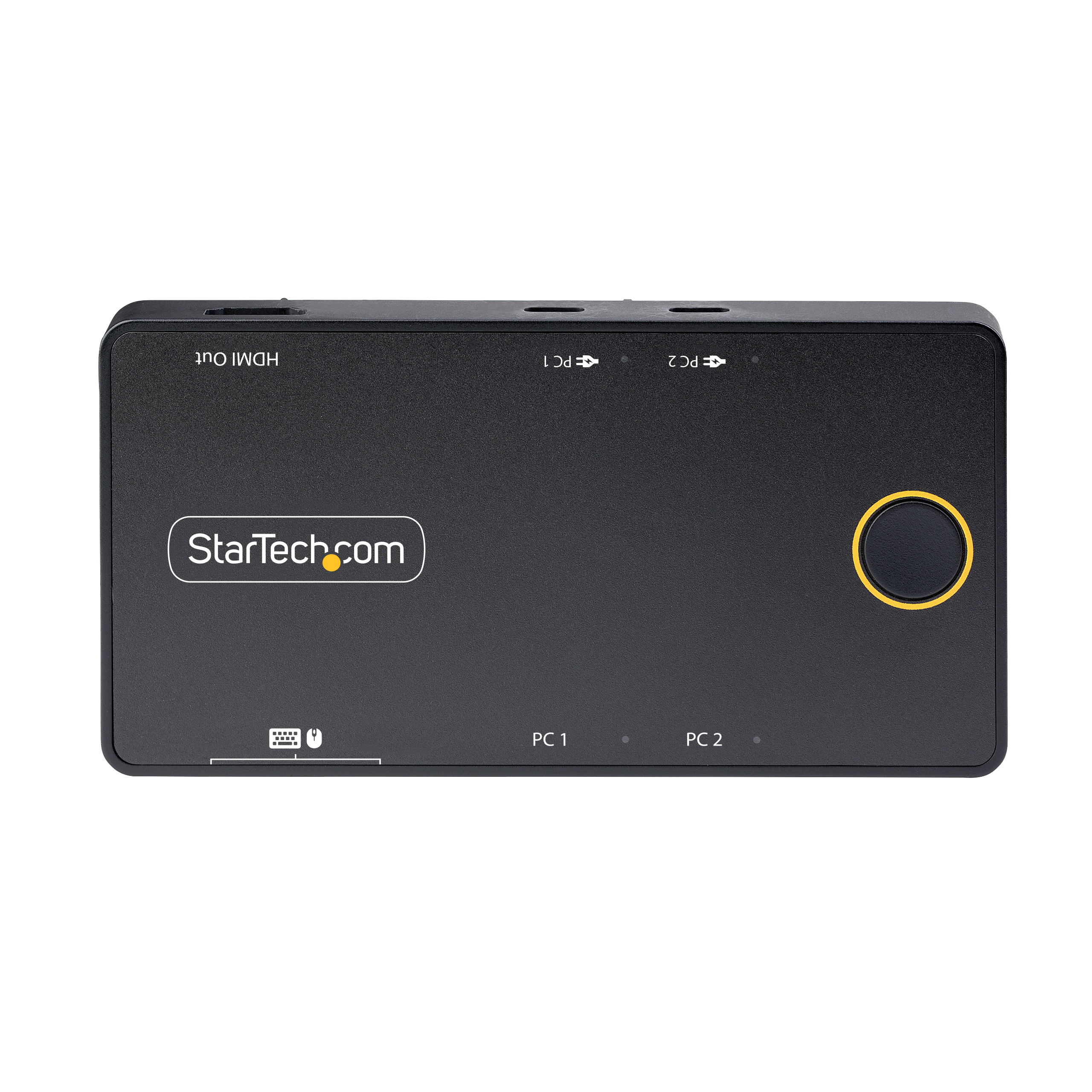

C2-H46-UC2-PD-KVM

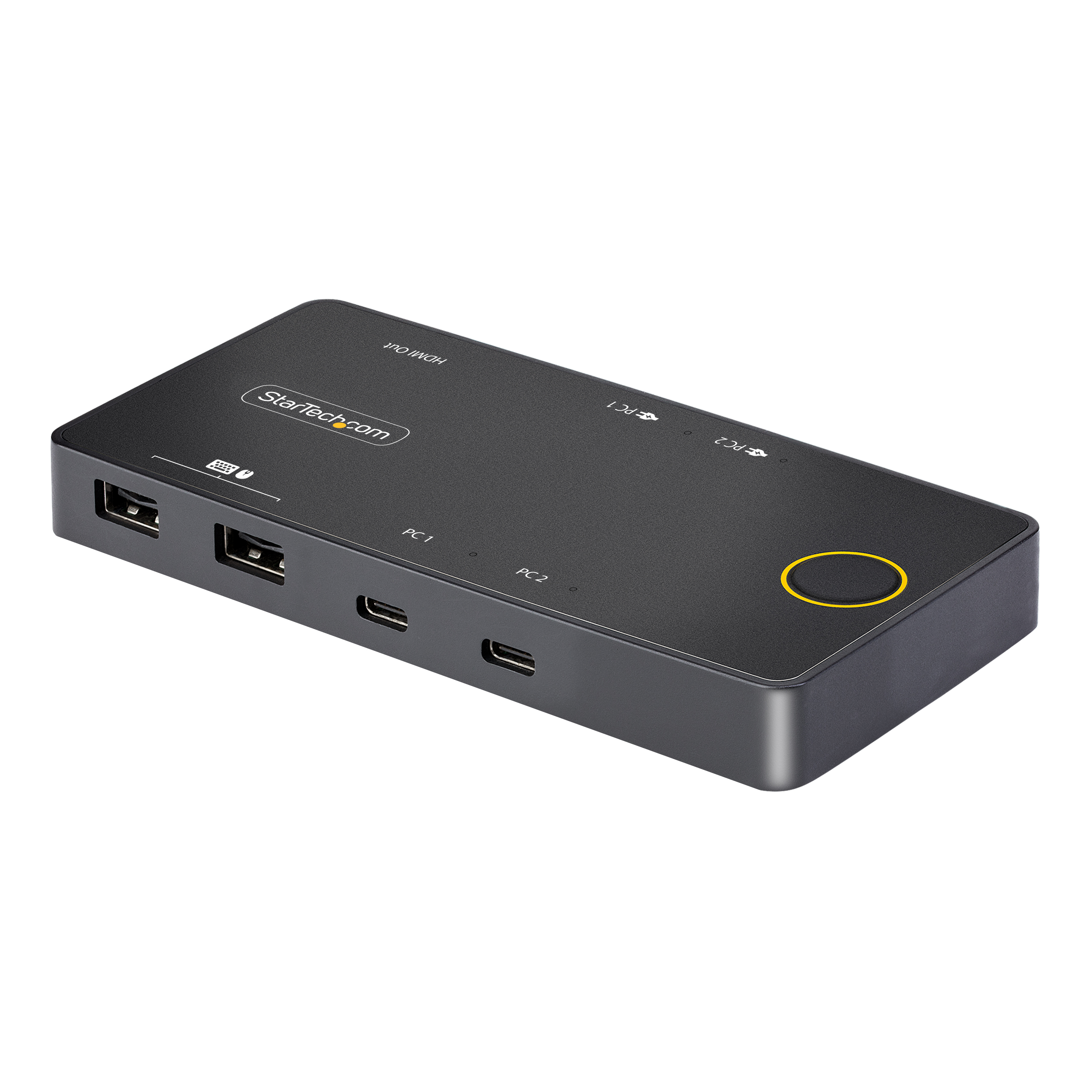

2 Port USB C - HDMI out KVM with Power Delivery
Power/charge and control two USB Type-C laptops over a single 4K 60Hz HDMI monitor, with pushbutton host selection
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Port USB C - HDMI out KVM with Power Delivery Product Number C2-H46-UC2-PD-KVM UPC 065030897648 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB-C - HDMI KVMs Family Basic Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) USB-C KVM Switch, 4K Product Title (Short) 2-Port USB-C KVM Switch, PD Pass-through Product Title (Medium) 2-Port USB-C KVM Switch, 4K 60Hz HDMI, Dual-100W PD Pass-through Ports Product Title (Standard) 2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, Dual-100W Power Delivery Pass-through Ports, Bus Powered, TAA Product Title (Long) 2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, Dual-100W Power Delivery Pass-through Ports, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Compatible - Small Form Factor - TAA Product Title (AMZ) 2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, 100W Power Delivery Pass-through for Each Laptop/Tablet, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Compatible , TAA Title Ingram (Part 1) USB-C KVM Switch, 4K 60Hz - Title Ingram (Part 2) Dual 100W PD Pass-through Website Product Headline Power/charge and control two USB Type-C laptops over a single 4K 60Hz HDMI monitor, with pushbutton host selection Bullet 1 DUAL LAPTOP CHARGING: 100W Power Delivery Pass-Through is enabled using dedicated USB-C Power Adapters (not included), with 10W reserved and up to 90W charging available for each host laptop simultaneously using the two PD 3.0 pass-through ports Bullet 2 4K 60HZ USB-C KVM SWITCH: Enables fast switching of a keyboard, video, and mouse using a single USB-C cable connected to a laptop that supports USB-C DP Alt Mode; It features a 4K 60Hz HDMI output, two USB HID ports, and pushbutton switching Bullet 3 COMPATIBILITY: 2-Port KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel, AMD, and Apple M1/M2 devices (MacBook); Works with USB-C, USB4, Thunderbolt 3/4 laptops Bullet 4 READY TO DEPLOY: Compact KVM is bus powered and includes two 3ft/1m USB-C host cables; Small form factor is sturdy and features attached rubber feet, keeping the KVM in place during use; Streamlined Port Layout; LED Indicators for Port and Charging Status Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts Bullets (Compact) 2-Port USB-C KVM Switch enables switching of a mouse, keyboard and 4K 60Hz HDMI display between two USB Type-C DP Alt Mode enabled laptops; Dual PD pass-through ports allow 90W charging for each host simultaneously; Bus powered; Push button selection Bullets (Consolidated) 2-Port USB-C KVM Switch enables simultaneous laptop charging of up to 90W when USB-C power adapters are connected to the dual power delivery pass-through ports - Enables fast switching of a keyboard/video/mouse between two USB-C DP Alt-mode enabled laptops each with a single USB-C cable - 4K 60Hz HDMI output; 2x USB 2.0 HID Ports; Push Button Host Selection - Works on all hardware platforms including Intel/AMD/Apple M1/M2; OS Independent - Bus-powered Compact KVM includes 2x 3ft/1m USB-C cables Marketing Copy Marketing Copy (No HTML) Applications - Ideal for sharing peripherals between personal and work laptops in a home office

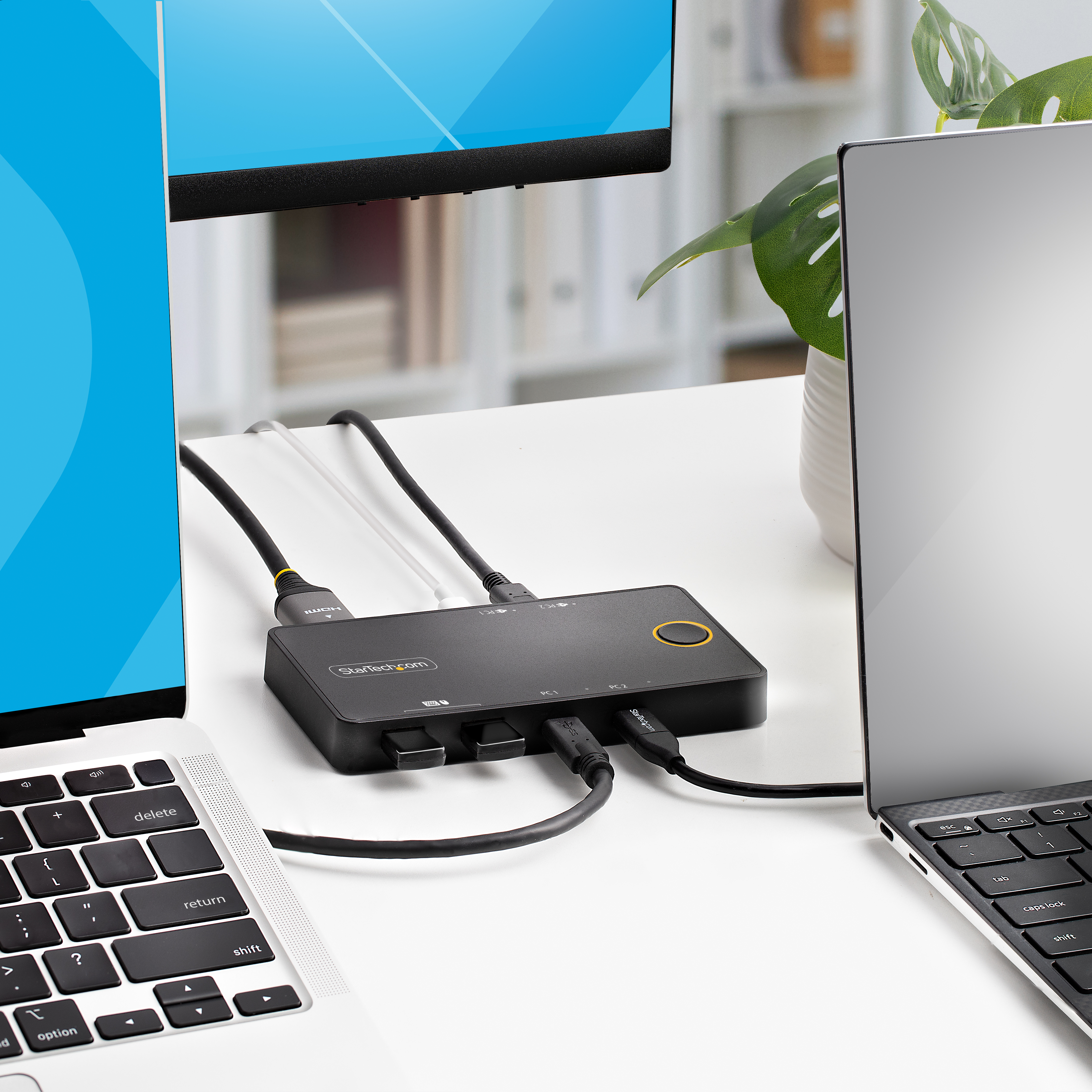

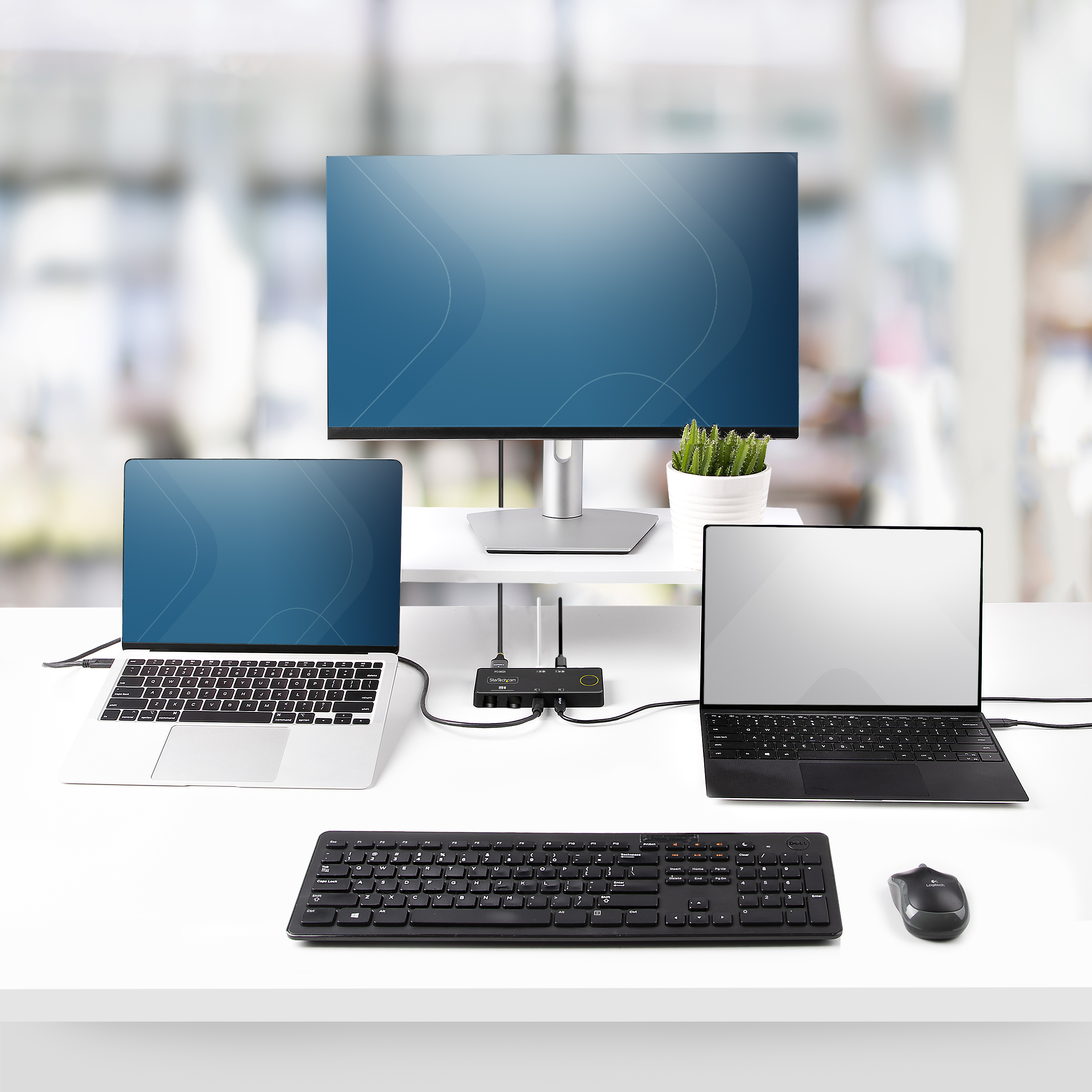

- Switch a display, mouse, and keyboard between two laptops while charging them
Website Search Keyword - 2 Port HDMI KVM Switch
- dual PD
- hdmi kvm switch
- kvm switch
- kvm switch usb c
- kvm switch usb c power delivery
- kvm switch with power delivery
- kvm usb-c
- usb c kvm
- usb c kvm switch
- usb c kvm switch with power delivery
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes - Host device must support USB-C DP Alt Mode for video functionality to work
- Host device must support Power Delivery to charge when a USB-C Power Adapter is connected to the Power Delivery Pass-through Port
Accessory Products - HDMM21V1M
- HDMM21V2M
- HDMM21V3M
- HDMM21V4M
Related Products - SV231DPUCA
- SV211HDUC
- SV221HUC4K
Power Consumption (In Watts) 10W Power Source Bus Powered and Host USB-C Power Adapter Color Black Humidity 20% ~ 80% RH Material ABS Operating Temperature 5°C to 55°C (41°F to 131°F) Product Length (mm) 140.000 Product Width (mm) 70.000 Product Height (mm) 15.000 Product Weight (g) 200.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant Yes Audio Specifications HDMI - 7.1 Channel Audio Auto Scan None General Specifications - Power Delivery Pass-through: 100W
- Maximum Device Charging: 90W
Hot-Key Selection No KVM IP Control No Maximum Data Transfer Rate 480Mbps (USB 2.0) Maximum Digital Resolutions 4096 x 2160 @ 60Hz MTBF (hours) 50,000 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button Supported Resolutions Wide Screen Supported Yes Audio Yes Cables Included Yes CAC Support No Cascadable No Chipset ID - VLI - VL103R
- VLI - VL171
- Parade - PS186
- VLI - VL817

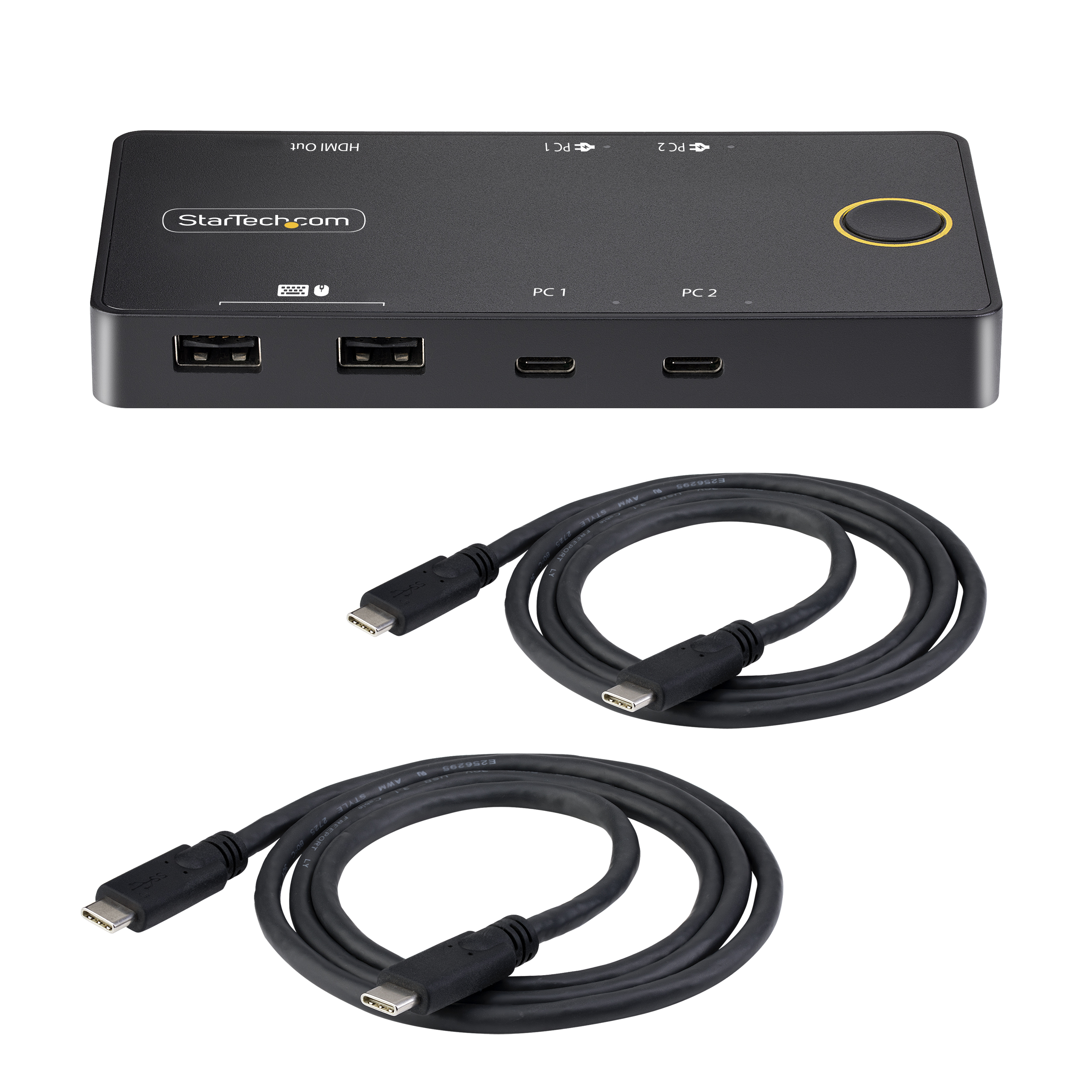

Industry Standards HDMI 2.1 TMDS LED Indicators Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type HDMI Rack-Mountable No Supported Platforms USB-C Carton Depth (mm) 476 Carton Height (mm) 323 Carton Quantity 20 Carton Weight Gross (g) 10488 Included in Package - 1 - KVM Switch
- 2 - USB-C Host Cables
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Quick-Start Guide
- 2 - USB-C Host Cables
- 1 - Kvm Switch
Package Depth (mm) 177 Package Height (mm) 88 Package Width (mm) 122 Package Quantity 1 Package Weight (g) 434 Packaging Description 2-Port Compact USB-C KVM Switch - HDMI - 4K 60Hz - 100W Power Delivery Packaging Description India 2-Port Compact USB-C KVM Switch - HDMI - 4K 60Hz - 100W PD Sub-Carton Depth (mm) 456 Sub-Carton Height (mm) 297 Sub-Carton Width (mm) 201 Sub-Carton Weight (g) 4858 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 USB-C (100W PD Only) Connector 3 (Quantity) 2 Host Connector 1 USB-C Dual-Role (10Gbps, 4.5W / 100W PD Input) Host Connector 1 (Quantity) 2 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2022-10-21 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment exact same model without PD Comparable SKU 2 Comment hybrid USB-C and HDMI KVM switch from same vendor Digital Content Due Date 2023-08-09 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology - USB-C
- HDMI 2.0 / 4K 60 Hz and HDR
- Power Delivery
Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-10-24 Target Production Release 2023-03-15 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Latest Video Not Required
