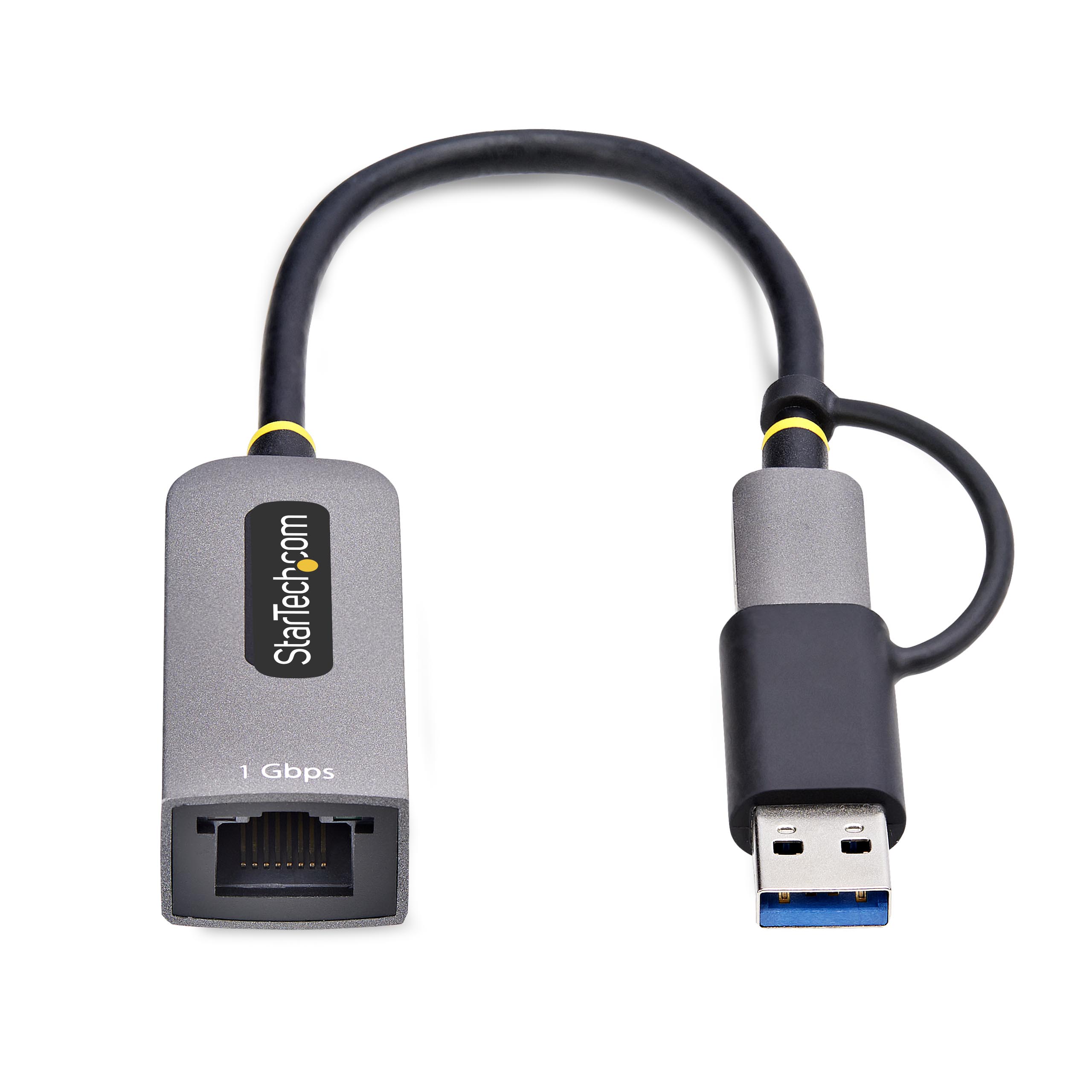

C21GA-USB-ETHERNET

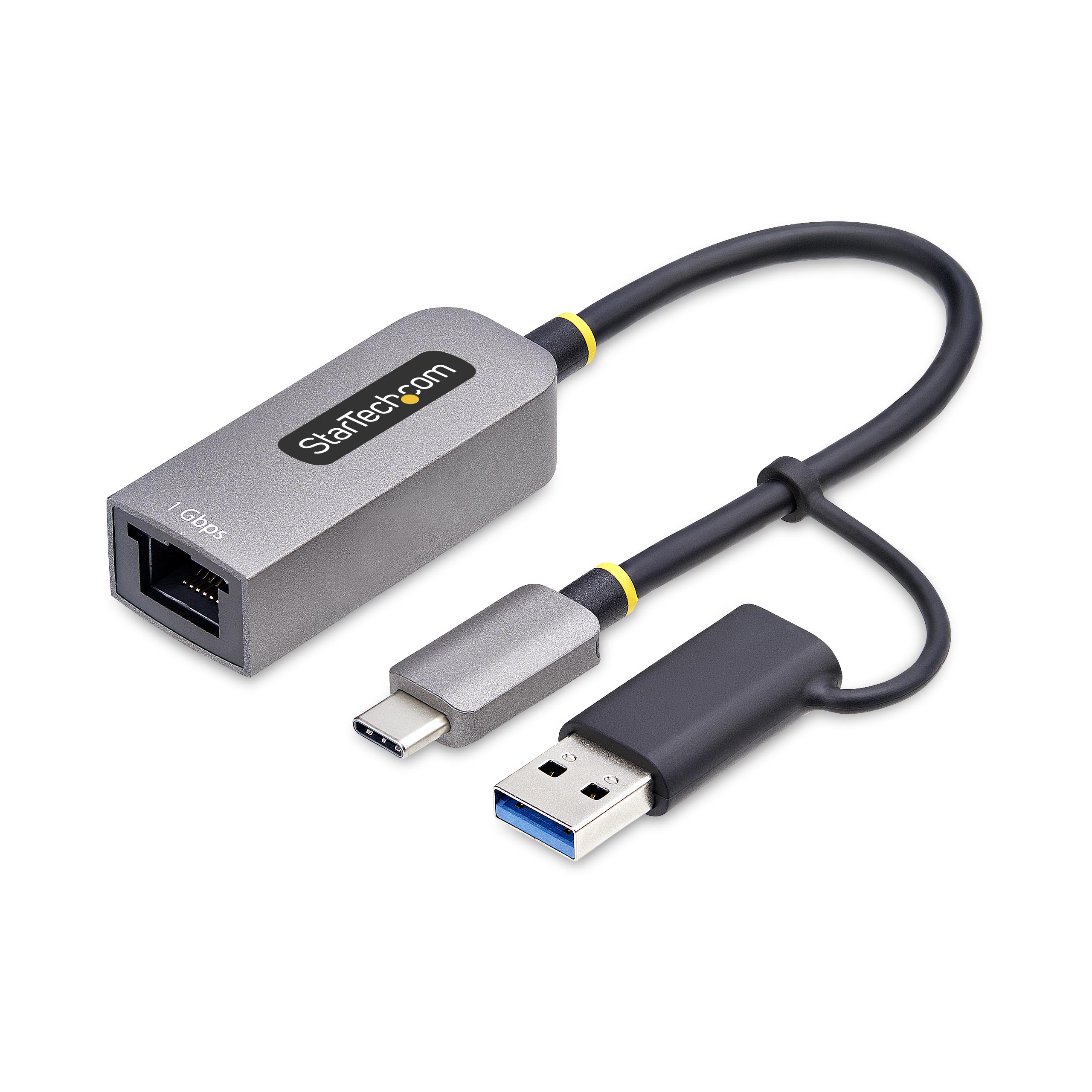

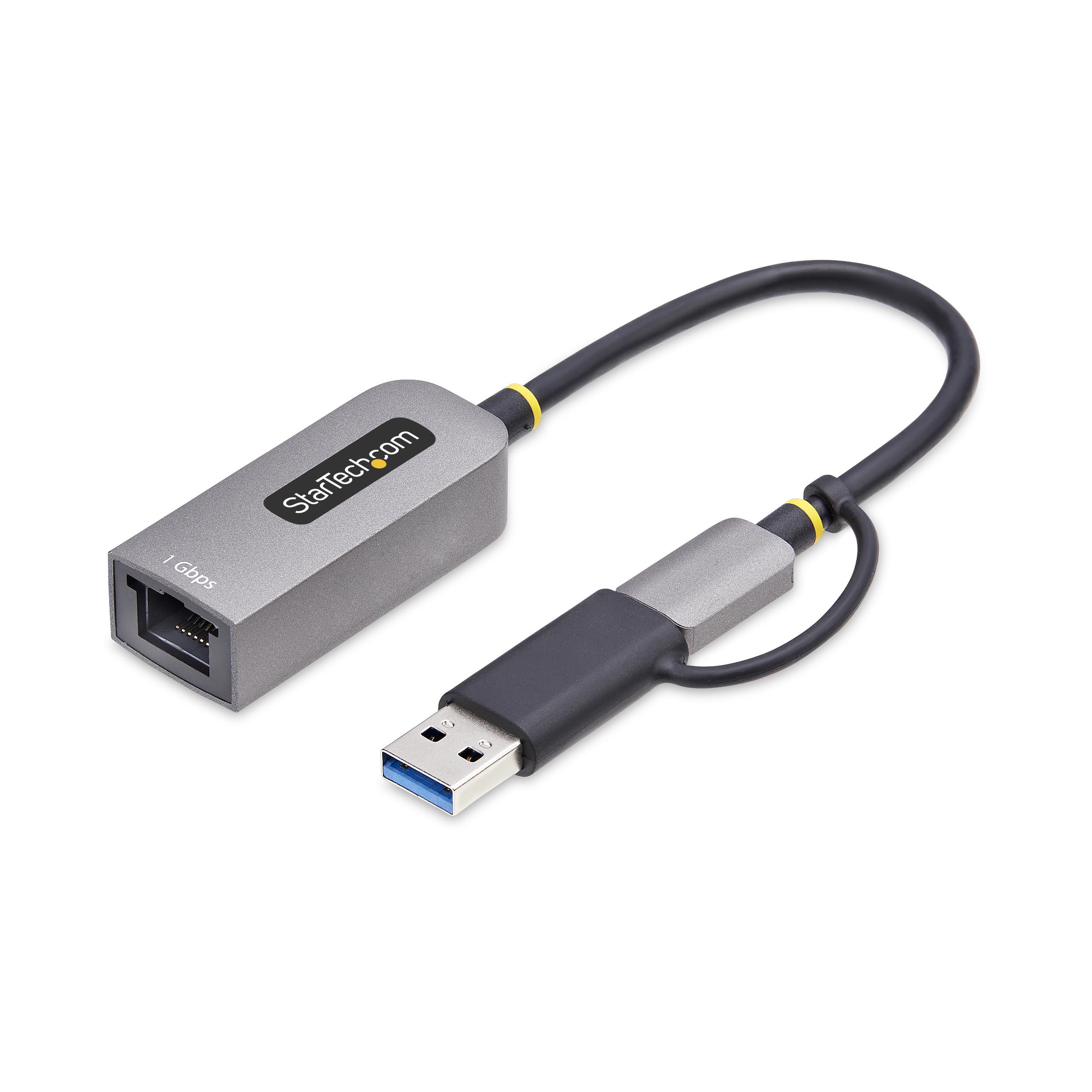

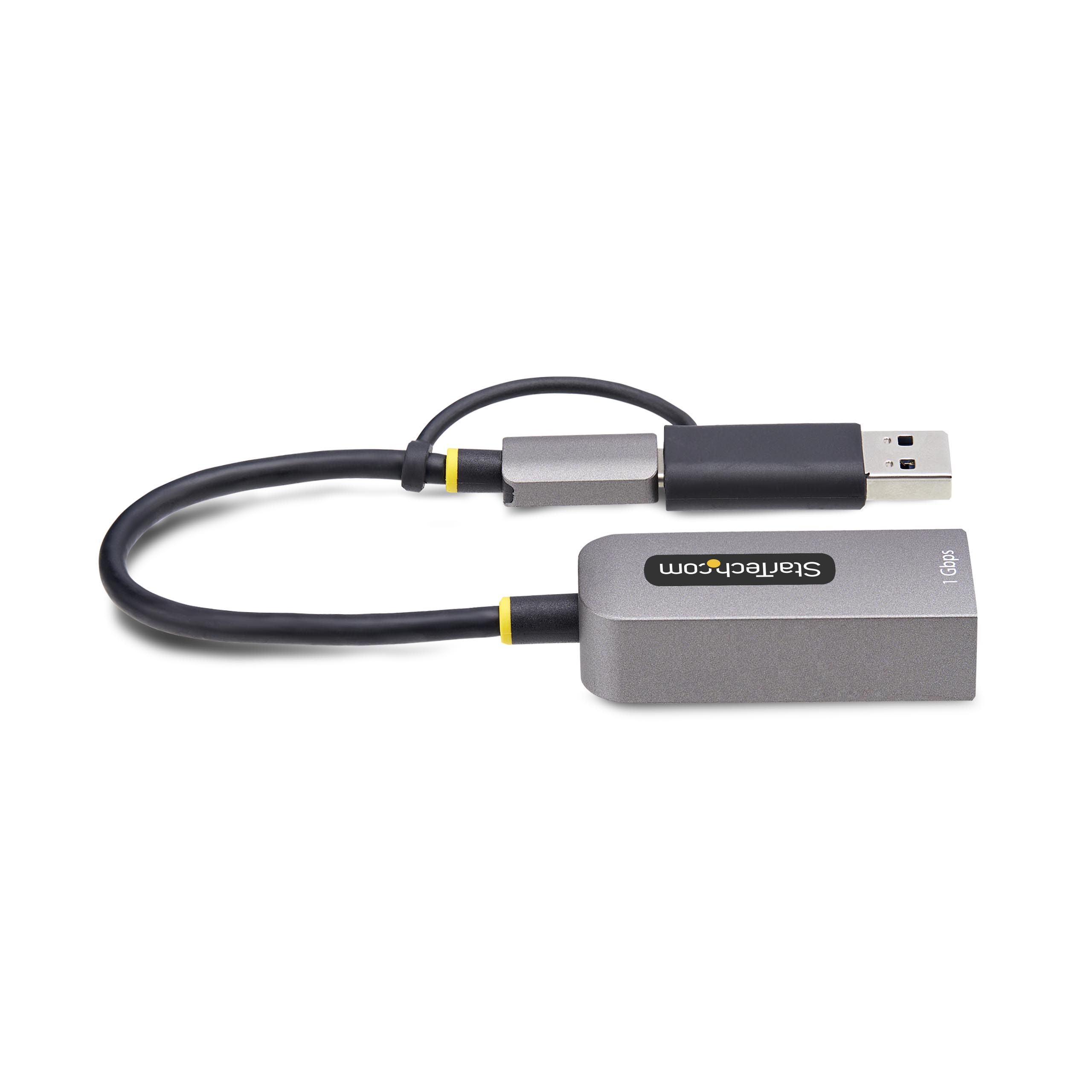

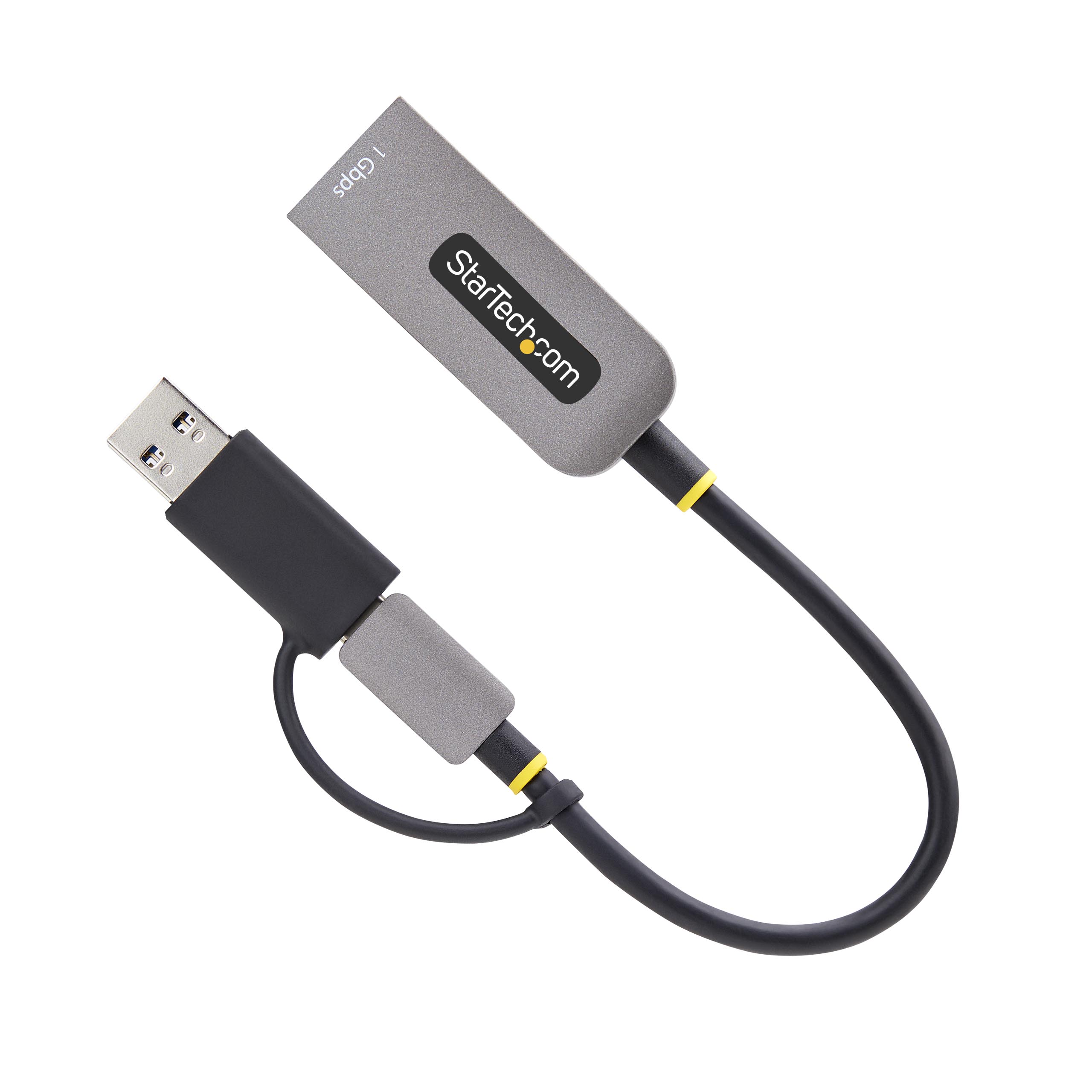

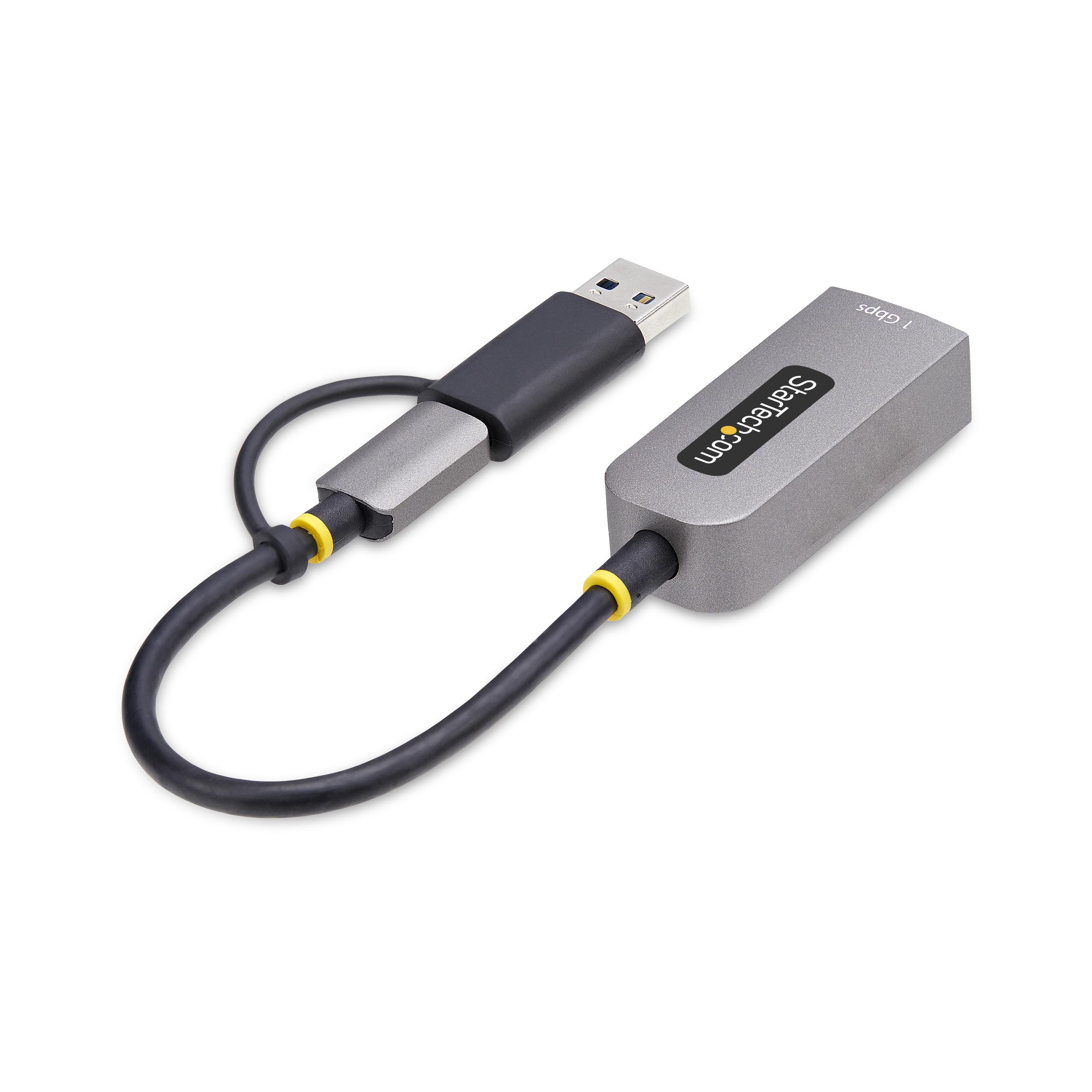

Gigabit USB-C Ethernet Adapter with USB-A Adapter

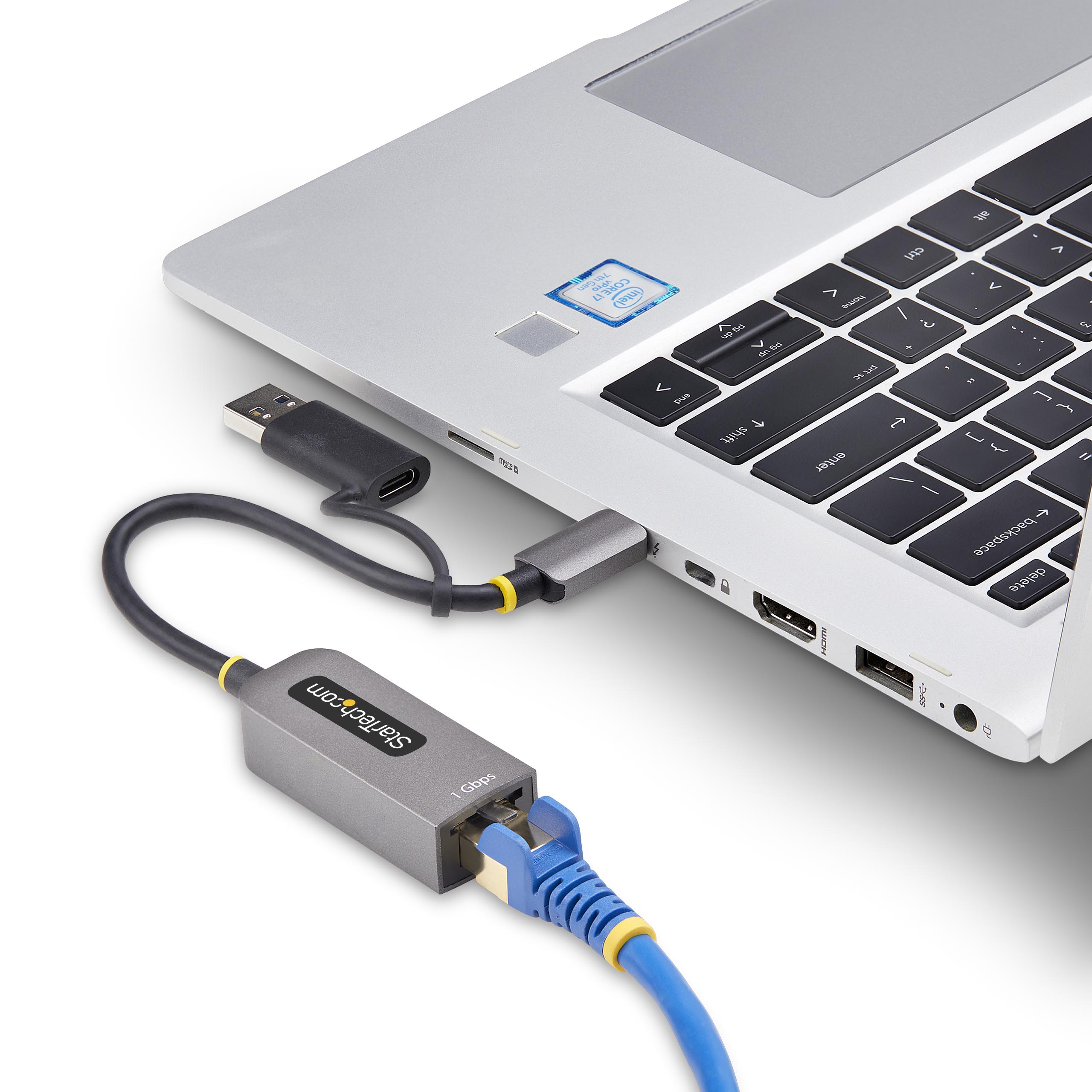

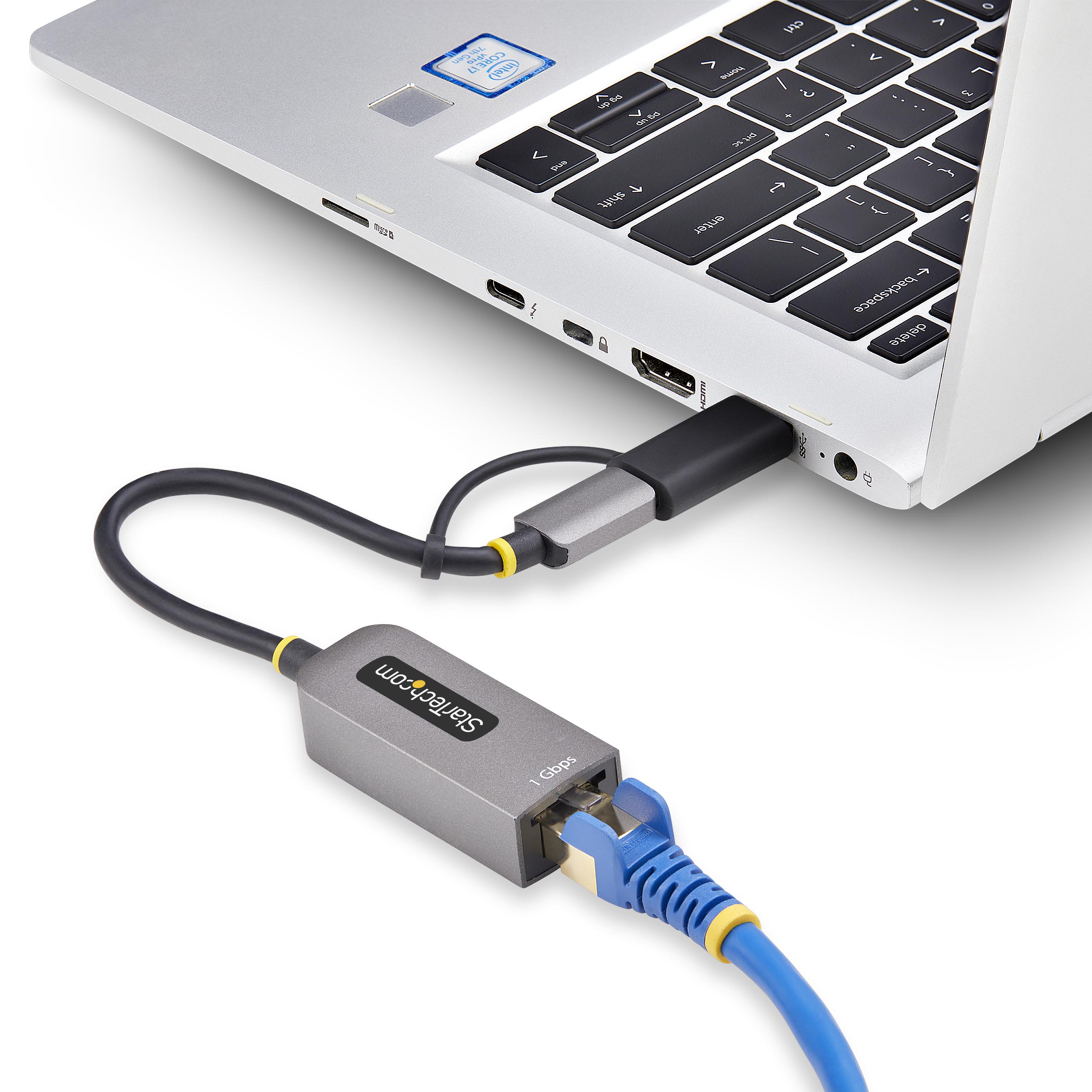

Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB Type-C or A port
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Gigabit USB-C Ethernet Adapter with USB-A Adapter Product Number C21GA-USB-ETHERNET UPC 065030907842 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 USB-C Ethernet Adapters Family Classic Connect Ethernet Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) USB-C to Ethernet Product Title (Short) USB-C to Ethernet Adapter Product Title (Medium) USB-C to to Ethernet Adapter with USB-A Dongle, 10/100/1000 Mbps, Status LEDs Product Title (Standard) USB-C to to Ethernet Adapter with USB-A Dongle, 10/100/1000Mbps, USB 3.0 to Gigabit Network Adapter, Windows/macOS/Linux Product Title (Long) USB-C to Ethernet Adapter with USB-A Dongle, 10/100/1000Mbps, USB 3.0 to Gigabit Ethernet Network Adapter, 6in/15cm Attached Cable, USB GbE Adapter Product Title (AMZ) USB-C to Ethernet Adapter w/USB-A Dongle, 10/100/1000Mbps, USB GbE Adapter, 6in/15cm Attached Cable, Status LEDs Title Ingram (Part 1) USB-C to Ethernet Adapter - Title Ingram (Part 2) with USB-A Dongle, 15cm cable Website Product Headline Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB Type-C or A port Bullet 1 USB-C NETWORK ADAPTER: Add an Ethernet port to a USB-C or USB-A computer supporting up to Gigabit speeds with auto-negotiation for 10/100/1000Mbps BASE-T Networks; RJ45 Network port features link status LEDs for easy troubleshooting and minimal downtime Bullet 2 THOUGHTFUL DESIGN: Attached 6in/15cm cable provides extended reach and improved flexibility, reducing strain on ports; USB-C connector with attached USB-C to USB-A dongle ensures compatibility with laptops, desktops, and 2-in-1 devices; USB Bus Powered Bullet 3 BROAD COMPATIBILITY: Auto-installs on most operating systems including Windows 7/up, Linux LTS Kernel 4.19+ and up, MacOS/iOS/ChromeOS; Works with MacBooks, Chromebooks and all hardware platforms, including Intel, AMD, ARM (Snapdragon) and Apple Silicon Bullet 4 APPLICATIONS: Ideal replacement for broken ethernet ports on laptops; Provides a wired connection that is faster and more secure than wireless for home, work and travel; Efficiently provision and maintain laptops with WoL and PXE Bullet 5 TECH SPECS: USB 3.2 Gen 1 Type-C (5Gbps); Backwards compatible with USB 3.0/2.0; 1x GbE RJ45 Port; 10/100/1000Mbps; Realtek RTL8153B; 9K Jumbo Frames; VLAN Tagging; Wake-on-LAN; PXE Boot support; Energy Efficient Ethernet (EEE); Thunderbolt Compatible Bullets (Compact) Add an Ethernet port to a USB-C or USB-A computer supporting up to Gigabit speeds w/autonegotiation for 10/100/1000Mbps BASE-T Networks; Built-in 6in/15cm cable; Status LEDs; Bus powered; Windows/MacOS/iOS/ChromeOS; Realtek RTL8153B; 9K Jumbo Frames Bullets (Consolidated) - Add an Ethernet port to a USB-C or USB-A computer supporting up to Gigabit speeds with autonegotiation for 10/100/1000Mbps BASE-T Networks - Realtek RTL8153B Chipset - Network port w/link status LEDs for easy troubleshooting/reduced downtime - Attached 6in/15cm cable reduces port connector strain - USB bus-powered - Auto-installs on most operating systems incl. Windows 7/up/Linux LTS Kernel 4.19+/up/MacOS/iOS/ChromeOS; Works with MacBooks/Chromebooks/Intel/AMD/ARM (Snapdragon)/Apple Silicon Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - DO NOT USE - Packaging - General
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - Jumbo Frames are no longer supported in macOS Accessory Products - N6PATCH10BL
- N6PATCH8BK
- N6PATCH2RD
- N6PATCH4GR
- N6PATCH12PL
- N6PATCH5OR
Related Products - 2GPD3-USB-C-ETHERNET
- 1GPD3-USB-C-ETHERNET
- C22G-USB-ETHERNET
- U2GA-USB-C-ETHERNET
Input Voltage 5V DC Power Source USB-Powered Cable Length (mm) 152 Color Space Gray Humidity 10% to 85% RH (no condensation) Material Plastic Network Adapter Form Factor Attached Cable Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 255 Product Width (mm) 21.500 Product Height (mm) 15.000 Product Weight (g) 26.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Fiber Type Copper Full Duplex Support Yes Jumbo Frame Support 9K max. MTBF (hours) 1,969,065 hours Promiscuous Mode Yes PXE Yes USB Type and Rate USB 5Gbps Wake-On-LAN (WOL) Yes Bus Type USB 3.2 Gen 1 Chipset ID Realtek - RTL8153B Industry Standards - IEEE 802.3i 10BASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.1q VLAN Tagging
- IEEE 802.3x
- IEEE 802.3u 100Base-TX
- Realtek - RTL8153B

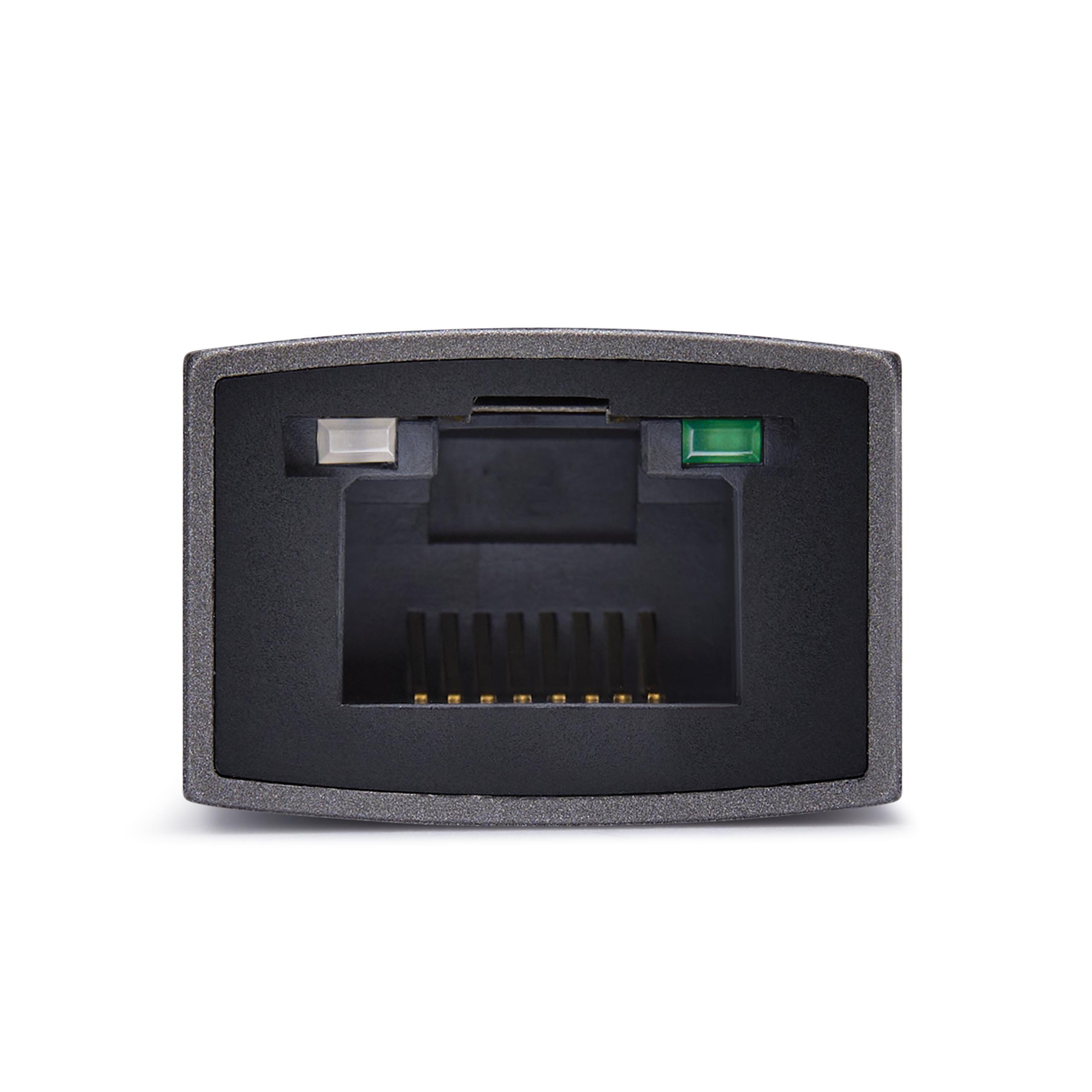

Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators USB Pass-Through No Carton Depth (mm) 500 Carton Height (mm) 210 Carton Quantity 250 Carton Weight Gross (g) 7000 Included in Package 1 - USB Ethernet Adapter Package Depth (mm) 128 Package Height (mm) 15 Package Width (mm) 21.5 Package Quantity 1 Package Weight (g) 35 Packaging Description USB Type-C to Gigabit Ethernet Adapter with USB-A Converter Packaging Description India USB Type-C to Gigabit Ethernet Converter with USB-A Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-08-15 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment USB-C to Gigabit Ethernet Adapter, Black, Thunderbolt 3 / 4 Compatible, Windows & Mac, RJ45 LAN Network Converter Comparable SKU 2 Comment USB-C to Ethernet Adapter, USB 3.0 to Gigabit Ethernet Network Adapter, 10/100/1000 Mbps, USB-C to RJ45 Ethernet Adapter (GbE), 12in Attached Cable, Driverless Install Digital Content Due Date 2024-12-13 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,UK,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-06-14 Target Production Release 2024-08-15 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Latest Video Not Required
