Main Image
C6AKEYTLSTP18010PK

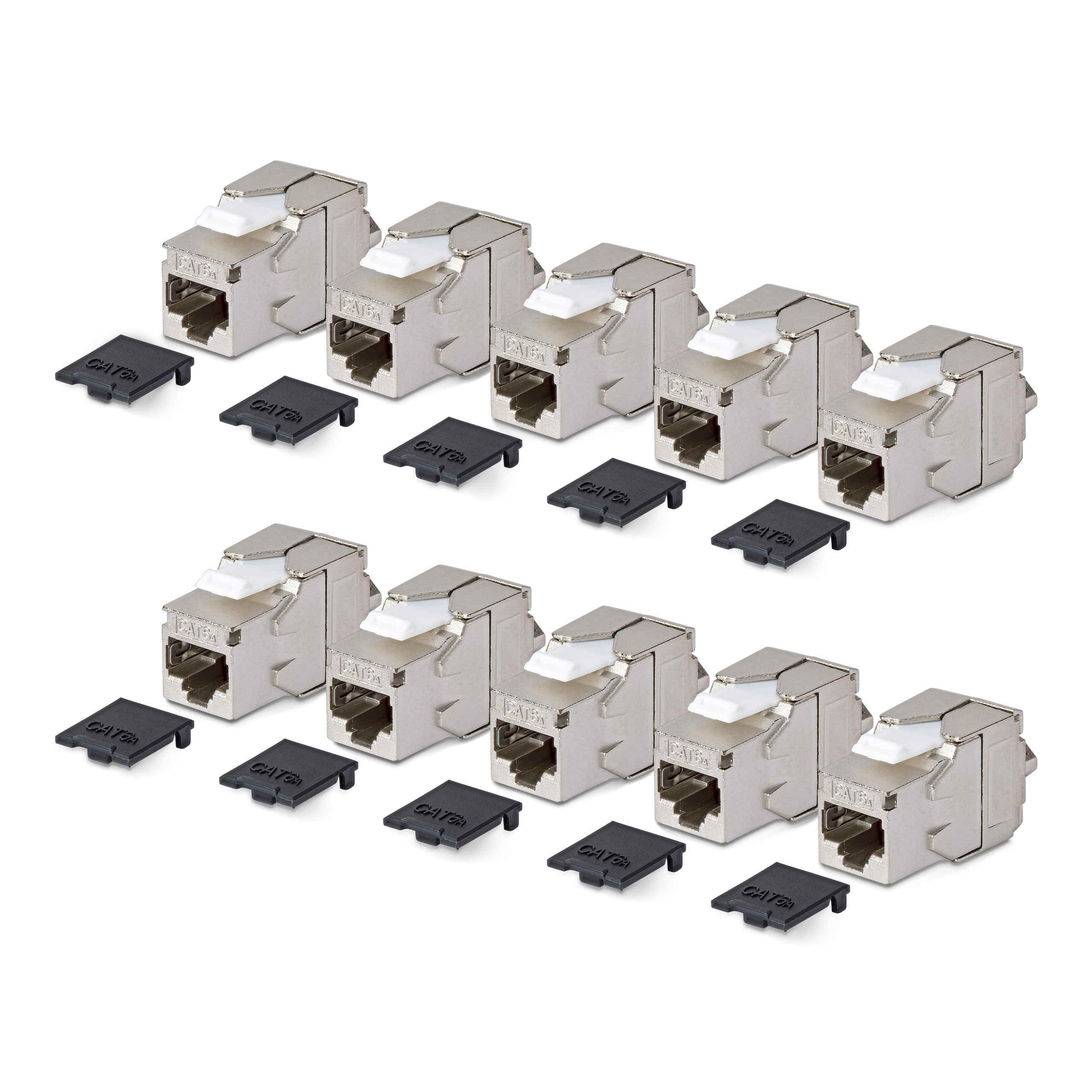

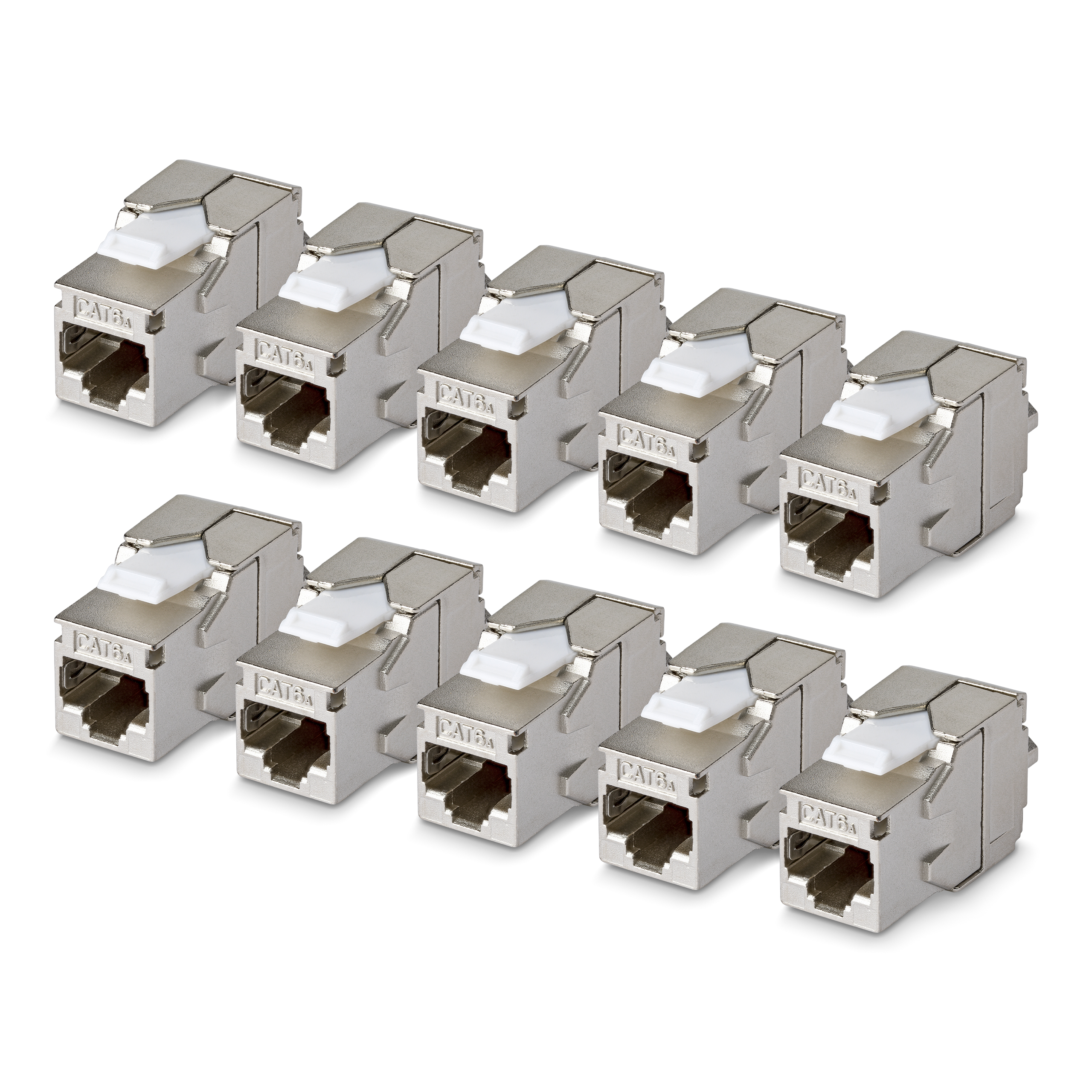

Cat6A Shielded 180 Degree Toolless Keystone, 10 pack
Simplify patch panel termination with toolless 180-degree Shielded Cat6a keystone jacks
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Cat6A Shielded 180 Degree Toolless Keystone, 10 pack Product Number C6AKEYTLSTP18010PK UPC 065030918015 Lifecycle status Pending Warranty 3 Years Taxonomy Product > Other > Wall Plates & Accessories Category Level 1 Network Cables Category Level 2 Network Cable Accessories Category Level 3 Jacks and Outlets Family Keystone Jacks Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX142X Product Title (Ultra-Short) Cat6a Keystone Jack Product Title (Short) Cat6a Keystone Jack, 10-Pack, 180-Deg Product Title (Medium) Shielded Cat6a Keystone Jack, 10-Pack RJ45 STP Ethernet Wall Jack, 180-Deg Toolless Product Title (Standard) Shielded Cat6a Keystone Jack, 10-Pack RJ45 Ethernet Keystone Jacks, STP Cat6a Wall Jack, 180-Degree Toolless Product Title (Long) Shielded Cat6a Keystone Jack, 10-Pack RJ45 Ethernet Keystone Jacks, STP Cat6a Wall Jack, 180-Degree Toolless Product Title (AMZ) Shielded Cat6a Keystone Jack, 10-Pack RJ45 Ethernet Keystone Jacks, STP Cat6a Wall Jack, 180-Degree Toolless Title Ingram (Part 1) Cat6a STP Keystone Jack 10-Pack Title Ingram (Part 2) 180-Degree/Toolless/Shielded Website Product Headline Simplify patch panel termination with toolless 180-degree Shielded Cat6a keystone jacks Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) 10-pack of shielded Cat6a RJ45 STP keystone jacks is ideal for patch panels and wall plates; Toolless 180-degree design for straight cable terminations without punch down tools; Supports T568A/B, 10Gbps, 100W PoE; Wiring schemes printed on the jack Bullets (Consolidated) 10-pack of shielded toolless Cat6a RJ45 STP keystone jacks is ideal for wiring shielded cable drops to patch panels and wall plates - Toolless 180-degree design for straight cable terminations without punch down tools - Supports T568A/T568B termination; Wiring schemes printed on the jack for quick reference - Deliver 10Gbps Ethernet with 100W PoE (IEEE 802.3bt Type 4) over Cat6a STP - Gold-plated contacts enhance conductivity and meets ANSI/TIA-568-C.2 standards; Backward compatible with Cat5e Marketing Copy Marketing Copy (No HTML) Website Search Keyword - cat6 keystone jack
- Ethernet keystone
- RJ45 keystone
- 90 degree keystone
- Cat6 wall jack
- Cat 6 wall jack
- jack keystone
- keystone RJ45
- Shielded keystone jack
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Non-Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
Related Products - C6KEYTL180BK24PK
- C6KEYTL180WH24PK
- C6AKEYTLSTP9010PK
- C8KEYSTP1806PK
Power Delivery 100W Color Silver Humidity 85% Installation Type Toolless Material - Polycarbonate
- Nickel-plated Zinc
Operating Temperature -10°C to 60°C (14°F to 140°F) Product Length (mm) 37.59 Product Width (mm) 14.50 Product Height (mm) 19.2 Product Weight (g) 7 Product Type RJ45 Keystone Jacks Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant Yes Connection Type Cat 6a Connector Plating Gold Industry Standards - IEEE 802.3ae 10GBASE-T
- IEEE 802.3 10/100/1000BASE-T
- IEEE 802.3bz 2.5GBASE-T
- IEEE 802.3bz 5GBASE-T
- IEEE 802.3bt Type 4 (4PPoE)
Wiring Standard - TIA/EIA-T568A
- TIA/EIA-T568B
Carton Depth (mm) 376 Carton Height (mm) 243 Carton Quantity 30 Carton Weight Gross (g) 7600 Included in Package - 10 - Cat 6a Keystone Jack
- 10 - Wire Cap
- 10 - Dust Cover
- 1 - Quick-Start Guide
Package Depth (mm) 178 Package Height (mm) 43 Package Width (mm) 85 Package Weight (g) 308 Packaging Description Cat6a Shielded 180-Degree Toolless Keystone Jack - 10 Pack Packaging Description India Cat6a Shielded 180-Degree Toolless Keystone Jack - 10 Pack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Not Required Actual Inbox Documents Created Compliance Insert & In Box EN/DE QSG Amazon Merchandising Manager Kathleen Marshall Amazon Visual Content Level Bronze Apple Compatibility Apple Compatible Application Photos Not Required Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2026-04-22 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Brooke Taylor Graphic Design SKU Logic Naming Convention C6AKEYxy ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,JP,MX,NL,NZ,SE,SG,UK,US Priority New Product Medium Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2025-05-27 Target Production Release 2025-06-03 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None Video Not Required
