C6APANELSTP241UFT
24 Port 1U Feedthrough Cat6A STP Rackmount Patch Panel
Set up 24 Cat6a connections using this shielded feed-through patch panel with pre-installed RJ45 couplers
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 24 Port 1U Feedthrough Cat6A STP Rackmount Patch Panel Product Number C6APANELSTP241UFT UPC 065030911917 Lifecycle status Pending Warranty 3 Years Weighted Opportunity 0 Taxonomy Product > Networking > Patch Panels Category Level 1 Network Cables Category Level 2 Network Cable Accessories Category Level 3 Patch Panels Family Patch Panel Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX142X Product Title (Ultra-Short) 24 Port Patch Panel Product Title (Short) 24 Port 1U Feed Through Patch Panel Product Title (Medium) 24 Port 1U Feed Through Patch Panel with Cable Management, Rackmount Cat6a Patch Panel Product Title (Standard) 24 Port 1U Feed Through Patch Panel with Cable Management Bar, Rackmount Shielded Cat6a Patch Panel with RJ45 Inline Couplers Product Title (Long) 24 Port 1U Feed Through Patch Panel with Cable Management Bar, Rackmount Shielded Cat6a Ethernet Patch Panel with RJ45 STP Inline Couplers Product Title (AMZ) 24 Port 1U Feed Through Patch Panel with Cable Management Bar, Rackmount Shielded Cat6a Patch Panel with RJ45 STP Inline Couplers Title Ingram (Part 1) 1U Feed Through Patch Panel Title Ingram (Part 2) 24 Port with RJ45 Inline Couplers Website Product Headline Set up 24 Cat6a connections using this shielded feed-through patch panel with pre-installed RJ45 couplers Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) 24-Port 1U Shielded Feed-Through Patch Panel with RJ45 STP inline couplers; Rear cable management bar; Ideal for tool-free network deployments and server racks; Compatible with Cat6a cabling; Supports 10Gbps and 90W PoE; Fits standard 19in racks Bullets (Consolidated) 24-Port 1U Shielded Feed-Through Patch Panel with rear cable management bar and grounding wire - Pre-installed RJ45 STP inline couplers for quick, toolless Cat6a network setup; Supports 10Gbps and up to 90W 4PPoE - Connect Cat6a patch cords directly on both sides of the RJ45 couplers; Quickly replace cables as needed to minimize downtime - Fits standard 19in network racks and enclosures - Suitable for office networks, server racks, and quick network deployments Marketing Copy Marketing Copy (No HTML) Applications - For installation in standard 19in network racks and cabinets
- Connect Cat6a cables instantly without punch down tools. Quickly swap cables as needed for configuration and troubleshooting
- Clearly numbered keystone ports make it easy to identify your cable runs
Website Search Keyword - Patch Panel
- Cat6a patch panel
- cat 6 patch panel
- rackmount patch panel
- ethernet patch panel
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper

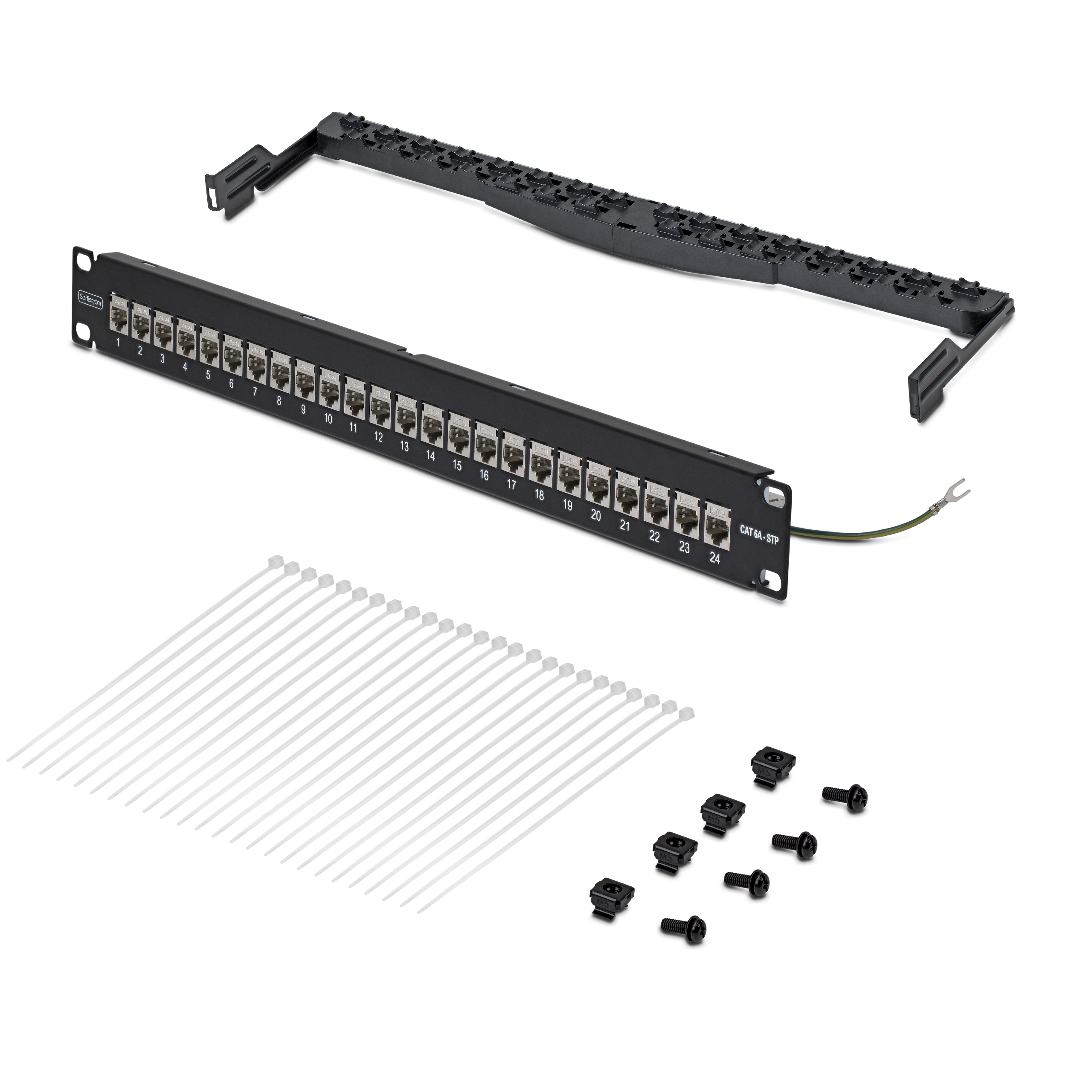

Color Black & Silver Humidity 85% Material Steel Operating Temperature -10°C to 60°C (14°F to 140°F) Product Length (mm) 482.6 Product Width (mm) 129.55 Product Height (mm) 44.3 Product Weight (g) 1000.96 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant Yes Carton Depth (mm) 535 Carton Height (mm) 205 Carton Quantity 9 Carton Weight Gross (g) 10840 Included in Package - 1 - Product Documentation
- 1 - Patch Panel
- 1 - Set of Screws and Nuts
Package Depth (mm) 515 Package Height (mm) 60 Package Width (mm) 70 Package Weight (g) 1149 Packaging Description 24 Port 1U Feed-Through Cat6a STP Rackmount Patch Panel Packaging Description India 24 Port 1U Feed-Through Cat6a STP Rackmount Patch Panel Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Not Required Actual Inbox Documents Created Compliance Insert Amazon Merchandising Manager Kathleen Marshall Amazon Only SKU No Amazon Visual Content Level Gold Apple Compatibility Apple Compatible Application Photos Required Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment Comp is UTP and Cat6 Comparable SKU 2 Comment n/a Digital Content Due Date 2026-07-15 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,NL,SE,SG,UK,US Priority New Product Medium Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-02-28 Target Production Release 2025-06-30 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
