CAB1631D
Main Image

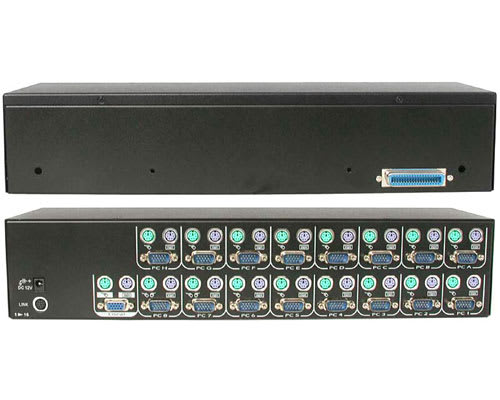

Product Name 16 Port KVM Module for 1UCABCONS Product Number CAB1631D UPC 065030794718 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) 16 Port KVM Switch Module for 1UCABCONS Command Console Bullet 1 An industry first 3-year warranty provides peace of mind. Bullet 2 Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems. Bullet 3 "Keep-alive" feature draws power from PC keyboard ports if power is lost. Switch will continue to operate during power outage even it it loses power, retaining mouse control. Bullet 4 Rugged, all-metal chassis for use in harsh environments and space-saving cabinets. Bullet 5 Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems Marketing Copy Applications - Datacenter computer control
- Manufacturing line computer control
- PC test/burn-in computer control
- Co-location/ISP computer control
Accessory Products - USB2PS2
- PS23N1THIN4
- PS23N1THIN10
- PS23N1THIN25
- SV125
- PS23N1THIN2
- PS23N1THIN6
- PS23N1THIN15
- SVPS23N1_6
- SVPS23N1_10
- SVPS23N1_15
- SVPS23N1_35
- SVPS23N1_50
Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 180 Product Width (mm) 436 TAA Compliant No DVI Support No KVM IP Control No Maximum Analog Resolutions 1920 x 1440 Maximum Number of Users 1 On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Audio No Cascadable Yes Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms PS/2 Carton Depth (mm) 625 Carton Height (mm) 208 Carton Quantity 5 Carton Weight Gross (g) 10020 Package Depth (mm) 93 Package Height (mm) 144 Package Width (mm) 474 Package Weight (g) 2940 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Centronics (50-Pin) Connector 1 (Quantity) 1 Connector 2 S-Video (Y/C) Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 PS/2 Connector 4 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 16 Host Connector 2 PS/2 Host Connector 2 (Quantity) 32 en-US Content Approved Yes Product Manager Daryl Hunt
