CAB1631D1U
Main Image

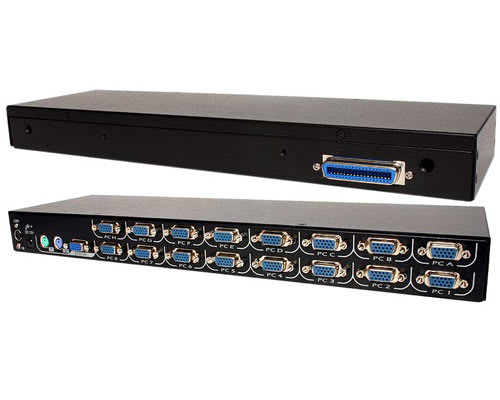

Product Name 1U 16 Port StarView PS2 KVM Switch Product Number CAB1631D1U UPC 065030802031 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) 16 Port StarView PS/2 KVM Module for 1UCABCONS / 1UCABCONS17 Bullet 1 Supports PCs with PS/2 keyboard and mouse connectors Bullet 2 KVM switch lets users control up to 16 computers directly and up to 136 computers by cascading 8 additional KVM switches Bullet 3 Compact 1U rack height takes up very little cabinet or rack space Bullet 4 Hot-pluggable feature allow computers to be added or removed without shutting down Bullet 5 Compatible with Dell, Compaq, IBM and HP servers and systems Marketing Copy Applications - Datacenter computer control
- Manufacturing line computer control
- PC test/burn-in computer control
- Co-location/ISP computer control
- Server farms
Accessory Products - USB2PS2
- SV125
- SV560UTP
- SVECON4
- SVECON6
- SVECON10
- SVECON25
Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 0.6W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 180 Product Width (mm) 436 TAA Compliant No DVI Support No General Specifications - Computer Port Connectors: 16 x HD-15 (Female)
- Console Port Connector: 1 x PS/2 Keyboard 6-pin Mini-Din (Female) 1 x PS/2 Mouse 6-pin Mini-Din (Female) 1 x HD-15 (Female)
- Centronics Connector: 1 x 36 pin Centronics connector (Connects 16 port KVM module to 1UCABCONS or IUCABCONS17)
- Channel Selection: Hotkeys
- Login Password: 4 character/computer
- OSD Support: Yes
- Computer Name Entry: 14 Characters
- Cable Length:: 100ft for Console Connection 100ft for PS/2 Computers
- Enclosure: Metal
- Dimensions: 17.2 X 7.0 X 1.7 INCHES (436 X 180 X 44 mm)
- Safety Standards: FCC & CE
KVM IP Control No Maximum Analog Resolutions 1920 x 1440 pixels Maximum Number of Users 1 On-Screen Display Yes Audio No Cascadable Yes Number of KVM Ports 16 Number of Monitors Supported 1 Rack-Mountable Yes Supported Platforms PS/2 U Height 1U Carton Depth (mm) 616 Carton Height (mm) 403 Carton Quantity 3 Carton Weight Gross (g) 19140 Package Depth (mm) 590 Package Height (mm) 122 Package Width (mm) 263 Package Weight (g) 5980 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 S-Video (Y/C) Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 34 Connector 3 VGA Connector 3 (Quantity) 2 Connector 4 VGA Connector 4 (Quantity) 16 Connector 5 Centronics (50-Pin) Connector 5 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
