CAB1631HDU
16 Port USB KVM Switch Module for 1UCABCONS/17/19
16 Port USB KVM Module
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 16 Port USB KVM Switch Module for 1UCABCONS/17/19 Product Number CAB1631HDU UPC 065030837286 Warranty 3 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 16 Port USB KVM Switch Module Product Title (Standard) 16 Port USB KVM Switch Module for 1UCABCONS/17/19 Product Title (Long) 16 Port USB KVM Switch Module for 1UCABCONS/17/19 Title Ingram (Part 1) 16 Port USB KVM Switch Module fo Title Ingram (Part 2) r 1UCABCONS/17/19 Website Product Headline 16 Port USB KVM Module Bullet 1 Auto Scan Mode lets you switch between computers for easy monitoring Bullet 2 Compact 1U rack height takes up very little cabinet or rack space Bullet 3 Compatible with PC, Mac and Sun servers and systems Bullet 4 DDC2B compatible Bullet 5 Each computer name can be defined via the OSD menu Marketing Copy Applications - Co-location/ISP computer control
- Datacenter computer control
- Manufacturing line computer control
- PC test/burn-in computer control
- Server farms
Website Search Keyword - 16 Port KVM
- CAB831HD
- Enterprise KVM
- KVM Module
- KVM Switch
- LCD Console
- USB KVM
Accessory Products - SV565UTPU
- SVECONUS10
- SVECONUS15
- SVECONUS6
- 1UCABCONS
- 1UCABCONS17
- 1UCABCONS19
- RACKCONU1708
- RACKCONU1716
- RACKCONU1908
- RACKCONU1916
Related Products - CAB831HDU
- CAB1641HDIEU
- CAB832DS
- CAB1641HDI
- CAB831HD
- CAB1631HD

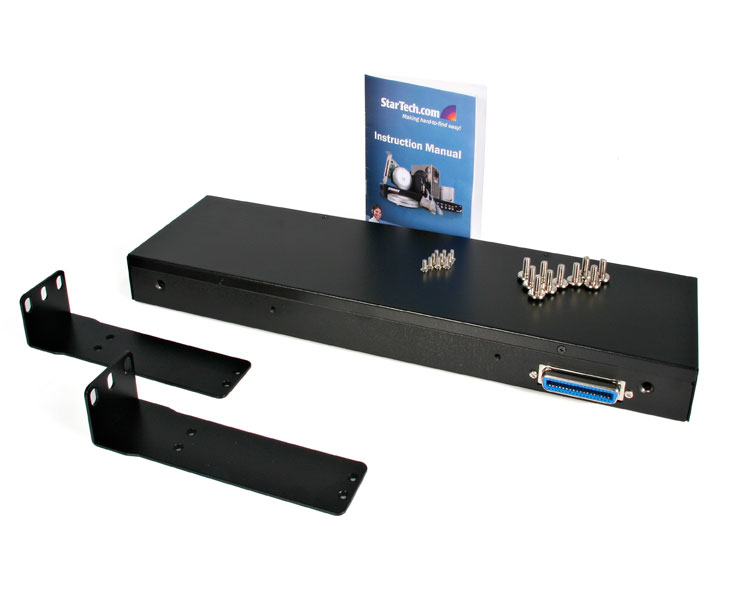

Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 80% RH Material Steel Operating Temperature 5°C to 40°C (41°F to 104°F) Product Length (mm) 180 Product Width (mm) 436 Product Depth (mm) 180 Product Height (mm) 45 Product Weight (g) 1580 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No KVM IP Control No Maximum Analog Resolutions 1920 x 1440 @60Hz Maximum Number of Users 1 On-Screen Display Yes Port Selection Support Hotkeys and OSD (On Screen Display) Audio No Cascadable Yes Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB U Height 1U Included in Package 1 - 16 Port KVM Module Connector 1 Centronics (36-Pin) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 16 en-US Content Approved Yes
