Main Image
CAB1641HDI

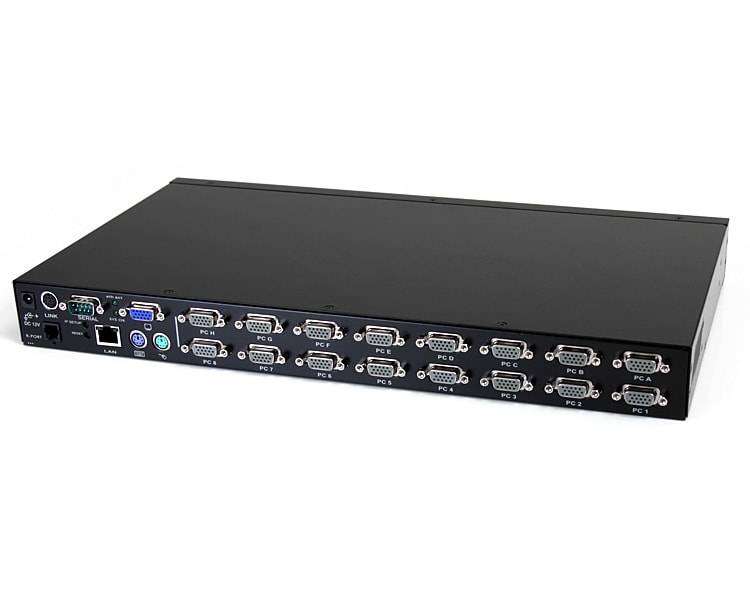

CABCONS module version of SV1641HDI switch
Remotely manage 16 USB or PS/2 computers over IP as a standalone IP KVM or combine with a 1UCABCONS series rack console
Main Image
Product Images
Product Images
Product Images
Product Name CABCONS module version of SV1641HDI switch Product Number CAB1641HDI UPC 065030815673 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 16 Port USB PS/2 IP KVM Module Product Title (Standard) StarTech.com 16 Port USB PS/2 IP KVM Switch Module for 1UCABCONS/17/19 Series Product Title (Long) 16 Port USB PS/2 Standalone IP KVM Switch or 1UCABCONS Series Module Title Ingram (Part 1) 16 Port USB PS/2 IP KVM Switch M Title Ingram (Part 2) odule for 1UCABCONS/17/1 Website Product Headline Remotely manage 16 USB or PS/2 computers over IP as a standalone IP KVM or combine with a 1UCABCONS series rack console Bullet 1 An industry first, 3-year warranty provides peace of mind Bullet 2 Hot-pluggable operation enables computers to be added or removed without worrying about having to reboot the other connected systems Bullet 3 "Keep-alive" feature draws power from PC keyboard ports if power is lost; the switch will continue to operate during a power outage, even it it loses power, retaining mouse control. Bullet 4 Rugged, all-metal chassis for use in harsh environments and space-saving cabinets Bullet 5 Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems Marketing Copy Applications - Datacenter computer control
- Manufacturing line computer
- PC test/burn-in computer control
- Co-location/ISP computer control
- Centralized remote management of servers
Accessory Products - 1UCABCONS
- SVECON6
- SVECONUS6
- SVUSBVGA6
- SVUSBVGA10
Related Products - SV1641HDI
- SV841HDI
- SV441HDI
- SV1110IPEXT
- SV1631HD
Equivalent Part Number in the EU CAB1641HDIEU Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive TAA Compliant No General Specifications - Console Connectors: VGA (1), PS/2 Mouse (1), PS/2 Keyboard (1)

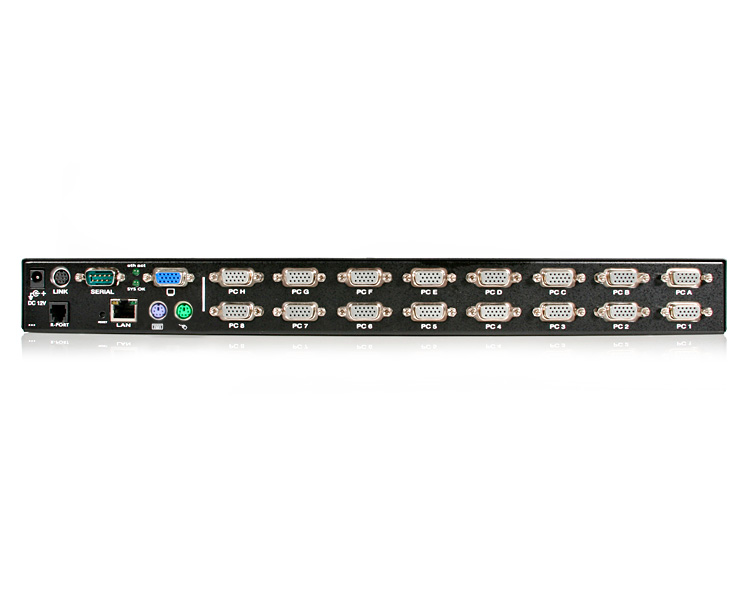

- Host Computer Connectors: HD-15 female (16), supports either PS/2 or USB clients based on cable used
- Maximum Remote Resolution: 1600 x 1200 @ 85Hz
- Maximum Local Resolution: 1920 x 1440 pixels
- KVM Features: Keyboard hotkeys, OSD, Auto-scan
- Maximum Number of Concurrent Remote Users: 4

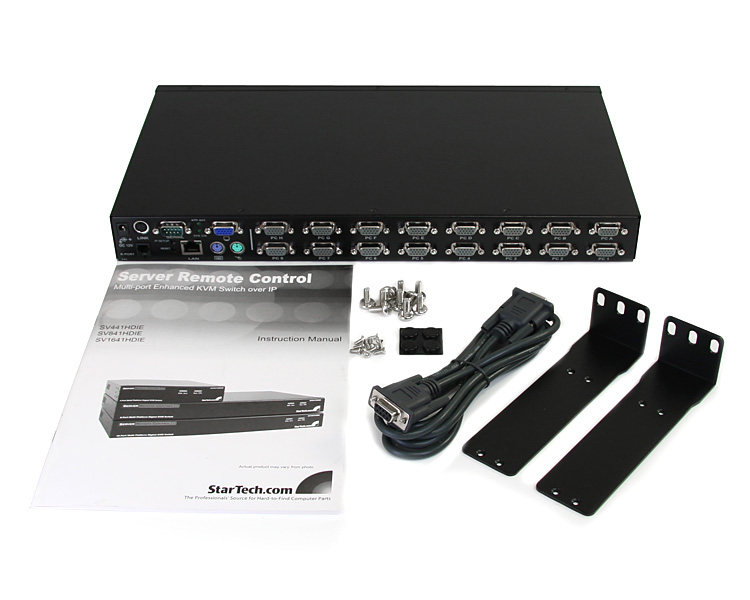

KVM IP Control Yes Maximum Number of Users 1 Local, 4 Remote On-Screen Display Yes Port Selection Support Hotkeys and OSD (On Screen Display) Audio No Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 650 Carton Height (mm) 290 Carton Quantity 1 Carton Weight Gross (g) 13830 Included in Package - 2 - Mounting Brackets
- 1 - Screw Kit
- 1 - CAB1641HDIE
- 1 - Serial Cable
- 1 - Manual
Package Depth (mm) 118 Package Height (mm) 360 Package Width (mm) 510 Package Weight (g) 4210 Packaging Description 16 Port USB PS/2 IP KVM Switch Module Packaging Description India 16 Port USB PS/2 IP KVM Switch Module Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Daryl Hunt
