Main Image
CAB1641HDIEU
16 Port USB IP KVM Switch Module for 1UCABCONS/17/19 Series
16 Port IP KVM Console Module
Main Image
Product Images
Product Images
Product Images
Product Name 16 Port USB IP KVM Switch Module for 1UCABCONS/17/19 Series Product Number CAB1641HDIEU UPC 065030837309 Warranty 3 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 16 Port USB IP KVM Switch Product Title (Standard) StarTech.com 16 Port USB IP KVM Switch Module for 1UCABCONS/17/19 Series Product Title (Long) 16 Port USB IP KVM Switch Module for 1UCABCONS/17/19 Series Title Ingram (Part 1) 16 Port USB IP KVM Switch Module Title Ingram (Part 2) for 1UCABCONS/17/19 Website Product Headline 16 Port IP KVM Console Module Bullet 1 "Keep-alive" feature draws power from PC keyboard ports if power is lost. Switch will continue to operate during power outage even it it loses power, retaining mouse control. Bullet 2 Access to the web console is user ID and SSL password secure. The Remote Server Management over IP supports 32 user accounts and incorporates SSL encryption of session data, and SSL web communication encryption. Bullet 3 An industry first 3-year warranty provides peace of mind. Bullet 4 Auto Scan Mode lets you switch between computers for easy monitoring Bullet 5 Compact 1U rack height takes up very little cabinet or rack space Marketing Copy Applications - BIOS level remote access to servers at co-location facilities and ISPs
- Co-location/ISP computer control
- Datacenter computer control
- Enables access to existing KVM switches via TCP/IP
- Manufacturing line computer control
- PC test/burn-in computer control
- Remote access for outsourced server / IT hardware management
- Remote access to mission-critical corporate datacenter servers
- Server farms
Website Search Keyword - 16 Port
- IP
- KVM
- multiplatform
- SV1641HDIE
- Digital KVM
- SV1641HDIEU
- CAB1641HDI
Accessory Products - PCM815SHNA
- RPORT
- SVECONUS15
- SVECONUS10
- SVECONUS6
- SV565UTPU
Related Products - SV441HDIE
- SV841HDIE
- SV1641HDIE
- SV1115IPEXT
- SV441DUSBI
- SV1653DXI
- SV1654DX4I
- SV3254DX4I
Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source Not Included (not required for standard applications) Plug Type M Center Tip Polarity Positive Color Black Humidity 80% RH Material Steel Operating Temperature 5°C to 40°C (41°F to 104°F) Product Width (mm) 404 Product Depth (mm) 220 Product Height (mm) 43 Product Weight (g) 1833 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No KVM IP Control Yes Maximum Analog Resolutions 1920x1440 @60Hz (Local) Maximum Number of Users 1 active user plus up to 3 viewing On-Screen Display Yes Port Selection Support Hotkeys and OSD (On Screen Display) Security Features 128-bit SSL Encryption Supported Protocols SSL Encryption, SSH Tunneling, Radius authentication, SNMP, VNC and VNCS Audio No Cascadable Yes Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Included in Package - 1 - Package of screws

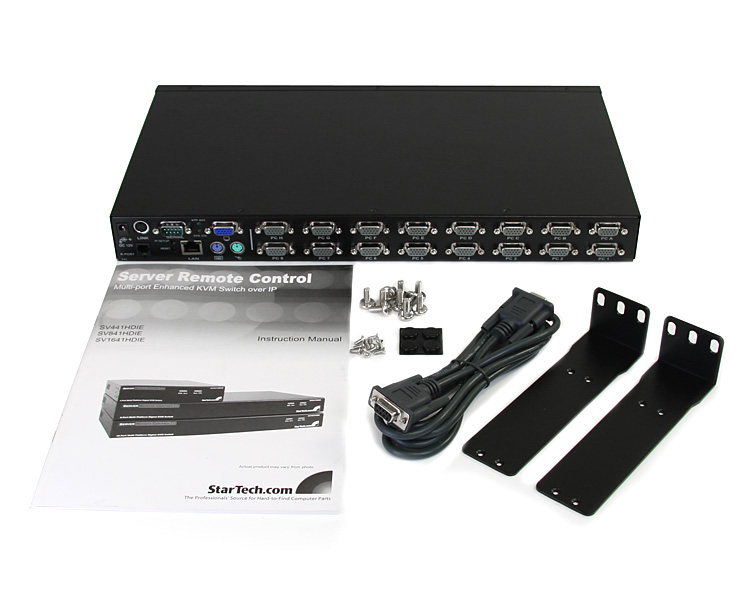

- 1 - RS-232 Cable
- 1 - 16 Port IP KVM Module
Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 DB-9 Serial Connector 4 (Quantity) 1 Host Connector 1 VGA Host Connector 1 (Quantity) 16 en-US Content Approved Yes
