CAB831D
Main Image

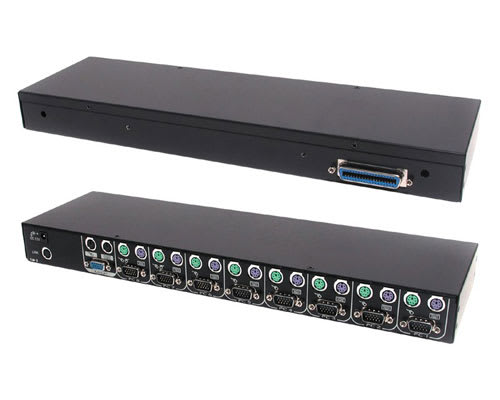

Product Name 1UCABCONS 8 Port KVM Switch Module Product Number CAB831D UPC 065030790154 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) 8 Port KVM Switch Module for 1UCABCONS Command Console Bullet 1 Ability to assign computers with unique and meaningful names Bullet 2 Supports both PS/2 and serial mice, including the Microsoft Intellimouse (Pro) and scroll mice Bullet 3 LCD panel on 1UCABCONS supports VGA resolution up to 1024x768 without any degradation Bullet 4 Cascade configuration expands system ability allowing user to select computers connected to master and cascaded slave Bullet 5 Password security locks computers from unauthorized access Marketing Copy Accessory Products - SVPS23N1_6
- SVPS23N1_15
- SVPS23N1_50
- 1UCABCONS
- SVPS23N1_10
- SVPS23N1_25
- SVPS23N1_35
- PS23N1THIN6
- PS23N1THIN15
- USB2PS2
- PS23N1THIN10
- PS23N1THIN25
- SV125
Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 180 TAA Compliant No DVI Support No General Specifications - Operating System(s): OS independent, transparent to all applications
- System Configuration: Plug and play
- Ports: 9 x DB15, 18 x PS/2
- Video: 1920x1440, DDC2B compatible
- Hot Plug: Yes, keyboard and mouse
- Includes: 2 x PS/2 Female to DB9 Female serial mice adapters
- : 2 x Cabinet 19" 1U Rack mount brackets with screws
- Auto-Scan Rates: 3, 8, 15 and 30 seconds
- Max Cable Length: 100ft (30m) at console, 100ft at PC ports
- Cert: FCC (Part 15)
KVM IP Control No Maximum Analog Resolutions 1920 x 1440 Maximum Cable Length (mm) 30480 Maximum Number of Users 1 On-Screen Display Yes Audio No Cascadable Yes Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms PS/2 U Height 1U Carton Depth (mm) 318 Carton Height (mm) 199 Carton Quantity 5 Carton Weight Gross (g) 12400 Included in Package - 1 - 1UCABCONS 8 Port KVM Module
- 1 - Manual (StarTech)
- 1 - Bag of Screws
- 2 - Mouse adapters
- 1 - Product Registration Card
Package Depth (mm) 57 Package Height (mm) 158 Package Width (mm) 524 Package Weight (g) 2240 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PS/2 Connector 1 (Quantity) 18 Connector 2 VGA Connector 2 (Quantity) 8 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 Centronics (50-Pin) Connector 4 (Quantity) 1 Connector 5 S-Video (Y/C) Connector 5 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
