CAB831HD
1U 8 Port PS2 KVM Module for 1UCABCONS
Enhance or replace the KVM module on your StarTech.com LCD console by controlling eight USB or PS/2 computers, or use with a separate PS/2 keyboard and mouse with VGA display
Main Image
Product Images
Product Images
BOM Image
Product Name 1U 8 Port PS2 KVM Module for 1UCABCONS Product Number CAB831HD UPC 065030802048 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport LCD Consoles Family Legacy add-on Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 8Pt KVM Swit Module Product Title (Short) 8 Port USB PS/2 KVM Switch Modules Product Title (Standard) 8-port KVM Module for Rack-mount LCD Consoles with additional PS/2 and VGA Console Product Title (Long) 8-port KVM Module for Rack-mount LCD Consoles - TAA Product Title (AMZ) 8-port KVM Module for Rack-mount LCD Consoles with additional PS/2 and VGA Console (CAB831HD) Title Ingram (Part 1) 8 Port USB PS/2 KVM Switch Modul Title Ingram (Part 2) es for 1UCABCONS/17/19 Website Product Headline Enhance or replace the KVM module on your StarTech.com LCD console by controlling eight USB or PS/2 computers, or use with a separate PS/2 keyboard and mouse with VGA display Bullet 1 Supports PCs with USB or PS/2 keyboard and mouse connectors Bullet 2 Universal 8 port KVM switch Module controls up to 8 computers directly and up to 64 computers by cascading 8 additional KVM switches Bullet 3 Compact 1U rack height takes up very little cabinet or rack space Bullet 4 Hot-pluggable feature allow computers to be added or removed without shutting down Bullet 5 Compatible with PC, Mac and Sun servers and systems Bullets (Compact) Enhance or replace the KVM module on your StarTech.com LCD console by controlling eight USB or PS/2 computers, or use with a separate PS/2 keyboard and mouse with VGA display - 8-port KVM Module - Rackmount KVM - 8-port KVM module for LCD consoles Bullets (Consolidated) Universal 8 port KVM switch Module - Controls up to 8 computers directly Controls up to 64 computers by cascading 8 additional KVM switches - Hot-pluggable feature allow computers to be added or removed without shutting down - Auto Scan Mode - Login authentication - Each computer name can be defined via the OSD menu (14 char.) - DDC2B compatible Marketing Copy Applications - Add single console administration to your Co-location/ISP facility saving you time and money
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes This product adds an 8 port KVM module to our 1UCABCONS, IUCABCONS17 or 1UCABCONS19 units Accessory Products - SV125
- SV560UTP
- SVSERIALAD
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
Related Products - 1UCABCONS
- 1UCABCONS17
- CAB1631D
- CAB832DS
- CAB1631HD

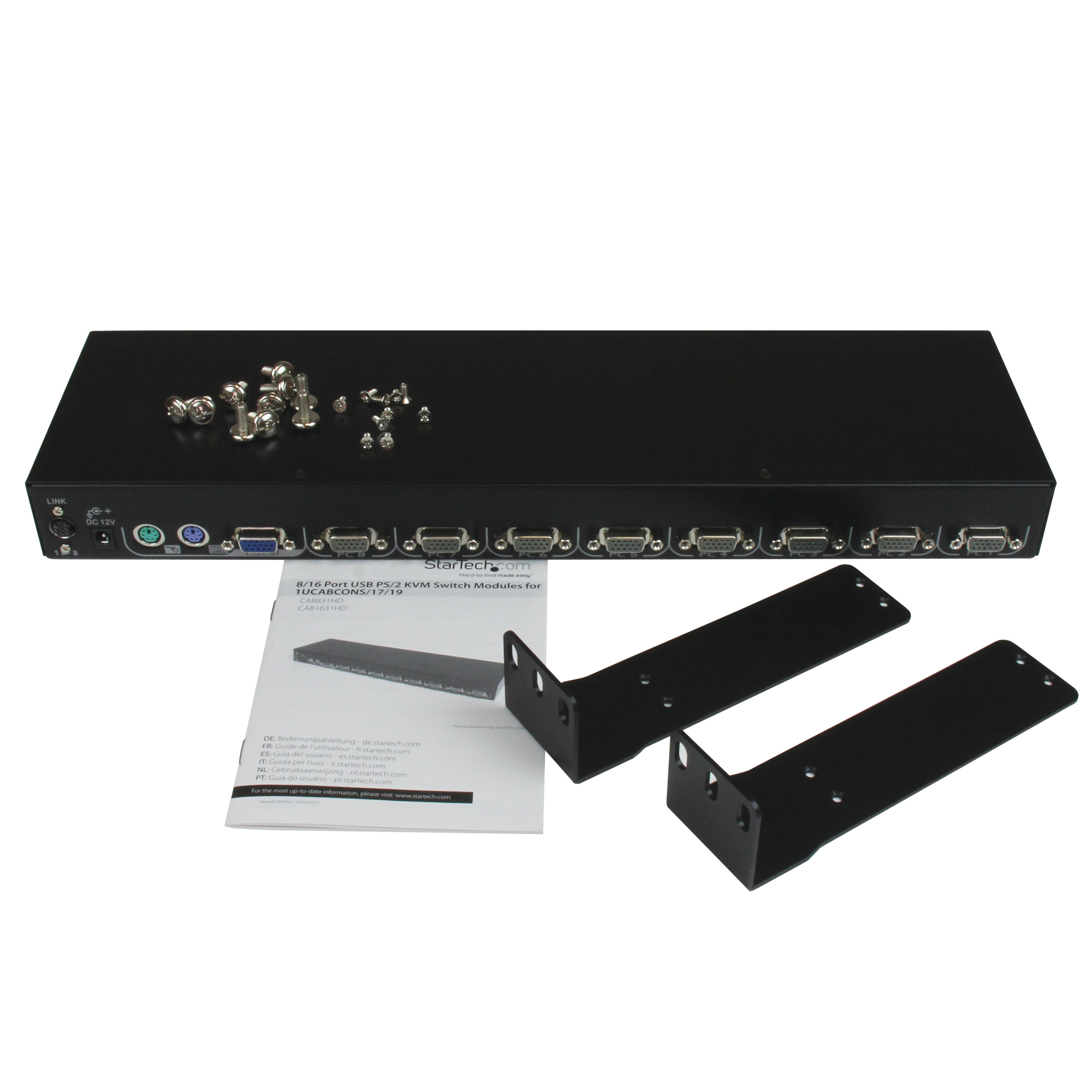

Input Current 1.8 Input Voltage 100 - 240 AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 0.6 Power Source Not Included (not required for standard applications) Plug Type M Center Tip Polarity Positive Color Black Material Steel Primary Material Steel Product Length (mm) 0.000 Product Width (mm) 436.000 Product Depth (mm) 180 Product Height (mm) 44.000 Product Weight (g) 2218.000 TAA Compliant Yes Auto Scan 3, 8, 15 & 30 seconds DVI Support No KVM IP Control No Maximum Analog Resolutions 1920x1440 Maximum Cable Length (mm) 30489 Maximum Number of Users 1 MTBF (hours) 72,000 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Security Features Per-Port Passwords Audio No Cascadable Yes Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 625 Carton Height (mm) 208 Carton Quantity 5 Carton Weight Gross (g) 17530 Included in Package - 1 - 8 Port KVM Module
- 2 - Mounting Brackets (w/ Screws)
- 1 - Instruction Manual
Package Depth (mm) 57 Package Height (mm) 155 Package Width (mm) 528 Package Quantity 1 Package Weight (g) 3286 Packaging Description 8 Port USB PS/2 KVM Switch Module Packaging Description India 8 Port USB PS/2 KVM Switch Module Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Centronics (36-Pin) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 PS/2 Connector 3 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
