CAB831HDU

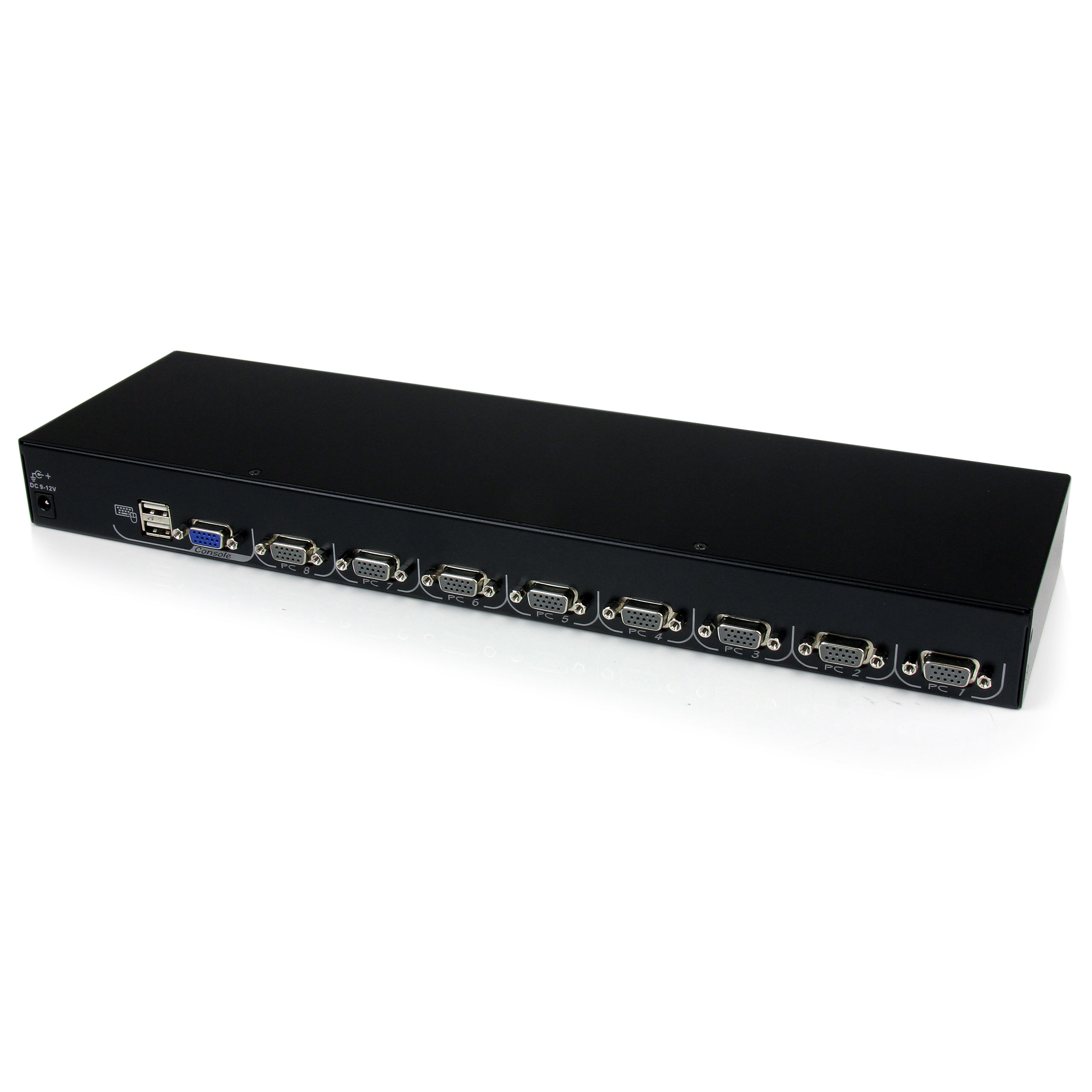

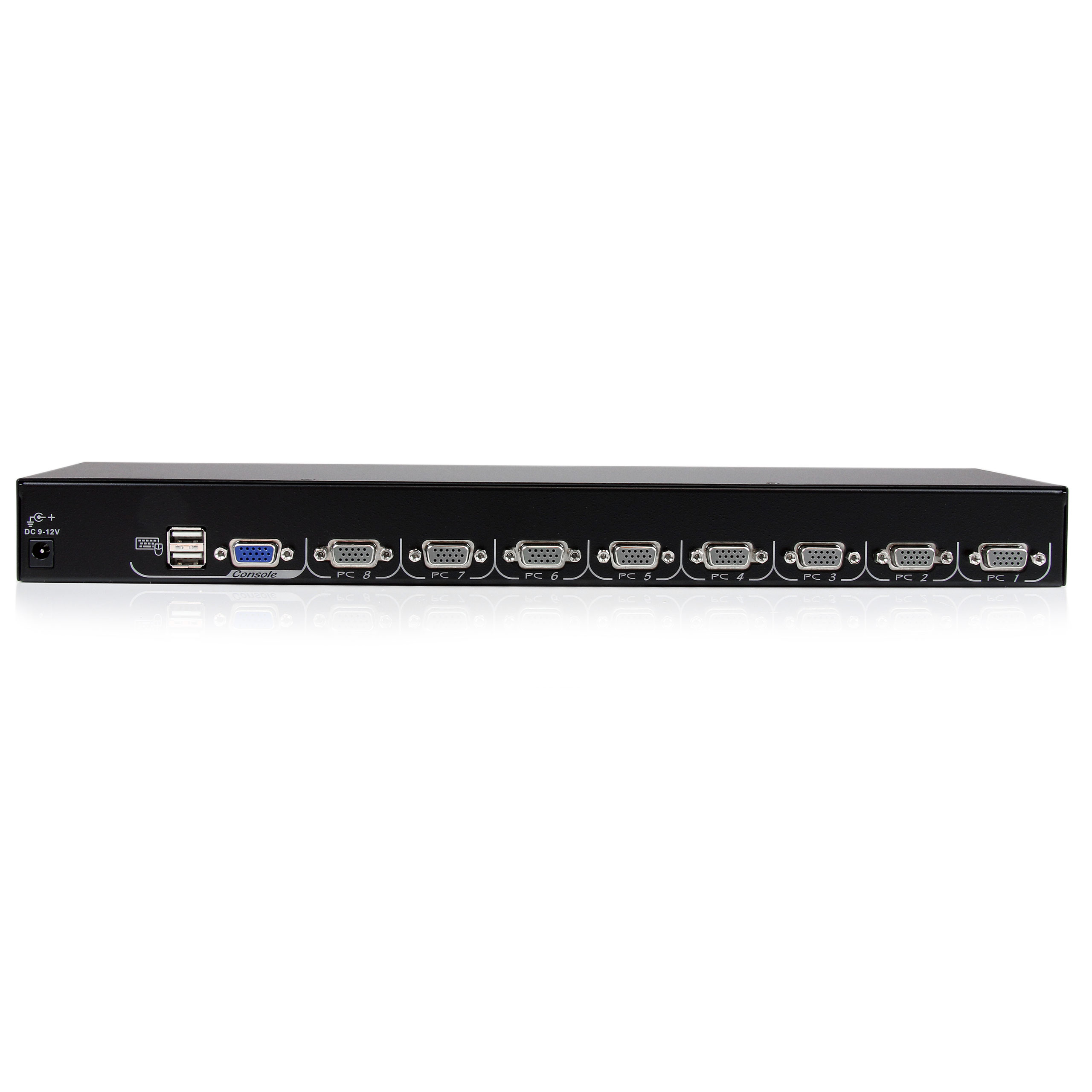

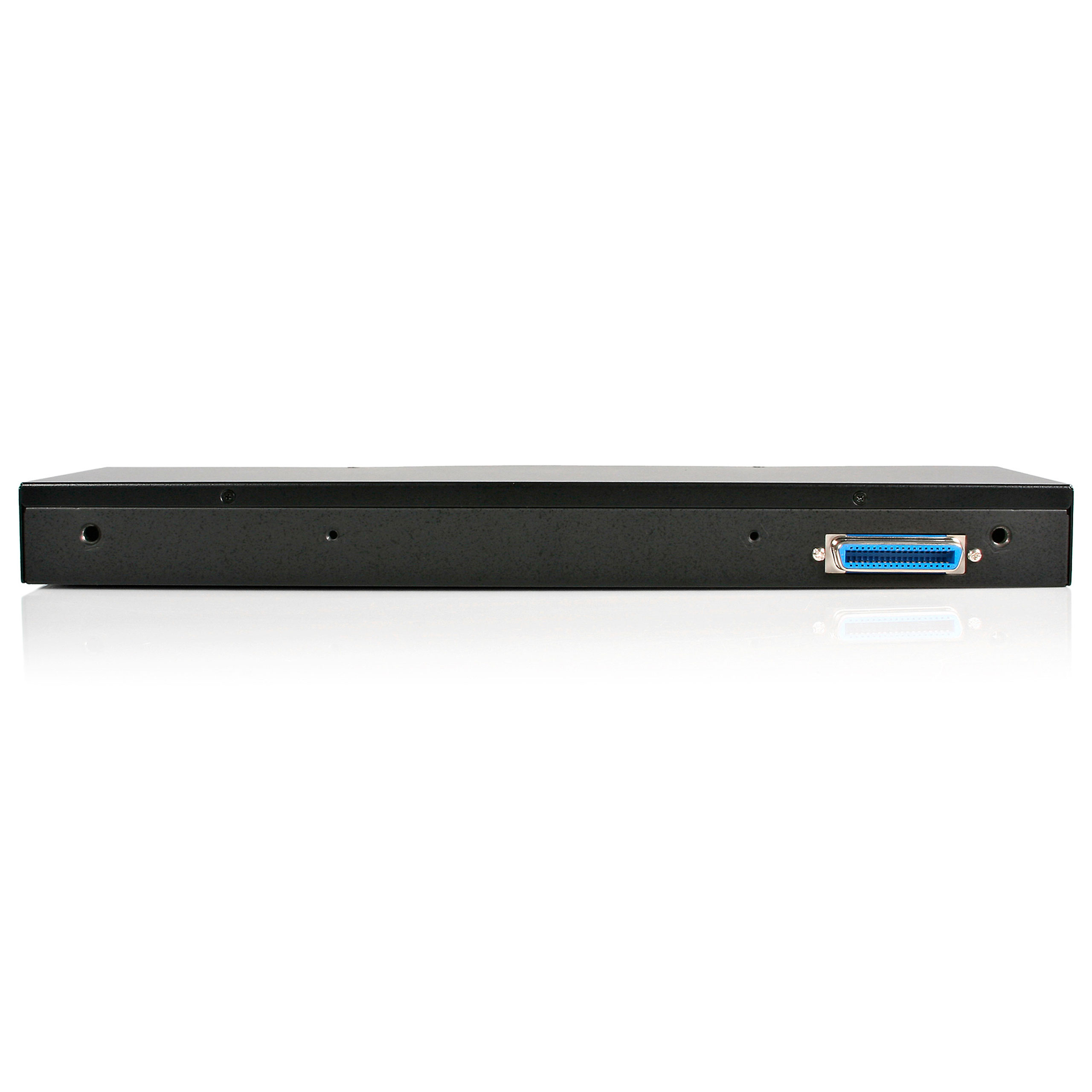

1U 8 Port USB KVM Module for 1UCABCONS
Enhance your StarTech.com LCD console by adding control for eight USB computers, or use with a separate USB keyboard and mouse with VGA display
Main Image
Product Images
Product Images
BOM Image
Product Name 1U 8 Port USB KVM Module for 1UCABCONS Product Number CAB831HDU UPC 065030837293 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport LCD Consoles Family Legacy add-on Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) . Product Title (Short) 8 Port USB KVM Switch Module Product Title (Medium) 8-port USB KVM Module for Rack-Mount LCD Consoles Product Title (Standard) 8-port USB KVM Module for Rack-Mount LCD Consoles with additional USB and VGA Console Product Title (Long) 8-port KVM Module for Rack-Mount LCD Consoles Product Title (AMZ) 8-port USB KVM Module for Rack-Mount LCD Consoles with additional USB and VGA Console (CAB831HDU) Title Ingram (Part 1) 8 Port USB KVM Switch Module for Title Ingram (Part 2) 1UCABCONS/17/19 Website Product Headline Enhance your StarTech.com LCD console by adding control for eight USB computers, or use with a separate USB keyboard and mouse with VGA display Bullet 1 Auto-Scan Mode lets you switch between computers for easy monitoring Bullet 2 Compatible with PC, Mac® and Sun servers/systems Bullet 3 DDC2B compatible Bullet 4 Integrated OSD (on-screen display) enables unique computer name assignment Bullet 5 Hot-pluggable allowing computers to be added or removed without shutting down Bullets (Compact) Enhance your StarTech.com LCD console by adding control for eight USB computers, or use with a separate USB keyboard and mouse with VGA display - 8-port KVM Module - Rackmount KVM - 8-port KVM - StarTech.com 8-port KVM module for rack mount consoles Bullets (Consolidated) Controls up to 8 computers connected directly and up to 64 computers by cascading 8 additional KVM switches - Integrated OSD (on-screen display) enables unique computer name assignment - Auto Scan Mode - Login Authentication - DDC2B compatible Marketing Copy Applications - Add single console administration to your Co-location/ISP facility saving you time and money
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
Website Search Keyword - USB KVM
- Eight Port
- KVM Switch
- KVM Module
- LCD Console
- CAB831HD
- Enterprise KVM
- replacement module
- replacement KVM
- rack console
- 8 port usb
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes This product adds an 8 port KVM module to our 1UCABCONS, IUCABCONS17 or 1UCABCONS19 units, and is also compatible as a replacement KVM module for the RACKCONS1708, RACKCONS1716 and RACKCONS1916 Rack Mount LCD Consoles. Accessory Products - SVECONUS15
- SVECONUS10
- SVECONUS6
- SV565UTPU
- 1UCABCONS19
- RACKCONS1708
- RACKCONS1716
- RACKCONS1916
- RACKCONS1908
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
Related Products - CAB1631HDU
- CAB1631HD
- CAB831HD

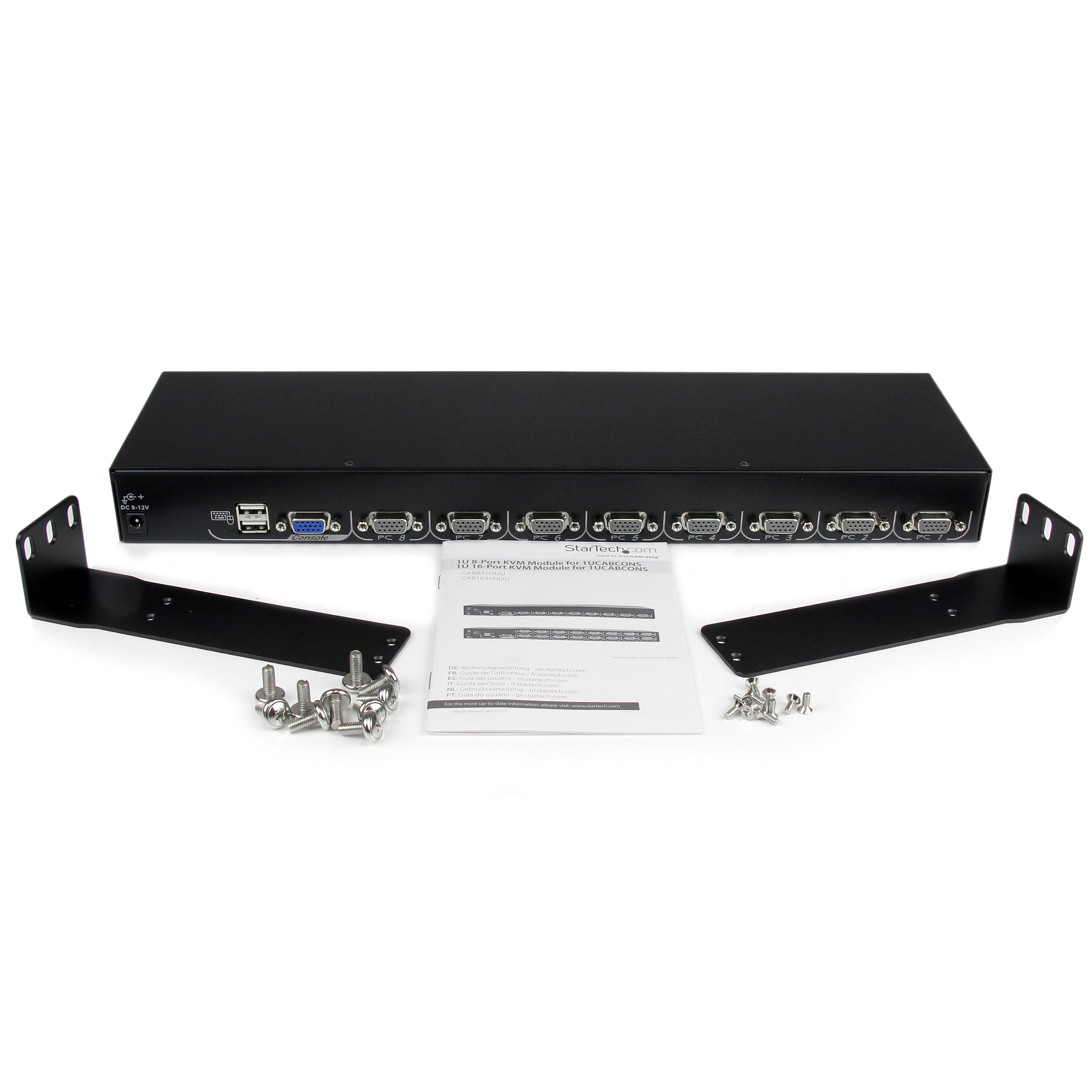

Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source Not Included (not required for standard applications) Plug Type M Center Tip Polarity Positive Color Black Humidity 80% RH Material Steel Operating Temperature 5°C to 40°C (41°F to 104°F) Primary Material Steel Product Length (mm) 125.000 Product Width (mm) 403.000 Product Height (mm) 40.000 Product Weight (g) 1484.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Auto Scan 3, 8, 15 & 30 seconds DVI Support No KVM IP Control No Maximum Analog Resolutions 1920x1440 @60Hz Maximum Number of Users 1 MTBF (hours) 72,000 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Security Features Per-Port Passwords Audio No Cascadable Yes Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB U Height 1U Carton Depth (mm) 325 Carton Height (mm) 200 Carton Quantity 5 Carton Weight Gross (g) 11610 Included in Package - 1 - 8 Port KVM Module
- 2 - Mounting Brackets
- 1 - Bag, Mounting Screws
Package Depth (mm) 160 Package Height (mm) 57 Package Width (mm) 530 Package Quantity 1 Package Weight (g) 2122 Packaging Description 8 Port VGA USB KVM Switch Module Packaging Description India 8 Port VGA USB KVM Switch Module Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Centronics (36-Pin) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-08-21 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,DK,ES,EU,FR,IE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
