Main Image
CAB832DS
Main Image
Product Images
Product Images
Product Images
Product Name 1UCABCONS 2 User Shared 8 Pt KVM Module Product Number CAB832DS UPC 065030790161 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 2 User 8 Port PS/2 KVM Switch Modules Product Title (Standard) StarTech.com KVM Switch Modules -2 User - 8 Port - PS/2 - 1UCABCONS/17/19 Product Title (Long) 2 User 8 Port PS/2 Standalone KVM Switch or 1UCABCONS Series Module Title Ingram (Part 1) 2 User 8 Port PS/2 KVM Switch Mo Title Ingram (Part 2) dules for 1UCABCONS/17/19 Bullet 1 Ability to assign computers with unique and meaningful names Bullet 2 Supports both PS/2 and serial mice, including the Microsoft Intellimouse (Pro) and scroll mice Bullet 3 LCD panel on 1UCABCONS supports VGA resolution up to 1024x768 without any degradation Bullet 4 Cascade configuration expands system ability allowing user to select computers connected to master and cascaded slave Bullet 5 Password security locks computer(s) from unauthorized access Marketing Copy Accessory Products - 1UCABCONS
- SVPS23N1_10
- SVPS23N1_25
- SVPS23N1_50
- SVPS23N1_6
- SVPS23N1_15
- SVPS23N1_35
- PS23N1THIN2
- PS23N1THIN6
- PS23N1THIN15
- PS23N1THIN4
- PS23N1THIN10
- PS23N1THIN25
Related Products - CAB831D
- CAB1631D
Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 180 TAA Compliant No DVI Support No General Specifications - Operating System(s): OS independent, transparent to all applications
- System Configuration: Plug and play
- Ports: 10 x DB15, 20 x PS/2
- Video: 1920x1440, DDC2B compatible
- Hot Plug: Yes, keyboard and mouse
- Includes: 2 x PS/2 Female to DB9 Female serial mice adapters
- : 2 x Cabinet 19" 1U Rack mount brackets with screws
- Auto-Scan Rates: 3, 8, 15 and 30 seconds
- Max Cable Length: 100ft (30m) at console, 100ft at PC ports
- Cert: FCC (Part 15)

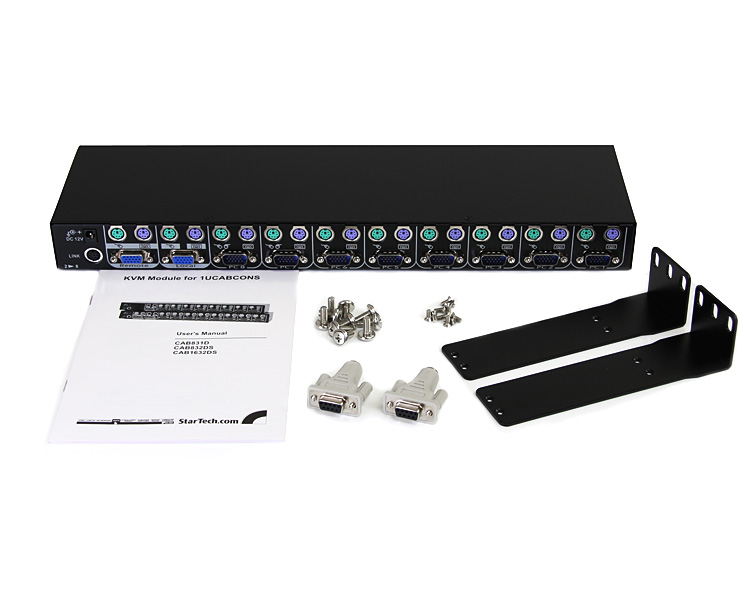

KVM IP Control No Maximum Analog Resolutions 1920 x 1440 pixels Maximum Cable Length (mm) 30480 Maximum Number of Users 2 On-Screen Display Yes Audio No Cascadable Yes Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms PS/2 U Height 1U Carton Depth (mm) 625 Carton Height (mm) 208 Carton Quantity 5 Carton Weight Gross (g) 12600 Included in Package - 1 - 1UCABCONS 2 User Shared 8 Pt KVM Module
- 1 - Bag of Screws
- 1 - StarTech Manual
- 2 - Mouse Adapters
- 1 - Instruction Sheet
Package Depth (mm) 65 Package Height (mm) 160 Package Width (mm) 525 Package Weight (g) 2280 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Centronics (50-Pin) Connector 1 (Quantity) 1 Connector 2 S-Video (Y/C) Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 2 Connector 4 PS/2 Connector 4 (Quantity) 4 Host Connector 1 VGA Host Connector 1 (Quantity) 8 Host Connector 2 PS/2 Host Connector 2 (Quantity) 16 en-US Content Approved Yes Product Manager Daryl Hunt
