CABCONS1
Main Image

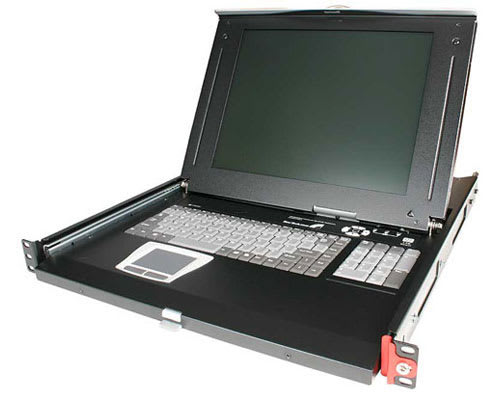

Product Name 1U Cabinet Console for KVM Switches Product Number CABCONS1 UPC 065030796576 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) 1U 15in Folding Rackmount LCD Console Bullet 1 The compact and efficient way to control multiple computers in a 19” by 36” deep Rack Cabinet Bullet 2 Laptop design with an integrated keyboard and touchpad mouse makes it comfortable to use Bullet 3 High resolution 15” Active Matrix color TFT LCD monitor Bullet 4 Supports resolution up to 1024x768 Pixels Bullet 5 Console can be connected to any KVM switch Marketing Copy Applications - Managing cabinet mounted servers
- Improving the internal space efficiency of existing cabinets
- Centralized control of dozens of PCs and servers if used with optional KVM modules
Website Search Keyword cabconssearch Accessory Products SV1110IPEXT Related Products - CABCONS16
- 1UCABCONS
- CABCONS8
Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 3.75W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 114 Product Width (mm) 404 Product Weight (g) 16330 TAA Compliant No DVI Support No General Specifications - LCD: 15 Inches Active matrix TFT LCD Panel
- VGA Bandwidth: 300MHz
- Auto Scan interval: 3, 8, 15 & 30 Seconds
- Computer Connectors:
- Keyboard: 1 x PS/2
- Mouse: 1 x PS/2
- Monitor: 1 x HDB-15
- LED Indicators:
- Computer Indicator: N/A
- Local Console: N/A
- Remote Console: N/A
- Keyboard Status: 1 x Num Lock, 1 x Caps Lock & 1 x Scroll Lock
- LCD Power Switch: Indicates LCD power status
- Panel Control Buttons:
- Selection Pad: N/A
- LCD Panel Menu: up or down buttons for OSD Menu selection
- LCD Panel Adjustment: + or – for LCD Panel Settings
- Console Dimensions:
- Length: 4.5 Inches (114 millimeters)
- Width: 15.9 Inches (404 millimeters)
- Height: 1.6 Inches (40 millimeters)
- Rack/Cabinet Depth Requirement: 30 in. (minimum)
KVM IP Control No Maximum Analog Resolutions 1024 x 768 pixels Maximum Number of Users 1 Audio No Cascadable Yes Number of KVM Ports 1 Number of Monitors Supported 1 Rack-Mountable Yes Supported Platforms PS/2 U Height 1U Carton Depth (mm) 208 Carton Height (mm) 545 Carton Quantity 1 Carton Weight Gross (g) 15400 Package Depth (mm) 208 Package Height (mm) 545 Package Width (mm) 625 Package Weight (g) 14200 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PS/2 Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
