CABCONS1716I

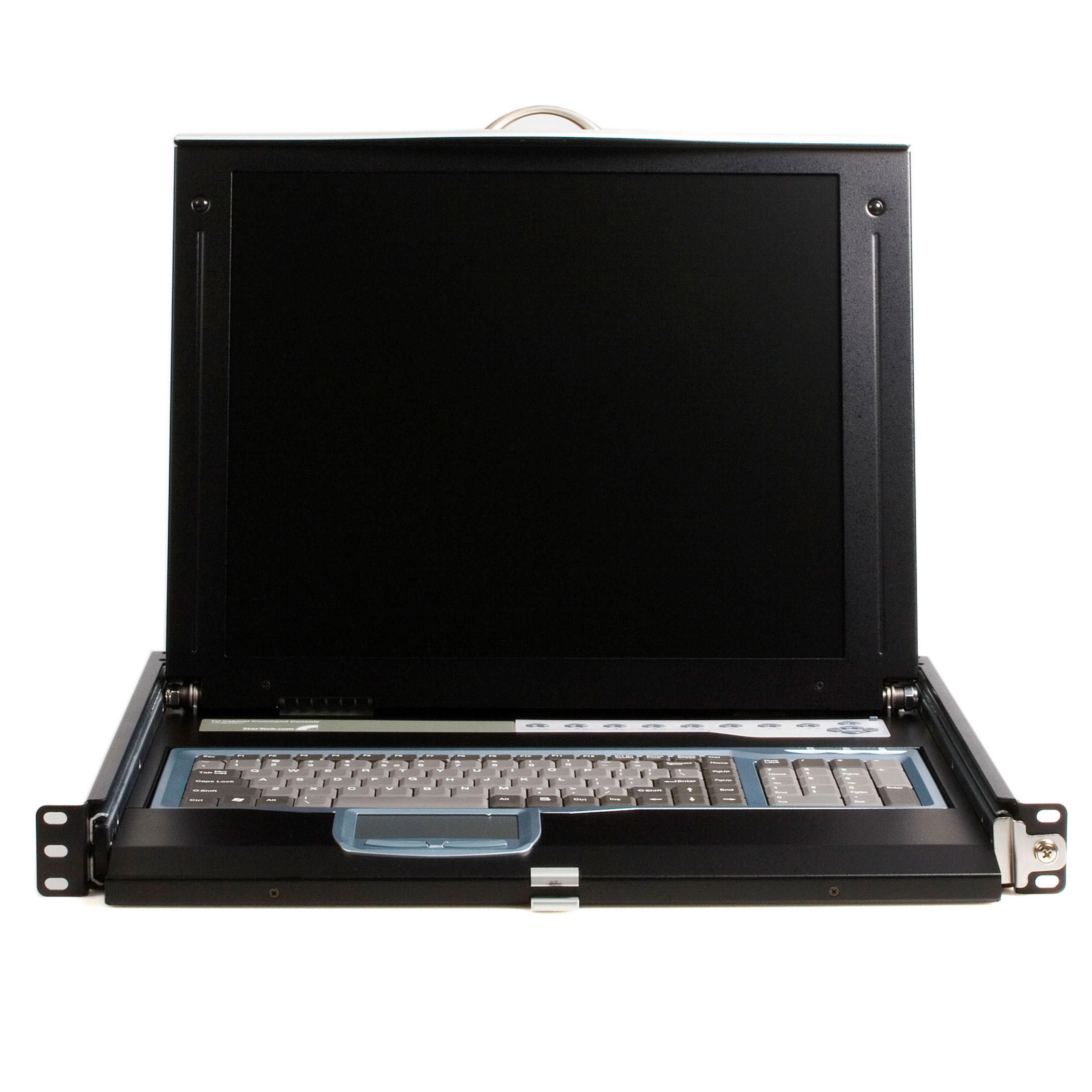

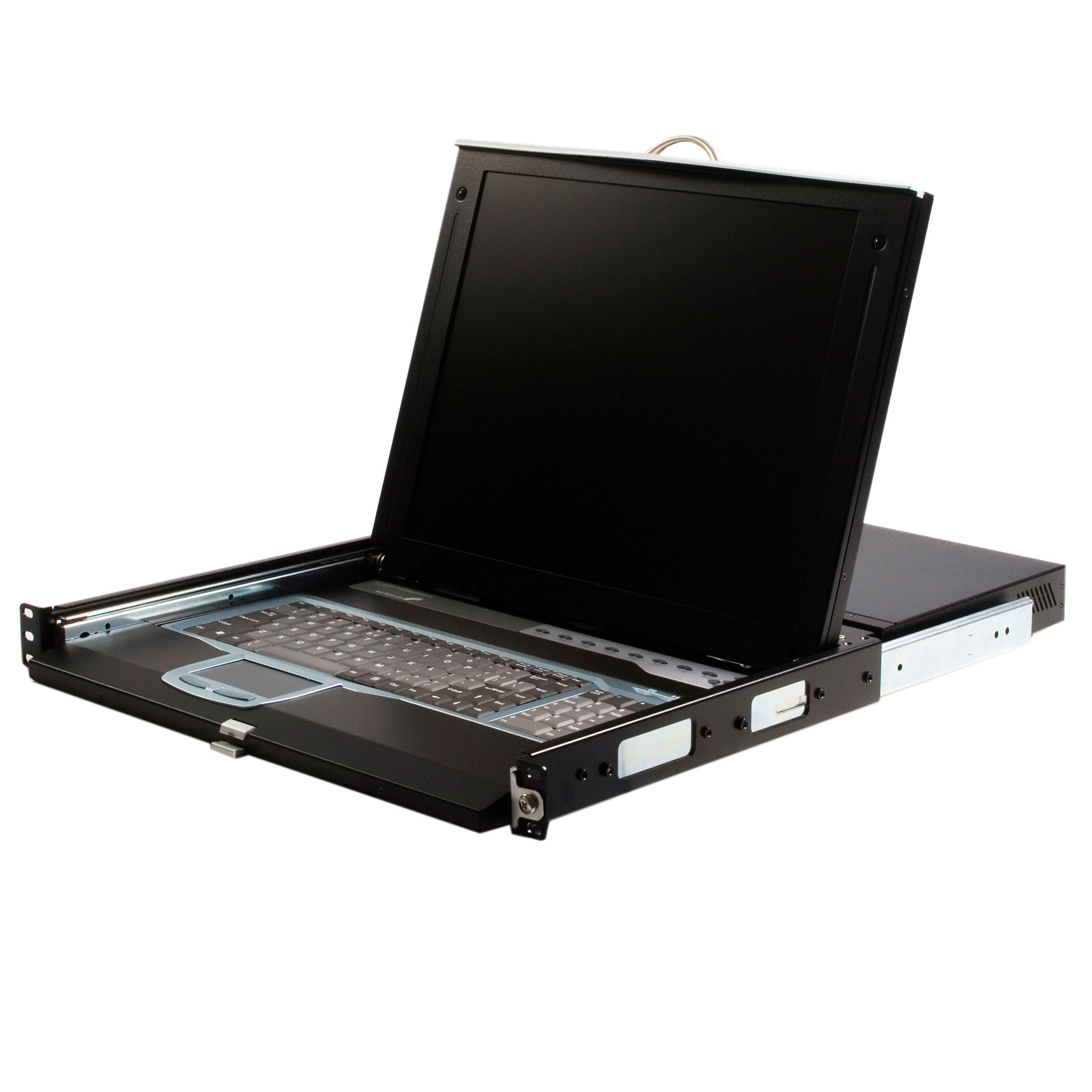

17" Rackmount LCD Console with 16 Port IP KVM
Control 16 servers or KVM switches remotely over an IP network with this rack mountable LCD console
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 17" Rackmount LCD Console with 16 Port IP KVM Product Number CABCONS1716I UPC 065030830492 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport LCD Consoles Family Legacy add-on Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 17" KVM Rack Console Product Title (Short) 17 Rackmount LCD Console 16 Port IP KVM Product Title (Standard) 1U 17" Rackmount LCD Console with 16 Port IP KVM Product Title (Long) 1U 17" Rackmount LCD Console with Integrated 16 Port IP KVM Switch Product Title (AMZ) 1U 17" Rackmount LCD Console with Integrated 16 Port IP KVM Switch (CABCONS1716I) Title Ingram (Part 1) 1U 17" Rackmount LCD Console wit Title Ingram (Part 2) h 16 Port IP KVM Switch Website Product Headline Control 16 servers or KVM switches remotely over an IP network with this rack mountable LCD console Bullet 1 Web-based control allows client access using a standard browser - eliminating licensing costs and simplifying usage Bullet 2 High resolution 17” Active Matrix Color TFT LCD monitor, displays up to 1280 x 1024 pixels Bullet 3 Users can reboot the system, access the BIOS, and have full control over the keyboard and mouse - as if they are on site Bullet 4 Access to the web console is user ID and SSL password secure. The Remote Server Management over IP card supports 32 user accounts and incorporates SSL encryption of session data, and SSL web communication encryption. Bullet 5 Allows remote hardware restarts and the ability to power the host computer on and off, if the host computer you are managing supports IPMI (Intelligent Platform Management Interface) Bullets (Compact) Control 16 servers or KVM switches remotely over an IP network with this rack mountable LCD console - Hybrid design allows both PS2 & USB systems to be connceted simultaneously - Built-in LCD panel - IP KVM for remote operation - 16 Port KVM over IP Bullets (Consolidated) Control 16 servers or KVM switches remotely over an IP network with this rack mountable LCD console - Hybrid design allows both PS2 and USB systems to be connceted simultaneously - Built-in LCD Panel - IP KVM for remote operation - 16 Port KVM over IP Marketing Copy Applications - Datacenter computer control
- Centralized remote management of servers
- Improving the internal space efficiency of existing cabinets
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Accessory Products - RPORT
- PCM815SHNA
- SV1631HD
- SV1631DUSB
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- RJ45PATCH10
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- SVA12M5NA
Related Products - 1UCABCONS17
- RACKCONS1708
- RACKCONS1916

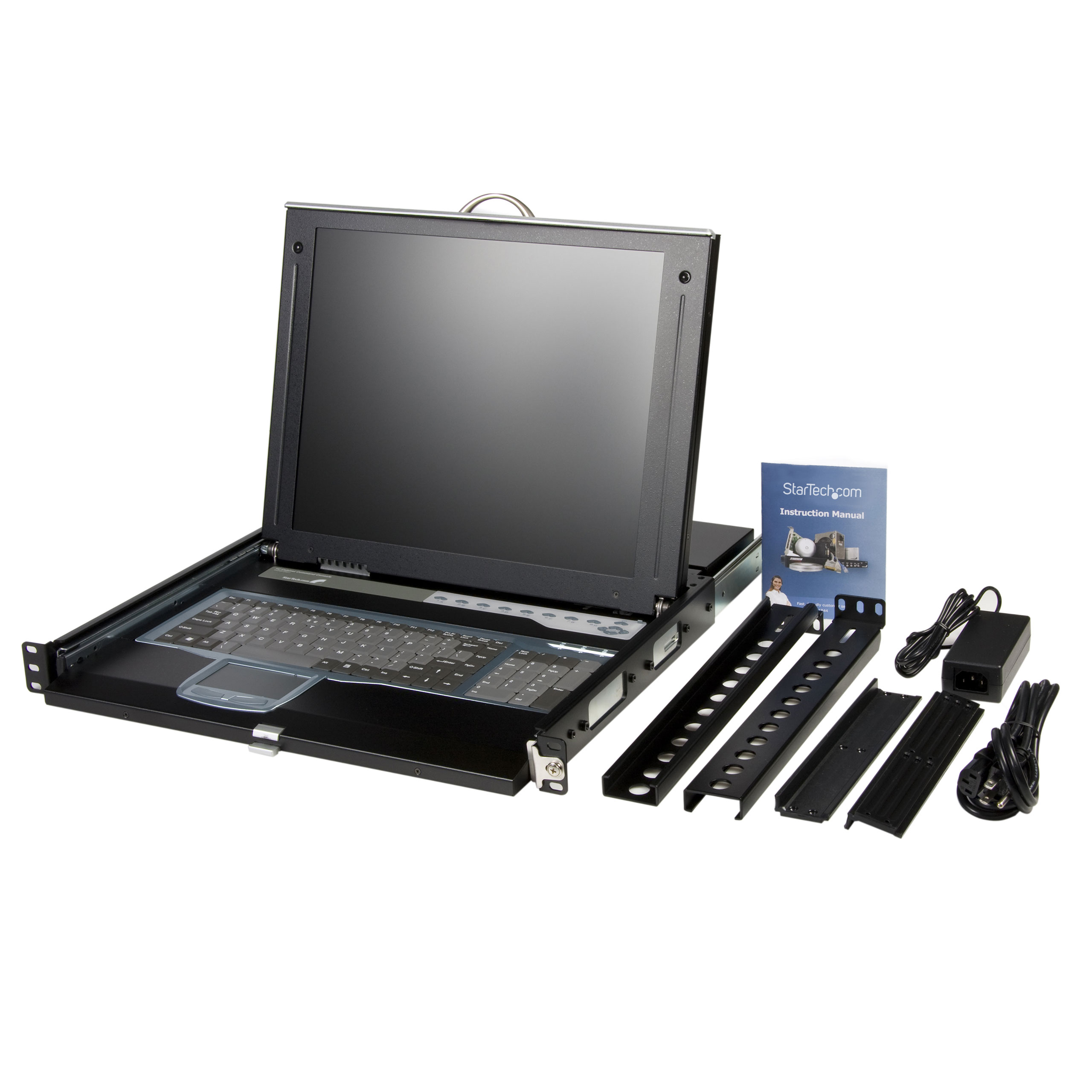

Equivalent Part Number in the UK CBCON1716IGB Input Current 1.8A Input Voltage 100 - 240 AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 48 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Heavy Duty Steel Primary Material Steel Product Length (mm) 0.000 Product Width (mm) 0.000 Product Height (mm) 0.000 Product Weight (g) 0.000 TAA Compliant Yes KVM IP Control Yes Maximum Analog Resolutions 1280x1024 Maximum Number of Users 1 Local, 4 Remote MTBF (hours) 445,400 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Aspect Ratio 4:3 Audio No Cascadable Yes Display Size 17" Front Door Key Lock No Industry Standards VESA DDC 1/2B, VESA DPMS compliant Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 625 Carton Height (mm) 208 Carton Quantity 1 Carton Weight Gross (g) 18700 Included in Package - 1 - Cabinet console
- 1 - Power adapter
- 1 - Power plug
- 2 - Rack mount brackets

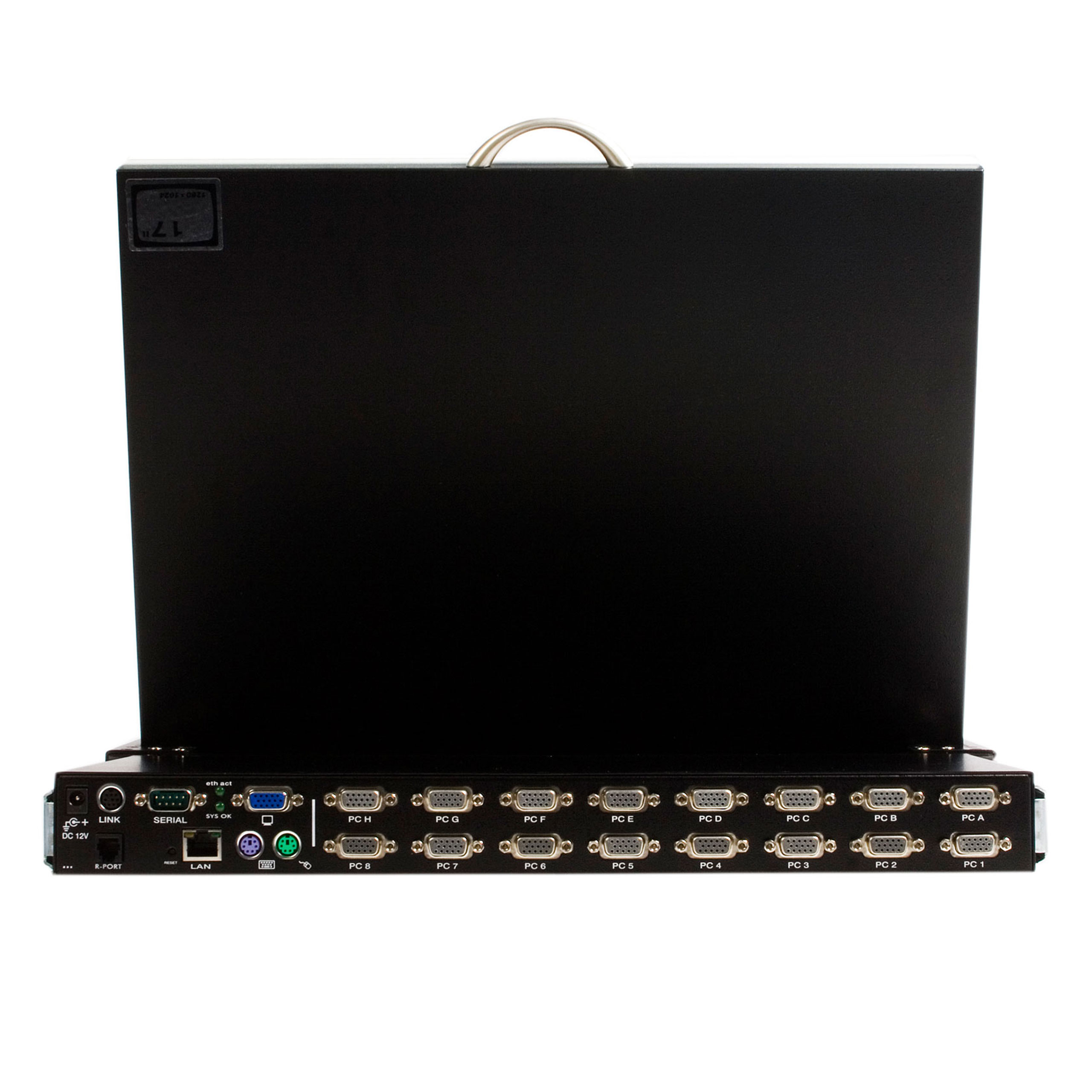

Package Depth (mm) 628 Package Height (mm) 202 Package Width (mm) 550 Package Quantity 1 Package Weight (g) 17500 Packaging Description 1U 17" LCD Rack Console w/ 16 Port IP KVM Packaging Description India 1U 17" LCD Rack Console w/ 16 Port IP KVM Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 PS/2 Connector 3 (Quantity) 2 Connector 4 DB-9 Serial Connector 4 (Quantity) 1 Host Connector 1 VGA Host Connector 1 (Quantity) 16 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
