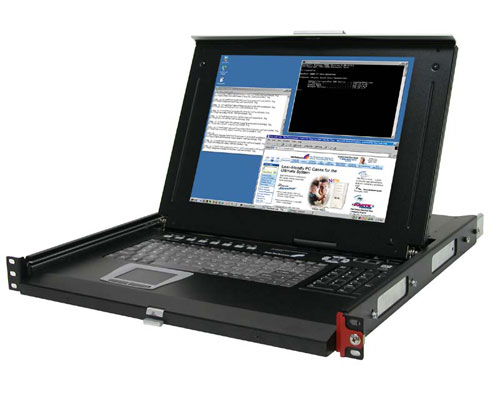

1U Cabinet Console for KVM Switches

Main Image

Product Name	1U Cabinet Console for KVM Switches
Product Number	CABCONS1GB
UPC	065030800570
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan

Product Title (Long)	1U Cabinet Console for KVM Switches
Bullet 1	The compact and efficient way to control multiple computers in a 19” by 36” deep Rack Cabinet
Bullet 2	Laptop design with an integrated keyboard and touchpad mouse makes it comfortable to use
Bullet 3	High resolution 15” Active Matrix color TFT LCD monitor
Bullet 4	Supports resolution up to 1024x768 Pixels
Bullet 5	Console can be connected to any KVM switch
Marketing Copy
Applications	Managing cabinet mounted servers Improving the internal space efficiency of existing cabinets Centralized control of dozens of PCs and servers if used with optional KVM modules

General Specifications	User Ports: 1 Computer Ports: LCD: 15 Inches Active matrix TFT LCD Resolution: 1024 x 768 VGA Bandwidth: 300MHz Auto Scan interval: 3, 8, 15 & 30 Computer Connectors: Keyboard: 1 x PS/2 Mouse: 1 x PS/2 Monitor: 1 x HDB-15 LED Indicators: Computer Indicator: N/A Local Console: N/A Remote Console: N/A Keyboard Status: 1 x Num Lock, 1 x Caps Lock & 1 x Scroll Lock LCD Power Switch: Indicates LCD power status Panel Control Buttons: Selection Pad: N/A LCD Panel Menu: up or down buttons for OSD Menu selection LCD Panel Adjustment: + or – for LCD Panel Settings Power Adapter: 12V DC (3.75A) Console Dimensions: Length: 4.5 Inches (114 millimeters) Width: 15.9 Inches (404 millimeters) Height: 1.6 Inches (40 millimeters) Rack/Cabinet Depth Requirement: 30 in. (minimum)
Maximum Analog Resolutions	1024 x 768
Maximum Number of Users	1

U Height 1U
Connector 1 PS/2
Connector 1 (Quantity) 2
Connector 2 VGA
Connector 2 (Quantity) 1
en-US Content Approved Yes

Power Consumption (In Watts)	3.75W
Power Source	AC Adapter Included
