CABCONS8EU
Main Image

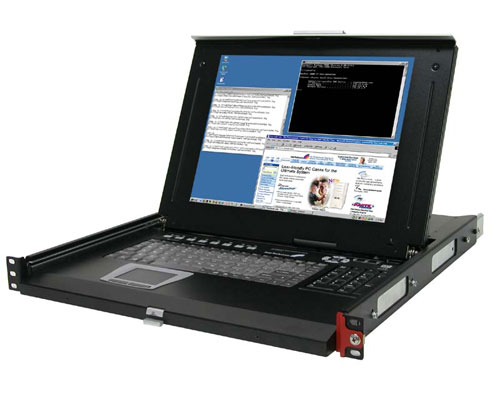

Product Name 1U LCD Console Drawer with Integrated 8 Port KVM Switch Product Number CABCONS8EU UPC 065030818605 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 1U LCD Console Drawer with Integrated 8 Port KVM Switch Bullet 1 The compact and efficient way to control multiple computers in a 19” by 36” deep Rack Cabinet Bullet 2 Laptop design with an integrated keyboard and touchpad mouse makes it comfortable to use Bullet 3 Built-in 8 port KVM switch controls up to 8 computers directly and up to 64 computers by cascading 8 KVM switches Bullet 4 High resolution 15” Active Matrix Color TFT LCD monitor with a touchpad and a 105 key low profile keyboard Bullet 5 Auto Scan Mode lets you switch between computers for easy monitoring Marketing Copy Applications - Managing cabinet mounted servers
- Improving the internal space efficiency of existing cabinets
- Centralized control of up to 64 PCs
Color Black TAA Compliant No General Specifications - User Ports: 1
- Computer Ports: 8
- LCD: 15 Inches Active matrix TFT LCD Panel
- LCD Resolution: 1024 x 768
- VGA Bandwidth: 300 MHz
- Auto Scan interval: 3, 8, 15 & 30 Seconds
- Computer Connectors: 8 x HDB-15
- LED Indicators:
- Computer Indicator: 8 Red LED indicates selected computer
- Local Console: Green LED indicates internal KVM in operation
- Remote Console: Green LED indicates cascaded KVM in operation
- Keyboard Status: 1 x Num Lock, 1 x Caps Lock & 1 x Scroll Lock
- LCD Power Switch: Indicates LCD power status
- Panel Control Buttons:
- Selection Pad: 1 to 8 buttons to select a computer
- LCD Panel Menu: up or down buttons for OSD Menu selection
- LCD Panel Adjustment: + or – for LCD Panel Settings
- Power Adapter: 12V DC (3.75A)
- Console Dimensions:
- Length: 4.5 Inches (114 millimeters)
- Width: 15.9 Inches (404 millimeters)
- Height: 1.6 Inches (40 millimeters)
- Rack/Cabinet Depth Requirement: 30 in. (minimum)
