CABCONS8GB
Main Image

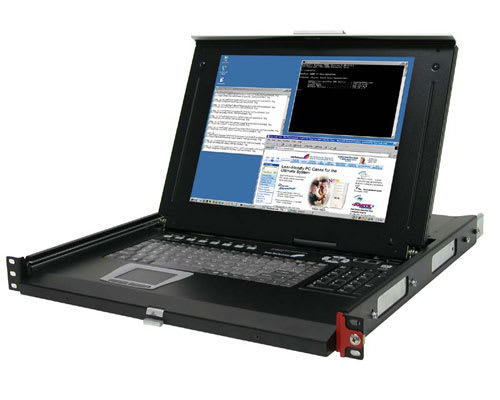

Product Name 1U Cabinet Console with 8 Port KVM Switc Product Number CABCONS8GB UPC 065030800587 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) 1U LCD Console Drawer with Integrated 8 Port KVM Switch Bullet 1 The compact and efficient way to control multiple computers in a 19” by 36” deep Rack Cabinet Bullet 2 Laptop design with an integrated keyboard and touchpad mouse makes it comfortable to use Bullet 3 Built-in 8 port KVM switch controls up to 8 computers directly and up to 64 computers by cascading 8 KVM switches Bullet 4 High resolution 15” Active Matrix Color TFT LCD monitor with a touchpad and a 105 key low profile keyboard Bullet 5 Auto Scan Mode lets you switch between computers for easy monitoring Marketing Copy Applications - Managing cabinet mounted servers
- Improving the internal space efficiency of existing cabinets
- Centralized control of up to 64 PCs
Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 3.75W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 114 Product Width (mm) 404 Product Weight (g) 16330 TAA Compliant No General Specifications - User Ports: 1
- Computer Ports: 8
- LCD: 15 Inches Active matrix TFT LCD Panel
- LCD Resolution: 1024 x 768
- VGA Bandwidth: 300 MHz
- Auto Scan interval: 3, 8, 15 & 30 Seconds
- Computer Connectors: 8 x HDB-15
- LED Indicators:
- Computer Indicator: 8 Red LED indicates selected computer
- Local Console: Green LED indicates internal KVM in operation
- Remote Console: Green LED indicates cascaded KVM in operation
- Keyboard Status: 1 x Num Lock, 1 x Caps Lock & 1 x Scroll Lock
- LCD Power Switch: Indicates LCD power status
- Panel Control Buttons:
- Selection Pad: 1 to 8 buttons to select a computer
- LCD Panel Menu: up or down buttons for OSD Menu selection
- LCD Panel Adjustment: + or – for LCD Panel Settings
- Power Adapter: 12V DC (3.75A)
- Console Dimensions:
- Length: 4.5 Inches (114 millimeters)
- Width: 15.9 Inches (404 millimeters)
- Height: 1.6 Inches (40 millimeters)
- Rack/Cabinet Depth Requirement: 30 in. (minimum)
Maximum Analog Resolutions 1024 x 768 Maximum Number of Users 1 Supported Platforms PS/2 U Height 1U Carton Depth (mm) 628 Carton Height (mm) 197 Carton Quantity 1 Carton Weight Gross (g) 17160 Package Depth (mm) 197 Package Height (mm) 628 Package Width (mm) 542 Package Weight (g) 15960 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PS/2 Connector 1 (Quantity) 16 Connector 2 VGA Connector 2 (Quantity) 8 en-US Content Approved Yes Product Manager Daryl Hunt
