CABCONU1716I

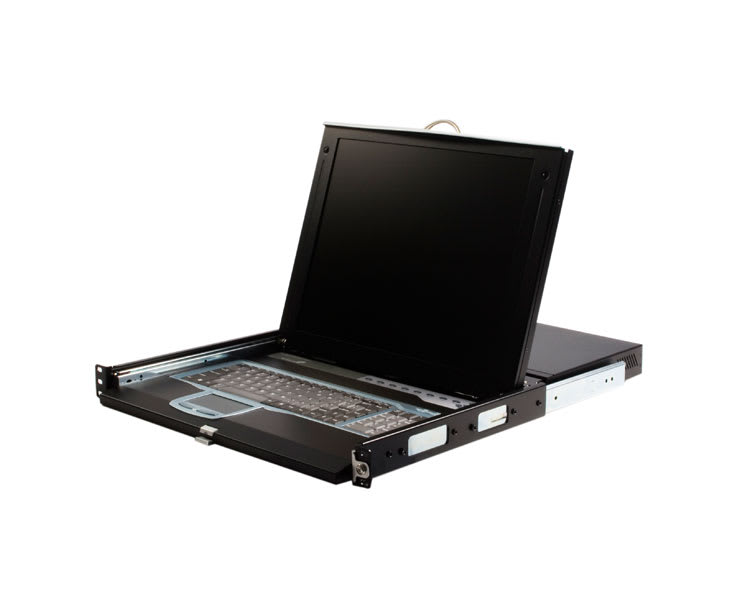

1U 17in Rackmount LCD IP KVM Console with Integrated 16 Port IP KVM Switch
Save space with a 17inch LCD Console with integrated 16 port IP KVM
Main Image
Product Images
Product Images
Product Name 1U 17in Rackmount LCD IP KVM Console with Integrated 16 Port IP KVM Switch Product Number CABCONU1716I UPC 065030837323 Warranty 3 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 17in LCD IP KVM Console with 16 Port KVM Product Title (Standard) StarTech.com 1U 17in Rack Mount LCD IP KVM Console with Integrated 16 Port IP KVM Switch - KVM console - 16 ports - rack-mountable - TFT - 17" - 1280 x 1024 - VGA - black - 1U Product Title (Long) 1U 17in Rackmount LCD IP KVM Console with Integrated 16 Port IP KVM Switch Title Ingram (Part 1) 1U 17in LCD IP KVM Console w/ In Title Ingram (Part 2) tegrated 16 Port KVM Switch Website Product Headline Save space with a 17inch LCD Console with integrated 16 port IP KVM Bullet 1 High resolution 17” Active Matrix Color TFT LCD monitor, displays up to 1280 x 1024 pixels Bullet 2 Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems. Bullet 3 Users can reboot the system, access the BIOS, and have full control over the keyboard and mouse - as if they are on site Bullet 4 Web-based control allows client access using a standard browser - eliminating licensing costs and simplifying usage Bullet 5 "Keep-alive" feature draws power from PC keyboard ports if power is lost. Switch will continue to operate during power outage even it it loses power, retaining Marketing Copy Applications - Datacenter computer control
- Centralized remote management of servers
- Improving the internal space efficiency of existing cabinets
Website Search Keyword - 16 port
- 17 inch LCD console
- console
- KVM
- LCD
- rackcons
- rackmount console
- USB KVM
- Digital KVM
Accessory Products - CAB832DS
- SVECONUS10
- SVECONUS15
- SVECONUS6
- PCM815SHNA
- SV565UTPU
Related Products - RACKCONS1501
- RACKCONS1701
- RACKCONS1901
- RACKCONU1708
- RACKCONU1908
- RACKCONU1716
- RACKCONU1916
- SV1641HDIE
- SV841HDIE
- SV441DUSBI
- SV1107IPEXT
- SV1115IPEXT
- SV1653DXI
- SV1654DX4I
- SV3254DX4I
Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Heavy Duty Steel Minimum Mounting Depth (mm) 762 Operating Temperature 0°C to 50 °C (32°F to 122°F) Product Length (mm) 530 Product Width (mm) 440 Product Depth (mm) 530 Product Height (mm) 44 Product Weight (g) 12000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No KVM IP Control Yes Maximum Analog Resolutions 1280 x 1024 Maximum Number of Users 1 active user plus up to 3 viewing Port Selection Support Hotkeys and OSD (On Screen Display) Security Features 128-bit SSL Encryption Supported Protocols SSL Encryption, SSH Tunneling, Radius authentication, SNMP, VNC and VNCS Audio No Cascadable Yes Display Size 17" Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Included in Package - 1 - 1U 16 Port USB IP KVM Switch
- 1 - 1U LCD Rack Console Drawer
- 1 - Assembly screws
- 1 - Mounting Rails (Set)
- 1 - Power Adapter
Connector 1 RJ-11 Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 RJ-45 Connector 4 (Quantity) 1 Connector 5 DB-9 Serial Connector 5 (Quantity) 1 Host Connector 1 VGA Host Connector 1 (Quantity) 16 en-US Content Approved Yes
