CB1394
CardBus IEEE-1394 Notebook Firewire Card
Add 3 FireWire ports to a laptop through a CardBus slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name CardBus IEEE-1394 Notebook Firewire Card Product Number CB1394 UPC 065030785938 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 3 Port CardBus FireWire Adapter Card Product Title (Standard) StarTech.com FireWire card adapter - CardBus - Firewire - 3 ports Product Title (Long) 3 Port CardBus 1394a FireWire Adapter Card - Digital Video Editing Kit Product Title (AMZ) 3 Port CardBus 1394a FireWire Adapter Card - Digital Video Editing Kit (CB1394) Title Ingram (Part 1) 3 Port CardBus 1394a FireWire Ad Title Ingram (Part 2) apter Card Website Product Headline Add 3 FireWire ports to a laptop through a CardBus slot Bullet 1 Includes everything needed to edit your own home movies, add scene transitions and other effects with the included ULEAD® VideoStudio® SE software Bullet 2 High speed data transfer rates of up to 400 Mbits/sec. Bullet 3 Hot swap capabilities allows you to connect or disconnect devices without turning off your laptop Bullet 4 Low power consumption preserves laptop computer battery life Bullet 5 Connect up to 63 devices by cascading multiple hubs Marketing Copy Applications - iPods/MP3 players
- Portable hard drives
- External CDR-CDRW drives
- DVD drives
- Digital cameras
- Digital camcorders (compatible with Sony®, Canon®, Panasonic®, JVC®, Samsung® models)
- Scanners
- Printers
Website Search Keyword - iPod
- PCMCIA
Special Notes Separate power adapter only required if connecting high-powered FireWire device(s) that draw more power than CardBus slot can provide. System and Cable Requirements 32-bit CardBus Compatible PCMCIA Type II slot Accessory Products - 1394_6
- 1394_10
- 1394_15
- 1394_46_6
- 1394_46_10
- 1394_46_15
- FIRE46FM
- 1394_6FLBG
- 1394_6FLRY
- 1394_6LEDRD
- 1394_6LEDBL
- PCI2PCMCIA1
- PCI2PCMCIA2
Related Products - CB1394_2
- CB2U2F
Output Current 1A+ Output Voltage (V) 12V DC Power Source Not Included (not required for standard applications) Center Tip Polarity Positive Product Length (mm) 115 Product Width (mm) 54 Product Height (mm) 50 Product Weight (g) 140 TAA Compliant No Maximum Data Transfer Rate 400 Mbps OS Compatibility - Linux
- Mac OS X
- Windows 98SE
- Windows ME
- Windows 2000
- Windows XP
- Windows Vista
- Windows 7
Bus Type CardBus (PCMCIA) Chipset ID VIA/VLI - VT6306 Industry Standards - IEEE 1394-1995
- 1394A
- OHCI

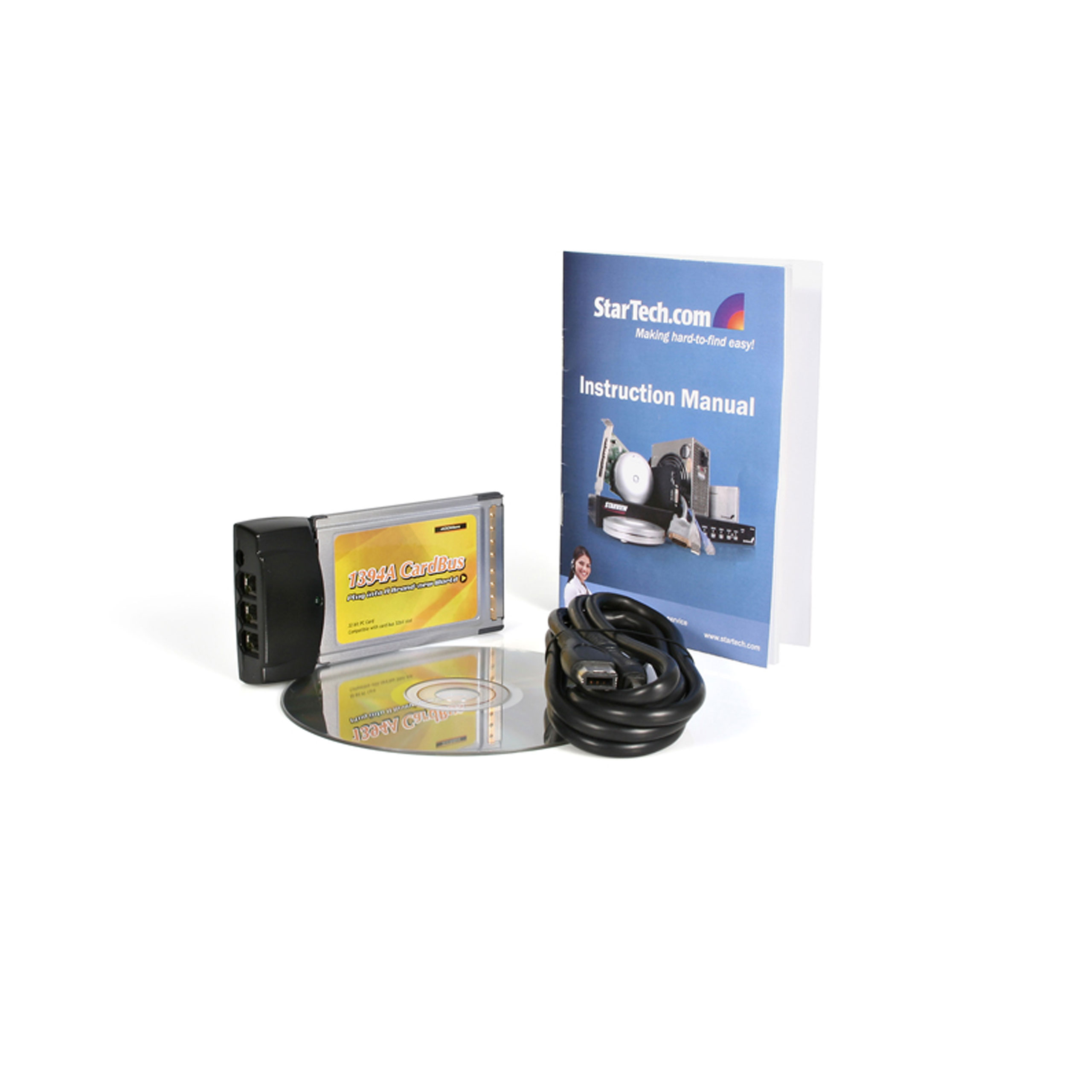

Interface/Bridge FireWire 400 (1394a) Carton Depth (mm) 760 Carton Height (mm) 246 Carton Quantity 50 Carton Weight Gross (g) 12700 Included in Package - 1 - CardBus FireWire Card
- 1 - FireWire 6-pin to 4-pin cable
- 1 - VideoStudio software CD
- 1 - Instruction Manual
Package Depth (mm) 36 Package Height (mm) 144 Package Width (mm) 210 Package Weight (g) 230 Packaging Description 3 Port CardBus FireWire Card Packaging Description India 3 Port CardBus FireWire Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 1 (Quantity) 3 Connector 2 CardBus Slot Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
